Output Shaft: Assembly

WARNING: This page is about a different variant/trim than selected.

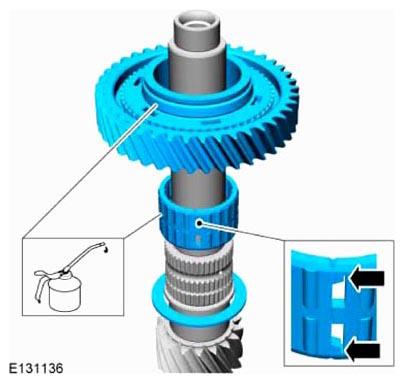

  1. Material  : Motorcraft® Dual Clutch Transmission Fluid/XT-11-QDC (WSS-M2C200-D2)
    G08638366

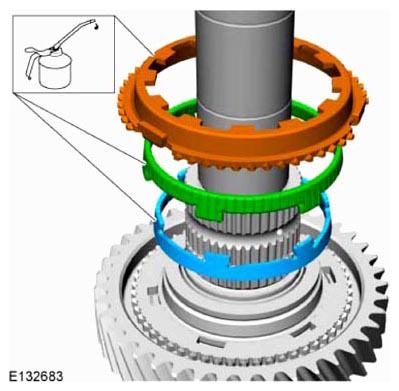

  2. Material  : Motorcraft® Dual Clutch Transmission Fluid/XT-11-QDC (WSS-M2C200-D2)
    G08638367
  3. Special Tool(s)  : 205-D015 (D80L-630-4) Step Plate

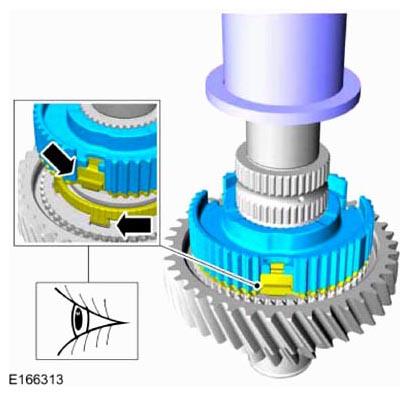

    General Equipment  : Hydraulic Press

    G08638368
  4. NOTE: Make sure that the components are installed to the position noted before removal.

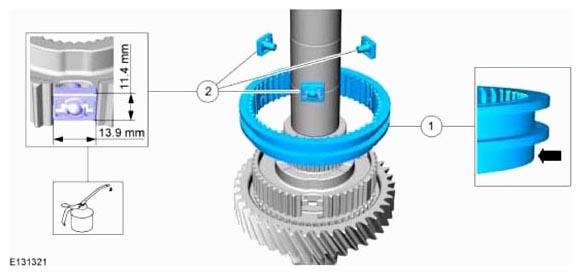

    1. 2. Material  : Motorcraft® Dual Clutch Transmission Fluid/XT-11-QDC (WSS-M2C200-D2)
      G08638369

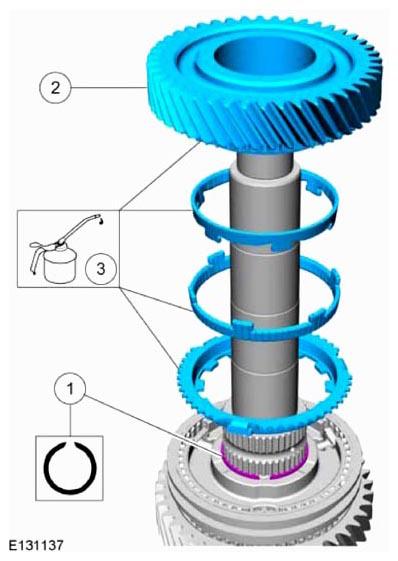

    1. 3. Material  : Motorcraft® Dual Clutch Transmission Fluid/XT-11-QDC (WSS-M2C200-D2)
      G08638370
  6. Special Tool(s)  : 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft

    General Equipment  : Hydraulic Press

    G08638371

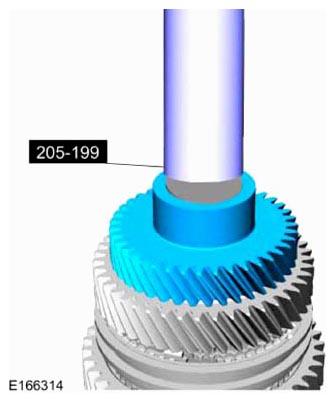

  7. Special Tool(s)  : 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft

    General Equipment  : Hydraulic Press

    G08638372

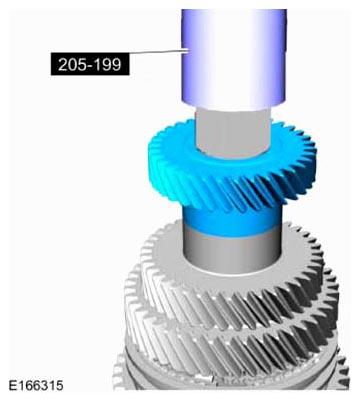

  8. Special Tool(s)  : 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft

    General Equipment  : Hydraulic Press

    G08638373

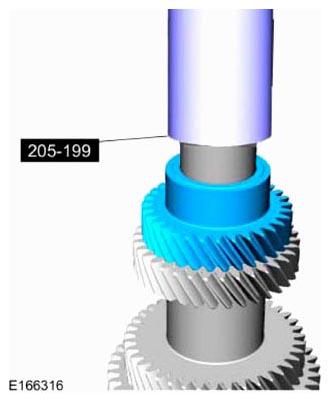

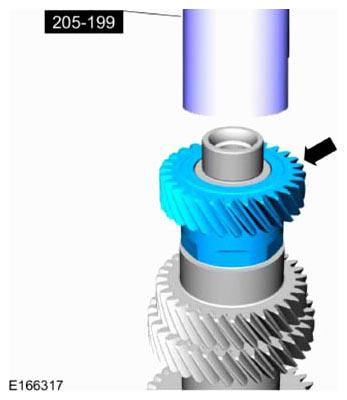

  9. Special Tool(s)  : 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft

    General Equipment  : Hydraulic Press

    G08638374

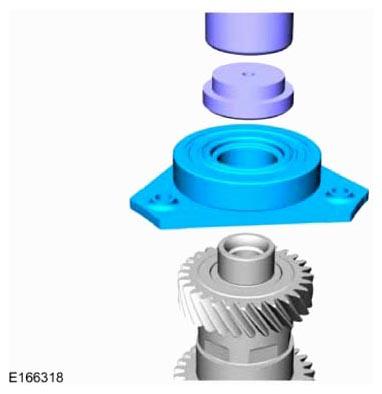

  10. Special Tool(s)  : 205-D015 (D80L-630-4) Step Plate

    General Equipment  : Hydraulic Press

    G08638375

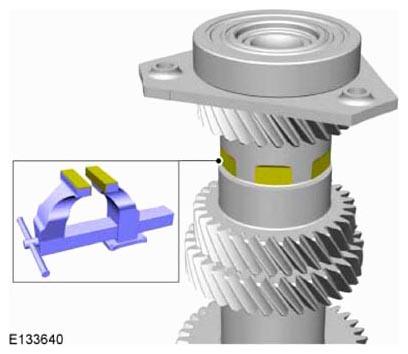

  11. NOTE: Use vise jaw protectors.

    General Equipment  : Vise

    General Equipment  : Vise Jaw Protectors

    G08638376

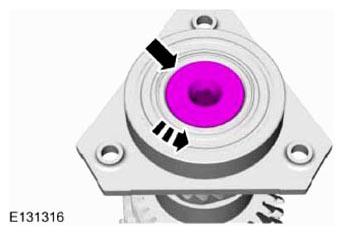

  12. NOTE: The component has a left-hand thread.

    Torque  : 110 Nm

    G08638377

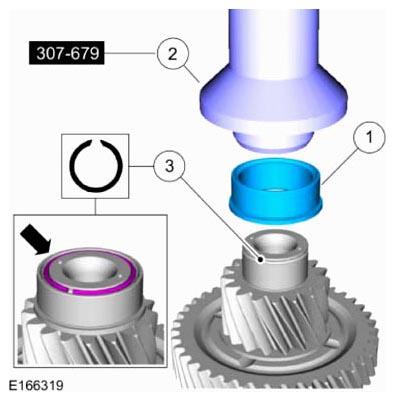

    1. 2. Special Tool(s)  : 307-679 Installer, Countershaft Needle Bearing

      General Equipment  : Hydraulic Press

      G08638378
