Section 1 (Manual Transaxle): Disassembly: Transmission

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS/GENERAL EQUIPMENT

G08636546
 307-003  (T57L-500-B)
Holding Fixture, Transmission
Puller
Punch
WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.
  1. Refer to: HEALTH AND SAFETY PRECAUTIONS .
  2. If equipped.
    G08638296
  3. Install Special Service Tool  : 307-003 (T57L-500-B) Holding Fixture, Transmission

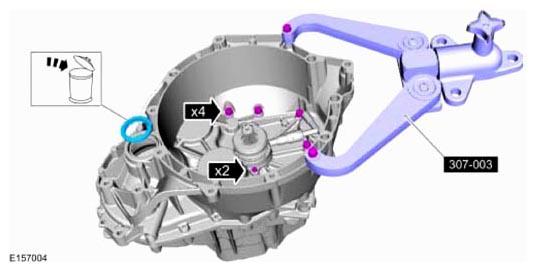

    G08638297
  4. G08638298
  5. NOTE: Make sure that the selector lever is in the neutral (N) position.

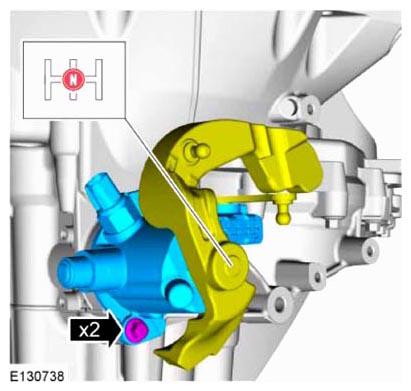

    G08638299

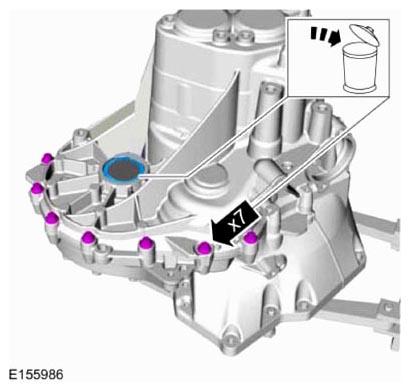

  6. G08638300

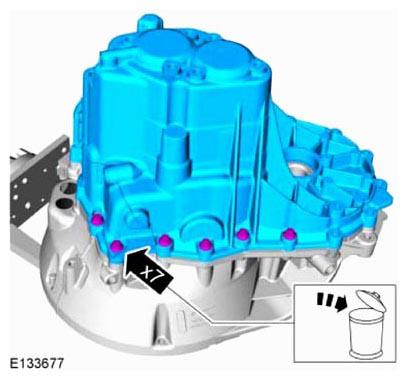

  7. G08638301

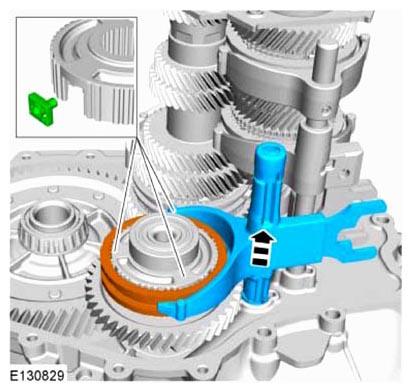

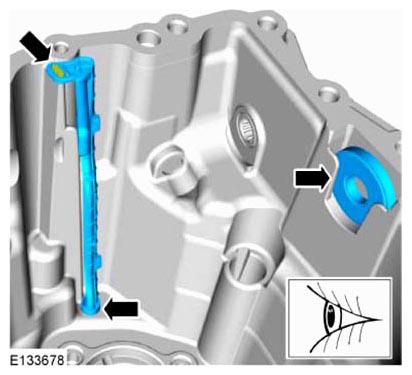

  8. G08638302
  9. G08638303
  10. NOTE: The differential ring gear may hang up on the shaft assemblies.

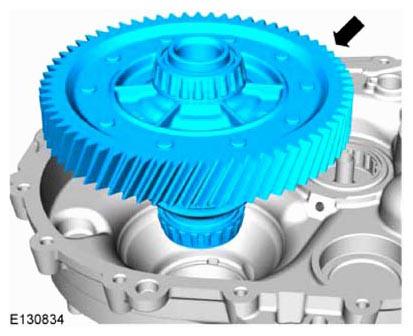

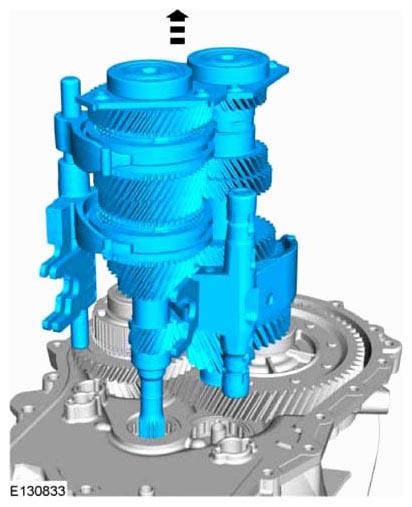

    G08638304

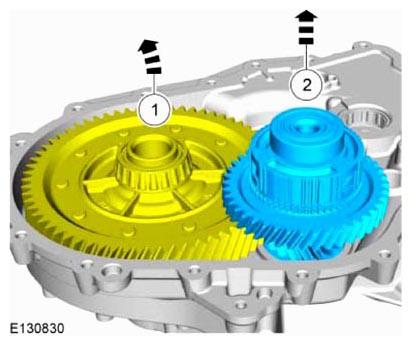

  11. G08638305
  12. G08638306
  13. General Equipment  : Punch

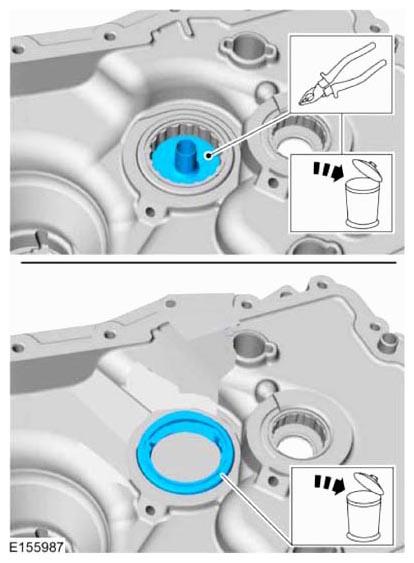

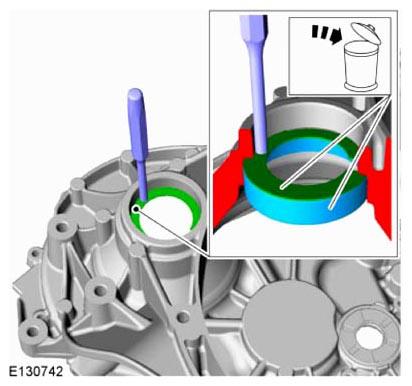

    G08638307
  14. G08638308
  15. General Equipment  : Punch

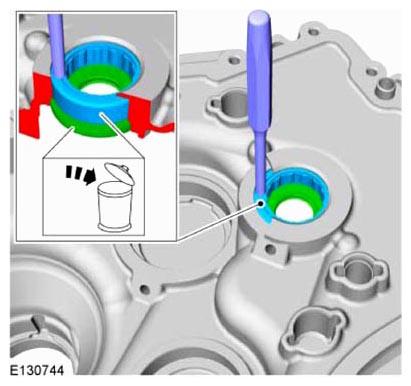

    G08638309

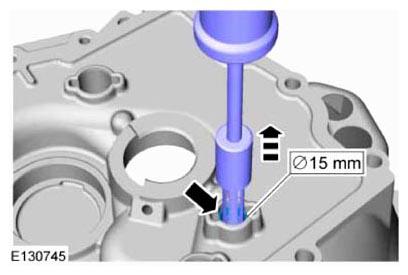

  16. General Equipment  : Puller
    G08638310

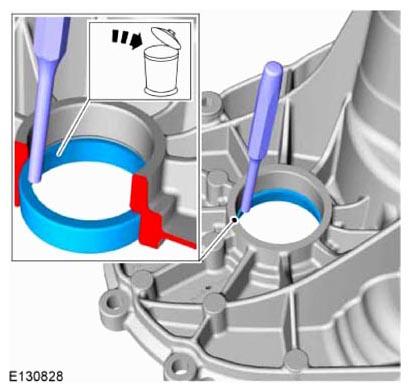

  17. General Equipment  : Punch
    G08638311

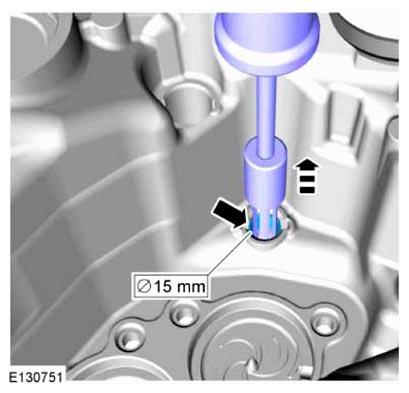

  18. General Equipment  : Puller
    G08638312
  19. General Equipment  : Puller

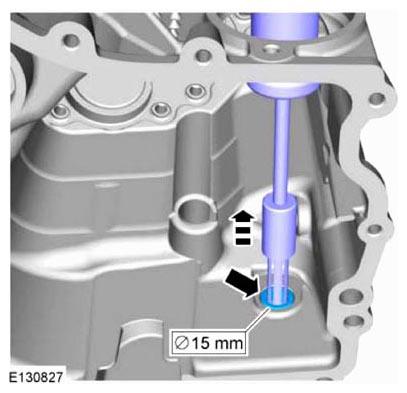

    G08638313
