Selector Mechanism: Installation

WARNING: This page is about a different variant/trim than selected.

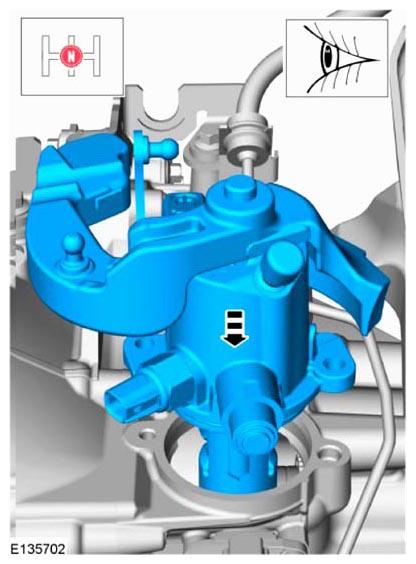

NOTE: The O-ring seal is to be reused unless damaged.

Material : Motorcraft® Dual Clutch Transmission Fluid/XT-11-QDC (WSS-M2C200-D2)
NOTE: Make sure that no components catch.

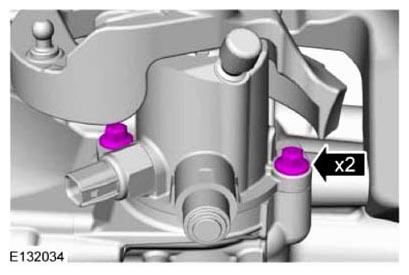

Torque : 24 Nm
Refer to: GEARSHIFT CABLE ADJUSTMENT .
Torque : 48 Nm
Install the following items:
Refer to: BATTERY TRAY .

Refer to: BATTERY .

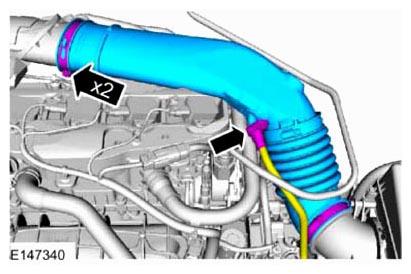

Refer to: AIR CLEANER - 1.6L EcoBoost (132kW/180PS) - Sigma .
If equipped.
