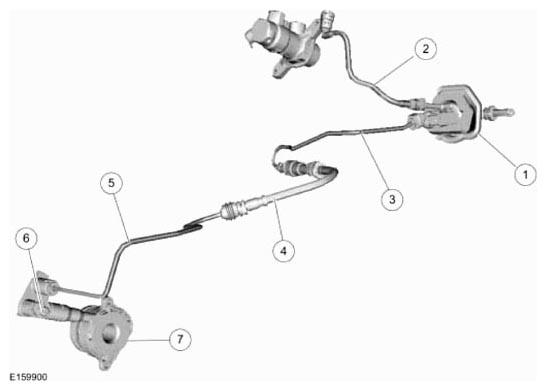

Clutch Controls
WARNING: This page is about a different variant/trim than selected.
| Item |
Part Number |
Description |
| 1 |
7A543 |
Clutch master cylinder |
| 2 |
7T504 |
Clutch reservoir hydraulic tube |
| 3 |
7A512 |
Clutch hydraulic tube |
| 4 |
7A512 |
Clutch hydraulic tube |
| 5 |
7A512 |
Clutch hydraulic tube |
| 6 |
(part of 7A564) |
Clutch bleed fitting |
| 7 |
7A564 |
Clutch slave cylinder |
