Gearshift Lever: Installation

WARNING: This page is about a different variant/trim than selected.

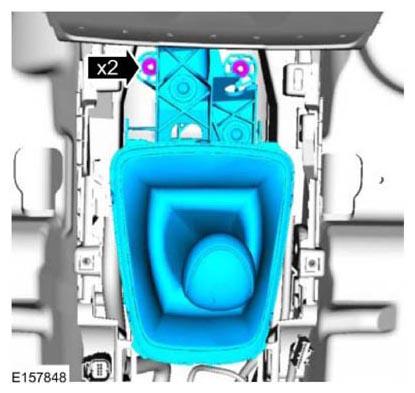

  1. Torque  : 9 Nm
    G08636919

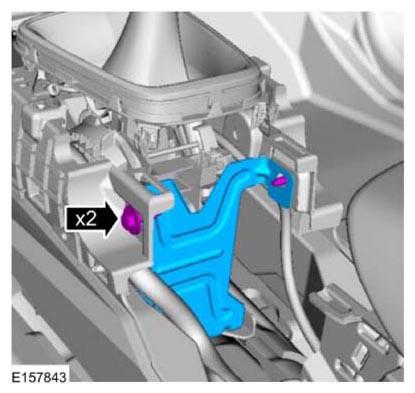

  2. Torque  : 8 Nm
    G08636918

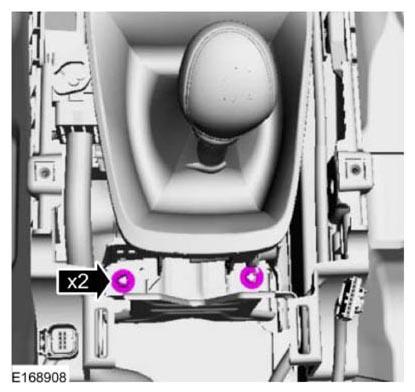

  3. Torque  : 9 Nm
    G08636917

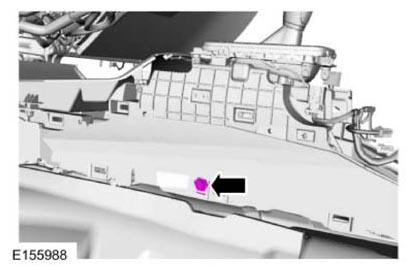

  4. On both sides

    Torque  : 8 Nm

    G08634124
  5. G08636924

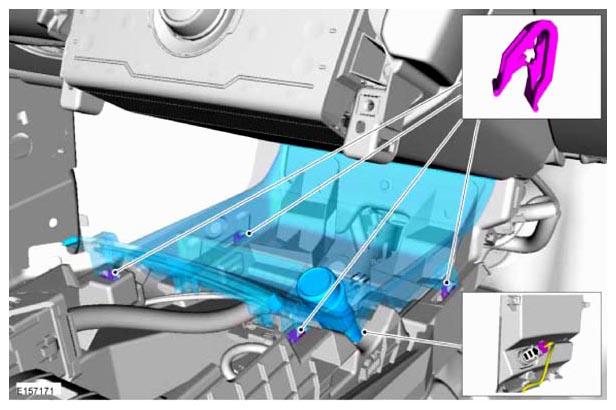

  6. G08638612

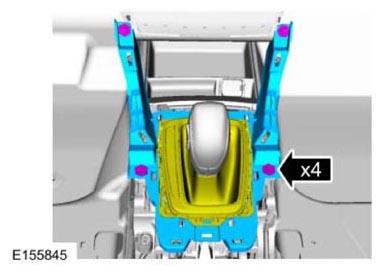

  7. Torque  : 9 Nm
    G08634114

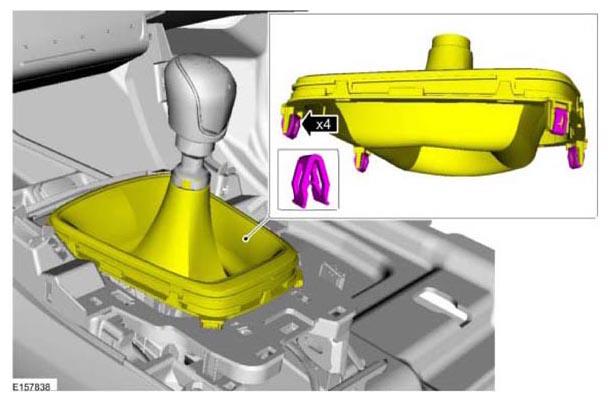

  8. G08636912

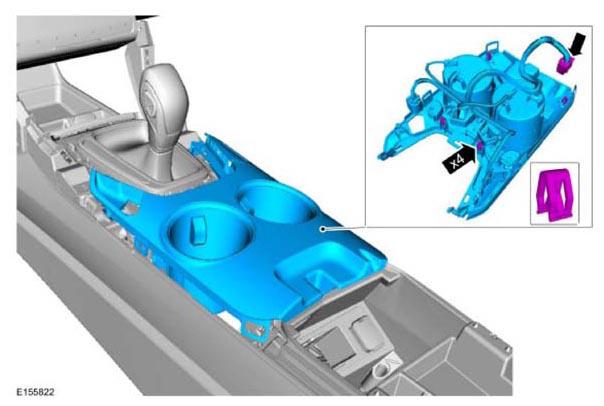

  9. G08634112

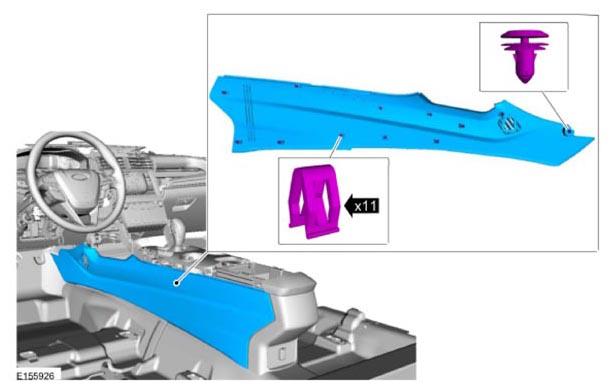

  10. On both sides
    G08634118

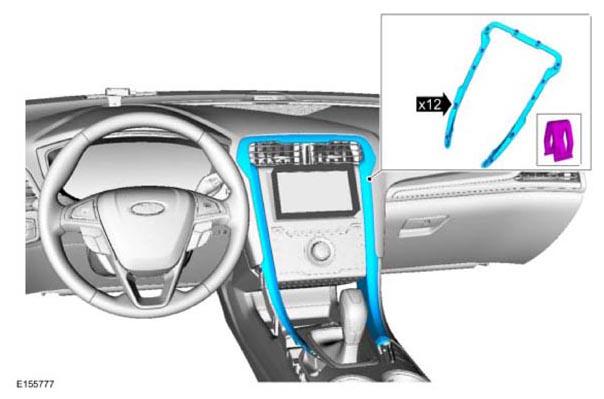

  11. G08634111

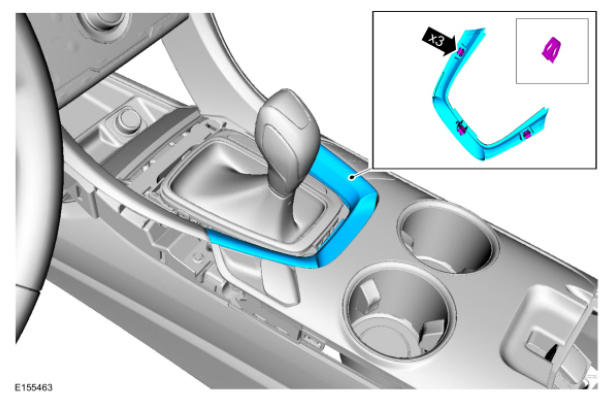

  12. G08633904

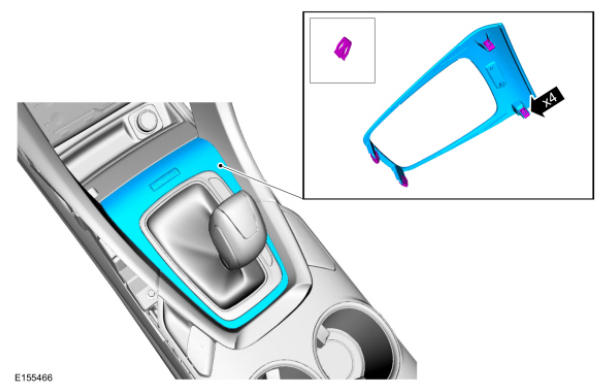

  13. G08633903

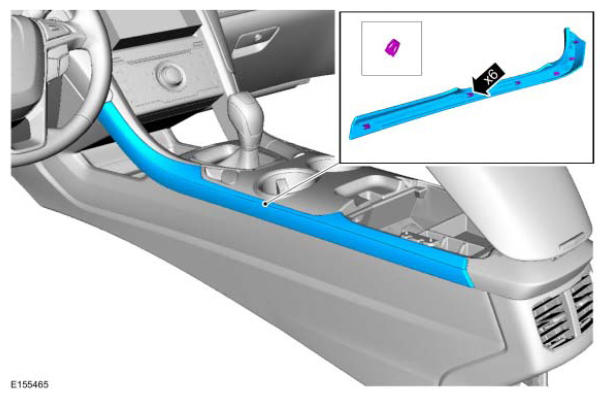

  14. On both sides
    G08633902
  15. Adjust the gearshift cable when a new selector lever is installed.

    Refer to: GEARSHIFT CABLE ADJUSTMENT  .

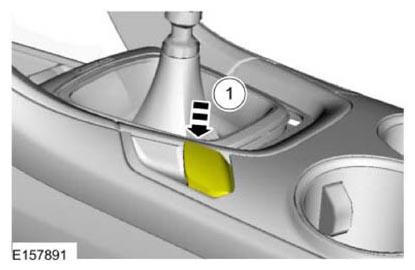

    1. Release the parking brake.
      G08636904
  17. NOTE: Anytime the parking brake switch electrical connector has been disconnected, the EPB  system is deactivated and a DTC  is stored in the ABS  module. Perform the following step to restore the EPB  system and clear the ABS  module DTC  .

    Apply and release the parking brake twice, pausing with the switch in the NEUTRAL (AT REST) position between apply and release.
