Transfer Case

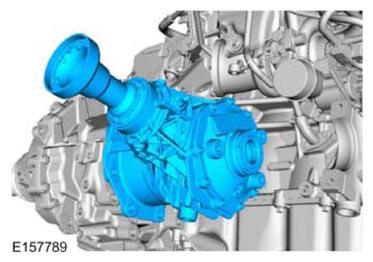

  1. G08637012
  2. Torque  : 63 Nm

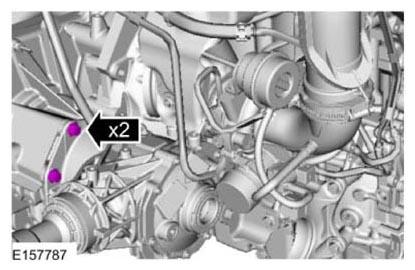

    G08637010
  3. Torque  : 63 Nm

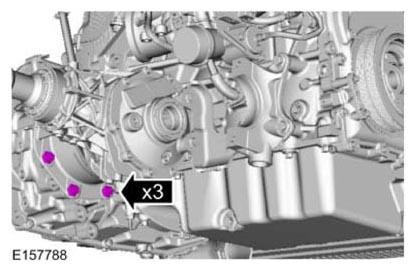

    G08637011
  4. Torque  :
    1. 25 Nm
    2. 63 Nm

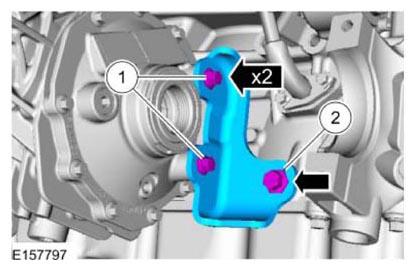

      G08637016

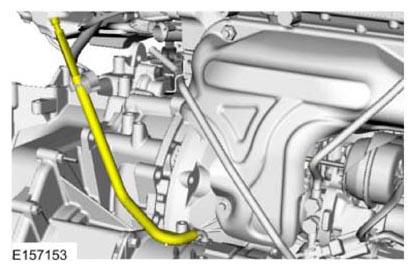

  5. G08637000
  6. Refer to: FRONT HALFSHAFT RH .
  7. Torque  : 11 Nm

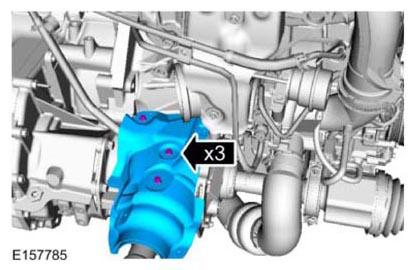

    G08637006
  8. Refer to: CATALYTIC CONVERTER - 2.0L EcoBoost (184kW/250PS) - MI4 .

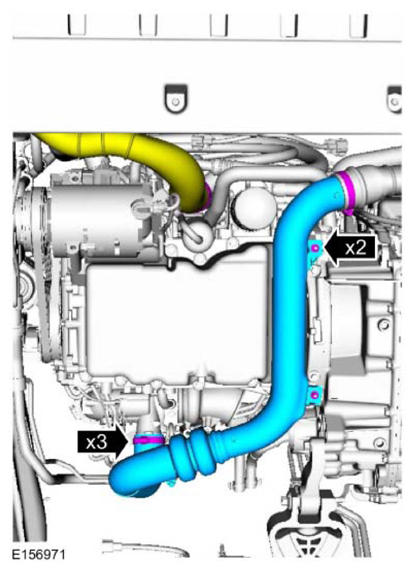

  9. G08635456
  10. G08636963
  11. G08636964
  12. Torque  : 45 Nm
    G08636963
  13. Refer to: REAR DRIVESHAFT .
  14. G08632015
