Removal And Installation

WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component identification and locations, refer to Seat - Exploded View, Front .

1.

WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

From under the seat, separate the carpet flap toe-kick.
1. 1.

  Separate the J-clip from the cushion frame.
1. 2.

  Peel up the carpet flap toe-kick and remove the rear cover pin-type retainers from the cushion side shield and recliner cover.

Courtesy of FORD MOTOR COMPANY

2.

From the front of the seat, disengage the wire harness retainer and disconnect the seat control switch electrical connectors.

Courtesy of FORD MOTOR COMPANY

3.

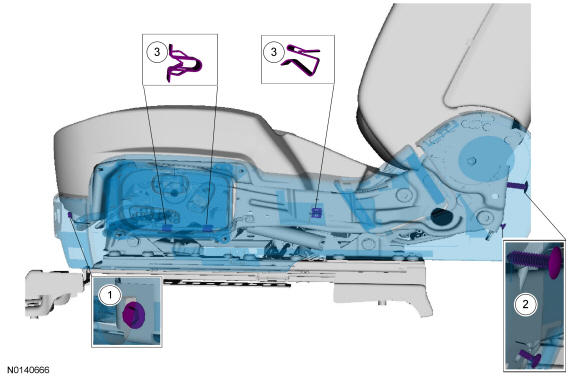

Remove the seat cushion side shield from the seat cushion.
1. 1.

  Remove the screw.
1. 2.

  Remove the scrivet and the pushpin.
1. 3.

  Disengage the side shield retainers from the seat cushion.
1. 4.

  Remove the cushion side shield from the seat cushion.

Courtesy of FORD MOTOR COMPANY

4.

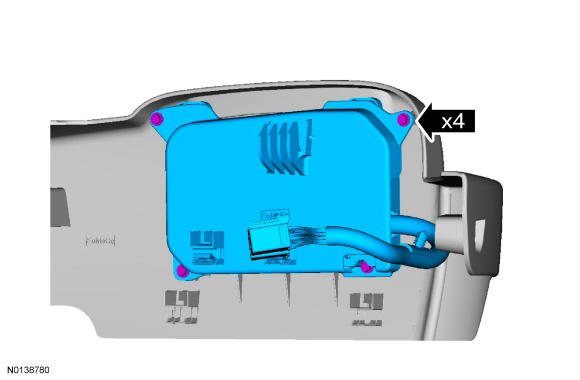

Remove the seat control switch.
1. 1.

  Remove the screws and the seat control switch cover.
1. 2.

  Remove the seat control switch from the cushion side shield.

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.
