Wheel Speed Sensor - Front: Notes

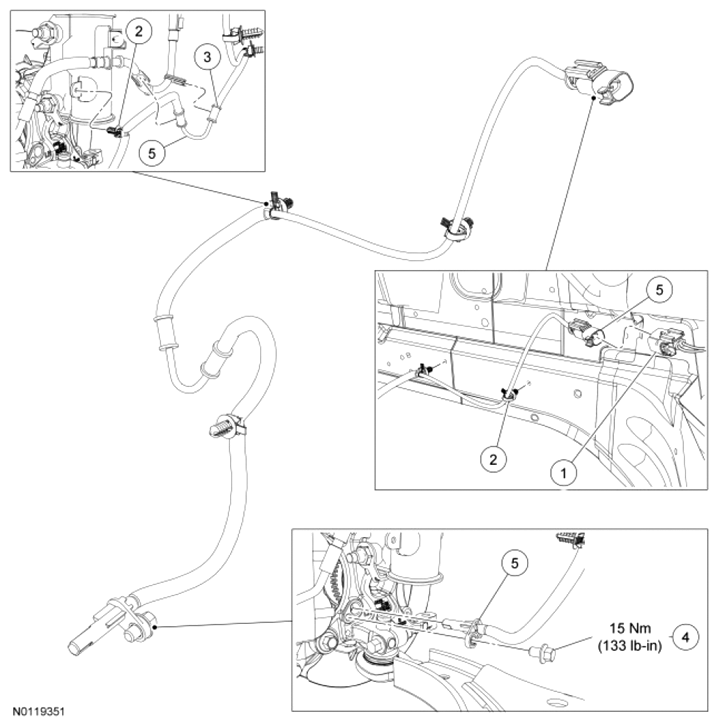

Fig 1: Front Wheel Speed Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 14290)
2	-	Wheel speed sensor harness pin-type retainers (part of 2C204) (3 required)
3	-	Wheel speed sensor grommets (part of 2C204) (2 required)
4	W500020	Wheel speed sensor bolt
5	2C204	Wheel speed sensor
