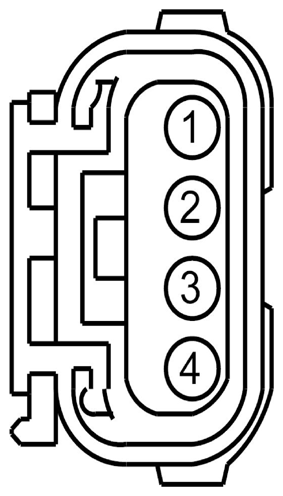

Fuel Pump (FP) Module Connector End View (C433)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RMC32 (GN-BU) | 20 | CTRL MOD. - SENSOR FUEL LEVEL | |
| 2 | VMC11 (YE-VT) | 20 | SENSOR - FUEL LEVEL (FLI) | |
| 3 | RE515 (WH-BN) | 12 | FUEL PUMP RETURN (FPRTN) | |
| 4 | CE515 (YE-GY) | 12 | FUEL PUMP POWER (FPPWR) |

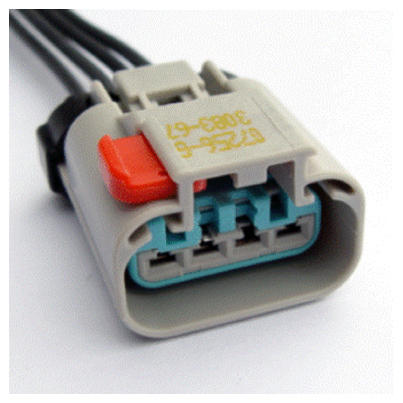

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-709 | Service Part Number: 3U2Z-14S411-DGAA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses
|
