Inline Connector End View (C264)

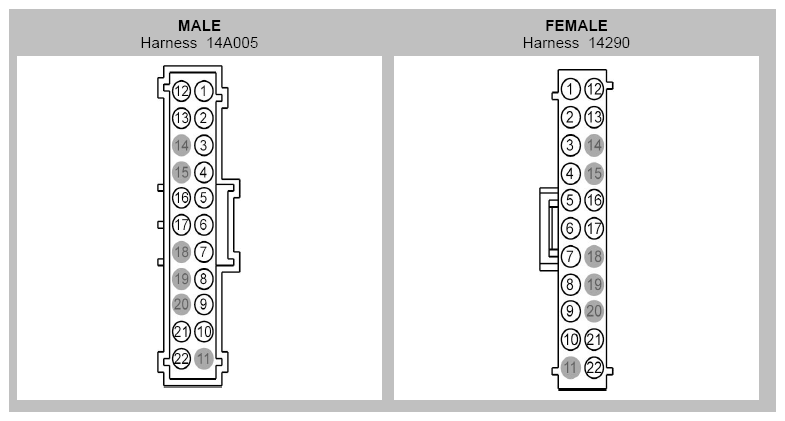

Fig 1: Identifying Inline Connector (C264)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	VDB04 (WH-BU)	22
2	VDB05 (WH)	22
3	LE230 (BN-BU)	22
4	VE225 (YE-OG)	22
5	RE405 (GN-WH)	20	14290
5	RE405 (GN-WH)	22	14A005
6	VE518 (BN-WH)	22
7	VE521 (WH-GN)	20	14290 - 5.8L
8	VE922 (VT-GN)	22
9	VET66 (GN)	20
10	RE406 (GY-VT)	20
11	*	*
12	VCA24 (GN-OG)	22
13	VCA23 (BU-WH)	22
14	*	*
15	*	*
16	CE114 (GN-BU)	20
17	SBB23 (WH-RD)	20
18	*	*
19	*	*
20	*	*
21	VCA04 (BU-OG)	20
22	RCA18 (BN-GN)	20
