Component Location Views

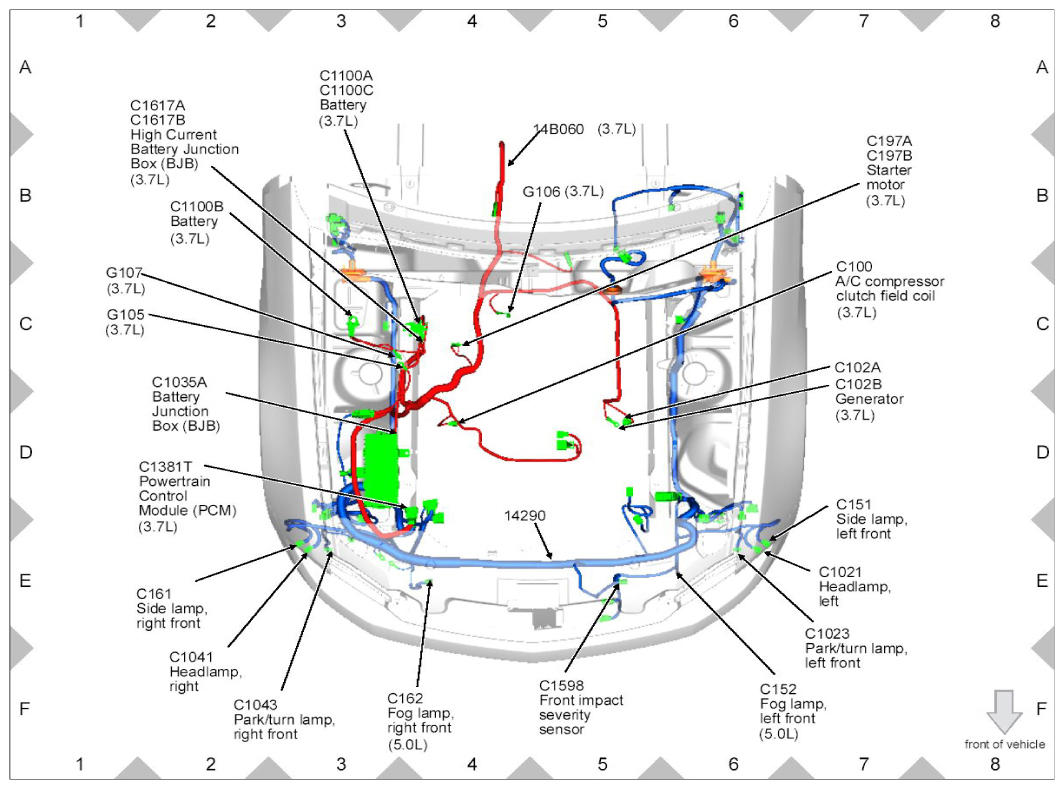

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 5)

G09092892

Courtesy of FORD MOTOR CO.

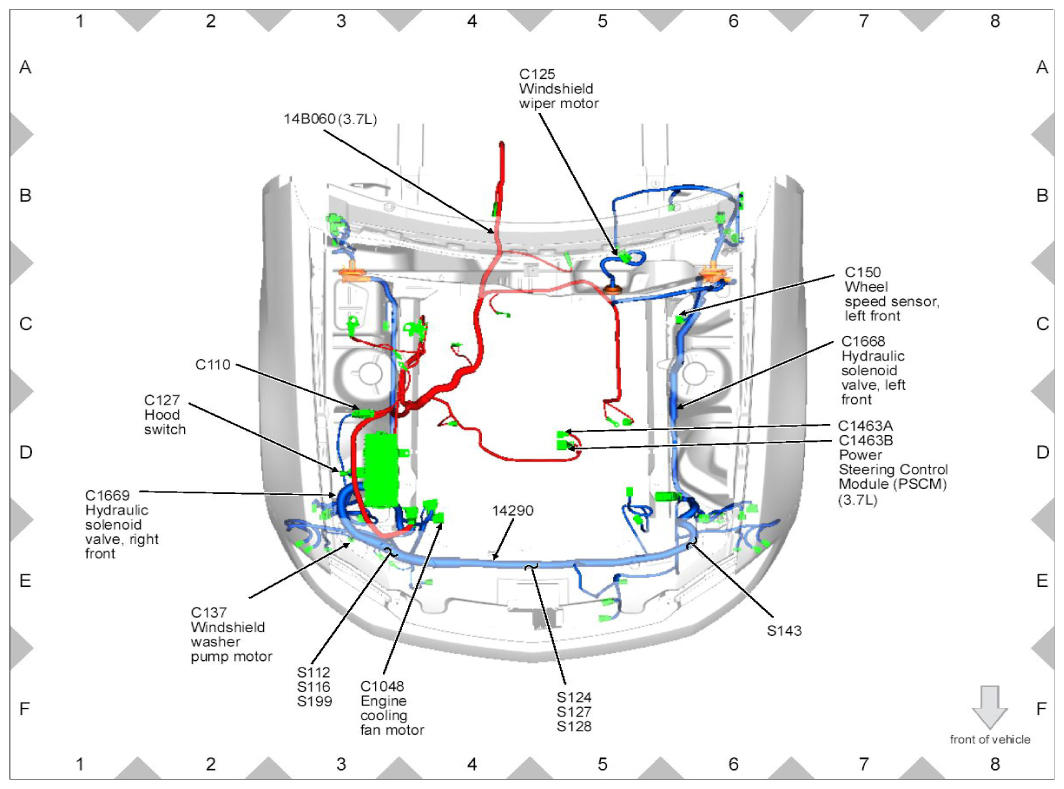

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 5)

G09092893

Courtesy of FORD MOTOR CO.

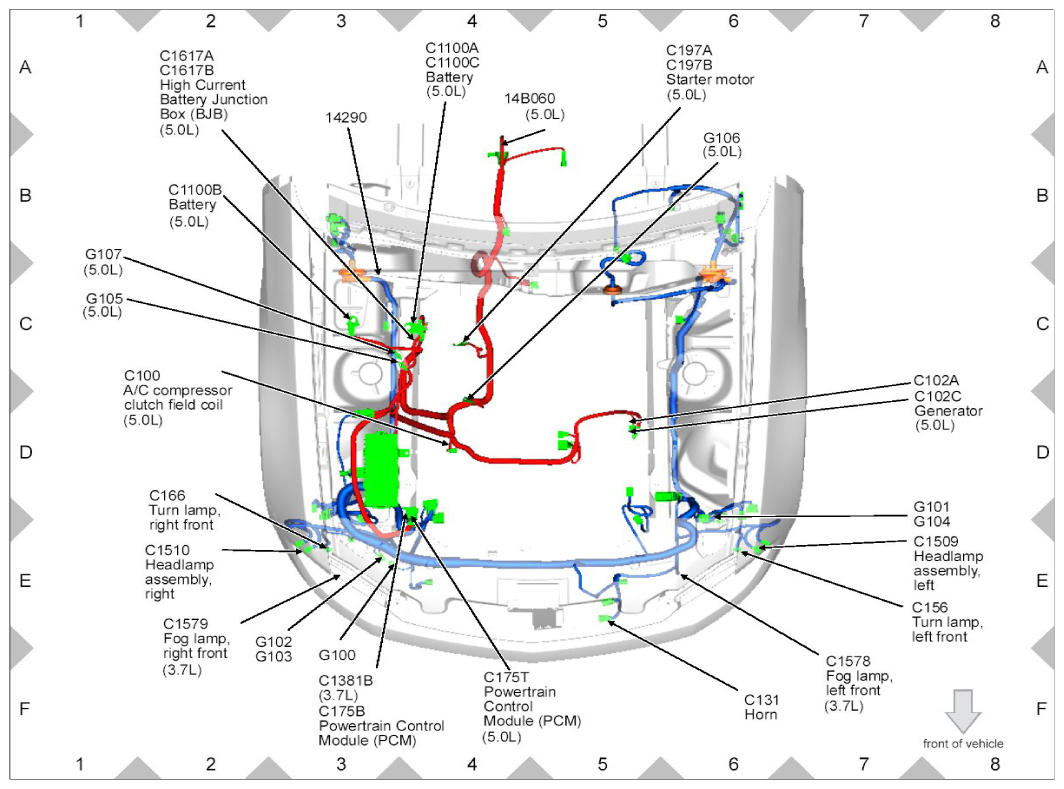

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 5)

G09092894

Courtesy of FORD MOTOR CO.

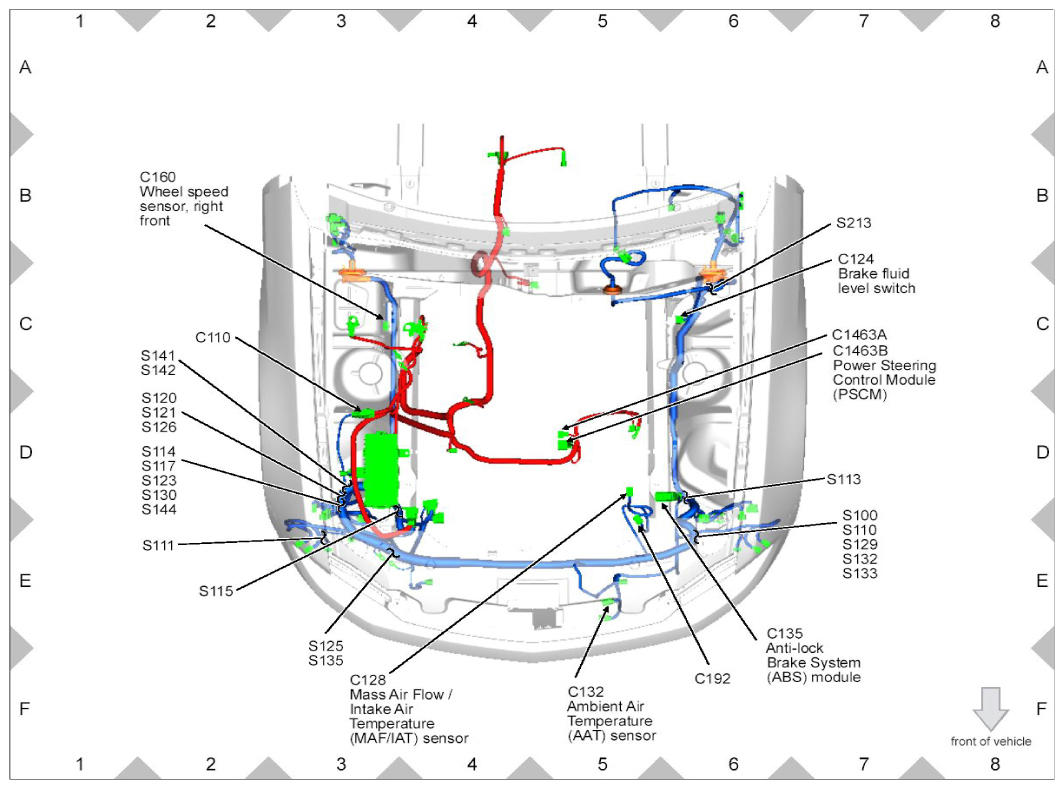

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 5)

G09092895

Courtesy of FORD MOTOR CO.

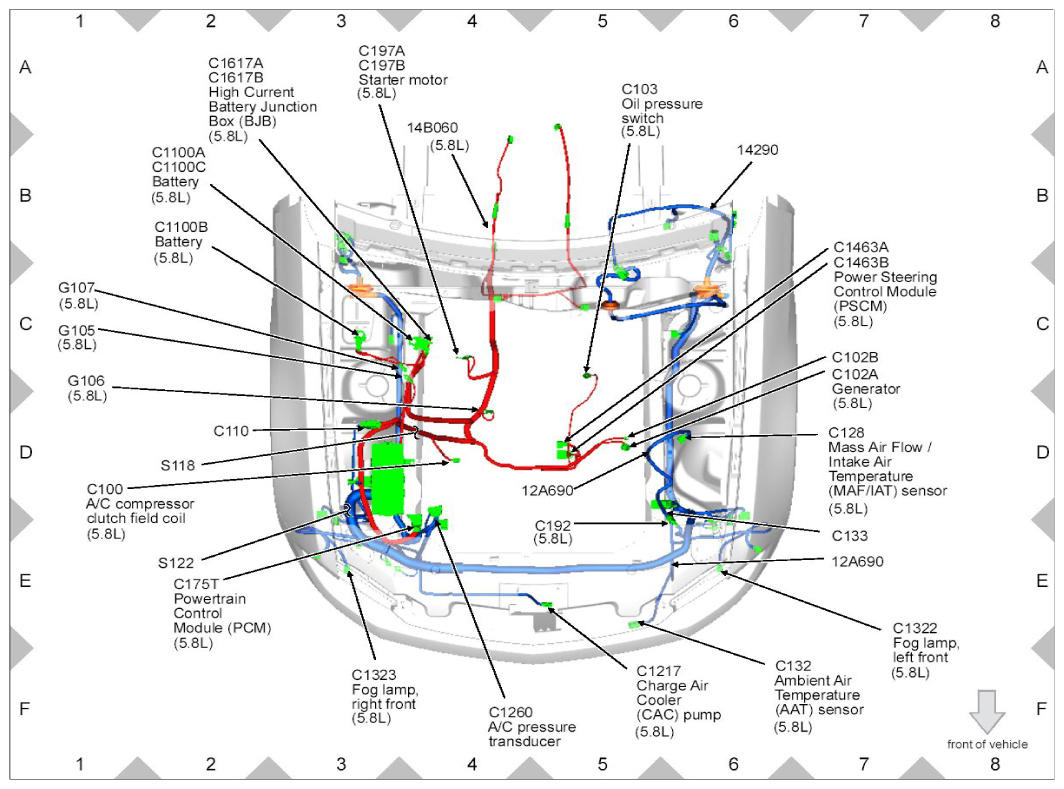

Fig 5: Engine Compartment Wiring Harness Connectors Location (5 Of 5)

G09092896

Courtesy of FORD MOTOR CO.

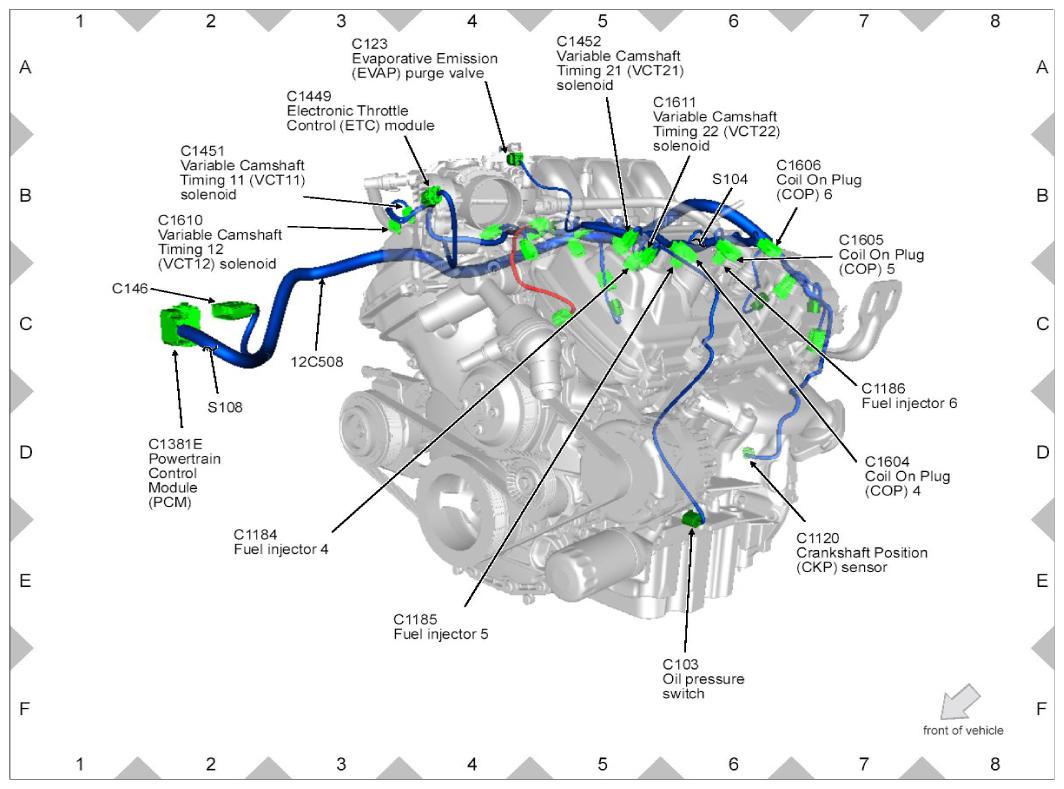

Fig 6: Engine Wiring Harness Connectors Location (1 Of 6)

G09092897

Courtesy of FORD MOTOR CO.

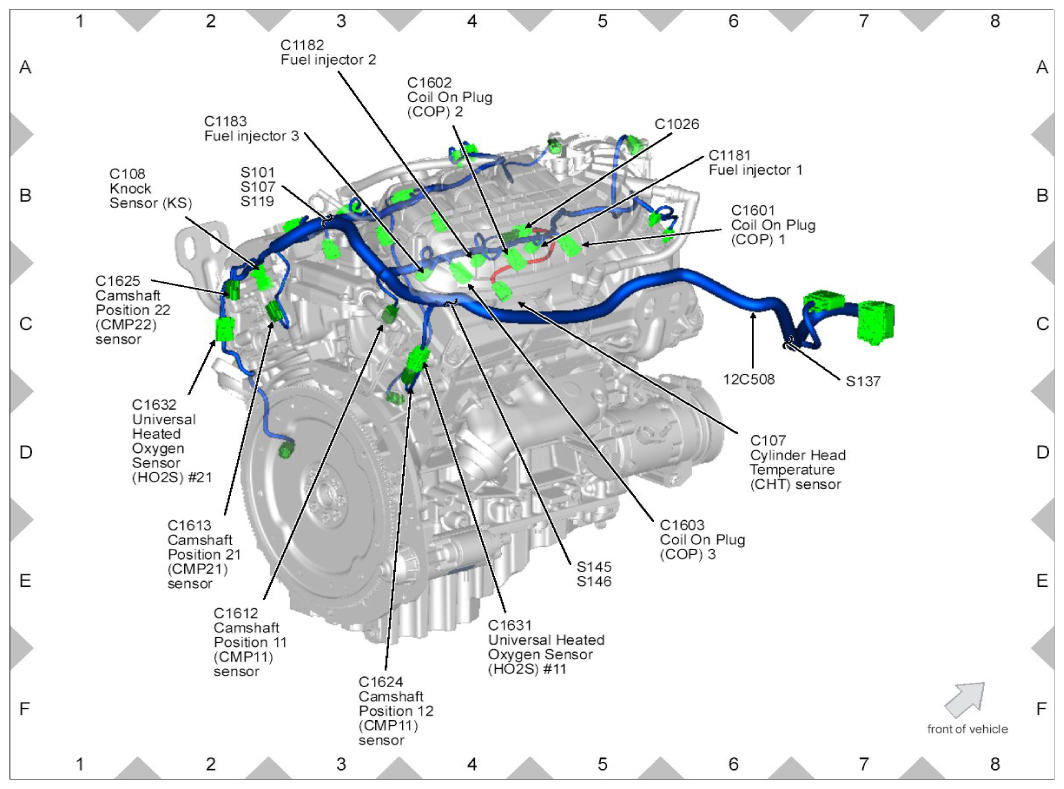

Fig 7: Engine Wiring Harness Connectors Location (2 Of 6)

G09092898

Courtesy of FORD MOTOR CO.

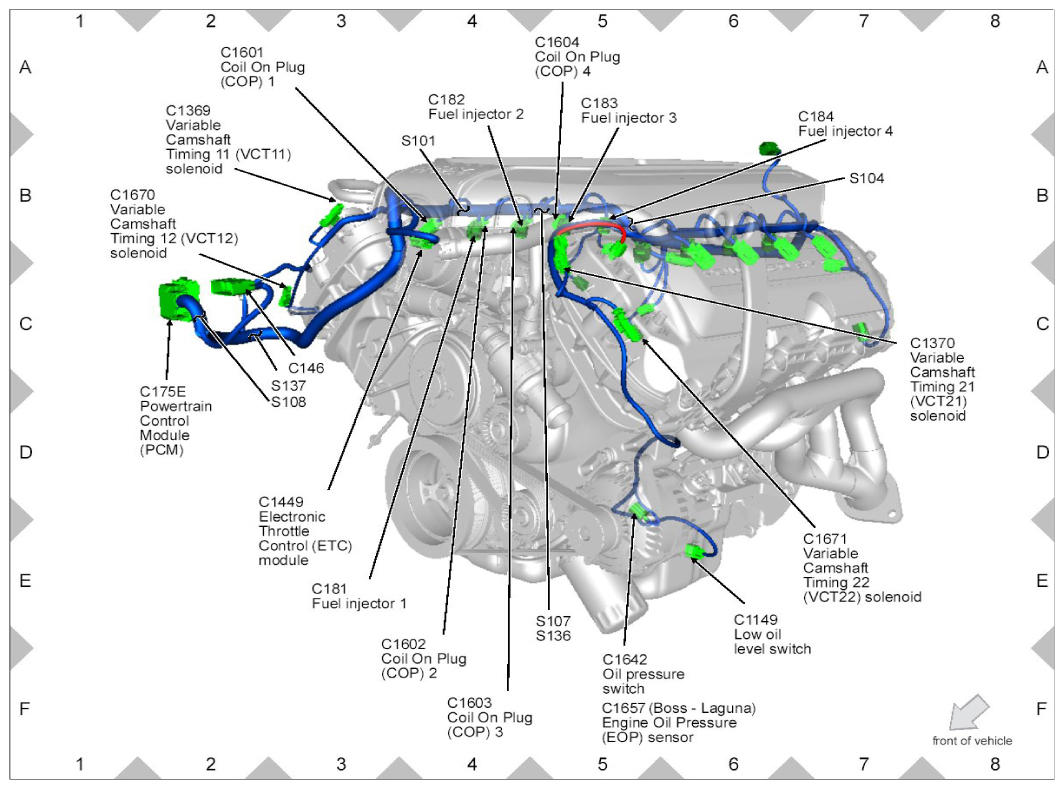

Fig 8: Engine Wiring Harness Connectors Location (3 Of 6)

G09092899

Courtesy of FORD MOTOR CO.

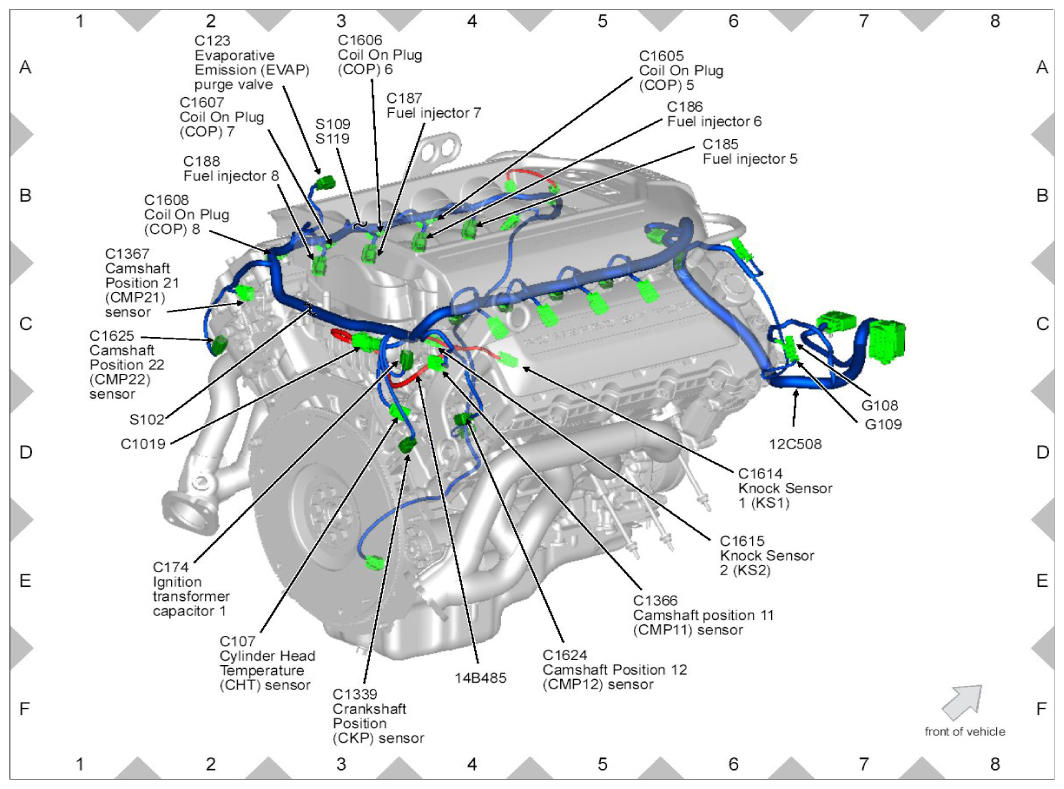

Fig 9: Engine Wiring Harness Connectors Location (4 Of 6)

G09092900

Courtesy of FORD MOTOR CO.

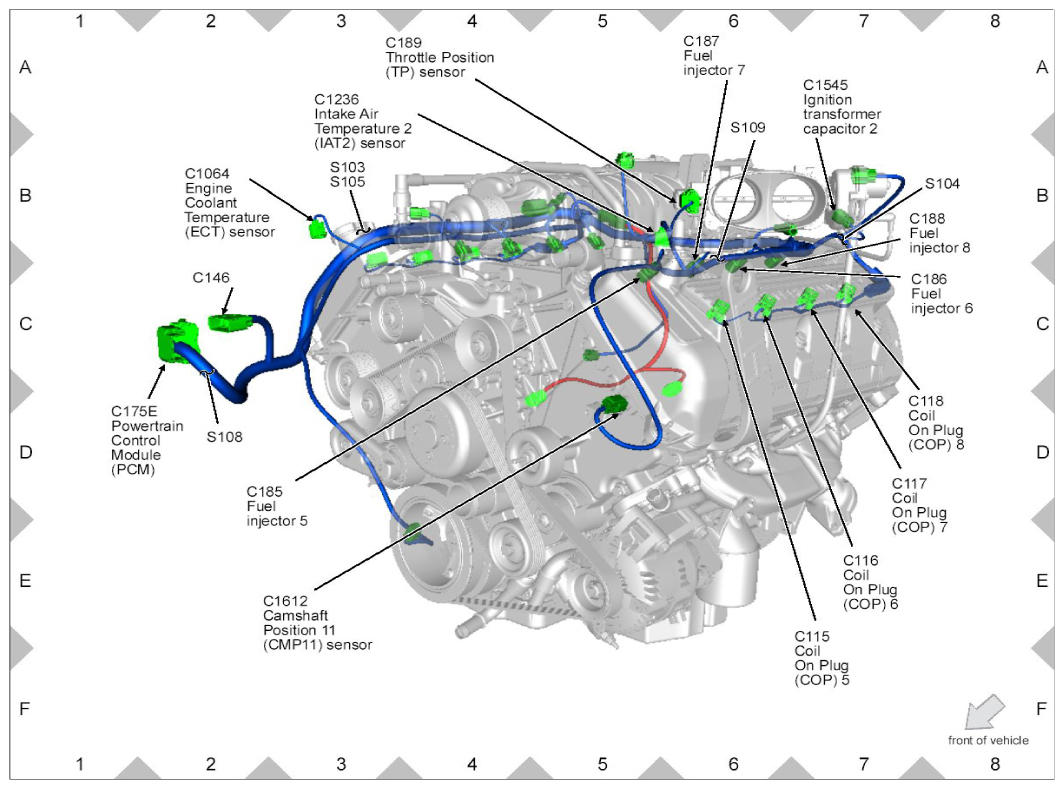

Fig 10: Engine Wiring Harness Connectors Location (5 Of 6)

G09092901

Courtesy of FORD MOTOR CO.

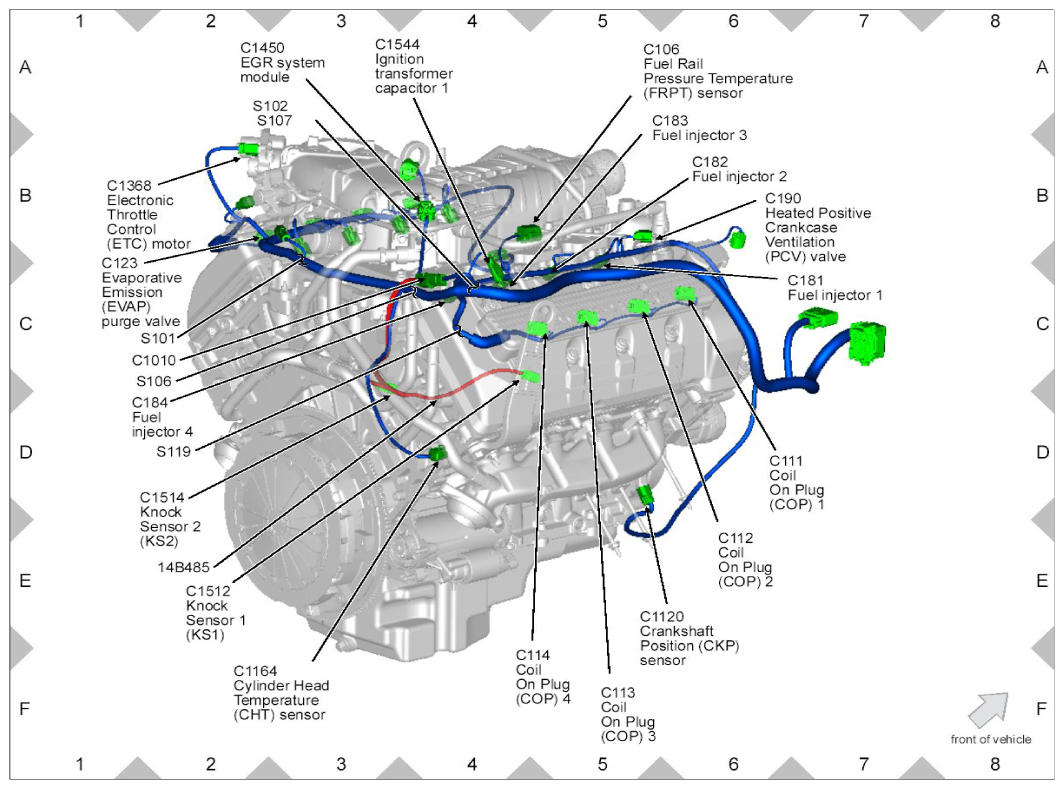

Fig 11: Engine Wiring Harness Connectors Location (6 Of 6)

G09092902

Courtesy of FORD MOTOR CO.

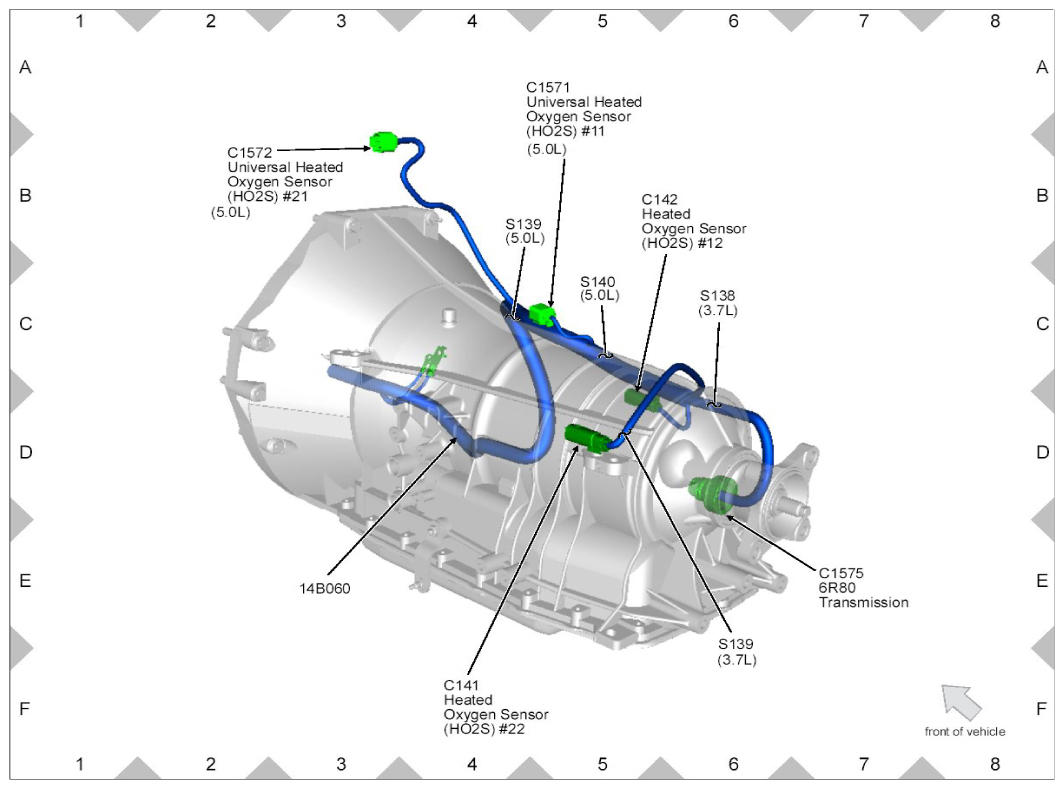

Fig 12: Transmission Wiring Harness Connectors Location (1 Of 3)

G09092903

Courtesy of FORD MOTOR CO.

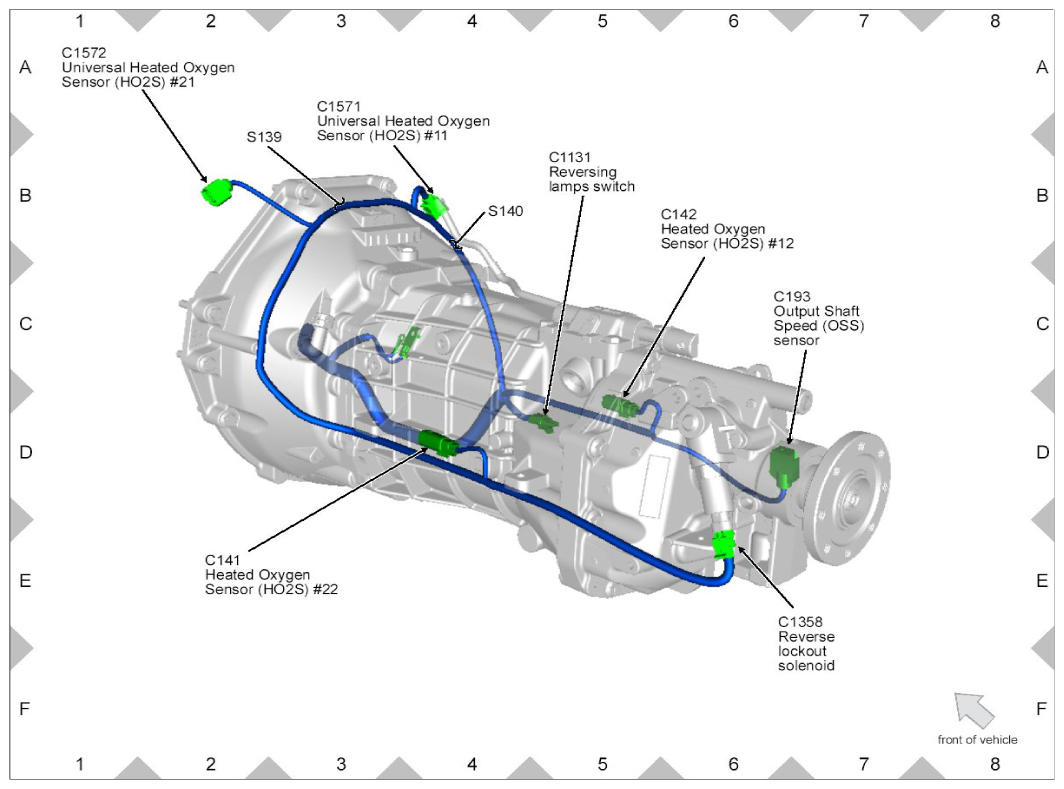

Fig 13: Transmission Wiring Harness Connectors Location (2 Of 3)

G09092904

Courtesy of FORD MOTOR CO.

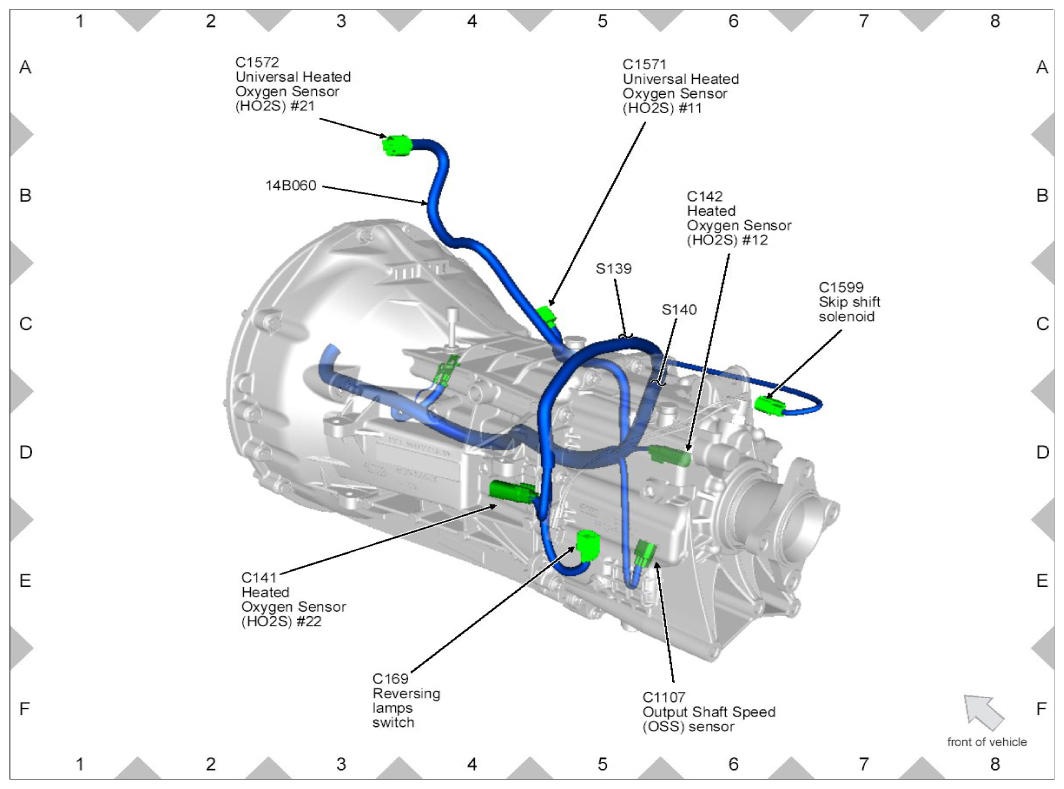

Fig 14: Transmission Wiring Harness Connectors Location (3 Of 3)

G09092905

Courtesy of FORD MOTOR CO.

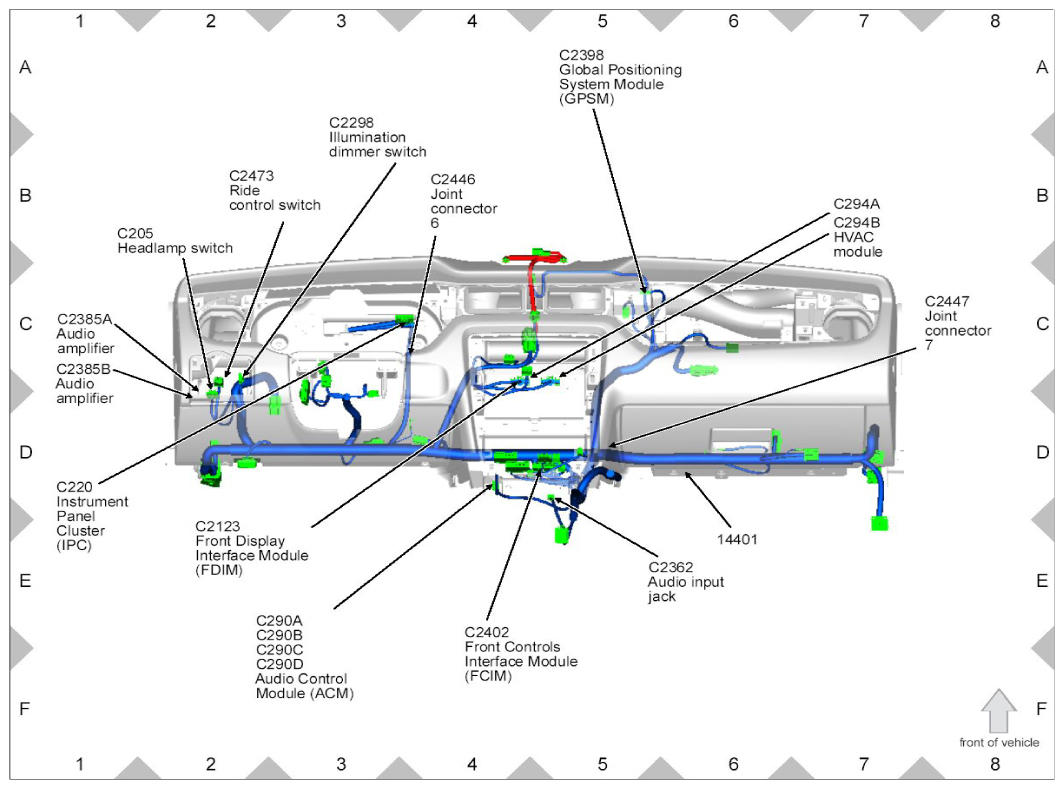

Fig 15: Dash Board Wiring Harness Connectors Location - Front Side (1 Of 2)

G09092906

Courtesy of FORD MOTOR CO.

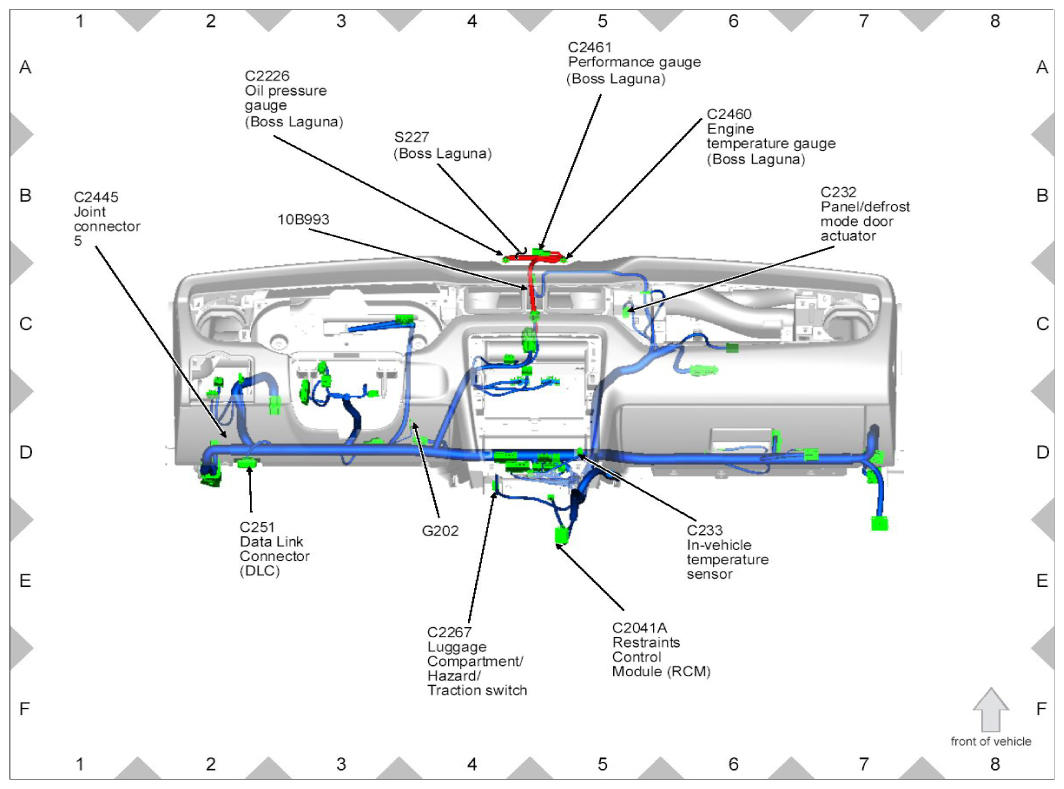

Fig 16: Dash Board Wiring Harness Connectors Location - Front Side (2 Of 2)

G09092907

Courtesy of FORD MOTOR CO.

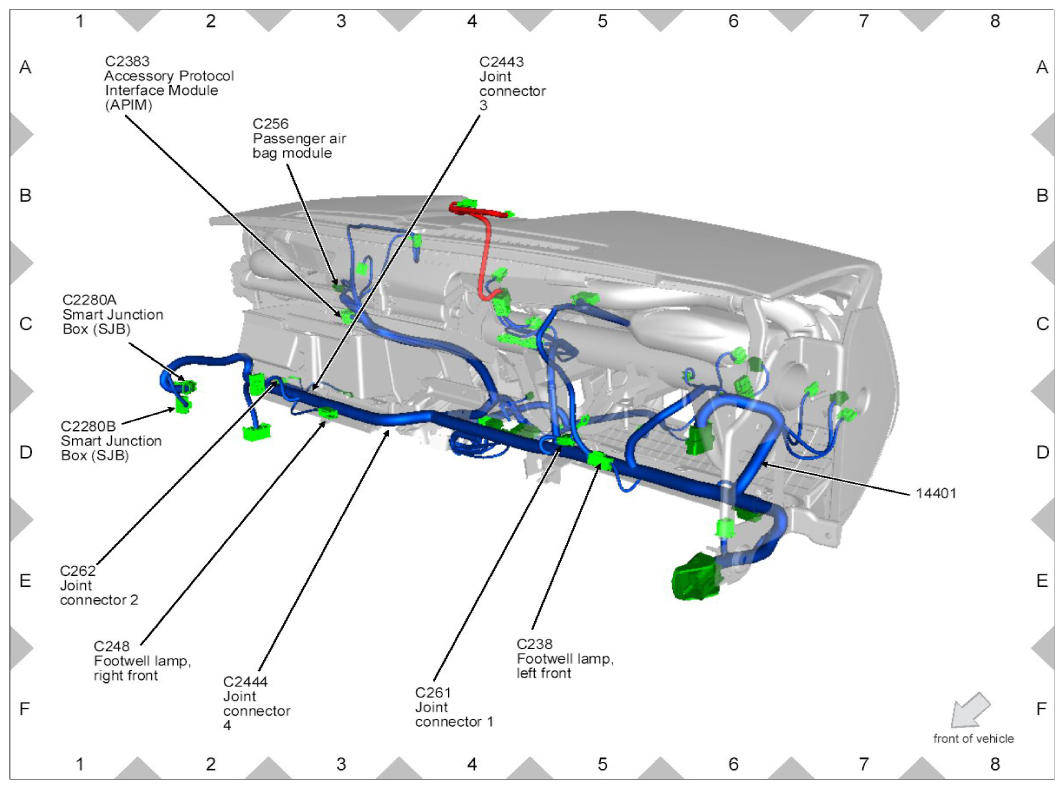

Fig 17: Dash Board Wiring Harness Connectors Location - Back Side (1 Of 2)

G09092908

Courtesy of FORD MOTOR CO.

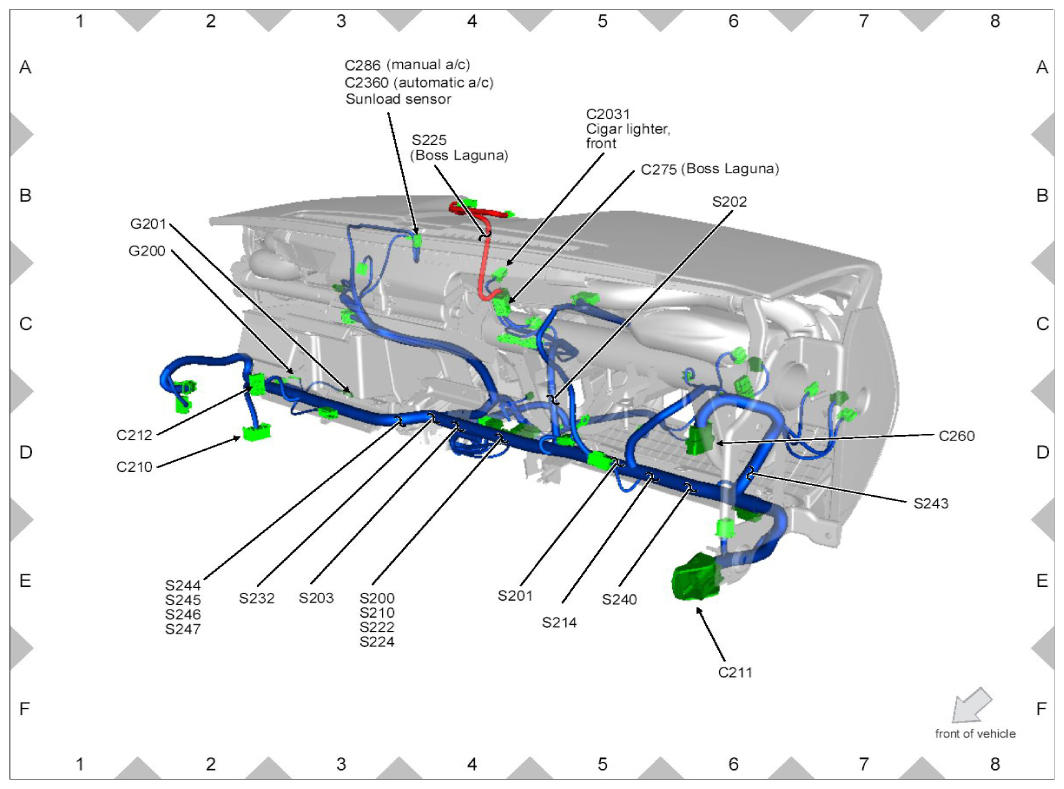

Fig 18: Dash Board Wiring Harness Connectors Location - Back Side (2 Of 2)

G09092909

Courtesy of FORD MOTOR CO.

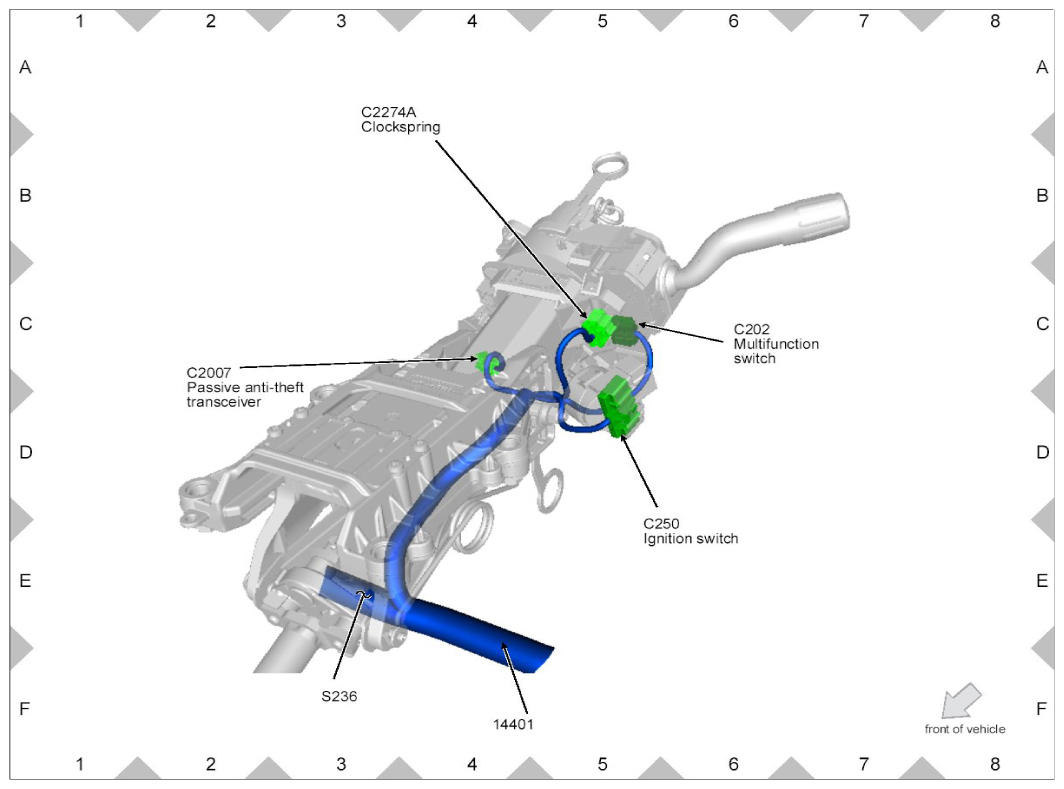

Fig 19: Steering Column Control Module Wiring Harness Connectors Location

G09092910

Courtesy of FORD MOTOR CO.

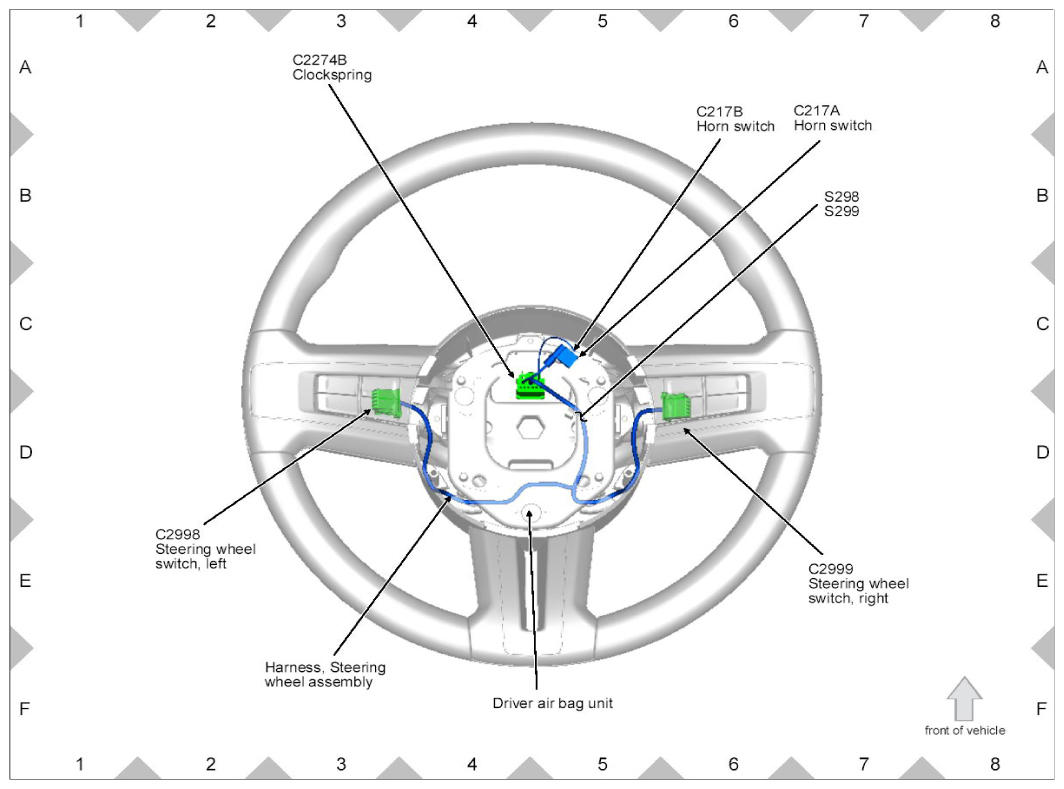

Fig 20: Steering Wheel Wiring Harness Connectors Location

G09092911

Courtesy of FORD MOTOR CO.

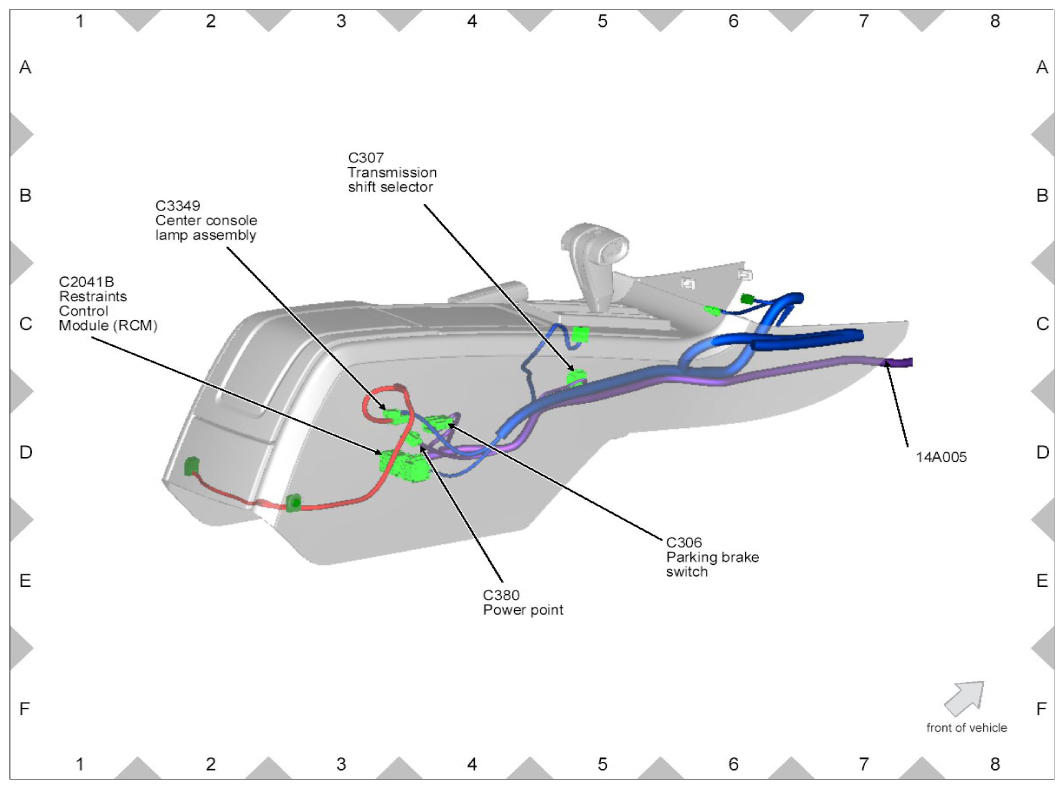

Fig 21: Center Console Wiring Harness Connectors Location

G09092912

Courtesy of FORD MOTOR CO.

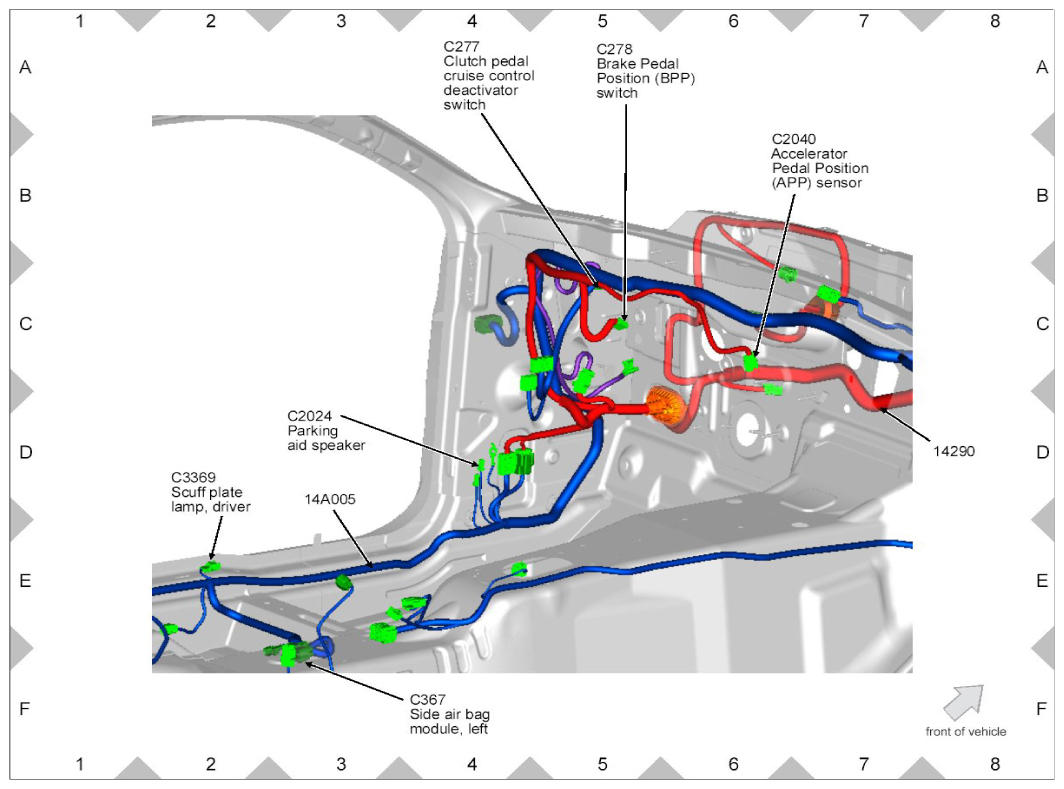

Fig 22: LH Front Compartment Wiring Harness Connectors Location (1 Of 2)

G09092913

Courtesy of FORD MOTOR CO.

Fig 23: LH Front Compartment Wiring Harness Connectors Location (2 Of 2)

G09092914

Courtesy of FORD MOTOR CO.

Fig 24: RH Front Compartment Wiring Harness Connectors Location (1 Of 2)

G09092915

Courtesy of FORD MOTOR CO.

Fig 25: RH Front Compartment Wiring Harness Connectors Location (2 Of 2)

G09092916

Courtesy of FORD MOTOR CO.

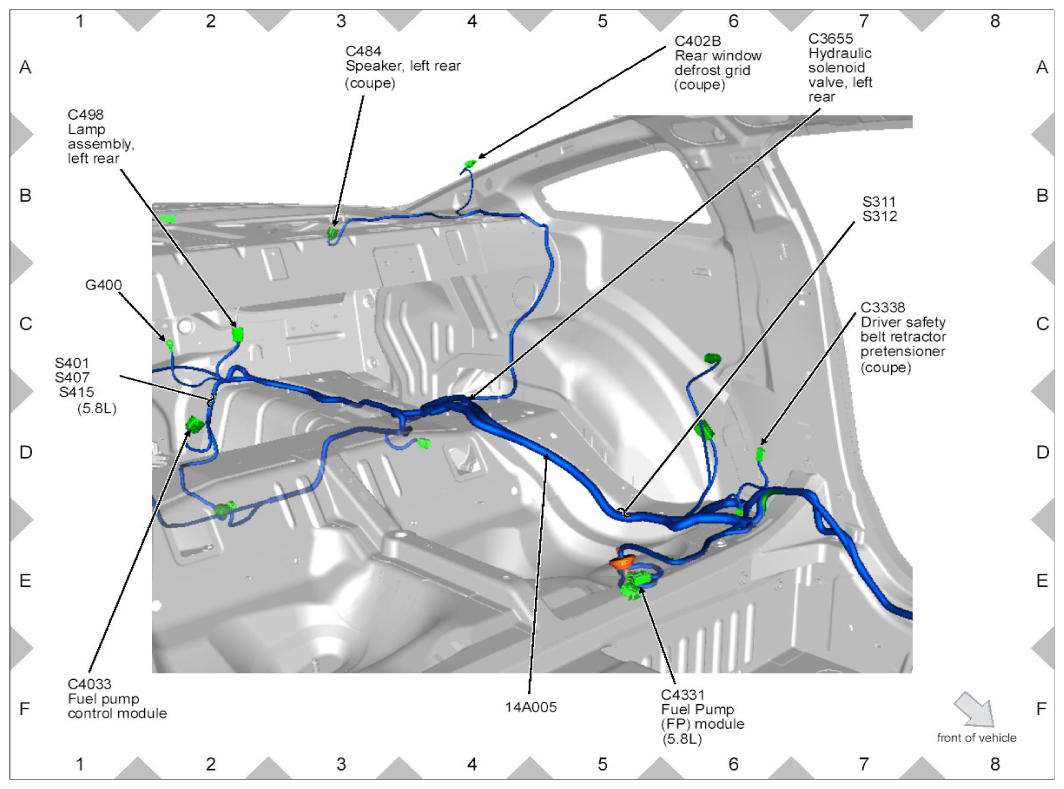

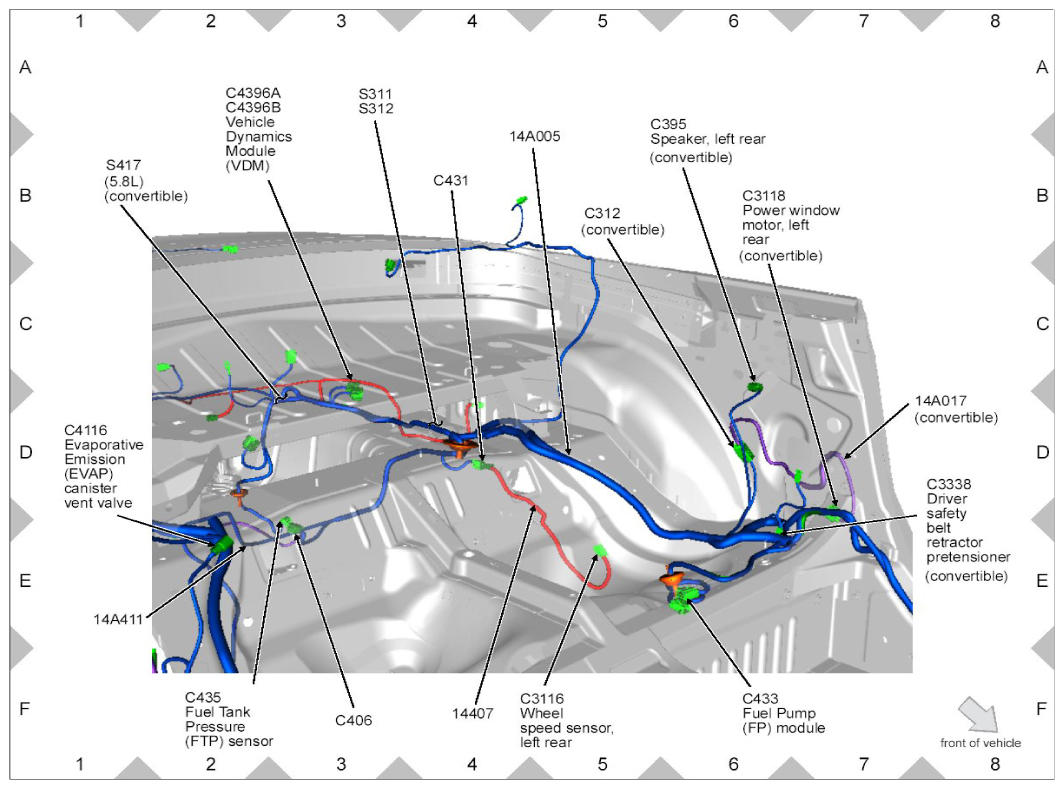

Fig 26: LH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G09092917

Courtesy of FORD MOTOR CO.

Fig 27: LH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G09092918

Courtesy of FORD MOTOR CO.

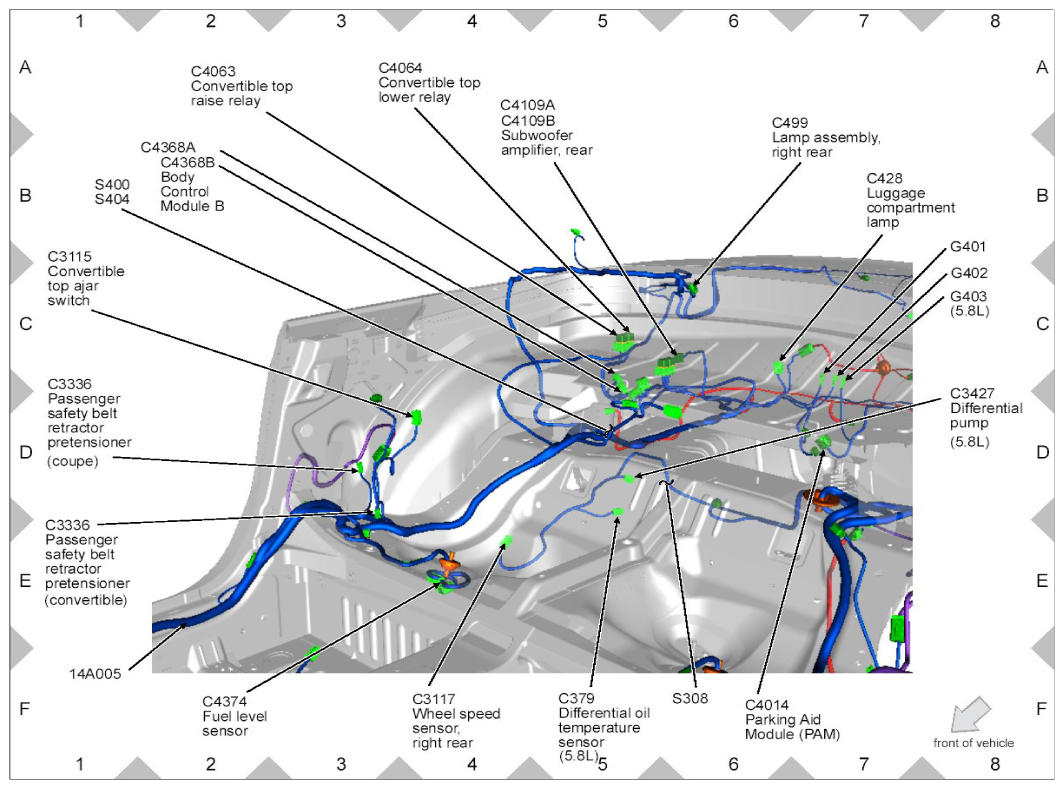

Fig 28: RH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G09092919

Courtesy of FORD MOTOR CO.

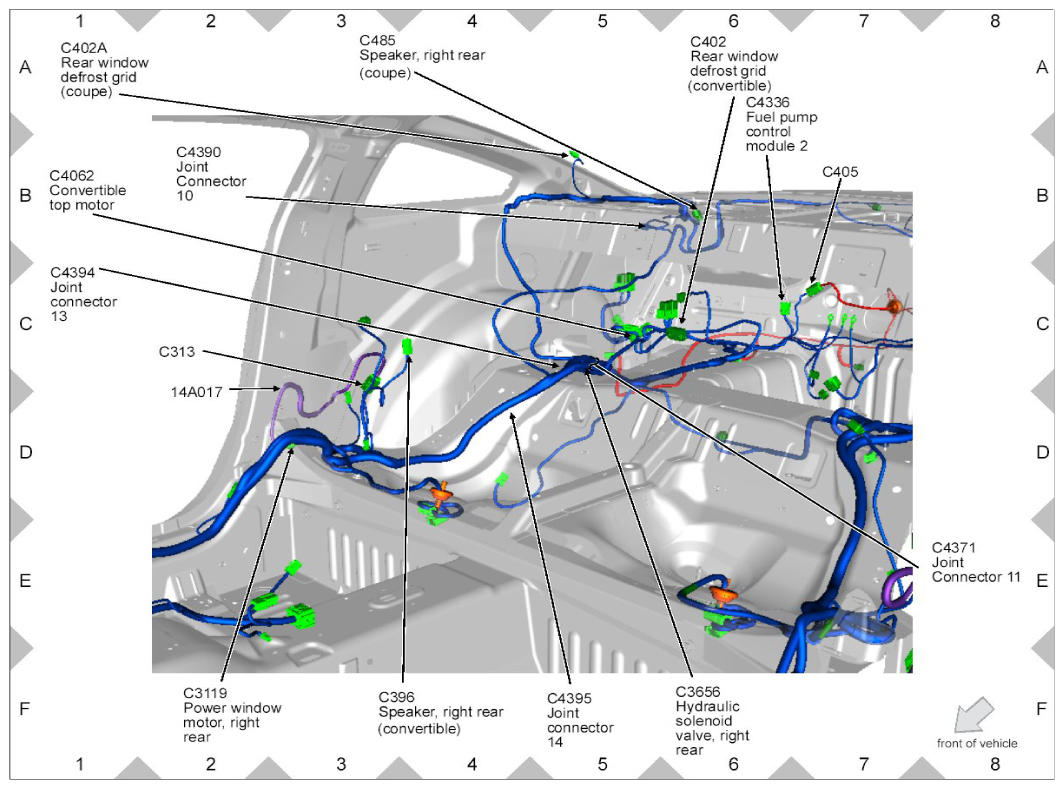

Fig 29: RH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G09092920

Courtesy of FORD MOTOR CO.

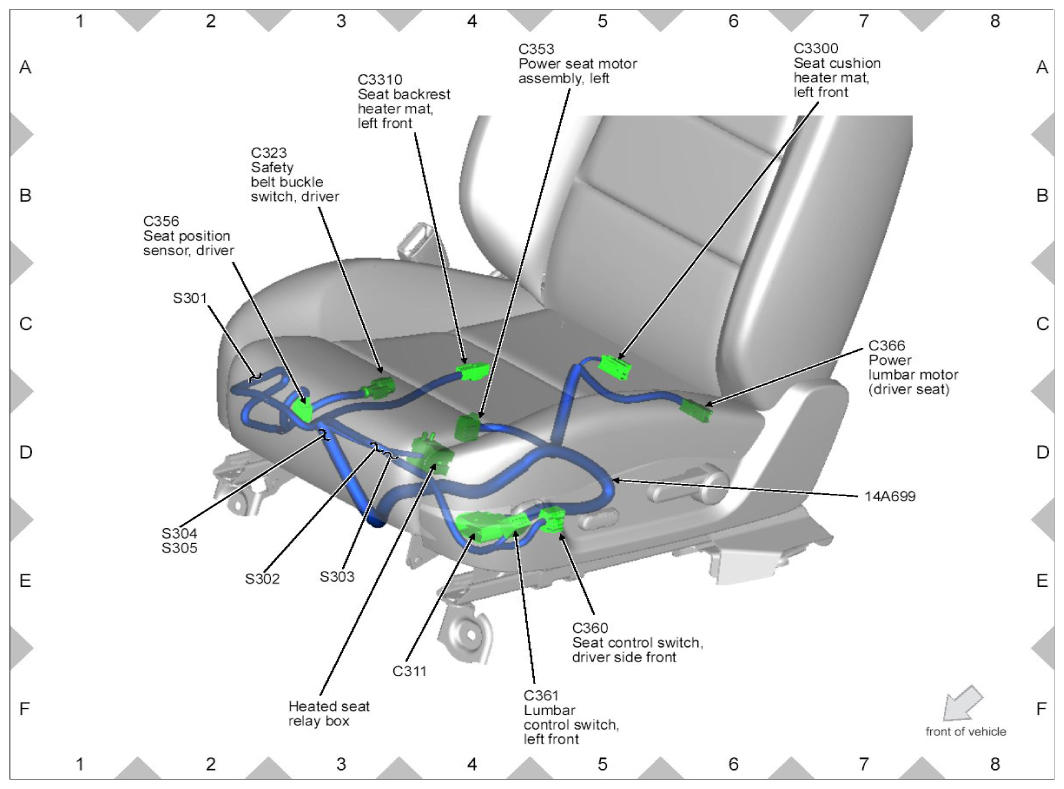

Fig 30: Driver Seat Wiring Harness Connectors Location

G09092921

Courtesy of FORD MOTOR CO.

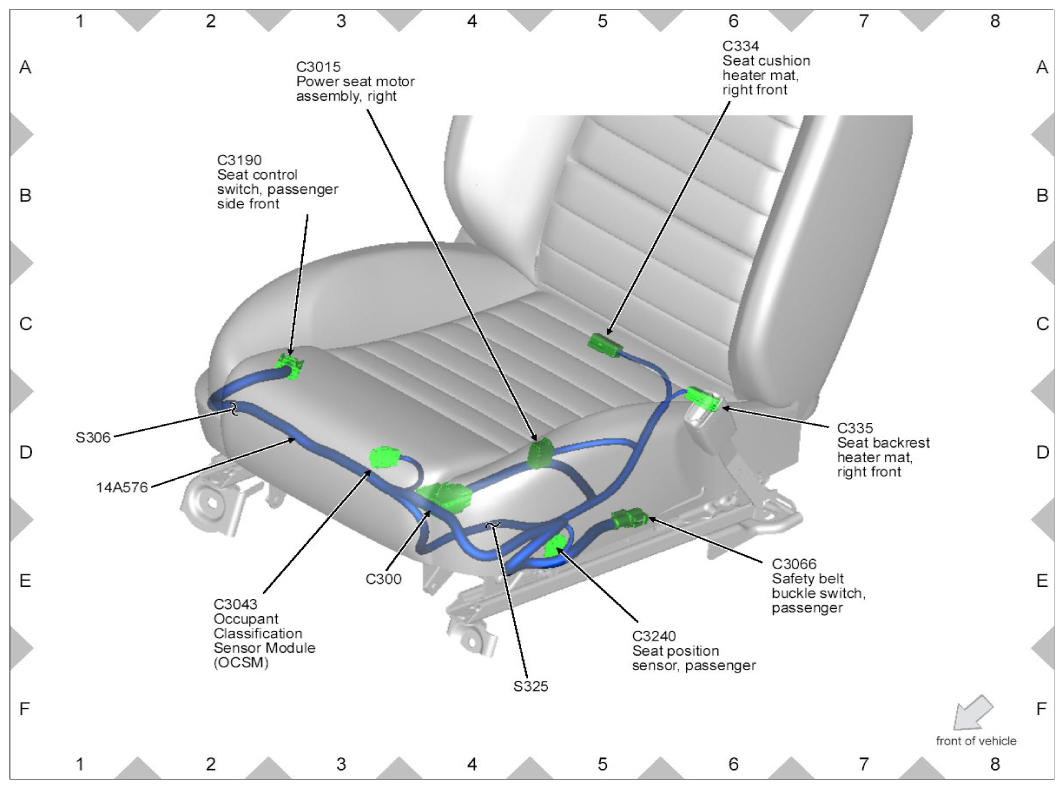

Fig 31: Passenger Seat Wiring Harness Connectors Location

G09092922

Courtesy of FORD MOTOR CO.

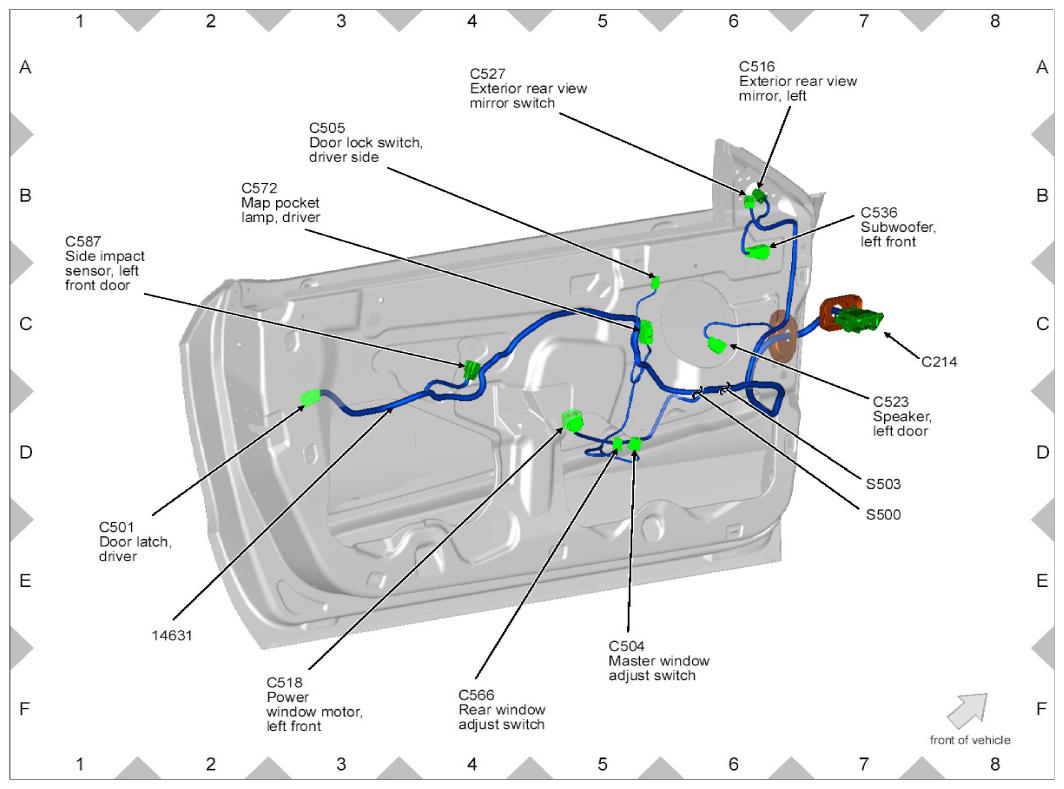

Fig 32: LH Front Door Wiring Harness Connectors Location

G09092923

Courtesy of FORD MOTOR CO.

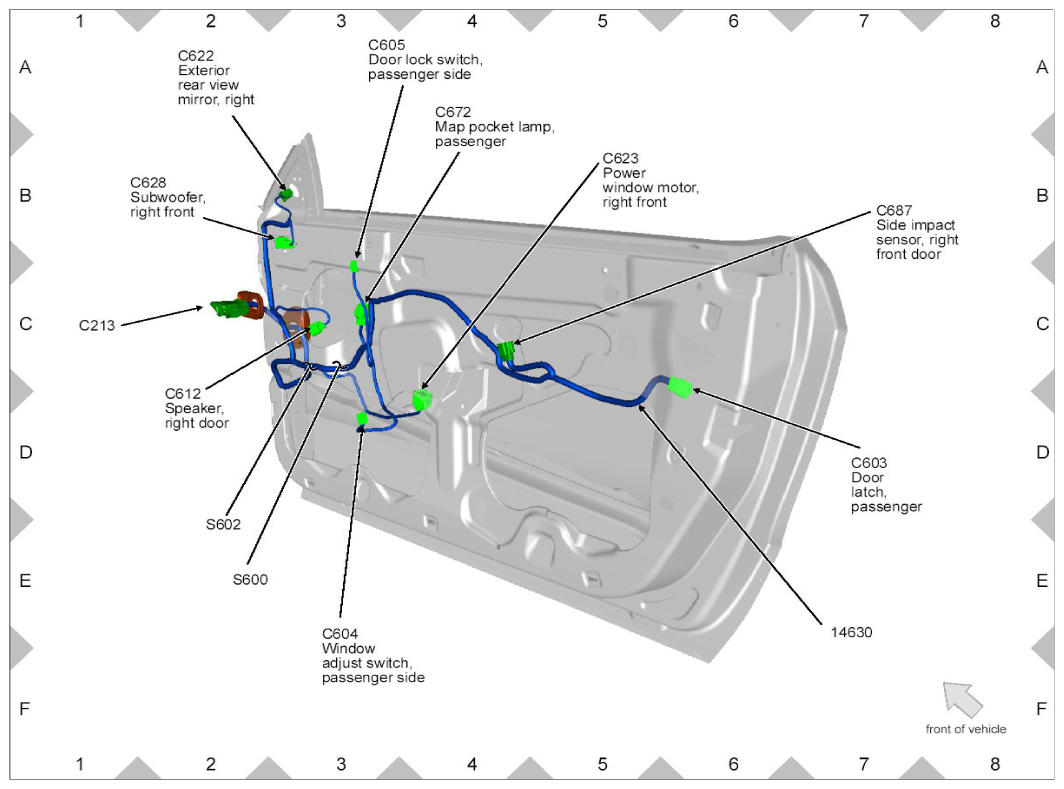

Fig 33: RH Front Door Wiring Harness Connectors Location

G09092924

Courtesy of FORD MOTOR CO.

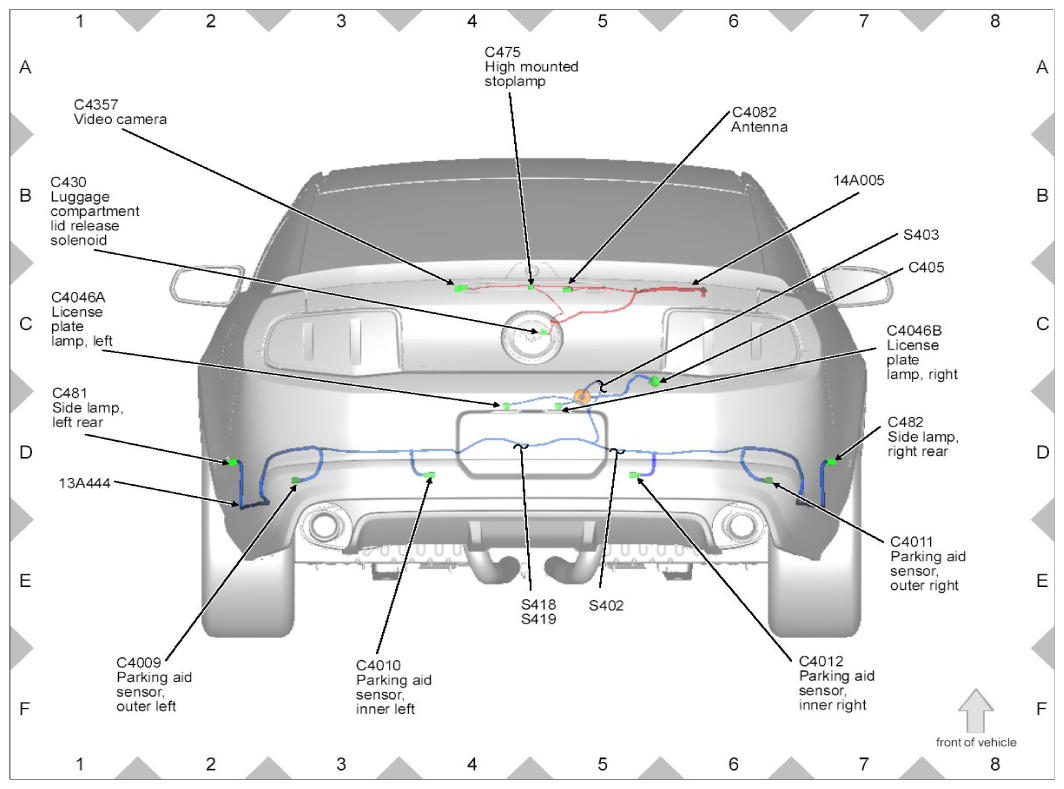

Fig 34: Rear End Wiring Harness Connectors Location

G09092925

Courtesy of FORD MOTOR CO.

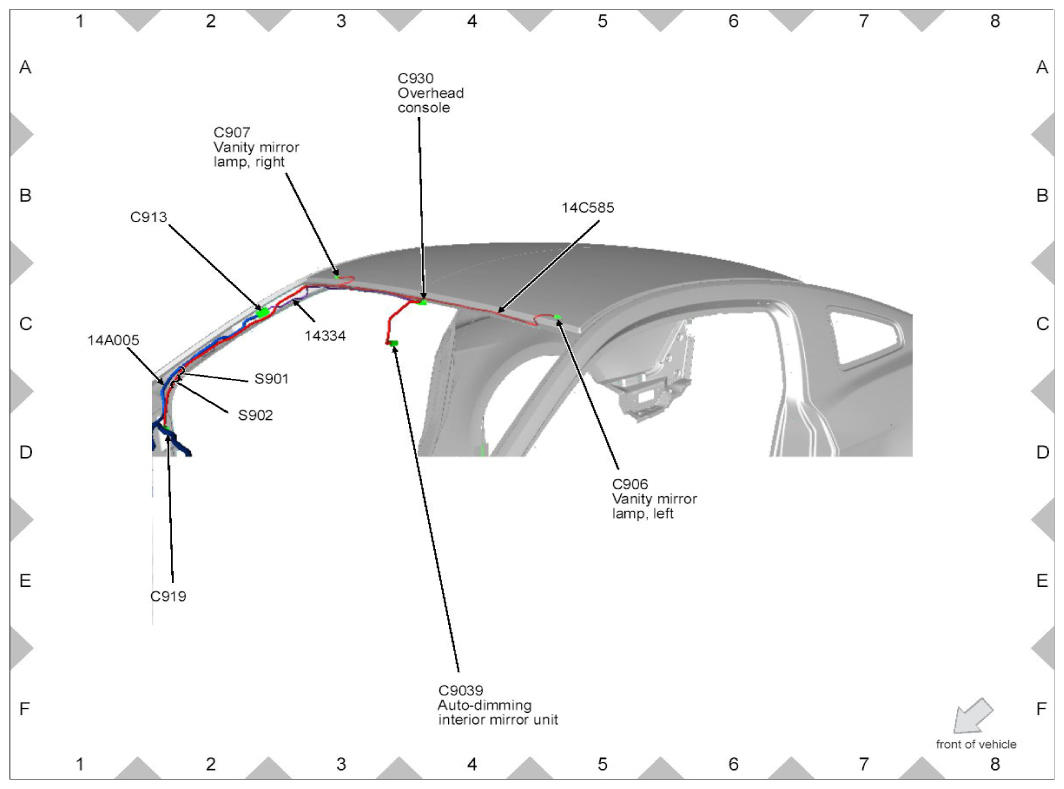

Fig 35: Roof Wiring Harness Connectors Location (1 Of 2)

G09092926

Courtesy of FORD MOTOR CO.

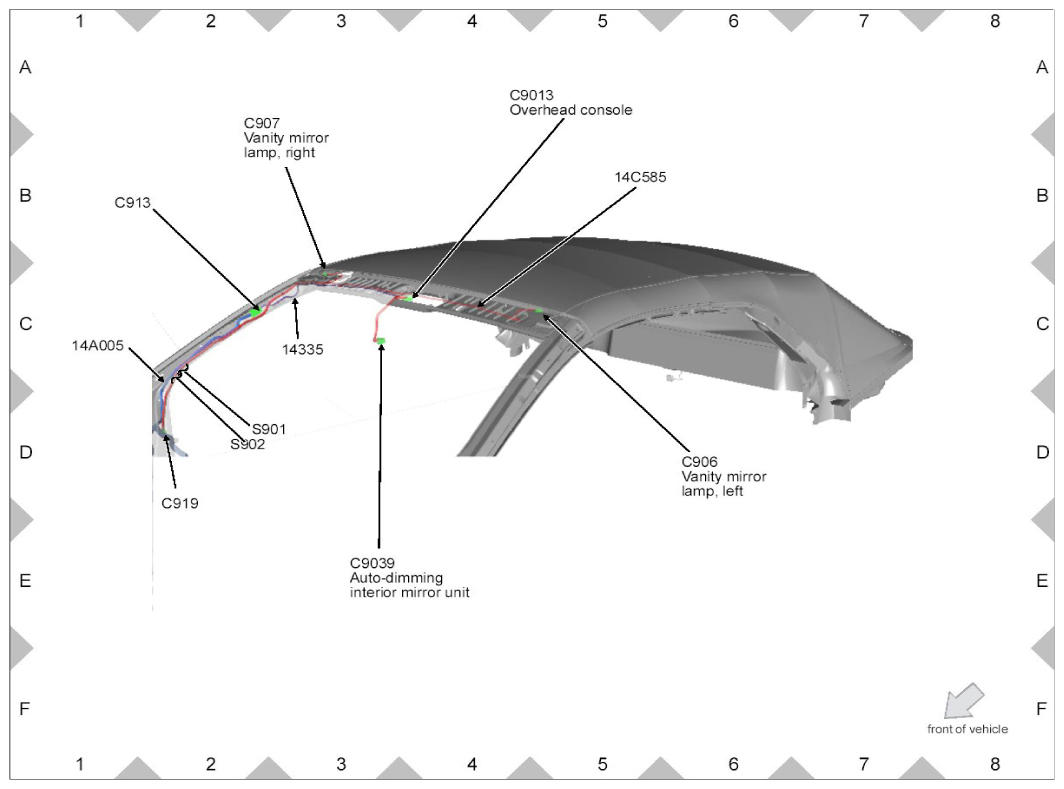

Fig 36: Roof Wiring Harness Connectors Location (2 Of 2)

G09092927

Courtesy of FORD MOTOR CO.

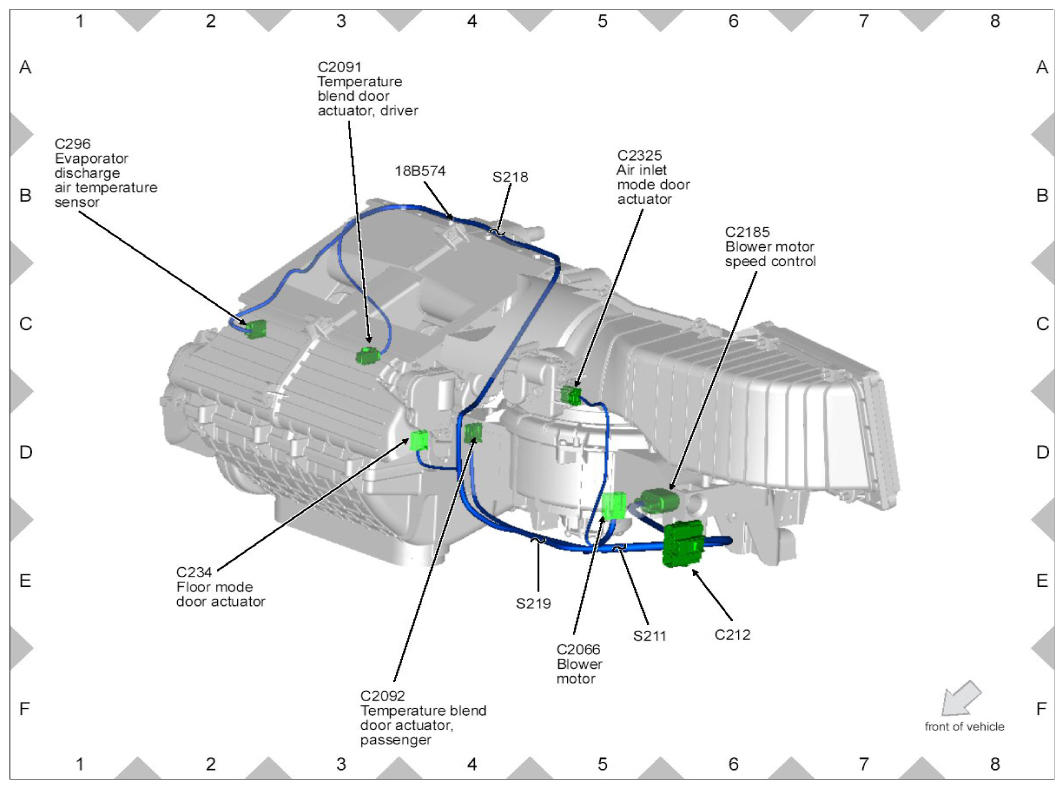

Fig 37: HVAC Wiring Harness Connectors Location

G09092928

Courtesy of FORD MOTOR CO.
