Electrical Short Inside The Harness

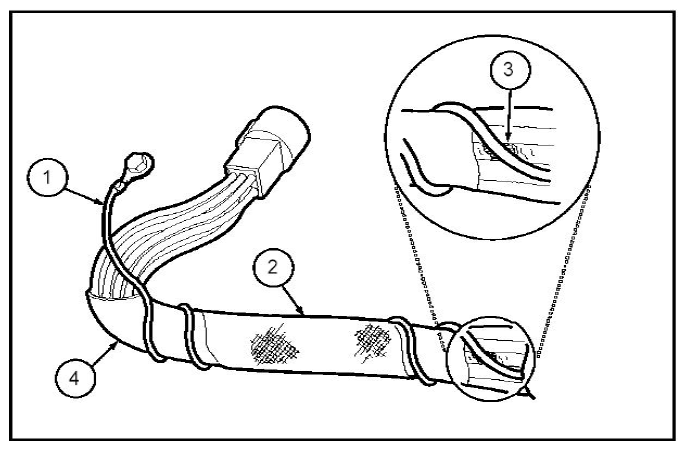

  1. Solder coated wire to ground
  2. Harness protective tape
  3. Intermittent short

    Solder coated wire pierced through the insulation of another circuit.

  4. Grounding foil
    Fig 1: Identifying Harness Protective Tape Applying Area
    G09091983Courtesy of FORD MOTOR CO.
