Audio System/Navigation: Notes

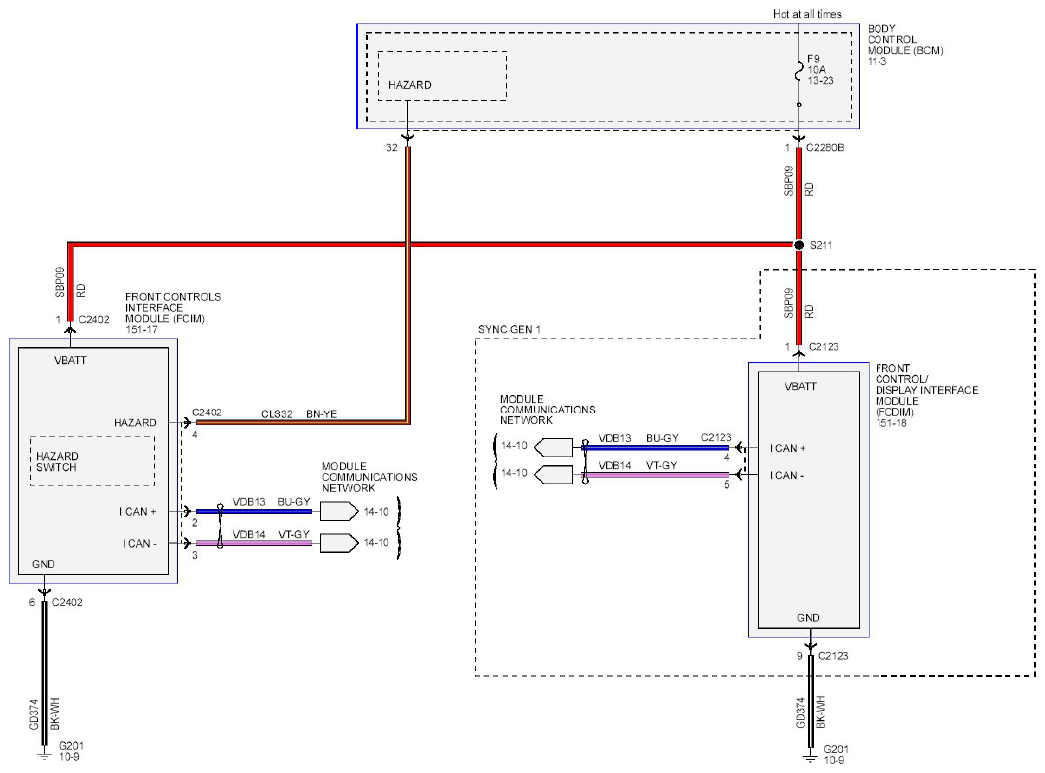

Fig 1: Audio System/Navigation - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

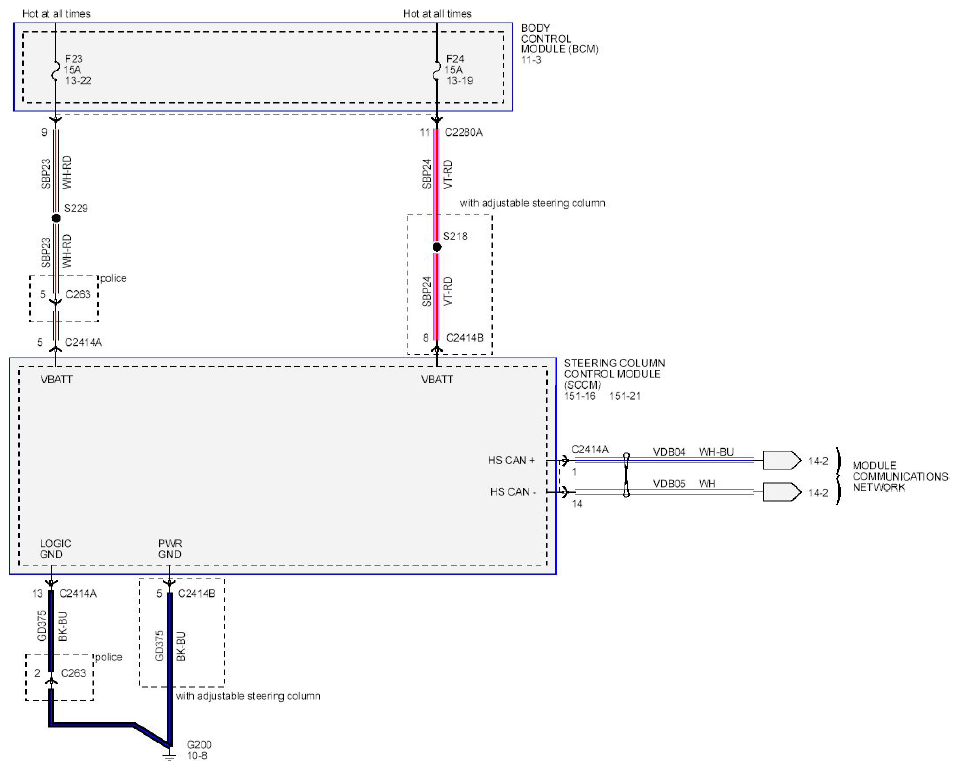

Fig 2: Audio System/Navigation - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
