Base Audio

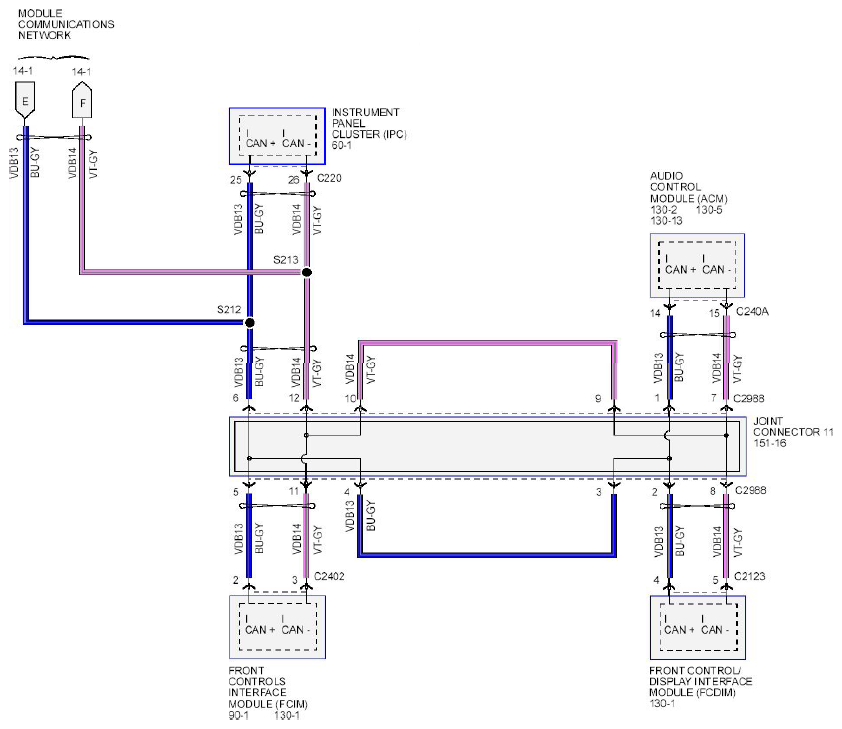

Fig 1: Module Communications Network - Wiring Diagram (Base Audio)
G09128764Courtesy of FORD MOTOR CO.
