Component Location Views

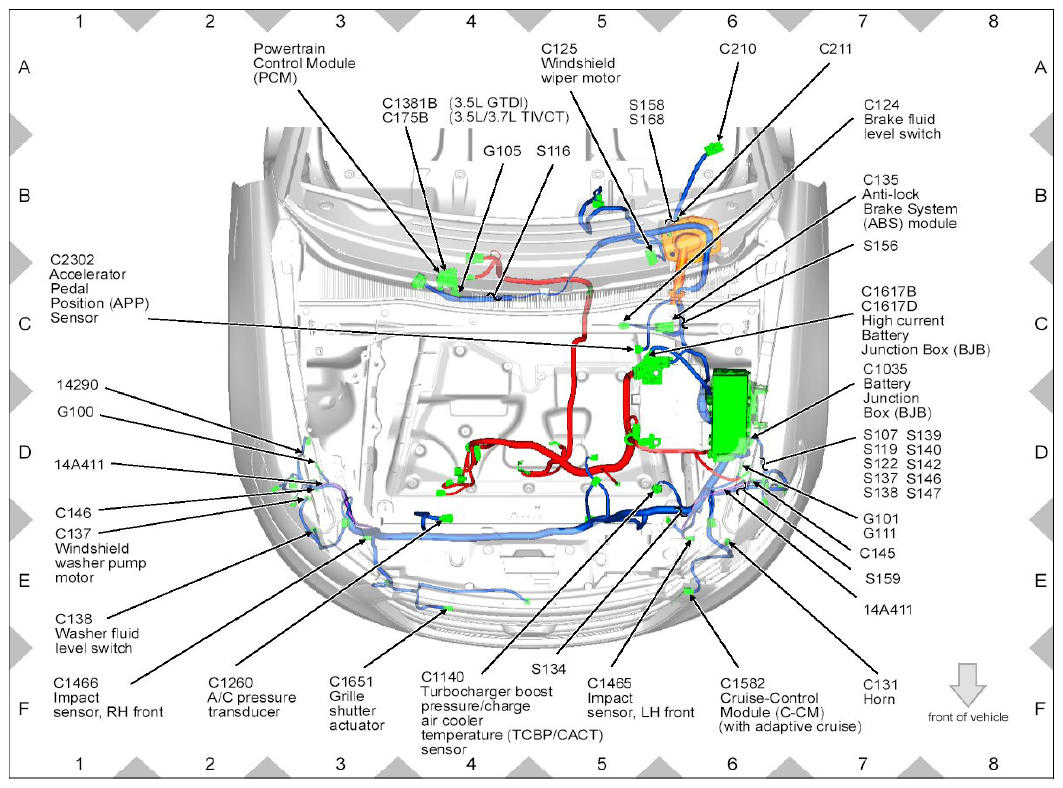

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 6)

G09129058

Courtesy of FORD MOTOR CO.

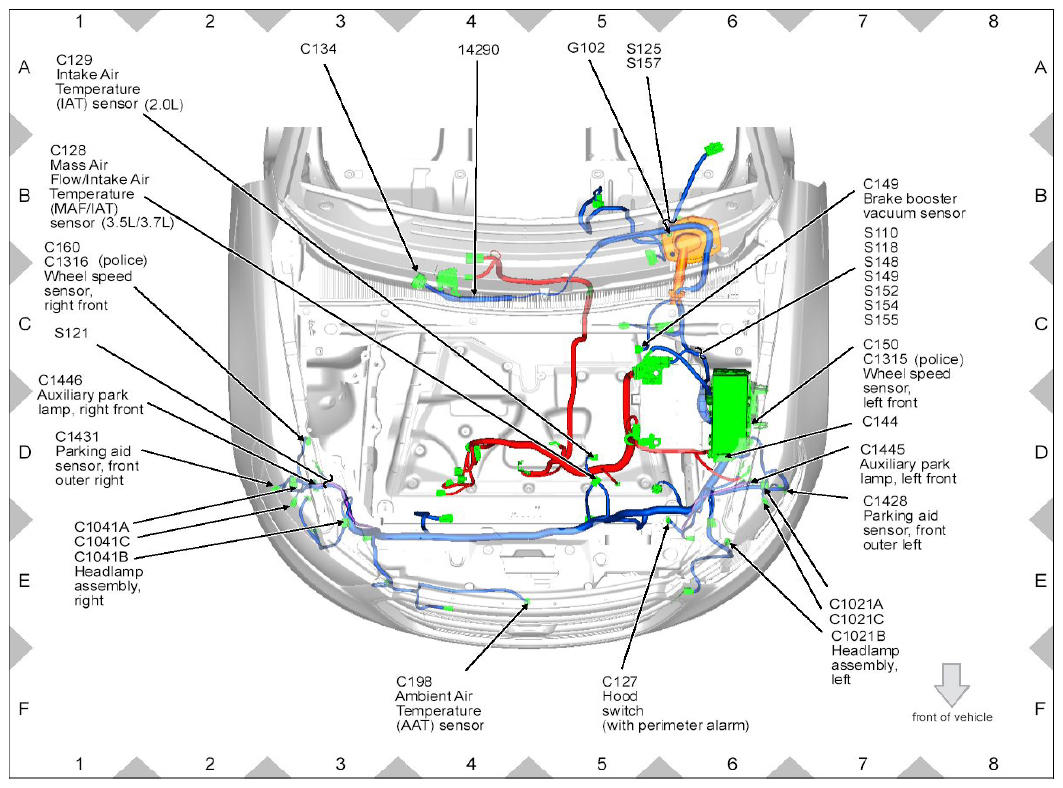

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 6)

G09129059

Courtesy of FORD MOTOR CO.

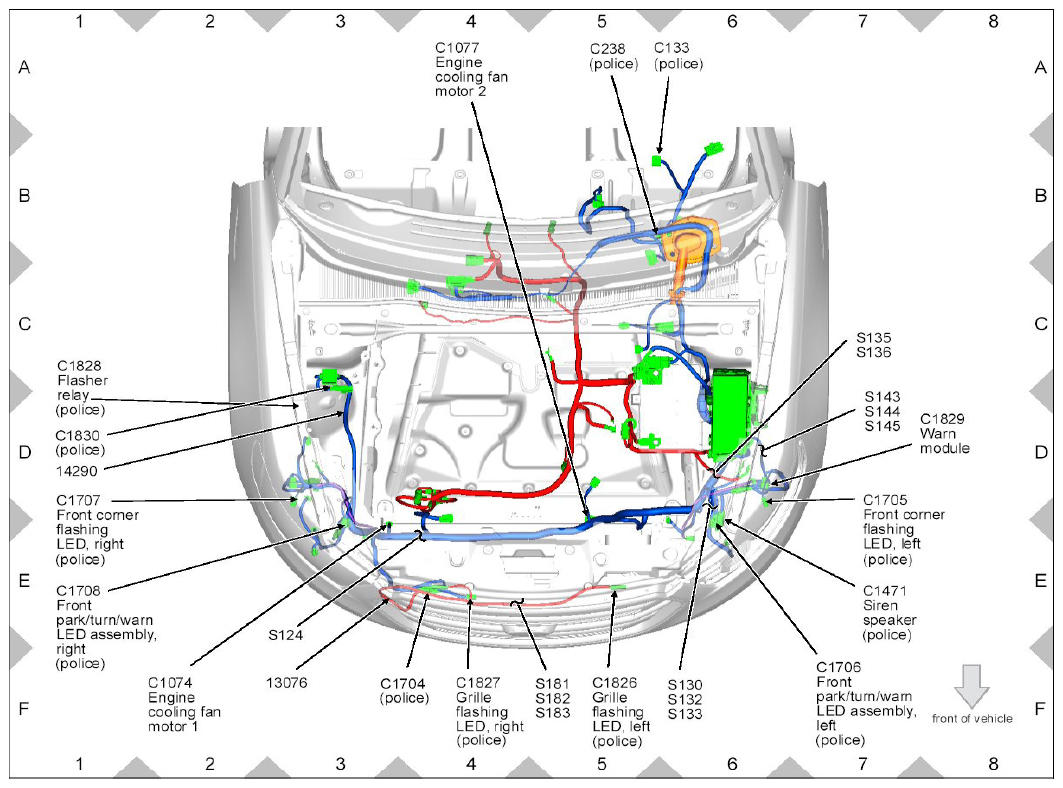

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 6)

G09129060

Courtesy of FORD MOTOR CO.

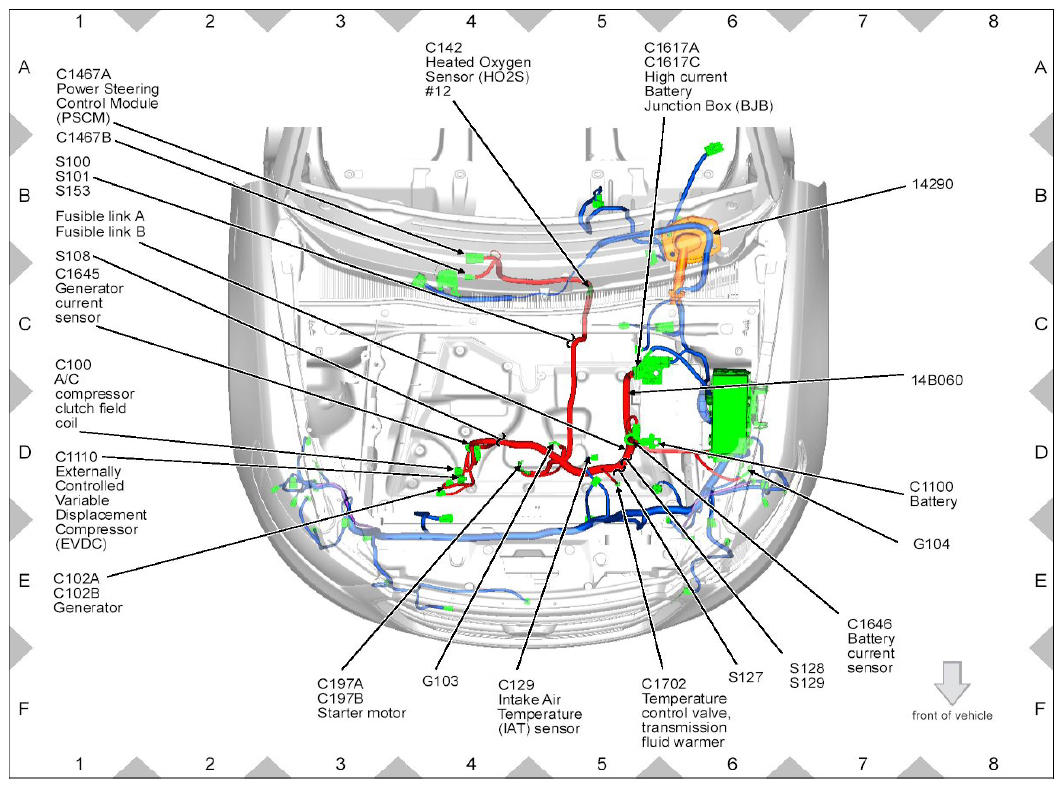

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 6)

G09129061

Courtesy of FORD MOTOR CO.

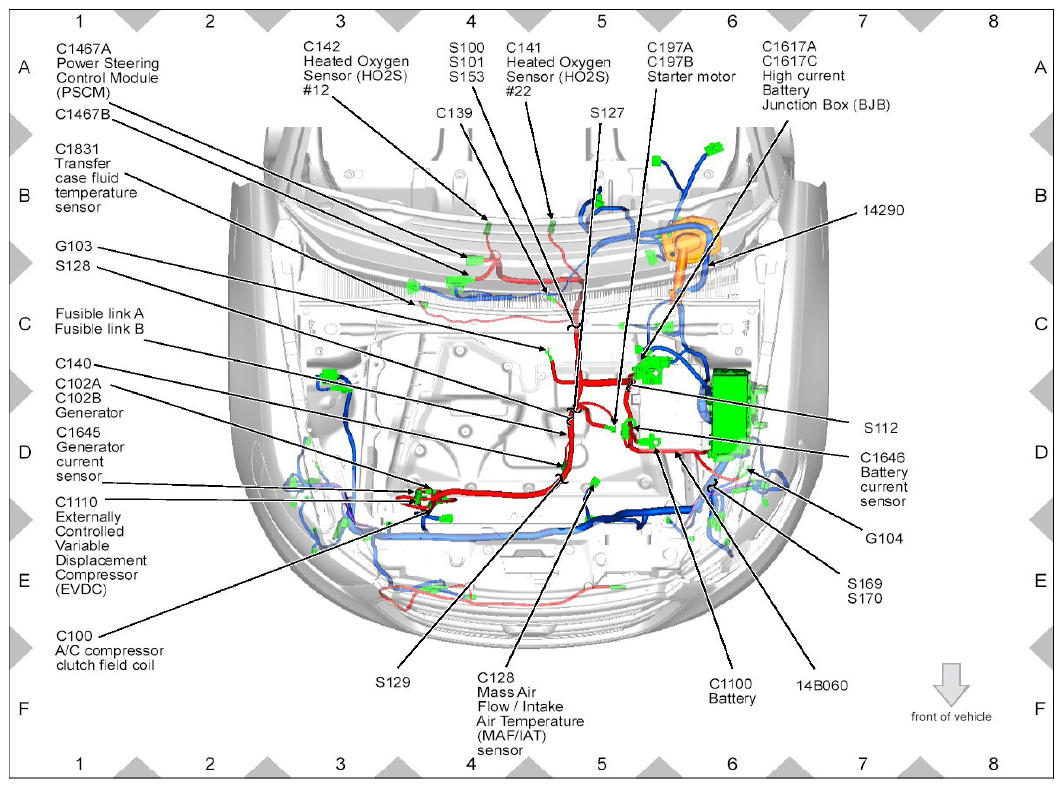

Fig 5: Engine Compartment Wiring Harness Connectors Location (5 Of 6)

G09129062

Courtesy of FORD MOTOR CO.

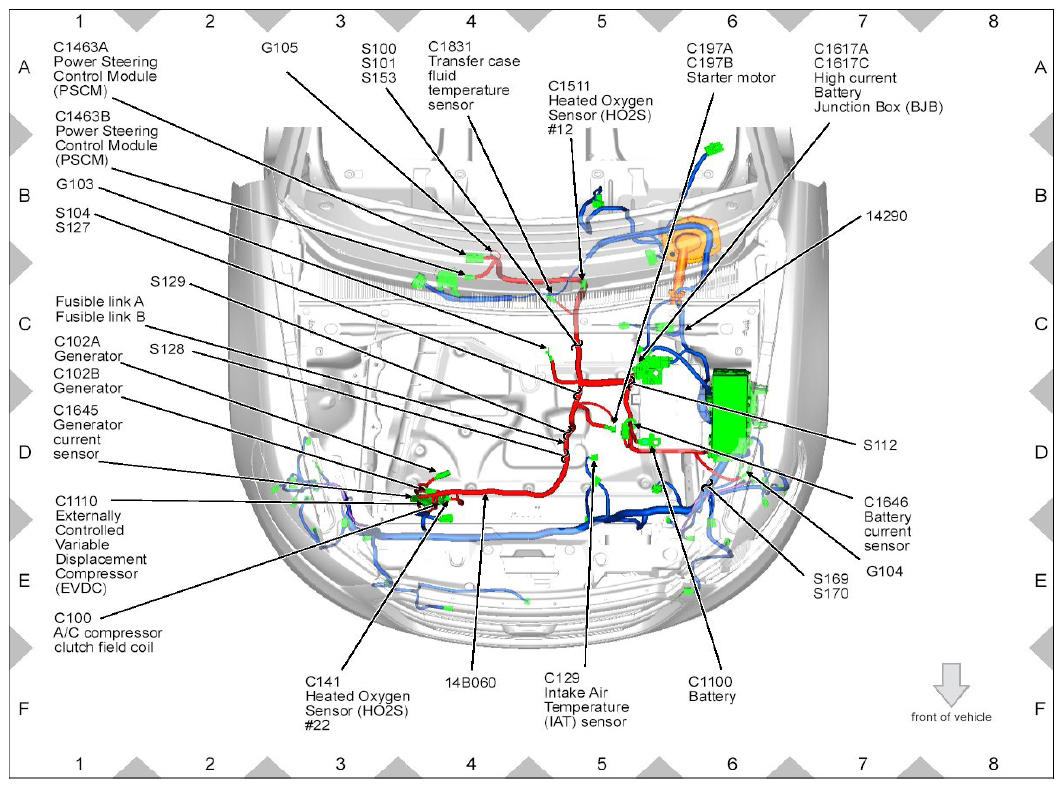

Fig 6: Engine Compartment Wiring Harness Connectors Location (6 Of 6)

G09129063

Courtesy of FORD MOTOR CO.

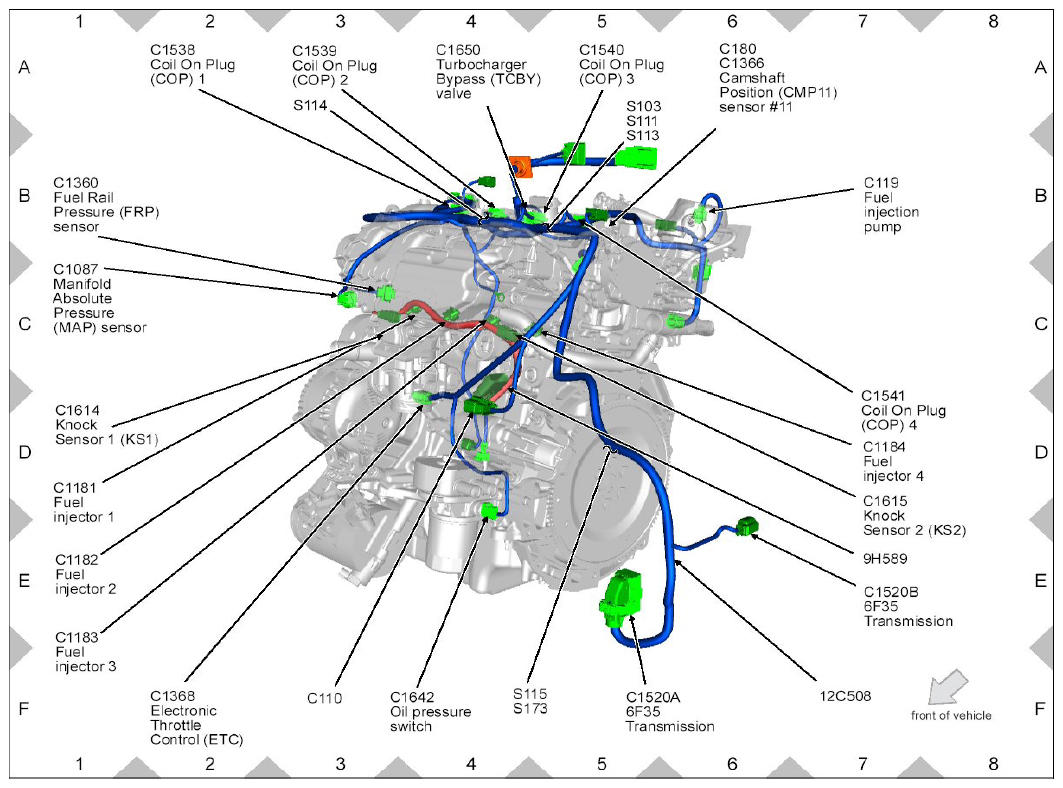

Fig 7: Engine Wiring Harness Connectors Location (1 Of 6)

G09129064

Courtesy of FORD MOTOR CO.

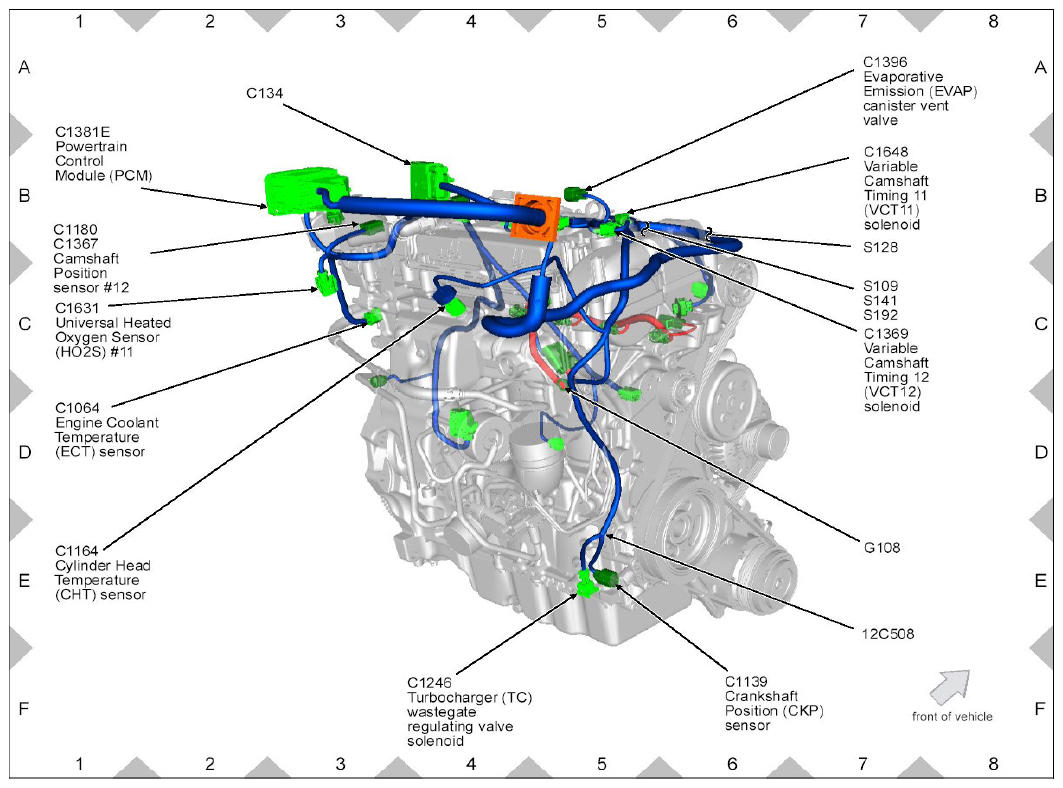

Fig 8: Engine Wiring Harness Connectors Location (2 Of 6)

G09129065

Courtesy of FORD MOTOR CO.

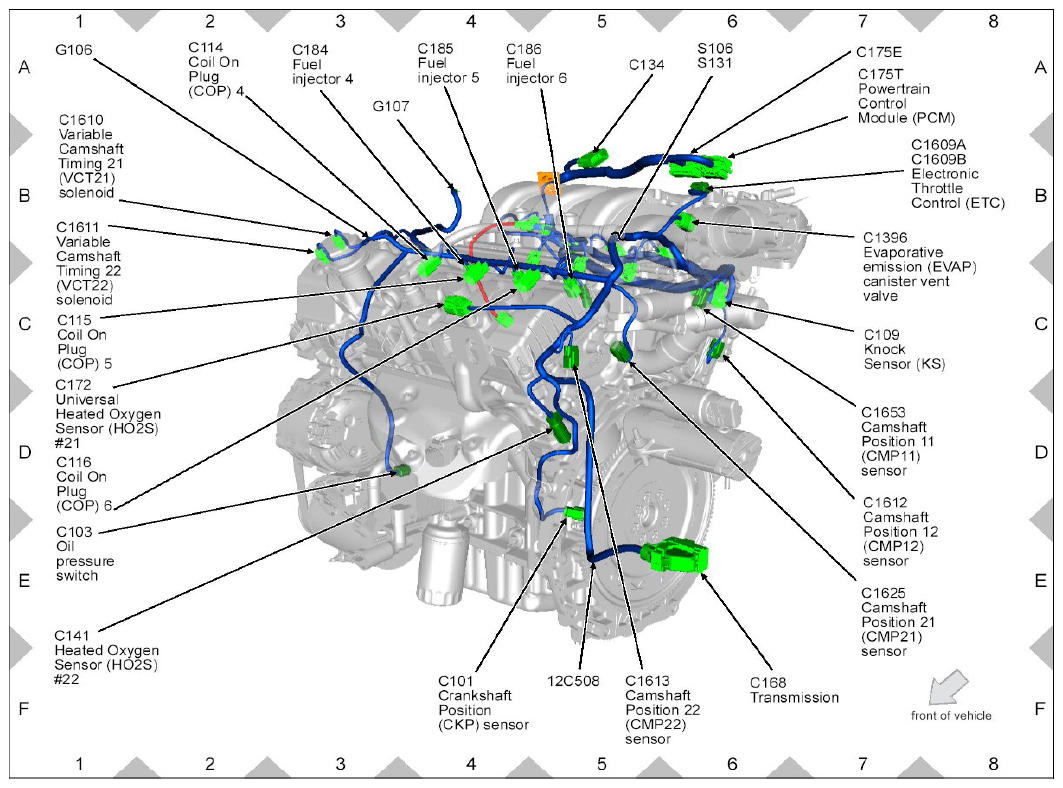

Fig 9: Engine Wiring Harness Connectors Location (3 Of 6)

G09129066

Courtesy of FORD MOTOR CO.

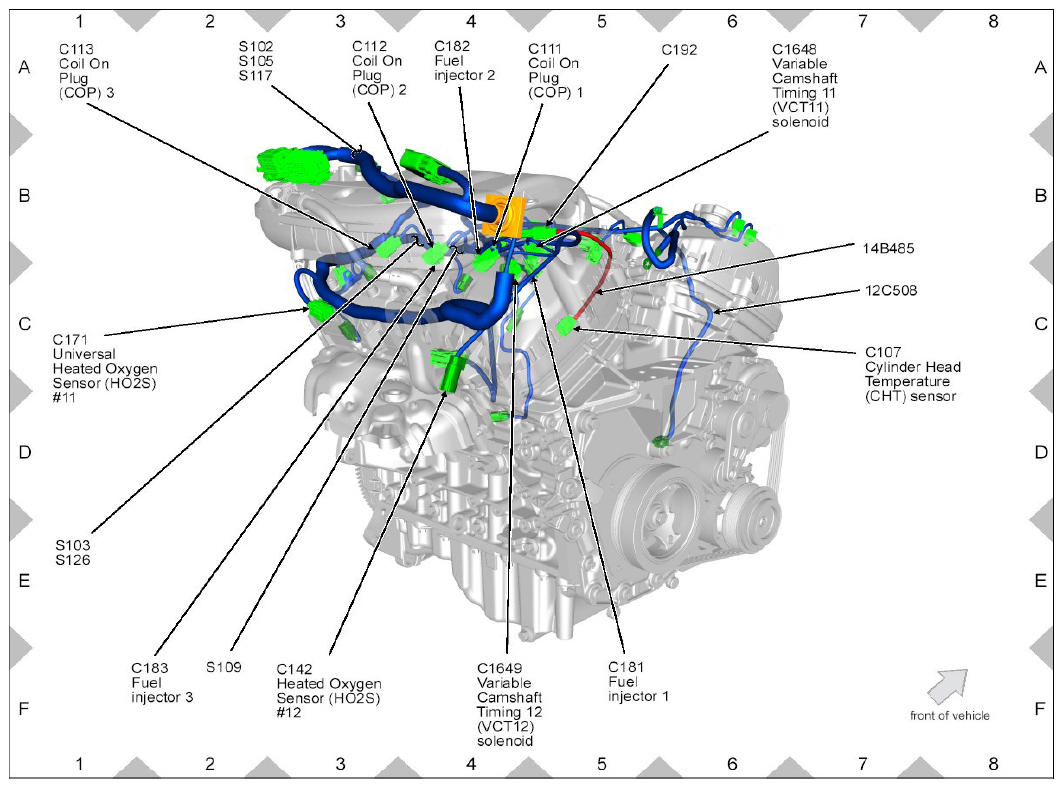

Fig 10: Engine Wiring Harness Connectors Location (4 Of 6)

G09129067

Courtesy of FORD MOTOR CO.

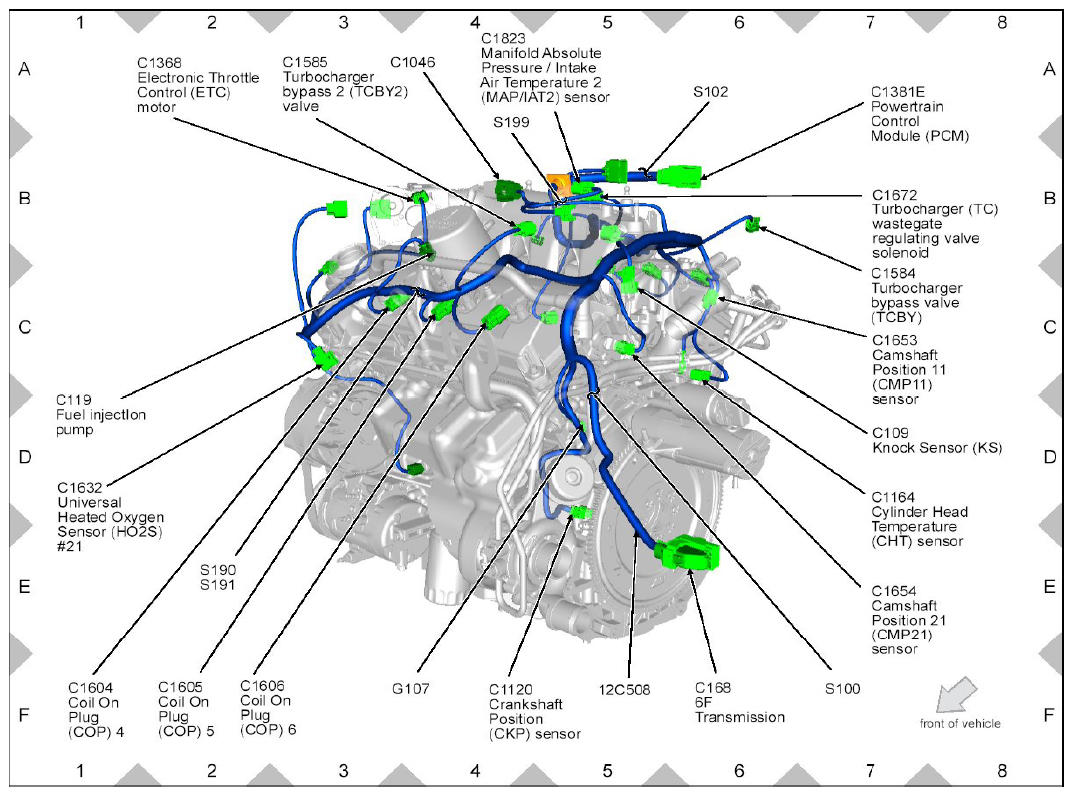

Fig 11: Engine Wiring Harness Connectors Location (5 Of 6)

G09129068

Courtesy of FORD MOTOR CO.

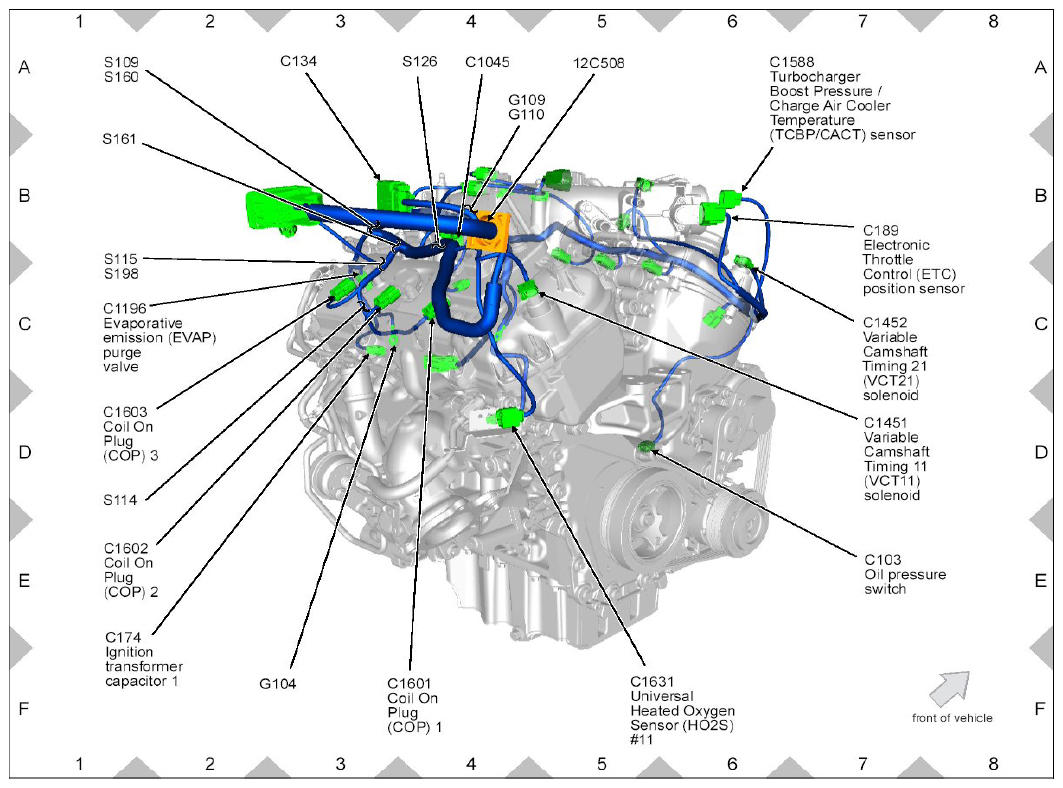

Fig 12: Engine Wiring Harness Connectors Location (6 Of 6)

G09129069

Courtesy of FORD MOTOR CO.

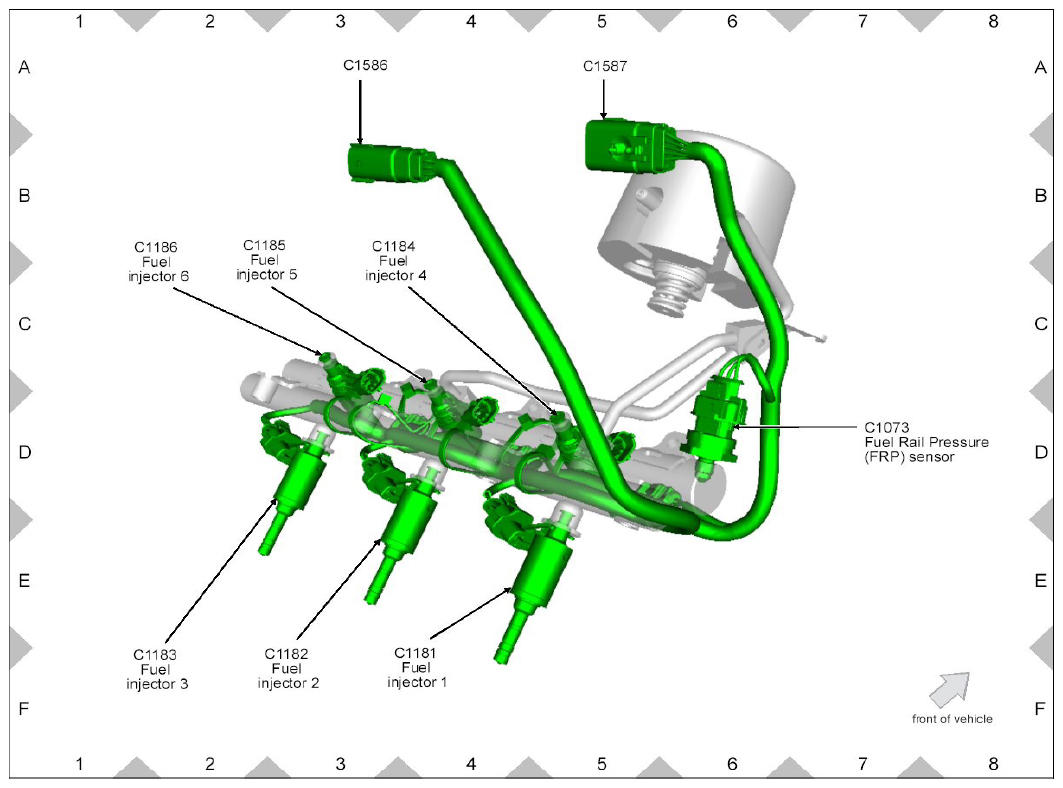

Fig 13: Fuel Injectors Wiring Harness Connectors Location

G09129070

Courtesy of FORD MOTOR CO.

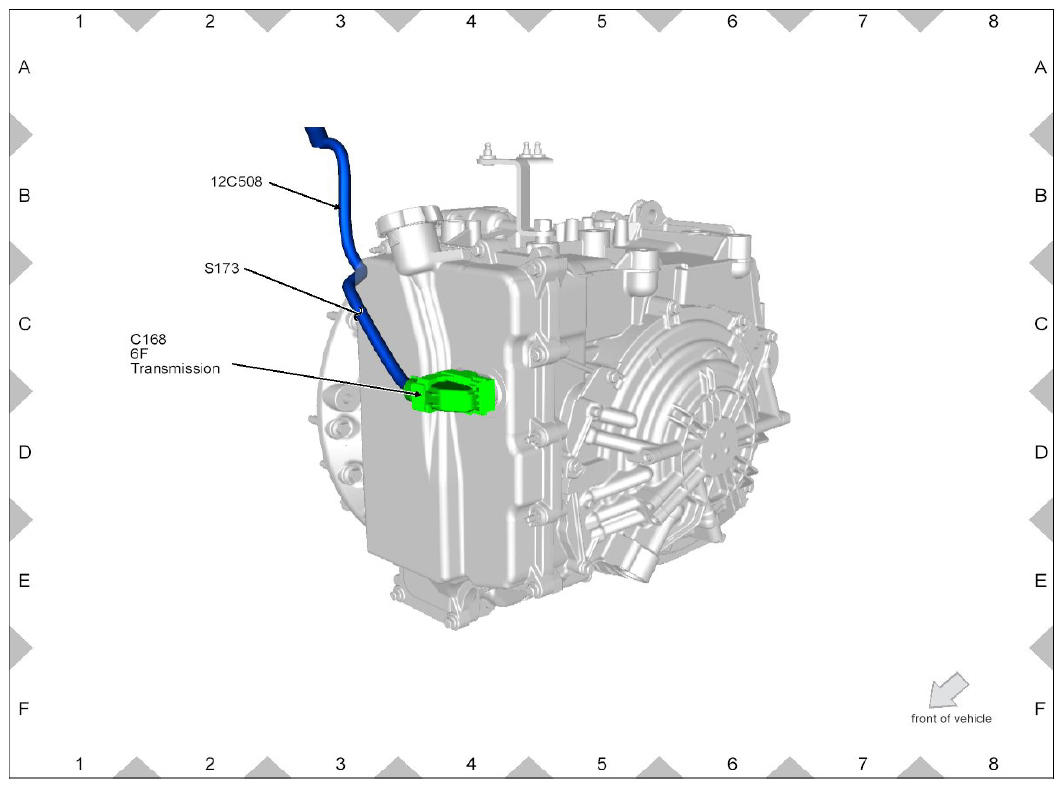

Fig 14: Transmission Wiring Harness Connectors Location (1 Of 2)

G09129071

Courtesy of FORD MOTOR CO.

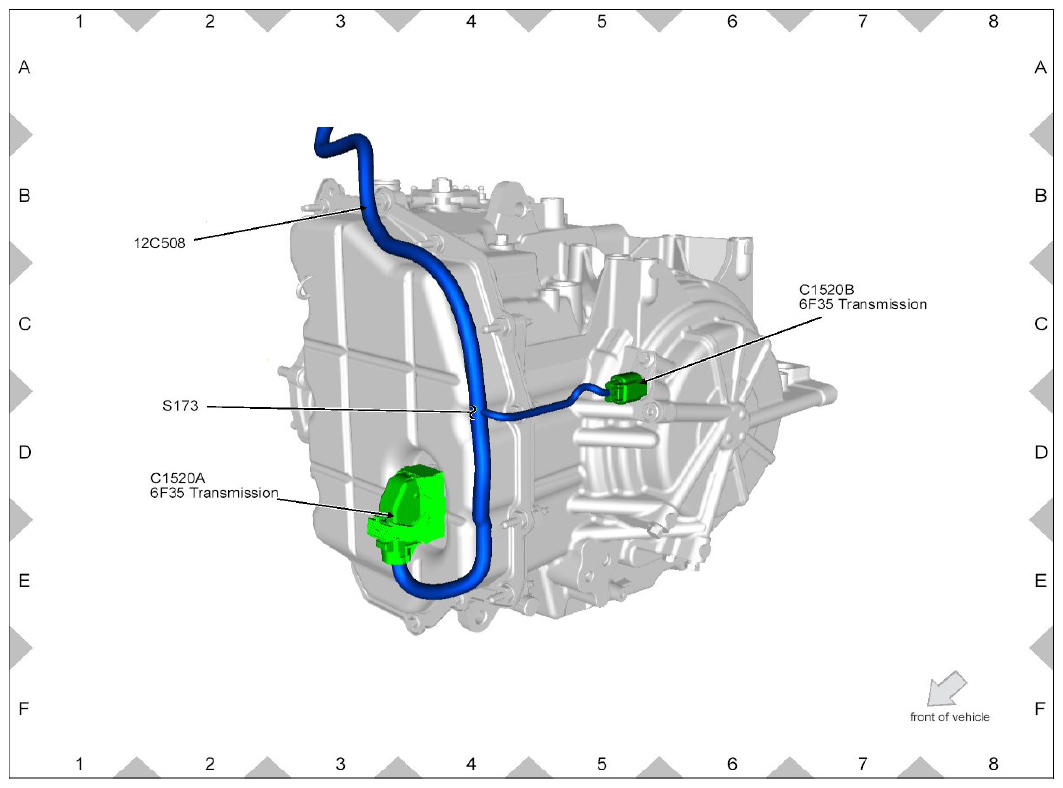

Fig 15: Transmission Wiring Harness Connectors Location (2 Of 2)

G09129072

Courtesy of FORD MOTOR CO.

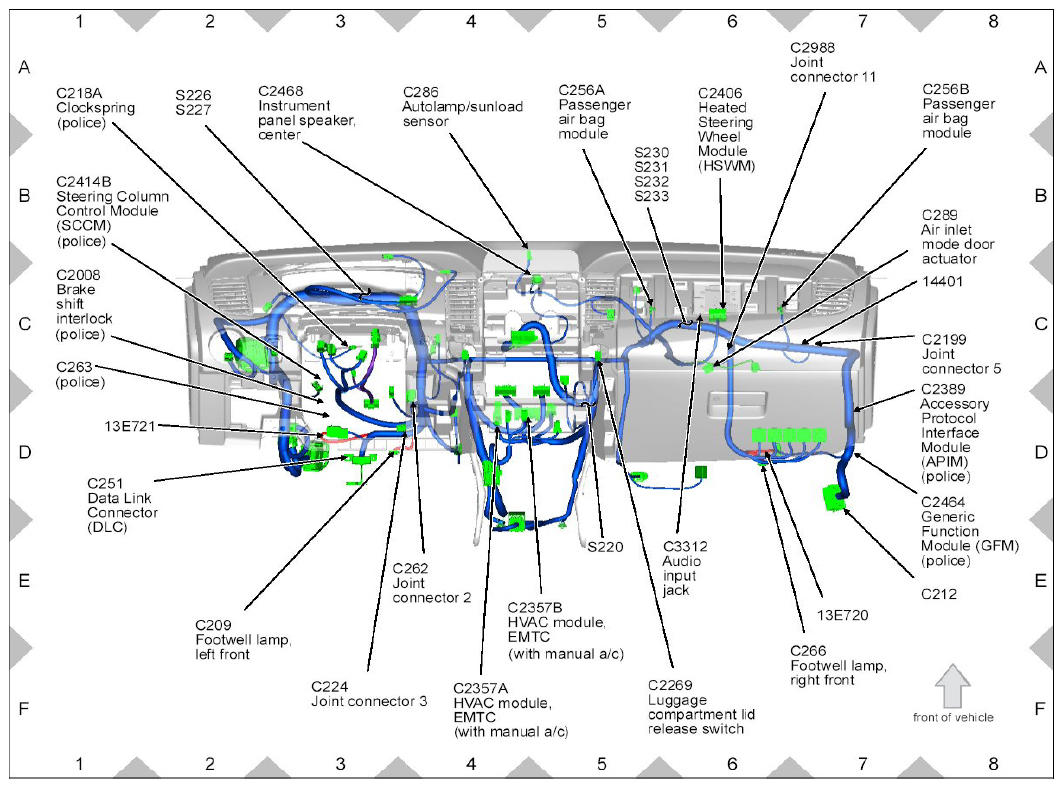

Fig 16: Dash Board Wiring Harness Connectors Location - Front Side (1 Of 3)

G09129073

Courtesy of FORD MOTOR CO.

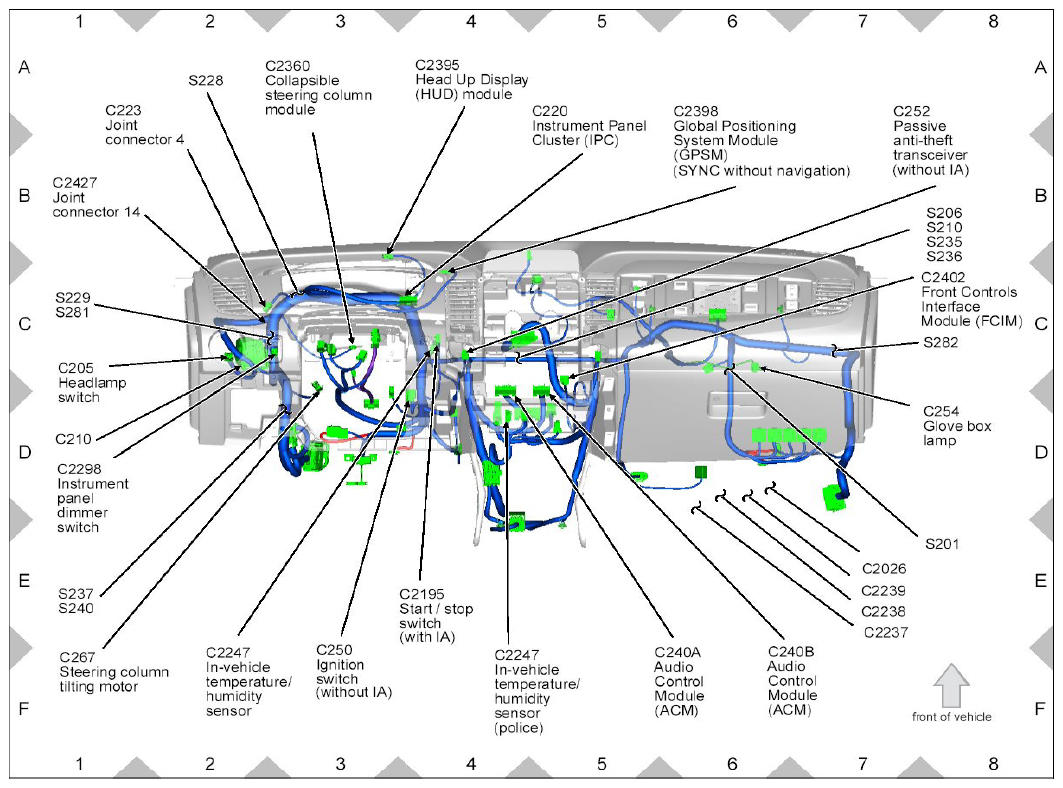

Fig 17: Dash Board Wiring Harness Connectors Location - Front Side (2 Of 3)

G09129074

Courtesy of FORD MOTOR CO.

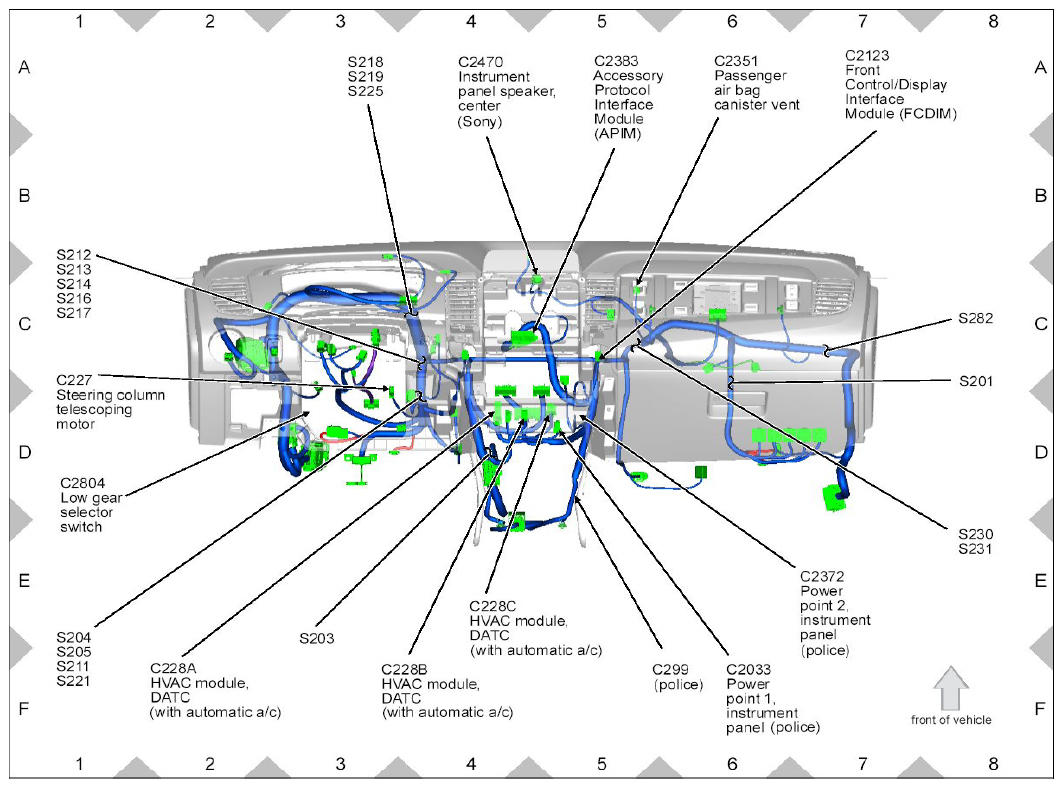

Fig 18: Dash Board Wiring Harness Connectors Location - Front Side (3 Of 3)

G09129075

Courtesy of FORD MOTOR CO.

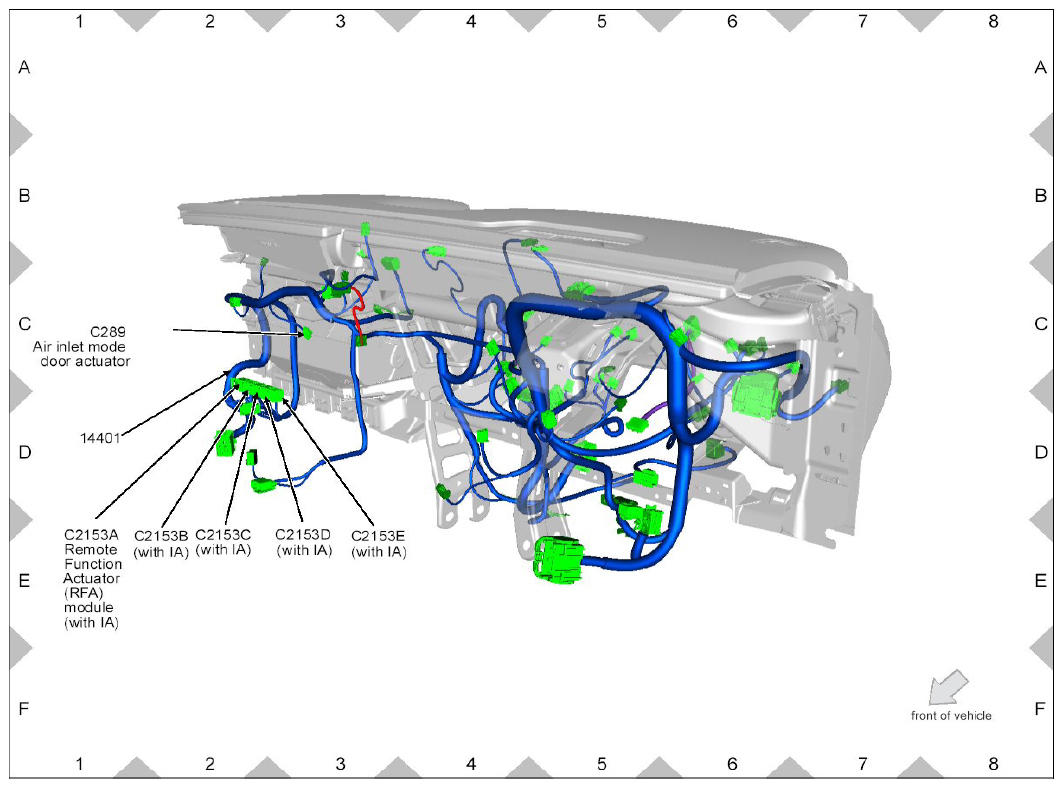

Fig 19: Dash Board Wiring Harness Connectors Location - Back Side

G09129076

Courtesy of FORD MOTOR CO.

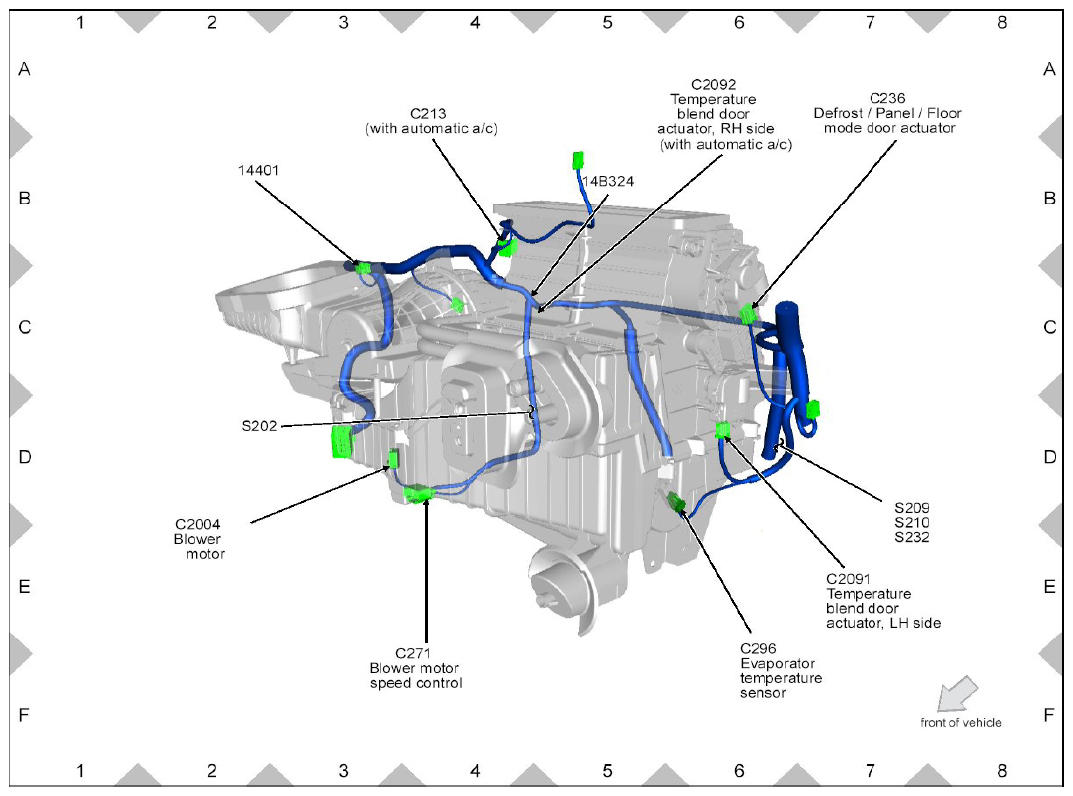

Fig 20: Blower Motor Control Module Wiring Harness Connectors Location

G09129077

Courtesy of FORD MOTOR CO.

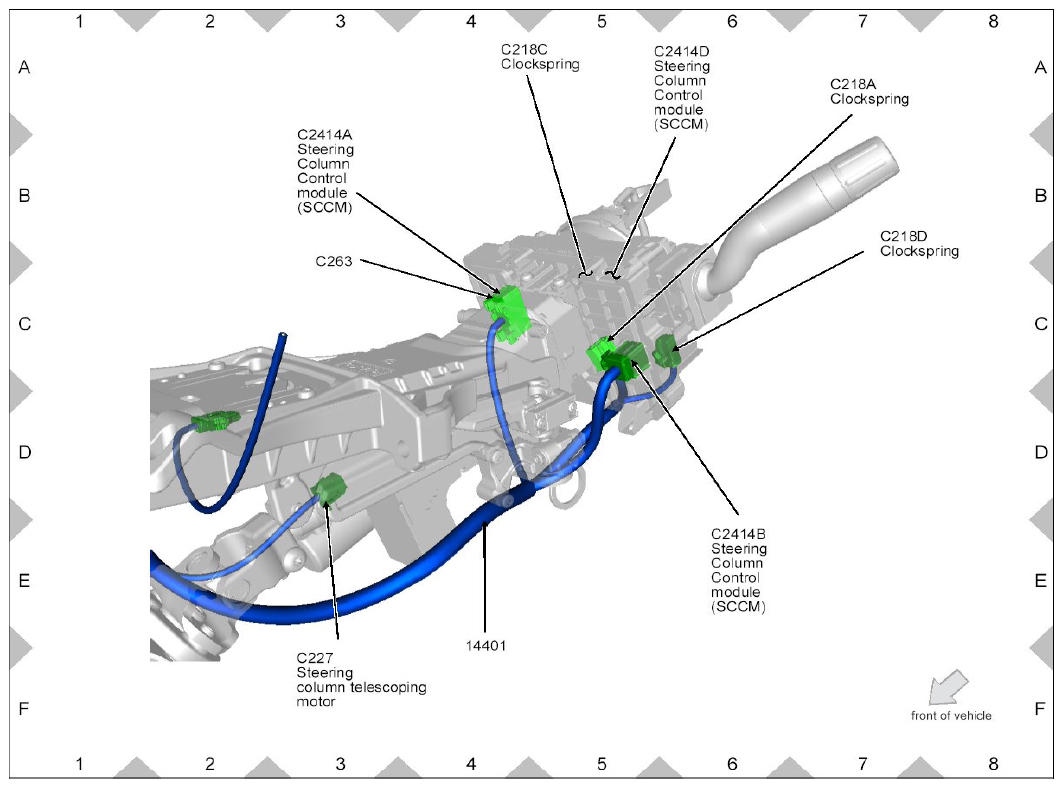

Fig 21: Steering Column Control Module Wiring Harness Connectors Location

G09129078

Courtesy of FORD MOTOR CO.

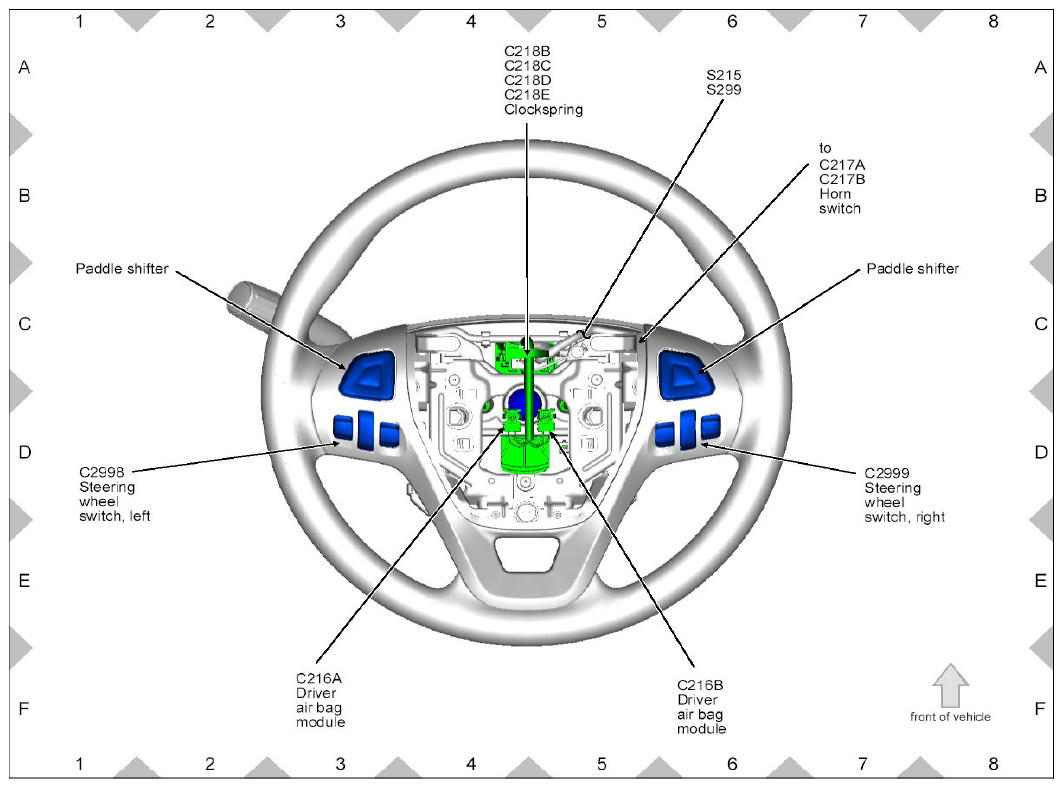

Fig 22: Steering Wheel Wiring Harness Connectors Location

G09129079

Courtesy of FORD MOTOR CO.

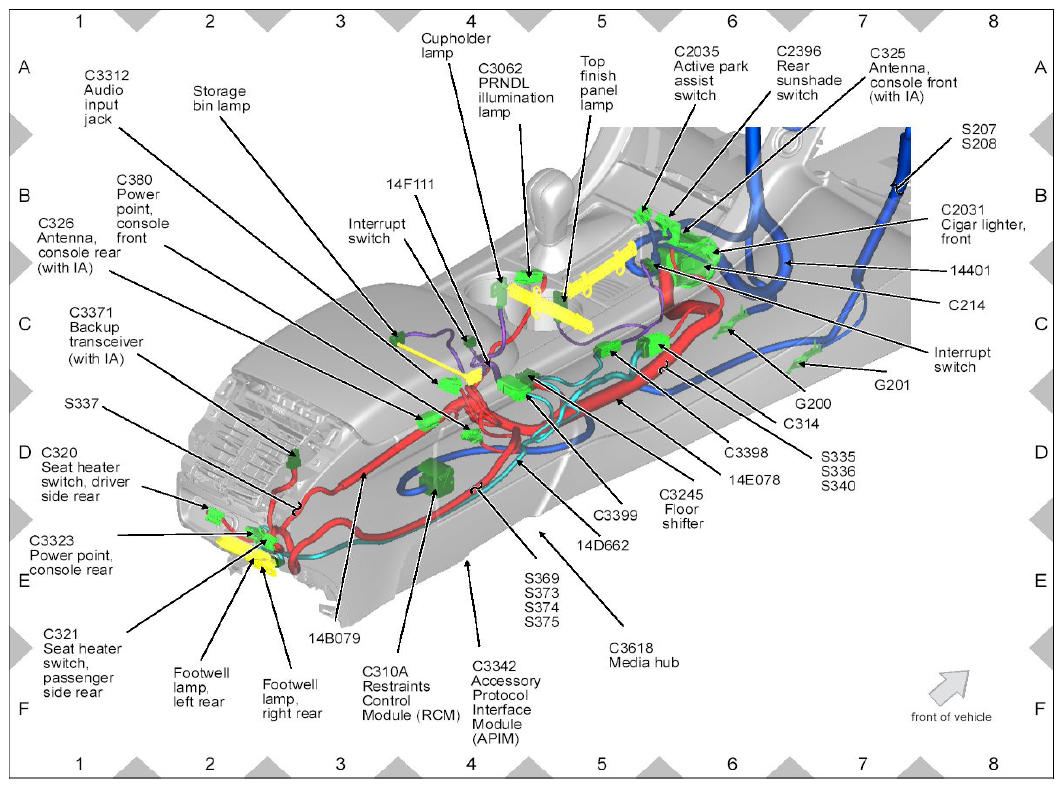

Fig 23: Center Console Wiring Harness Connectors Location

G09129080

Courtesy of FORD MOTOR CO.

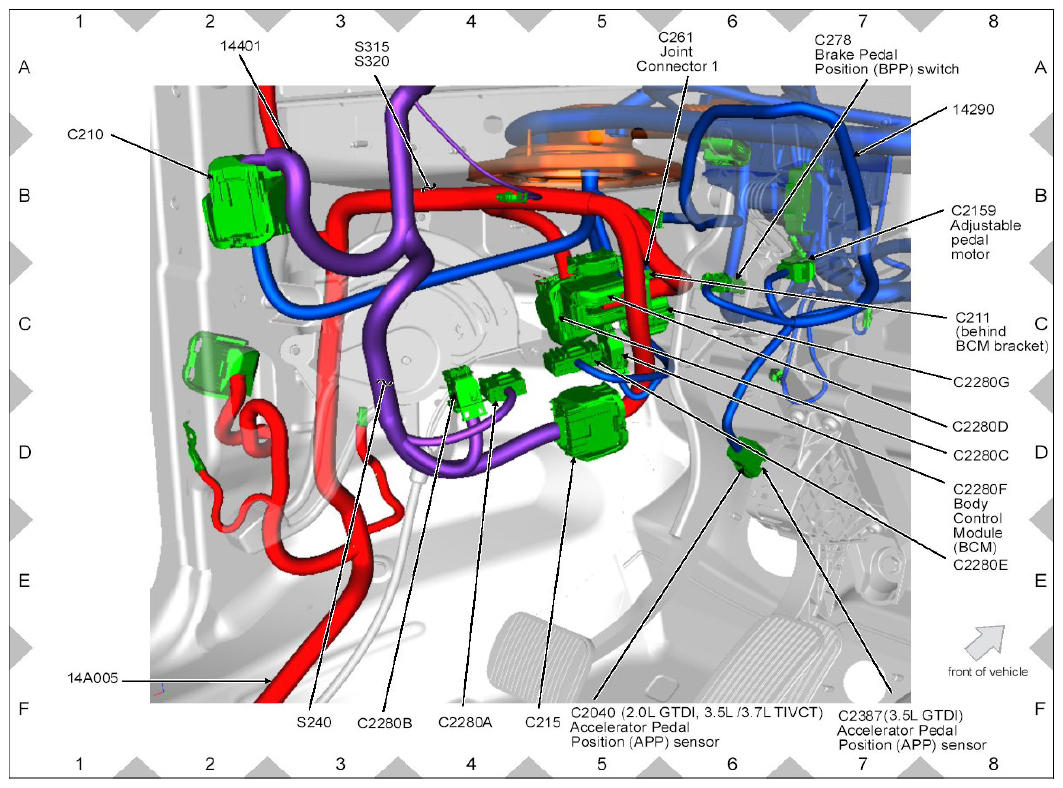

Fig 24: Body Control Module Wiring Harness Connectors Location

G09129081

Courtesy of FORD MOTOR CO.

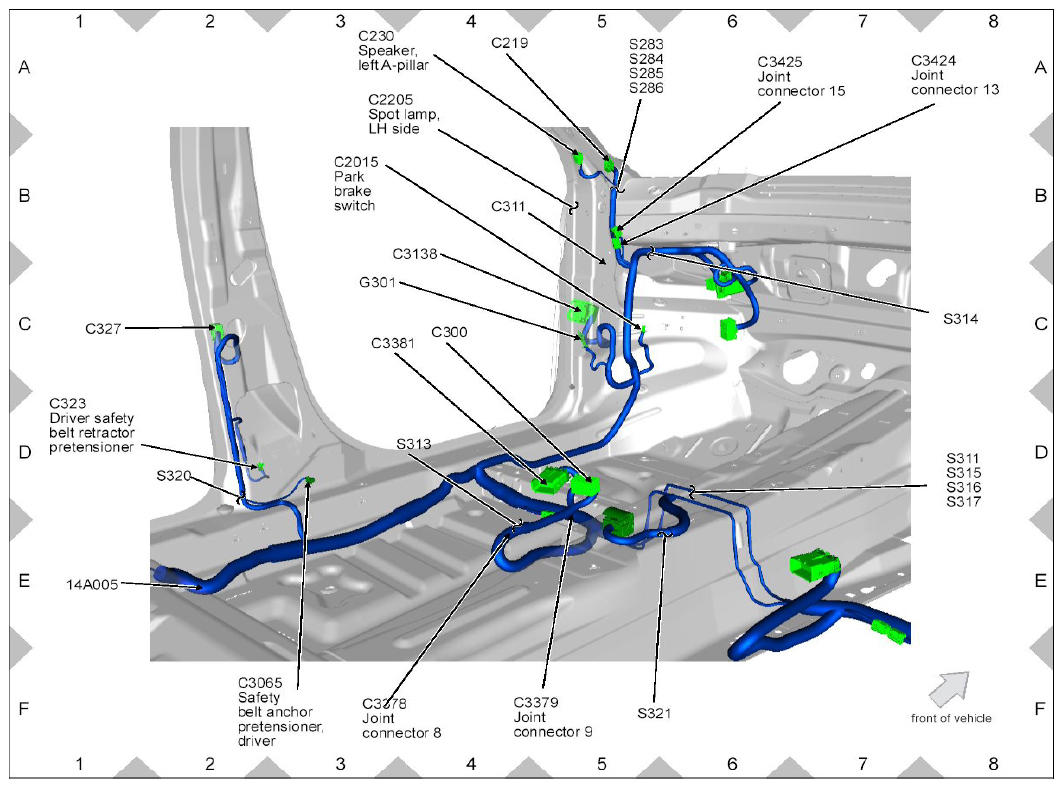

Fig 25: LH Front Compartment Wiring Harness Connectors Location

G09129082

Courtesy of FORD MOTOR CO.

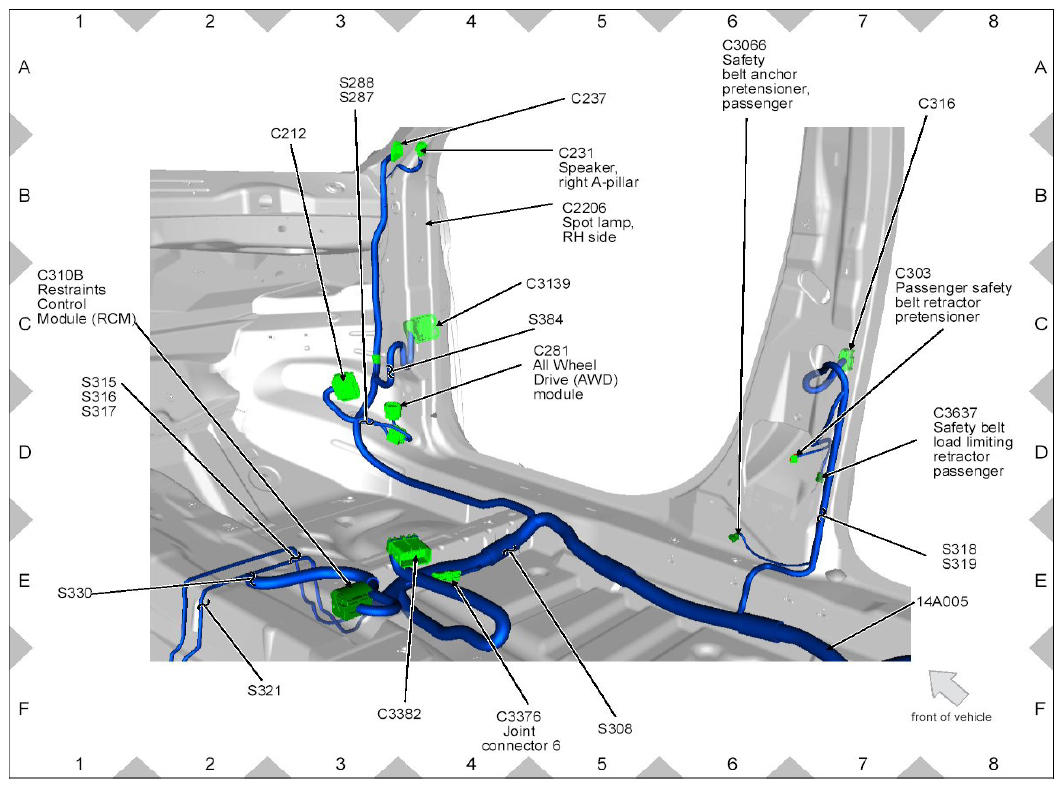

Fig 26: RH Front Compartment Wiring Harness Connectors Location

G09129083

Courtesy of FORD MOTOR CO.

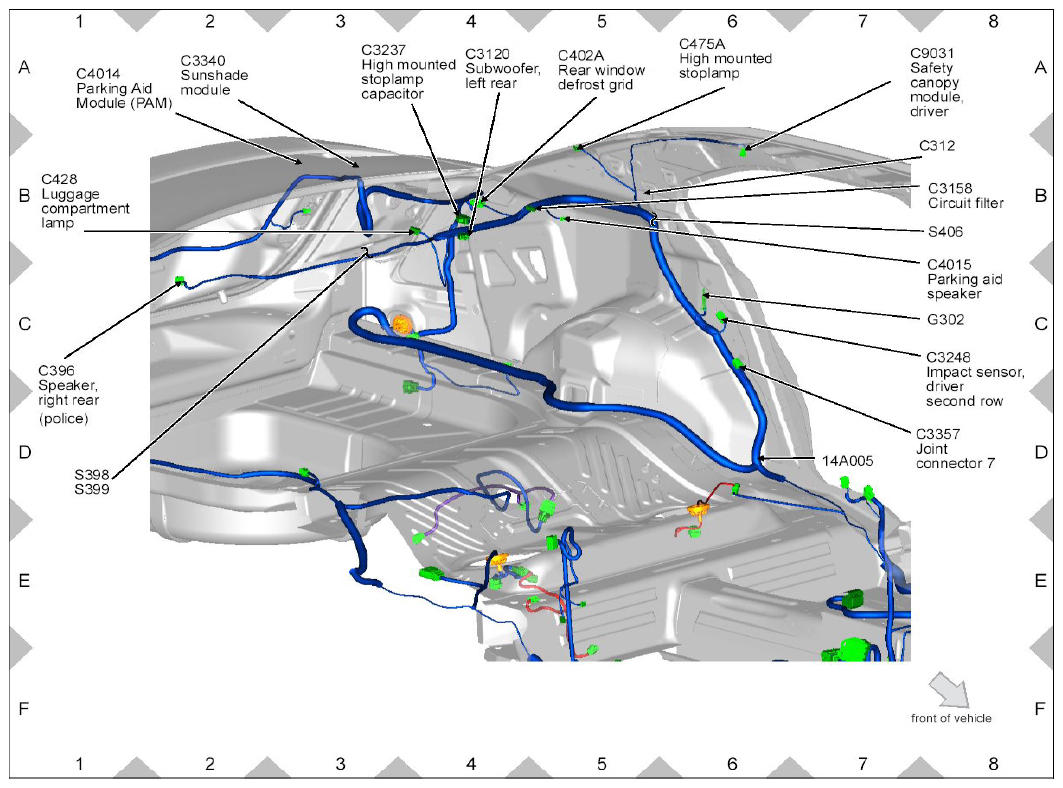

Fig 27: LH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G09129084

Courtesy of FORD MOTOR CO.

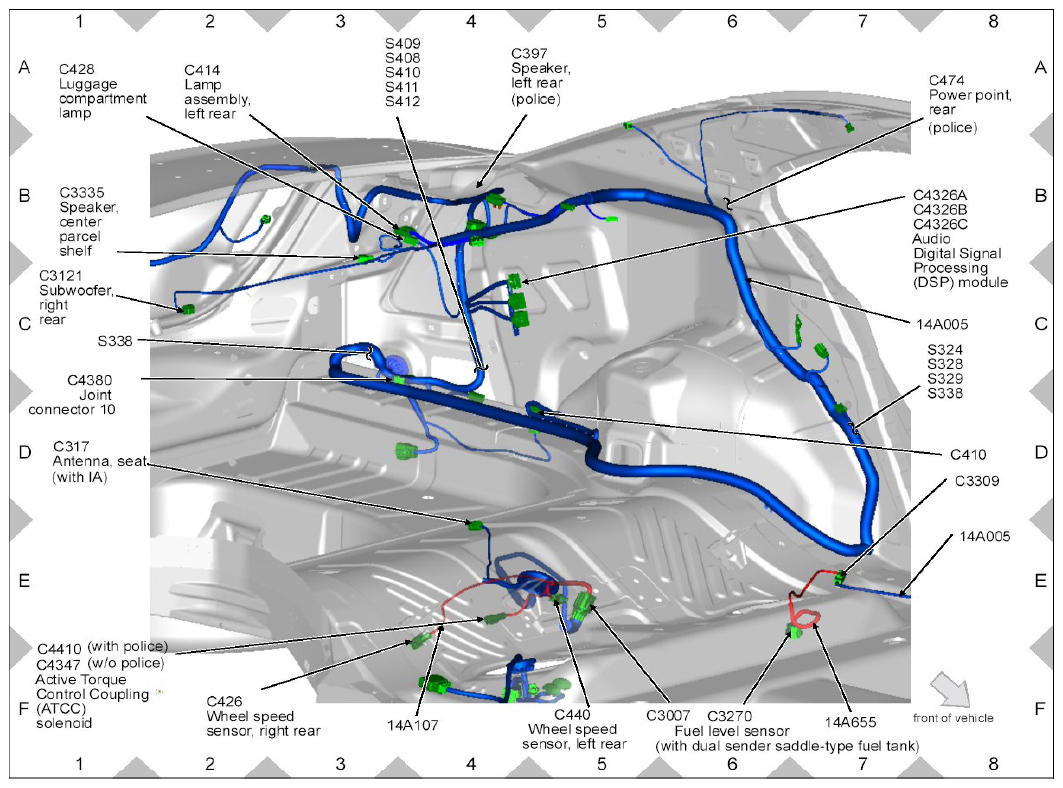

Fig 28: LH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G09129085

Courtesy of FORD MOTOR CO.

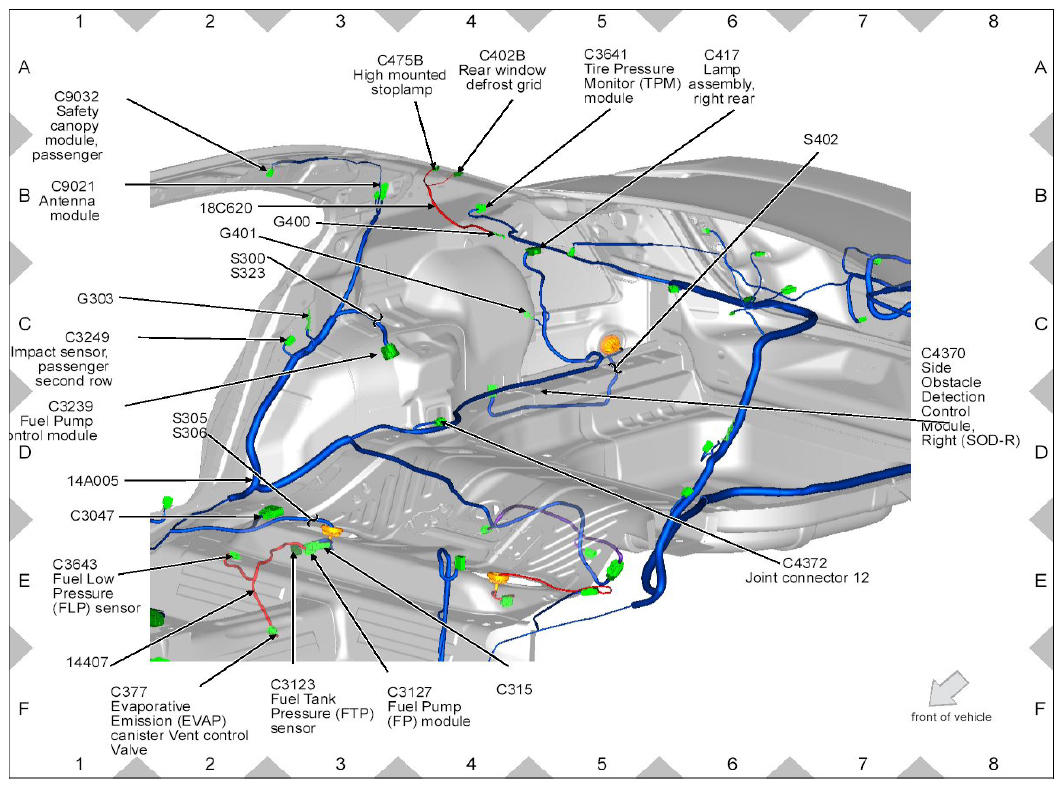

Fig 29: RH Rear Compartment Wiring Harness Connectors Location

G09129086

Courtesy of FORD MOTOR CO.

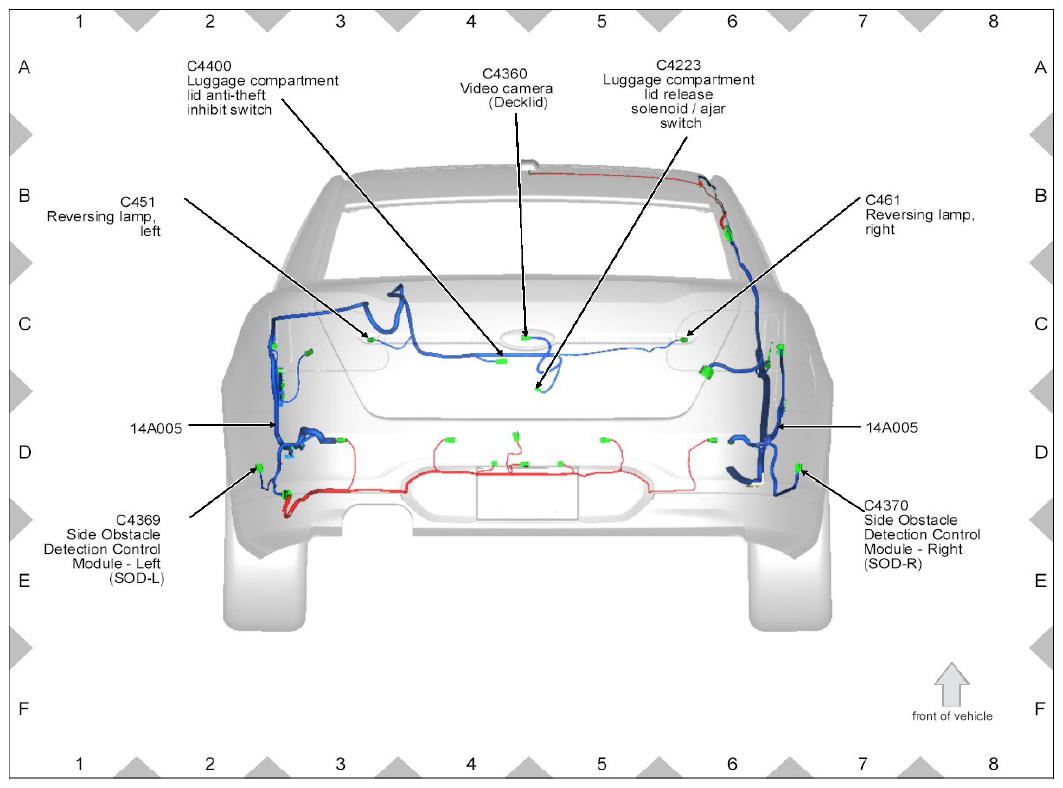

Fig 30: Rear End Wiring Harness Connectors Location (1 Of 2)

G09129087

Courtesy of FORD MOTOR CO.

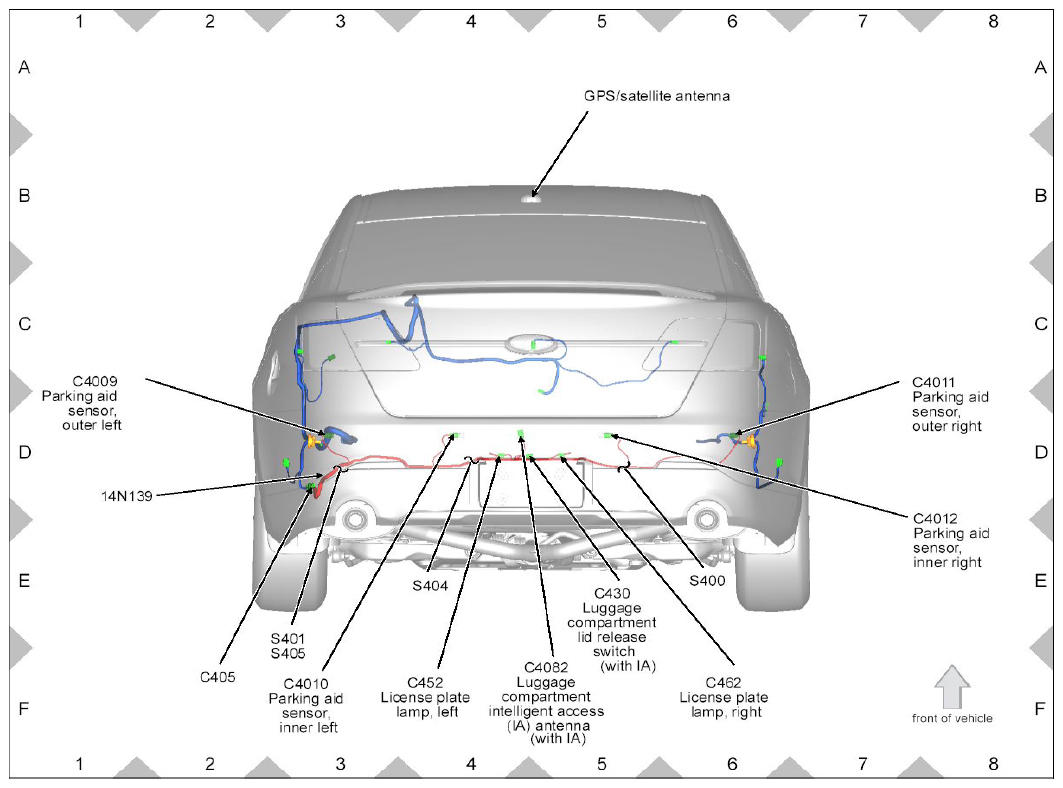

Fig 31: Rear End Wiring Harness Connectors Location (2 Of 2)

G09129088

Courtesy of FORD MOTOR CO.

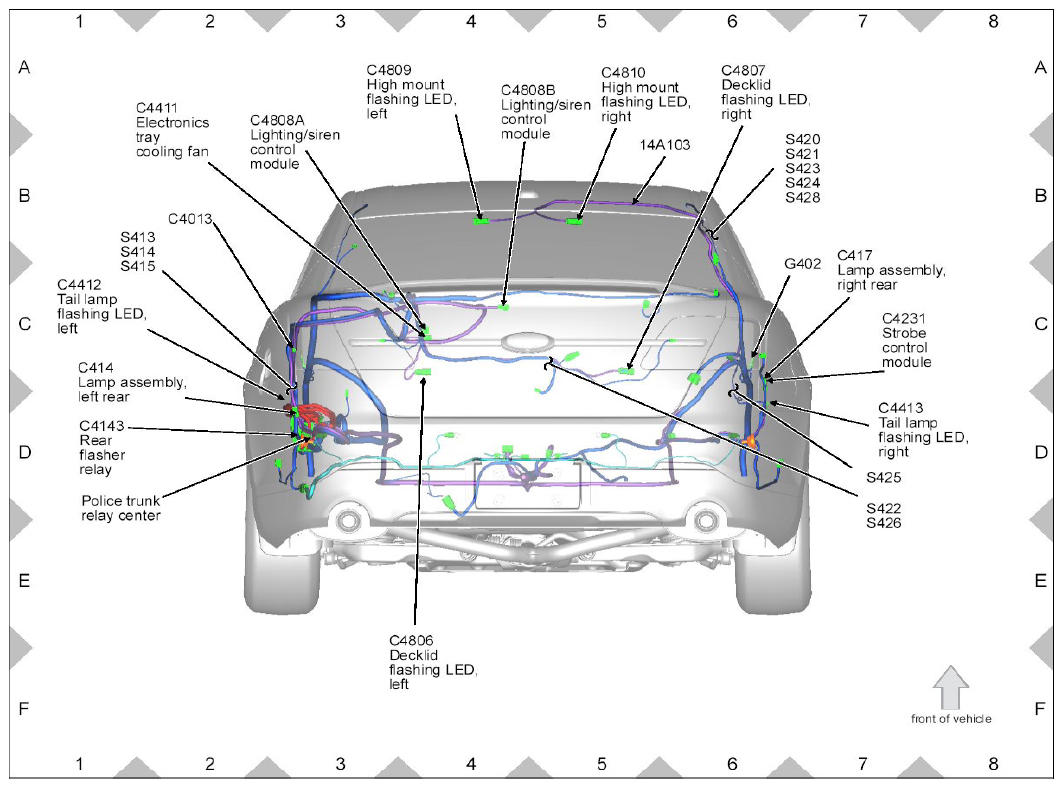

Fig 32: Tail Lamps Wiring Harness Connectors Location

G09129089

Courtesy of FORD MOTOR CO.

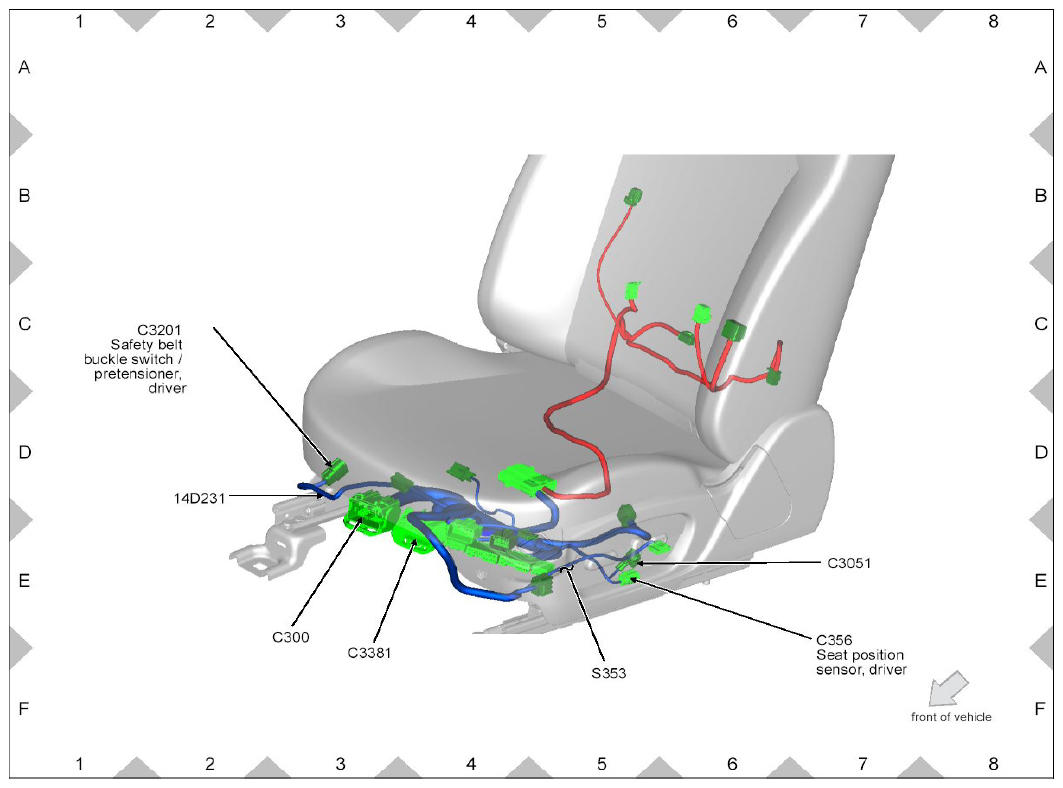

Fig 33: Driver Seat Wiring Harness Connectors Location (1 Of 2)

G09129090

Courtesy of FORD MOTOR CO.

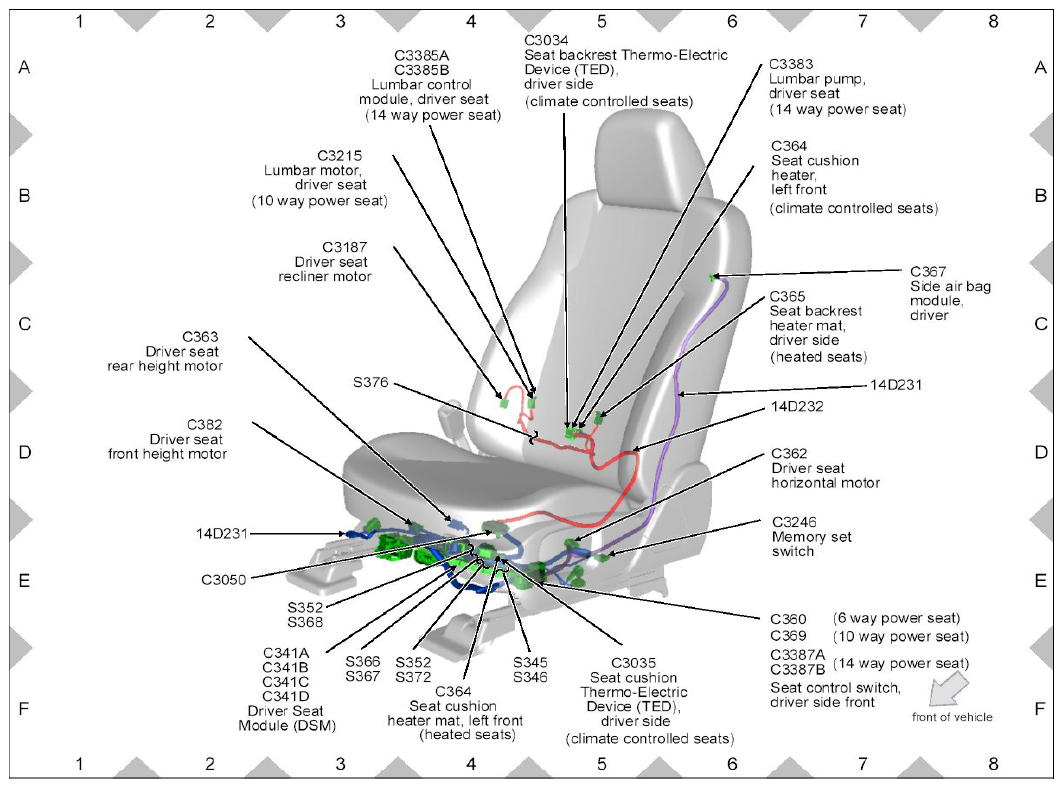

Fig 34: Driver Seat Wiring Harness Connectors Location (2 Of 2)

G09129091

Courtesy of FORD MOTOR CO.

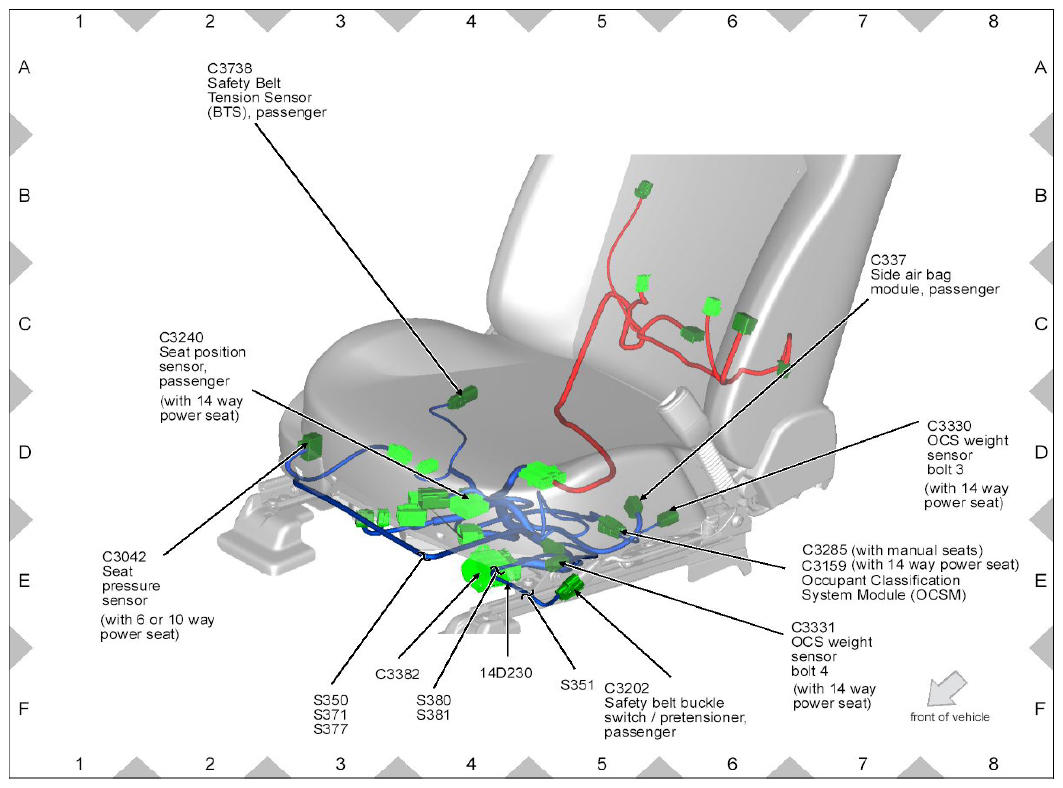

Fig 35: Front Passenger Seat Wiring Harness Connectors Location (1 Of 2)

G09129092

Courtesy of FORD MOTOR CO.

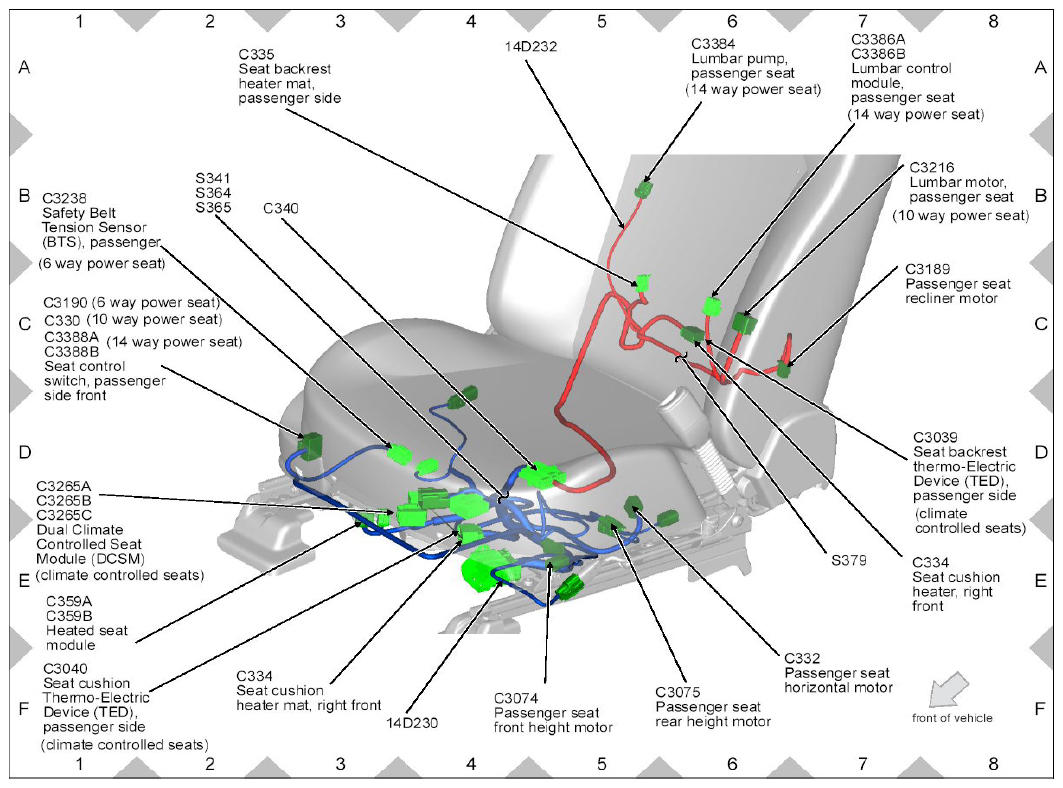

Fig 36: Front Passenger Seat Wiring Harness Connectors Location (2 Of 2)

G09129093

Courtesy of FORD MOTOR CO.

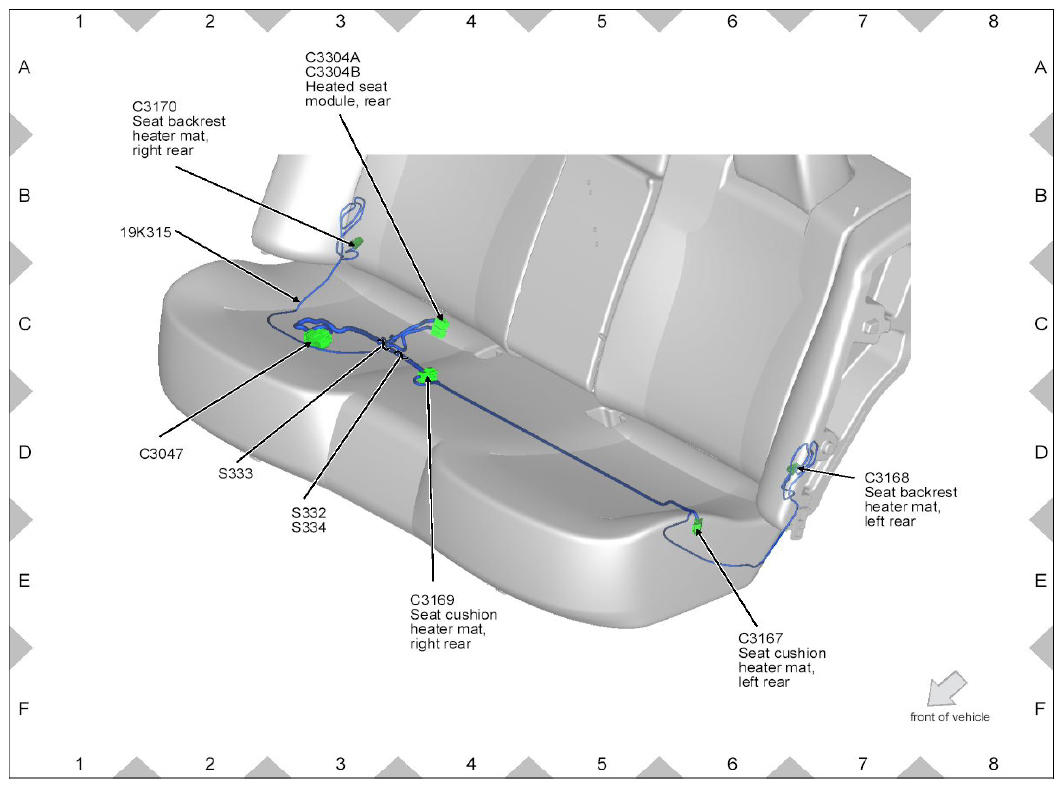

Fig 37: Rear Passenger Seat Wiring Harness Connectors Location

G09129094

Courtesy of FORD MOTOR CO.

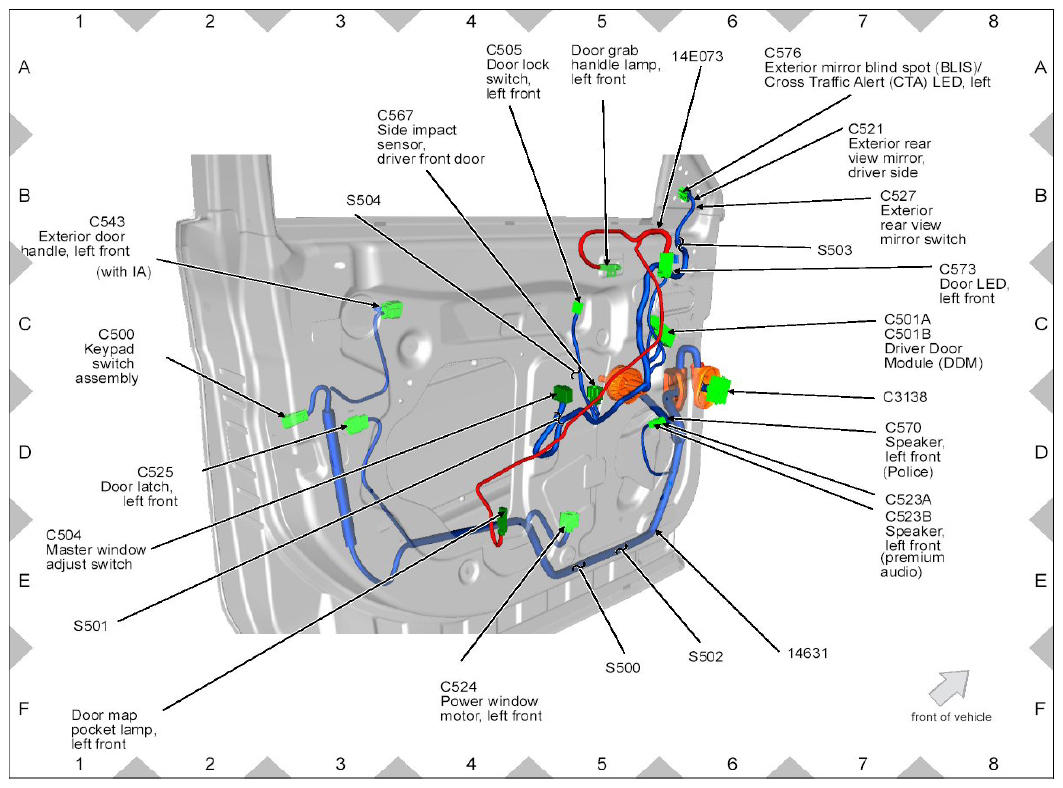

Fig 38: LH Front Door Wiring Harness Connectors Location

G09129095

Courtesy of FORD MOTOR CO.

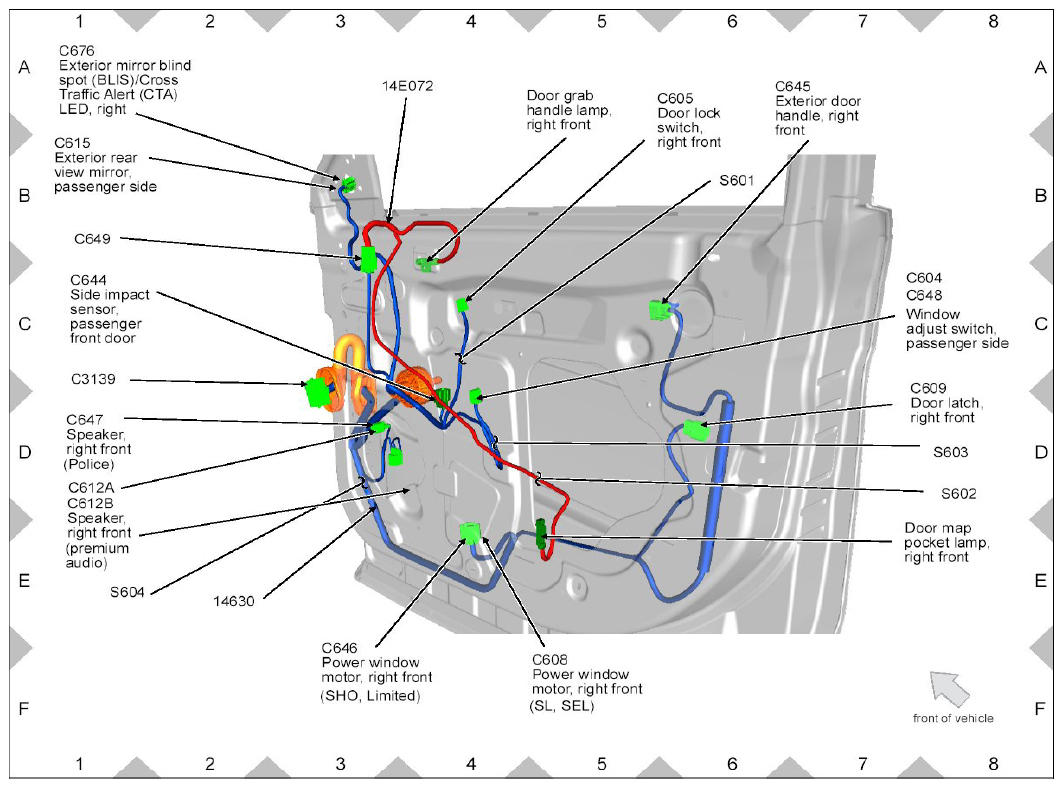

Fig 39: RH Front Door Wiring Harness Connectors Location

G09129096

Courtesy of FORD MOTOR CO.

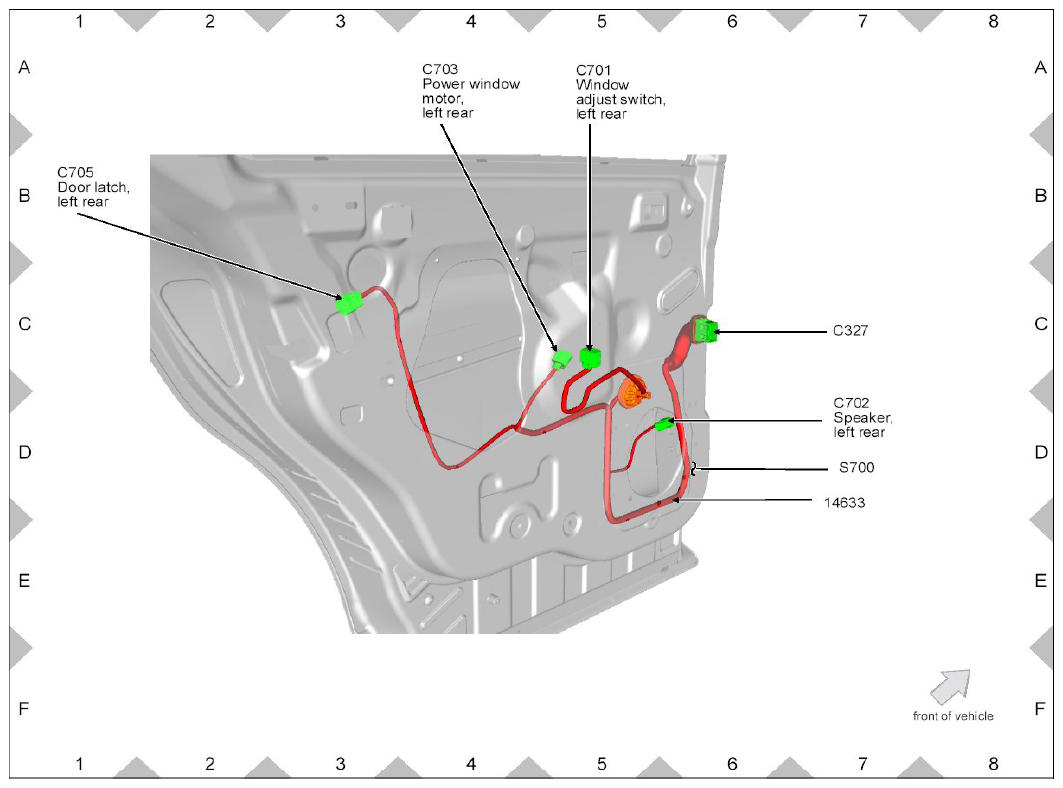

Fig 40: LH Rear Door Wiring Harness Connectors Location

G09129097

Courtesy of FORD MOTOR CO.

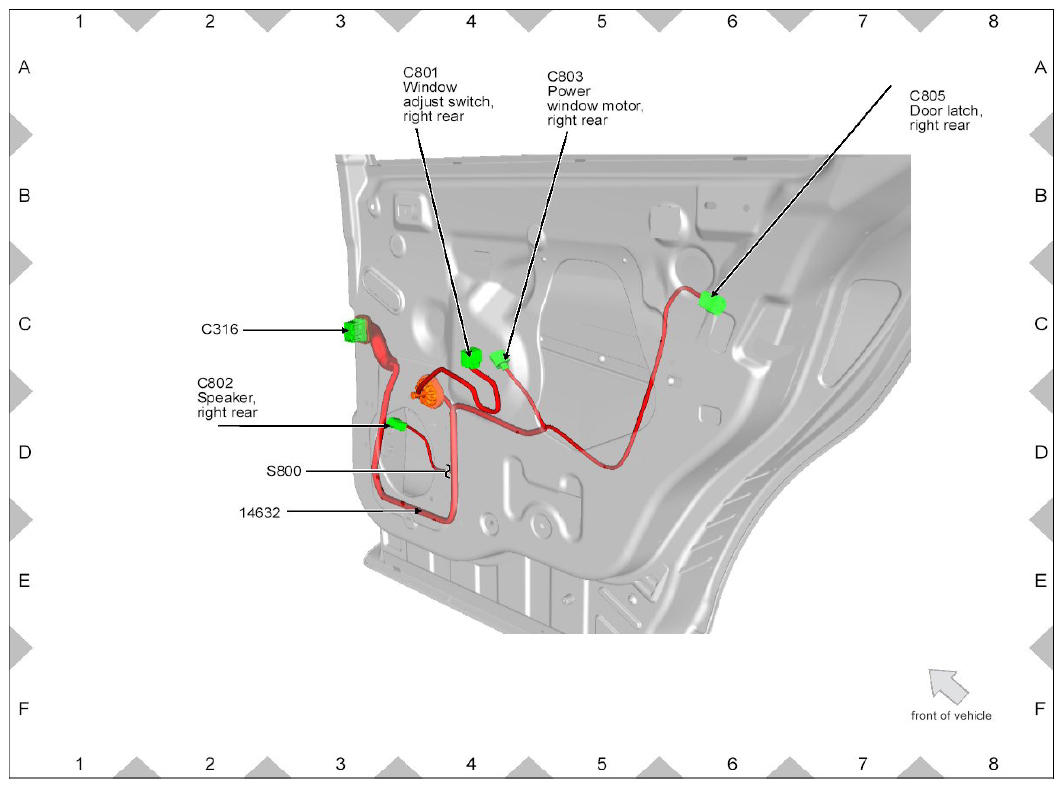

Fig 41: RH Rear Door Wiring Harness Connectors Location

G09129098

Courtesy of FORD MOTOR CO.

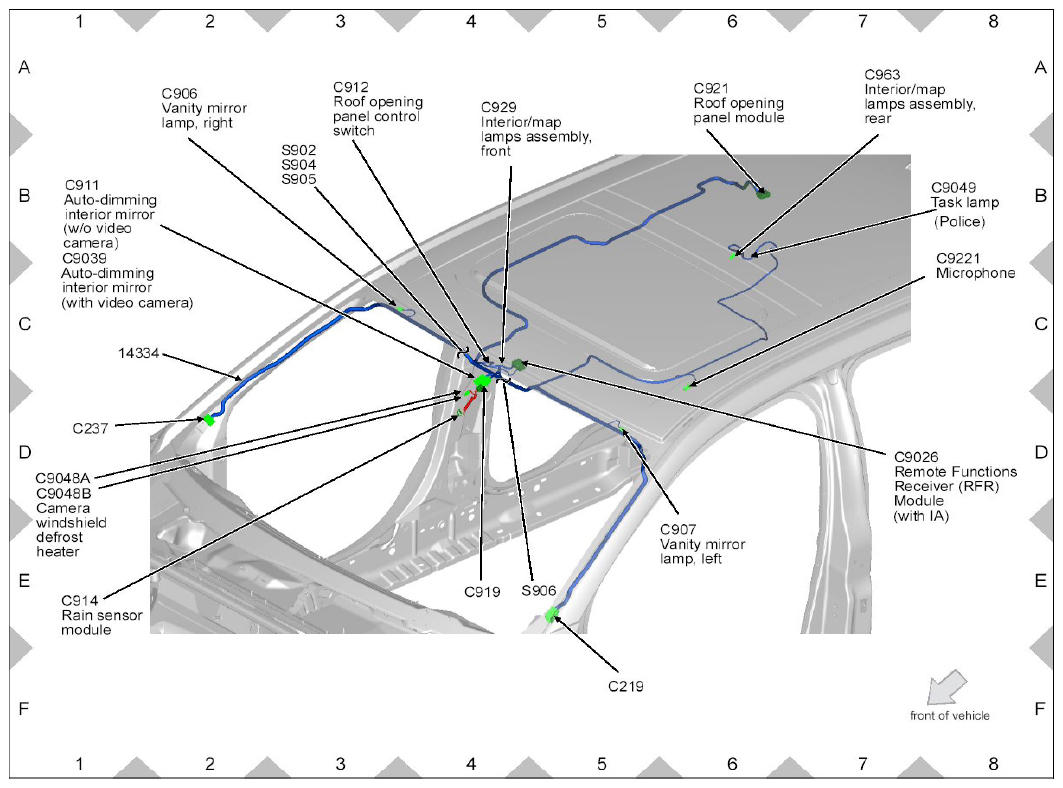

Fig 42: Roof Wiring Harness Connectors Location

G09129099

Courtesy of FORD MOTOR CO.
