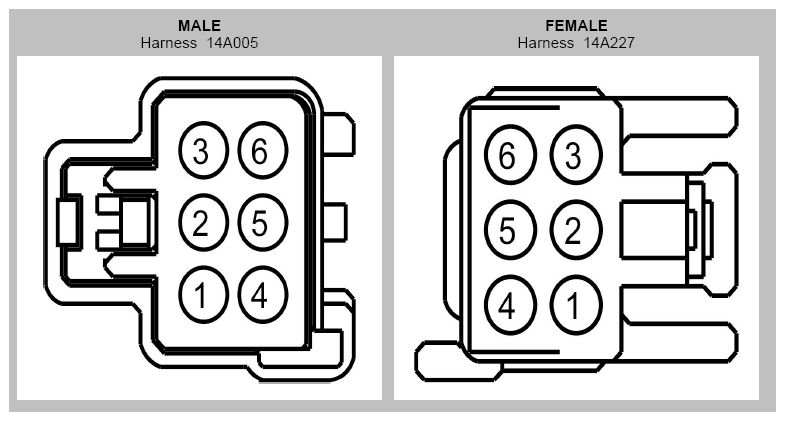

Inline Connector End View (C312)

Fig 1: Identifying Inline Connector (C312)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	SBB80 (VT-RD)	14	14A227
1	SBB80 (VT-RD)	16	14A005
2	CLS27 (GN-OG)	18
3	CLN09 (YE-GN)	20	14A227
3	CLN09 (YE-GN)	22	14A005
4	CLS23 (GY-OG)	18
5	CLN13 (WH-BU)	22
6	GD347 (BK-GN)	14	14A227
6	GD347 (BK-VT)	16	14A005

Available Pigtail Kits

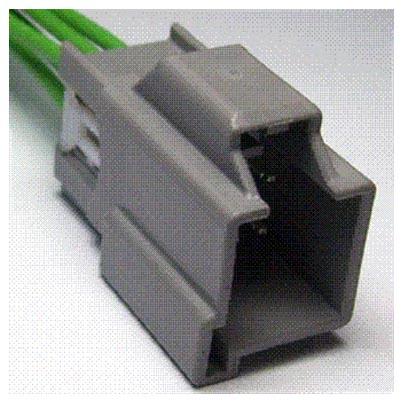

Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA  Gauge: 16  Pin material: Tin  Cavities: 6  Vehicle Uses: Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction

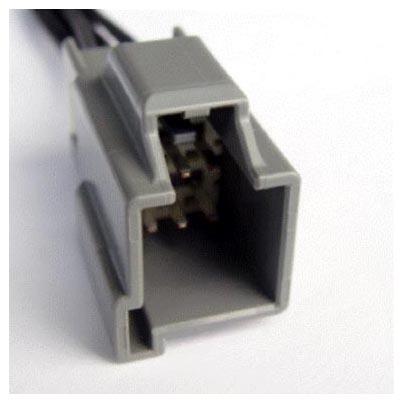

Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses: Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
