OEM Ground Distribution: Grounds: G101

Fig 1: Ground System (G101) Wiring Diagram (1 Of 2)
G09128689Courtesy of FORD MOTOR CO.

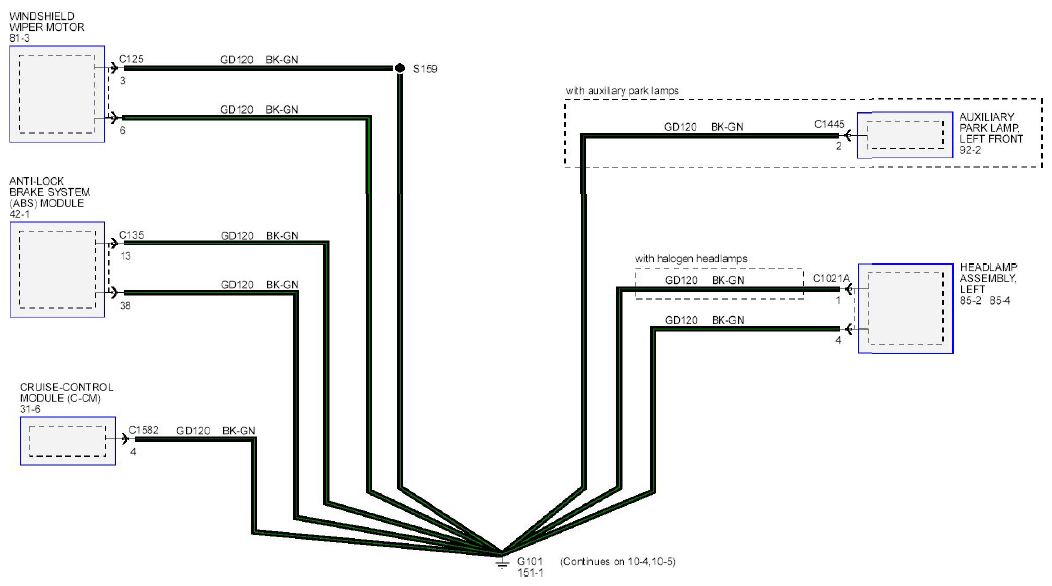

Fig 2: Ground System (G101) Wiring Diagram (2 Of 2)
G09128690Courtesy of FORD MOTOR CO.
