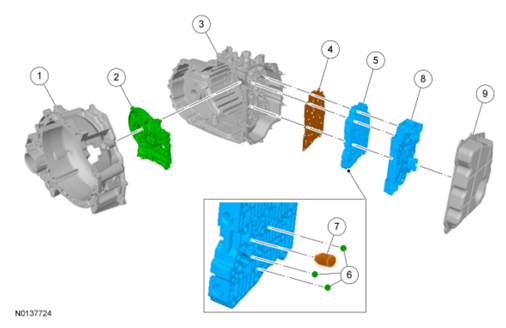

Main Control Components
WARNING: This page is about a different variant/trim than selected.
| Item |
Description |
| 1 |
Torque converter housing |
| 2 |
Pump assembly |
| 3 |
Transmission case |
| 4 |
Main control-to-transmission case separator plate |
| 5 |
Valve body |
| 6 |
Check balls |
| 7 |
Solenoid damper (SSA) |
| 8 |
Solenoid body assembly |
| 9 |
Main control cover |
