Main Control Cover: Installation

WARNING: This page is about a different variant/trim than selected.

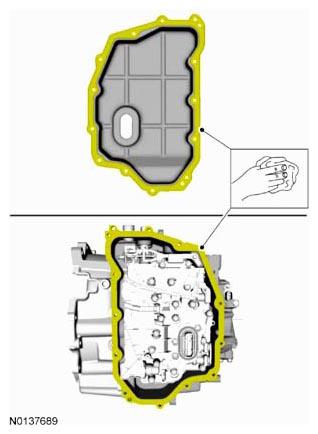

  1. Clean the specified component with the specified material.
    G08661457
  2. NOTE: Be sure the sealing surface of the main control cover and the transmission housing are free of oil before applying Ultra Silicone Sealant.

    Apply the substance from the specified tube.

    Material: Ultra Silicone Sealant TA-29.

    G08412220

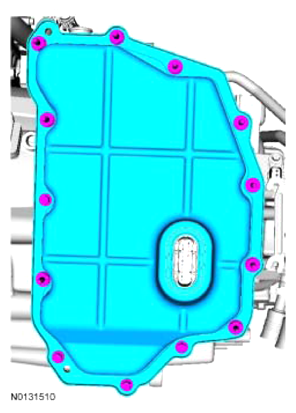

  3. NOTE: Inspect the main control-to-main control cover grommet to make sure that it seals on the inside of the main control cover or a transmission fluid leak will occur.
    NOTE: Install the studbolts in the locations noted during disassembly.
    • Tighten to 12 Nm (106 lb-in).
      G08031000
  4. G08614321
    • Tighten to 5 Nm (44 lb-in).
      G08030997

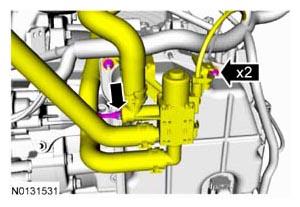

    • Tighten to 9 Nm (80 lb-in).
      G08661453
  7. Install the ACL assembly. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  8. Fill the transmission with clean transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
