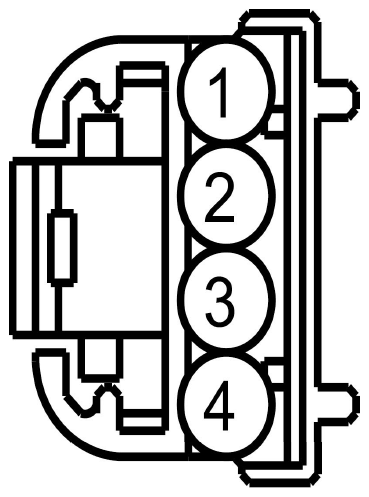

AUTOLAMP/SUNLOAD Sensor Connector End View (C286)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VH417 (YE-OG) | 26 | SENSOR - SUN LOAD # RIGHT | |
| 2 | VLF14 (BU-BN) | 26 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + | |
| 3 | VH416 (VT-GY) | 26 | SENSOR - SUN LOAD # LEFT | |
| 4 | GD374 (BK-WH) | 20 | GROUND - TUNNEL (BC3T) |
| Available Pigtail Kits | |

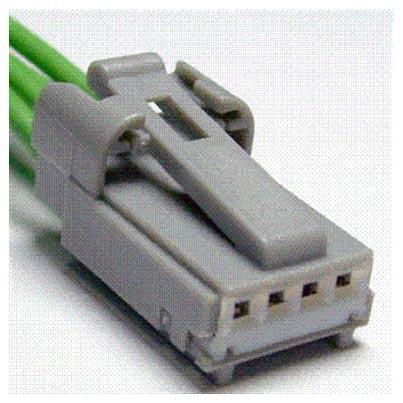

| Pigtail Kit Part Number WPT-1013 | Service Part Number: 9U2Z-14S411-TA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses
|
