Power Point, Console Front Connector End View (C380)

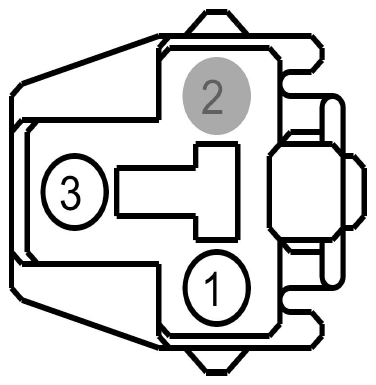

Fig 1: Identifying Power Point (Console Front) Connector (C380)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB20 (GN-RD)	16	FUSE - 20 OR CIRCUIT BREAKER
2	*	*	Not Used
3	GD375 (BK-BU)	16	GROUND - TUNNEL # 2ND POINT (BC3T)

Available Pigtail Kits

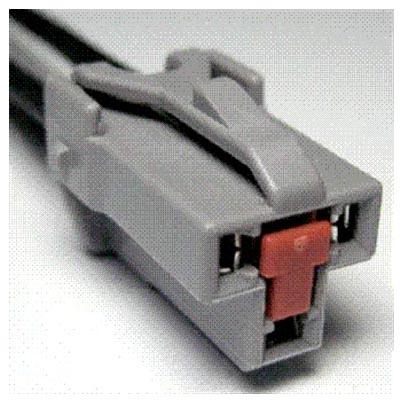

Pigtail Kit Part Number WPT-1160	Service Part Number: 3U2Z-14S411-SJB  Gauge: 12  Pin material: Tin  Cavities: 3  Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point

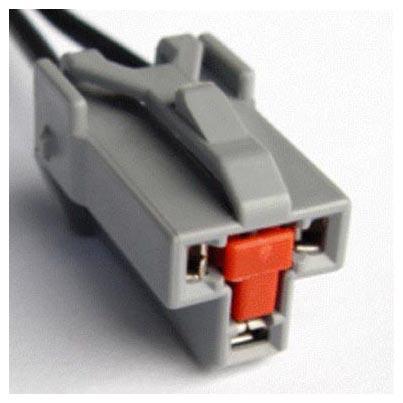

Pigtail Kit Part Number WPT-682	Service Part Number: 3U2Z-14S411-SJA  Gauge: 14  Pin material: Tin  Cavities: 3  Vehicle Uses Alternator Motor - Engine Cooling Fan
