Power Steering Control Module (PSCM) Connector And View (C1467B)

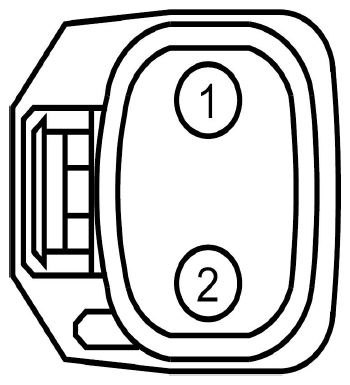

Fig 1: Identifying Power Steering Control Module (PSCM) Connector (C1467B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBF04 (GN-RD)	8	FUSE - 4
2	GD178 (BK-VT)	8	GROUND - CHASSIS/BATTERY #2
