Safety Canopy Module, Driver Connector And View (C9031)

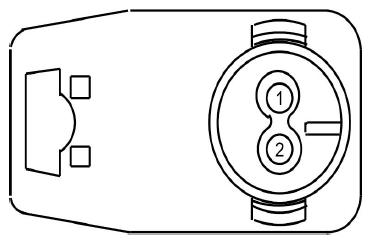

Fig 1: Identifying Safety Canopy Module (Driver) Connector (C9031)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR109 (BN-BU)	20	INFLATABLE CURTAIN LH+
2	RR109 (BU-GN)	20	INFLATABLE CURTAIN LH-

Available Pigtail Kits

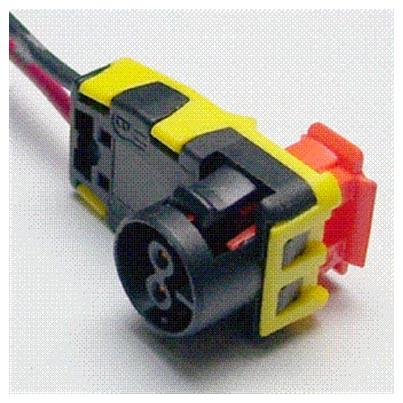

Pigtail Kit Part Number WPT-1225	Service Part Number: BU2Z-14S411-BHA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
