Safety Canopy Module, Passenger Connector And View (C9032)

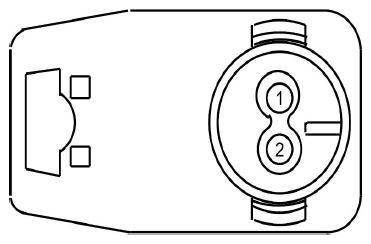

Fig 1: Identifying Safety Canopy Module (Passenger) Connector (C9032)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR111 (BN-WH)	20	INFLATABLE CURTAIN RH+
2	RR111 (YE-VT)	20	CTRL MOD. - INFLATABLE CURTAIN RH -

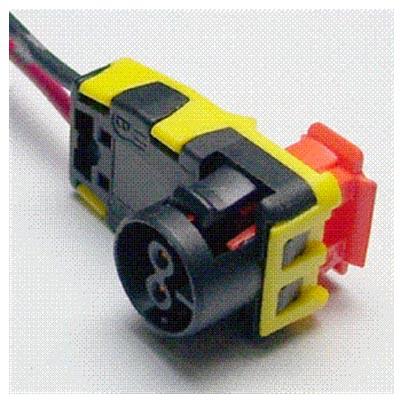

Available Pigtail Kits
Pigtail Kit Part Number WPT-1225	Service Part Number: BU2Z-14S411-BHA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
