Seat Control Switch, Driver Side Front Connector End View (C360)

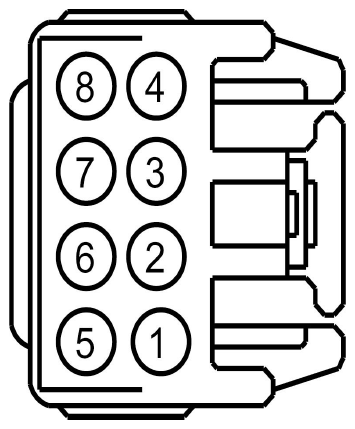

Fig 1: Identifying Seat Control Switch (Driver Side) Front Connector (C360)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS25 (WH-VT)	16	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP
2	GD904 (BK-BU)	14	GROUND - DRIVER SEAT # SEAT SWITCH
3	CPS23 (GN-VT)	16	SWITCH - SEAT ADJUST. DRIVER FORWARD
4	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH
5	CPS27 (BU-BN)	16	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP
6	CPS28 (GN)	16	SWITCH - SEAT ADJUST. DRIVER REARWARD
7	CPS26 (YE-BU)	16	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN
8	CPS24 (GY)	16	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN
