MULTIFUNCTION Control Modules: Notes

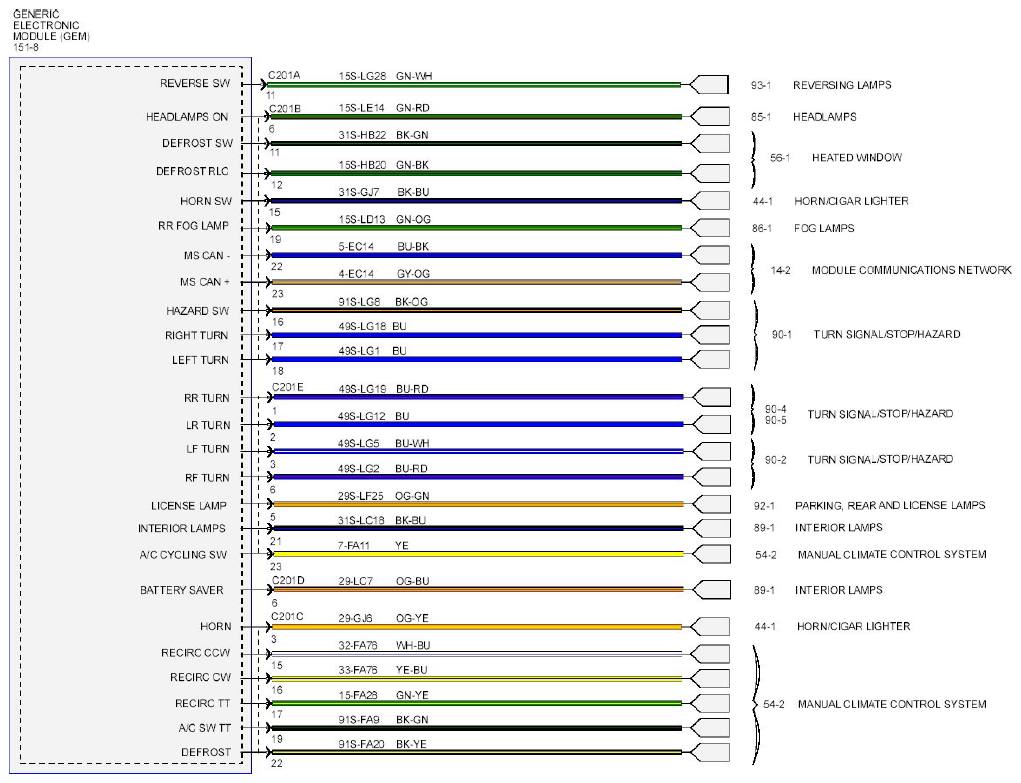

Fig 1: Multifunction Control Modules - Circuit Diagram (1 Of 4)

Courtesy of FORD MOTOR CO.

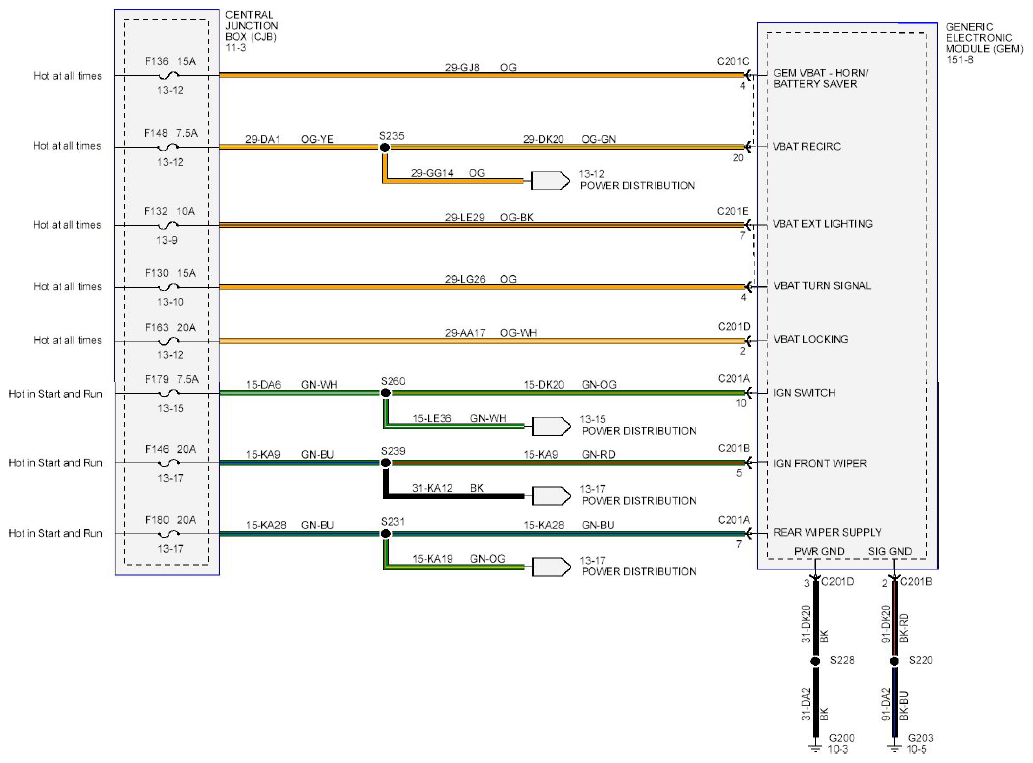

Fig 2: Multifunction Control Modules - Circuit Diagram (2 Of 4)

Courtesy of FORD MOTOR CO.

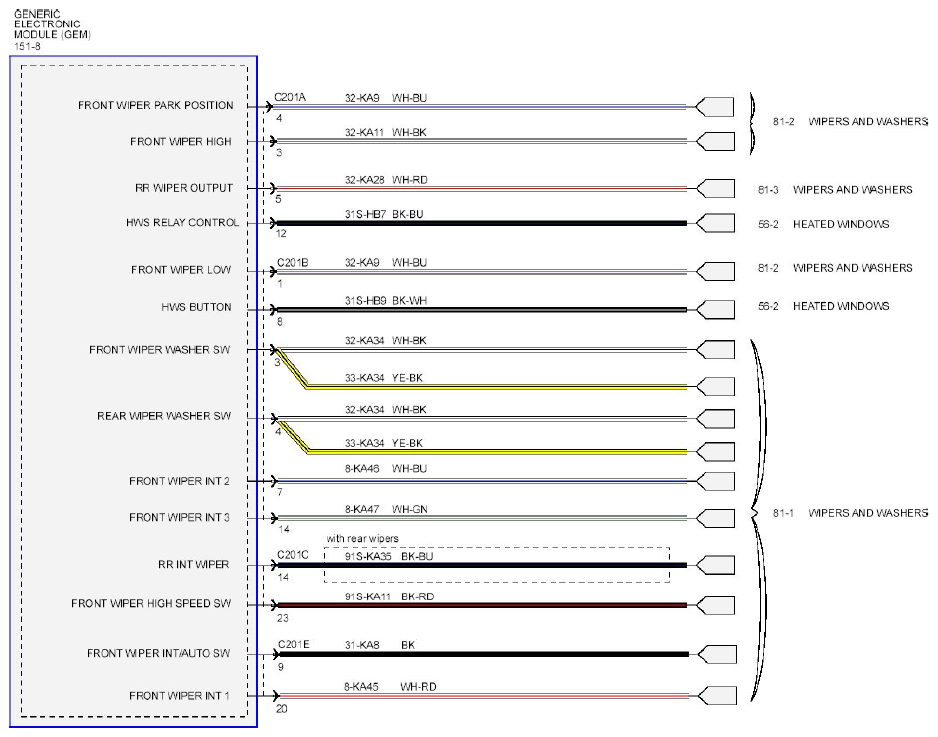

Fig 3: Multifunction Control Modules - Circuit Diagram (3 Of 4)

Courtesy of FORD MOTOR CO.

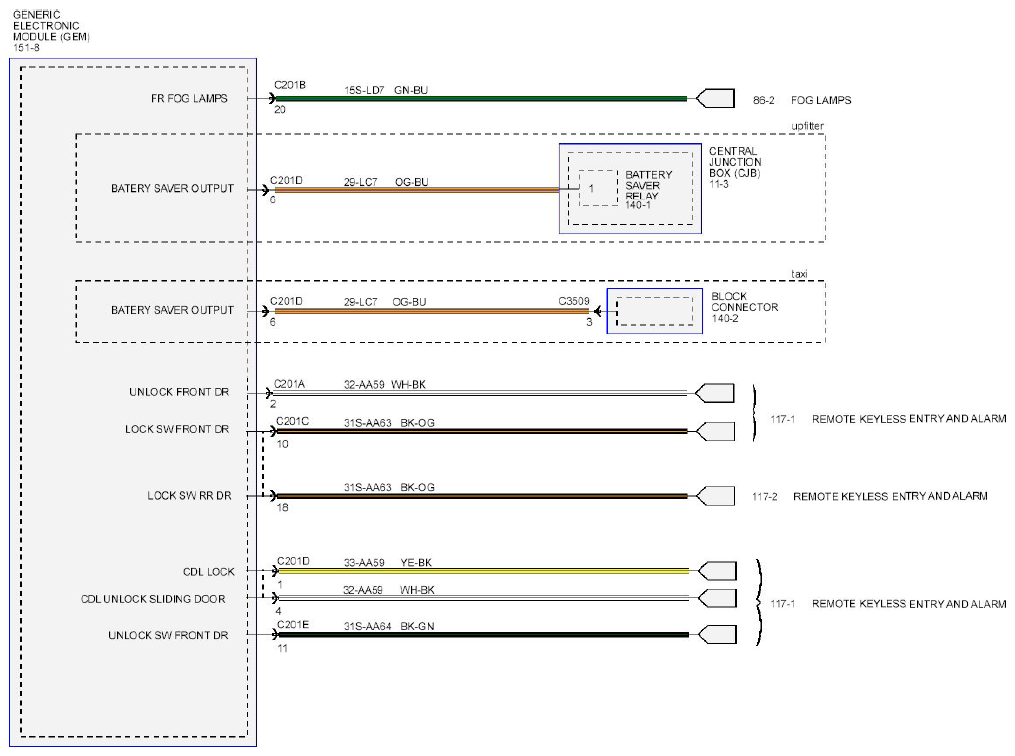

Fig 4: Multifunction Control Modules - Circuit Diagram (4 Of 4)

Courtesy of FORD MOTOR CO.
