Module Communications Network

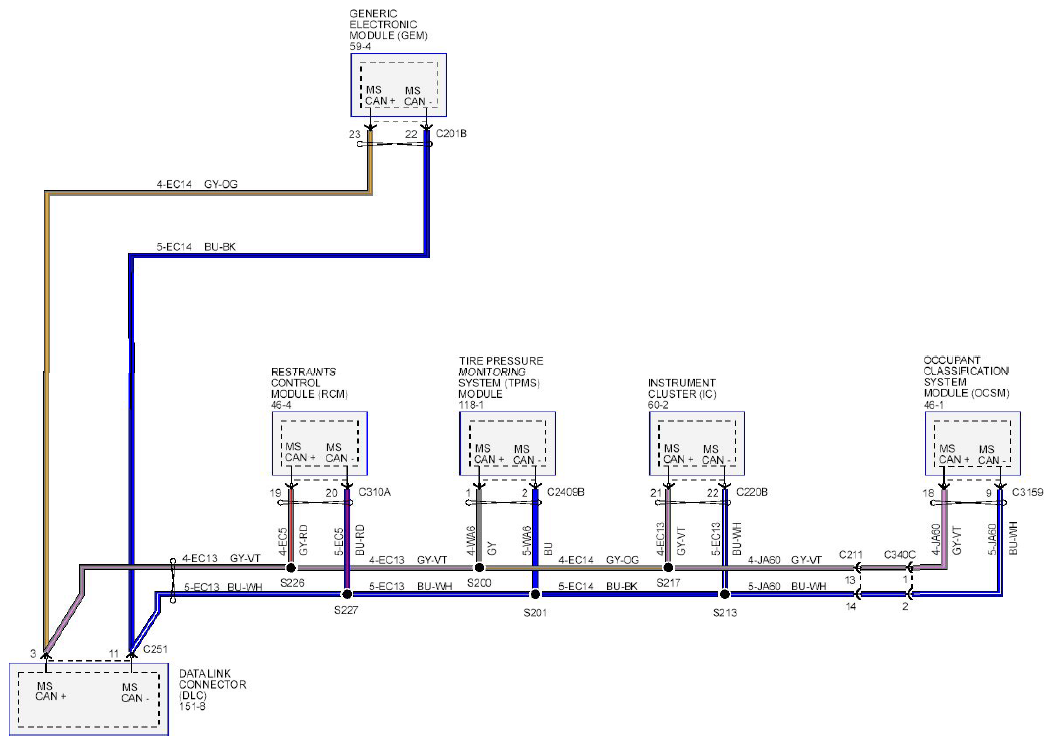

Fig 1: Module Communications Network - Circuit Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

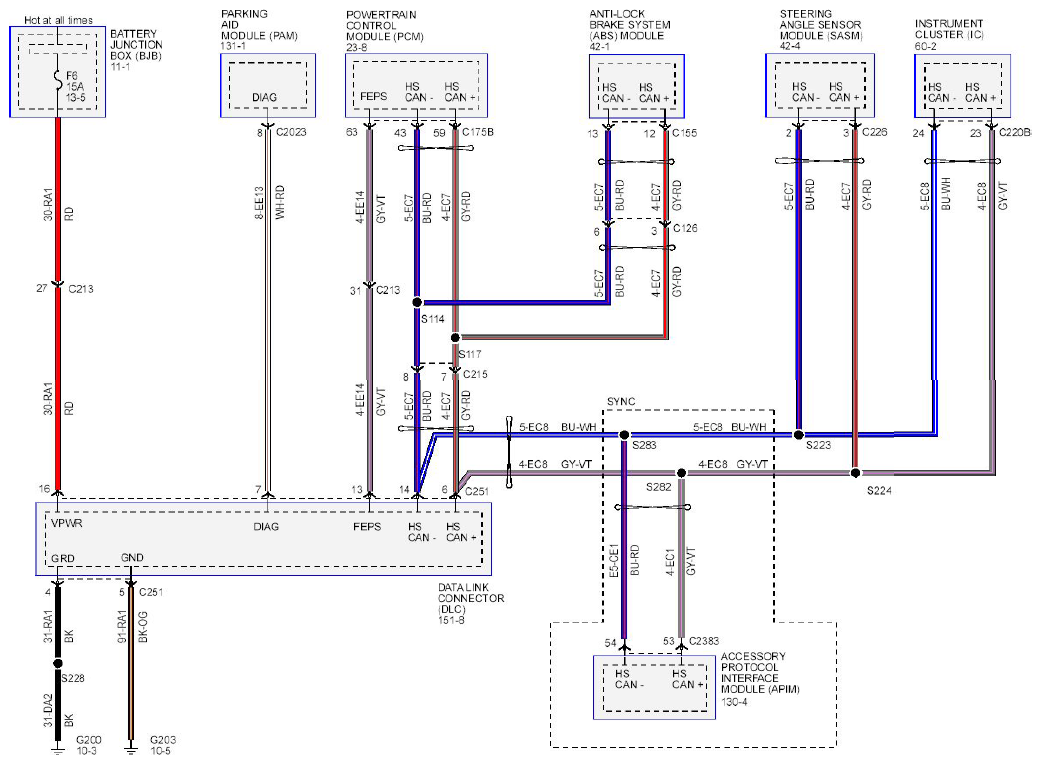

Fig 2: Module Communications Network - Circuit Diagram (2 Of 2)

Courtesy of FORD MOTOR CO.
