Component Location Views

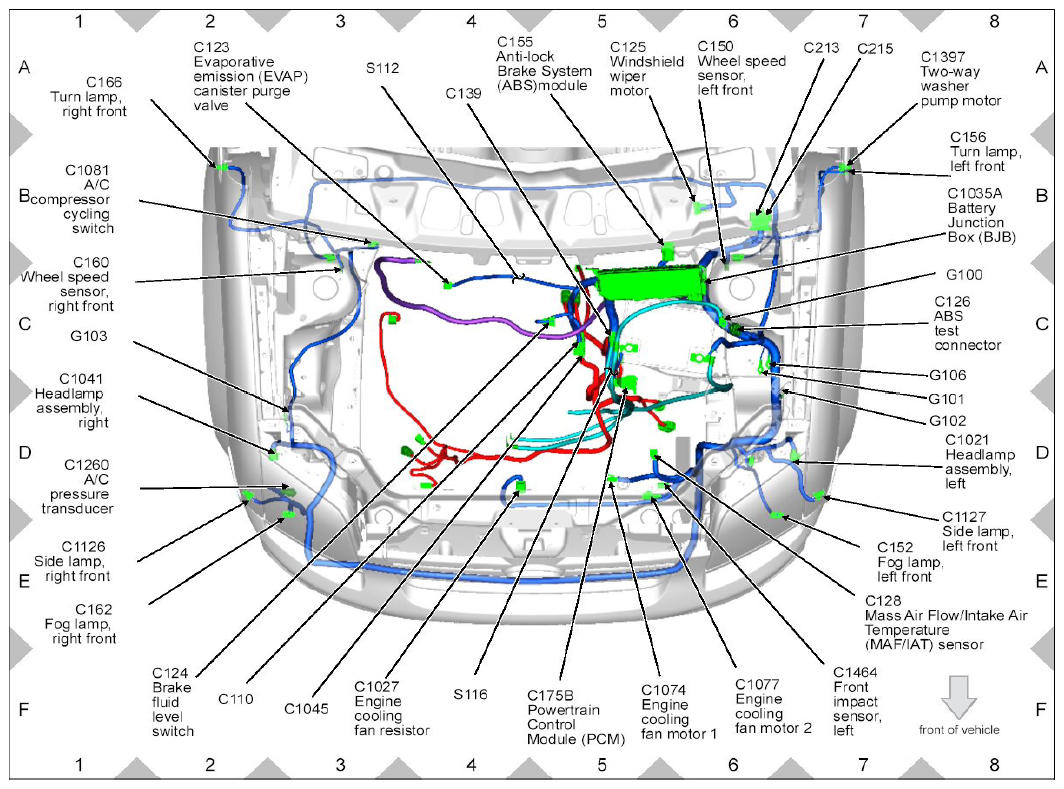

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 2)
G09084173Courtesy of FORD MOTOR CO.

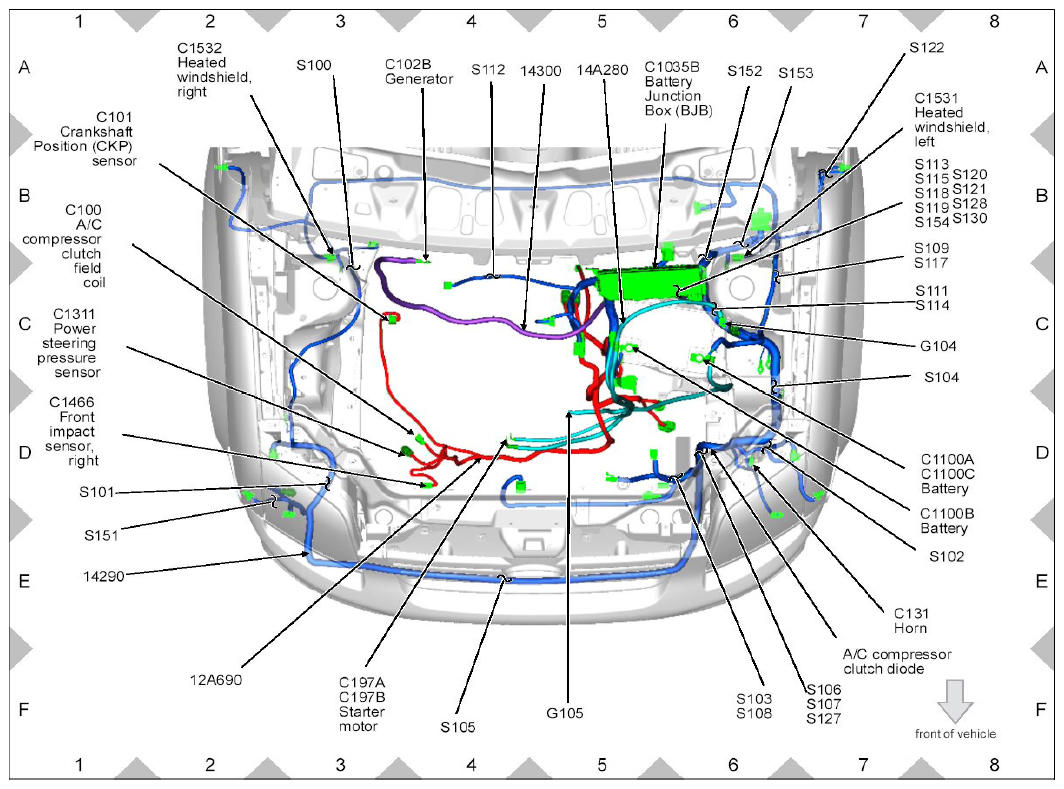

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 2)
G09084174Courtesy of FORD MOTOR CO.

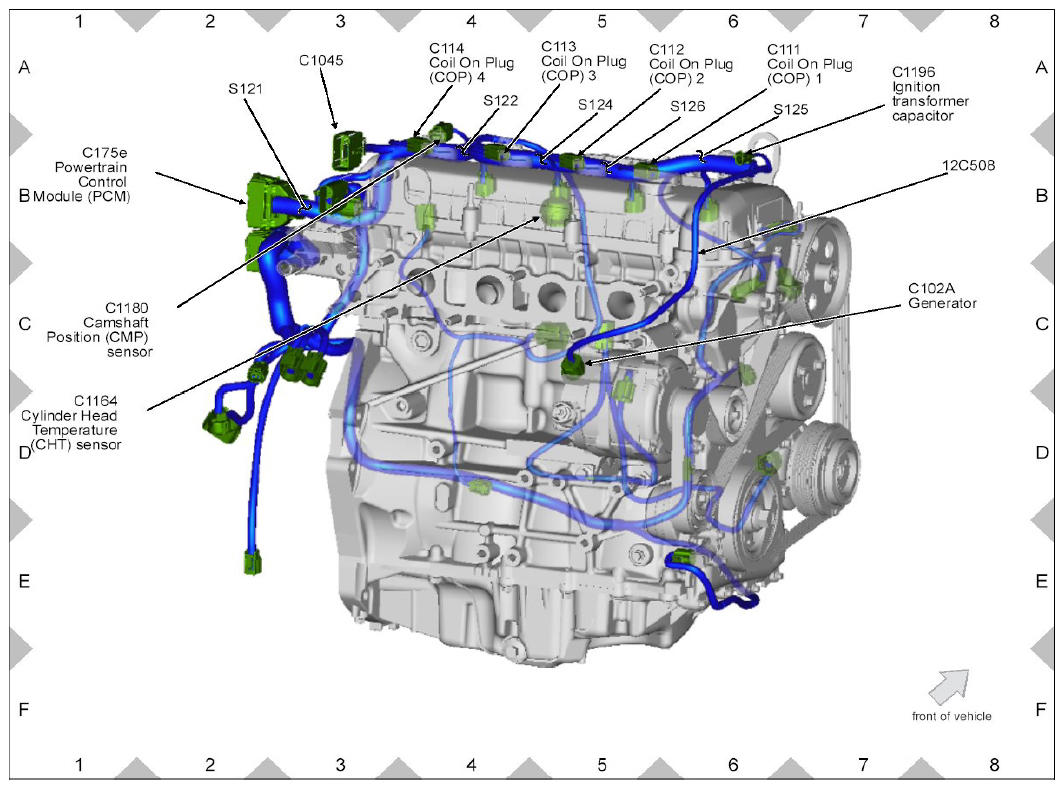

Fig 3: Engine Wiring Harness Connectors Location (1 Of 2)
G09084175Courtesy of FORD MOTOR CO.

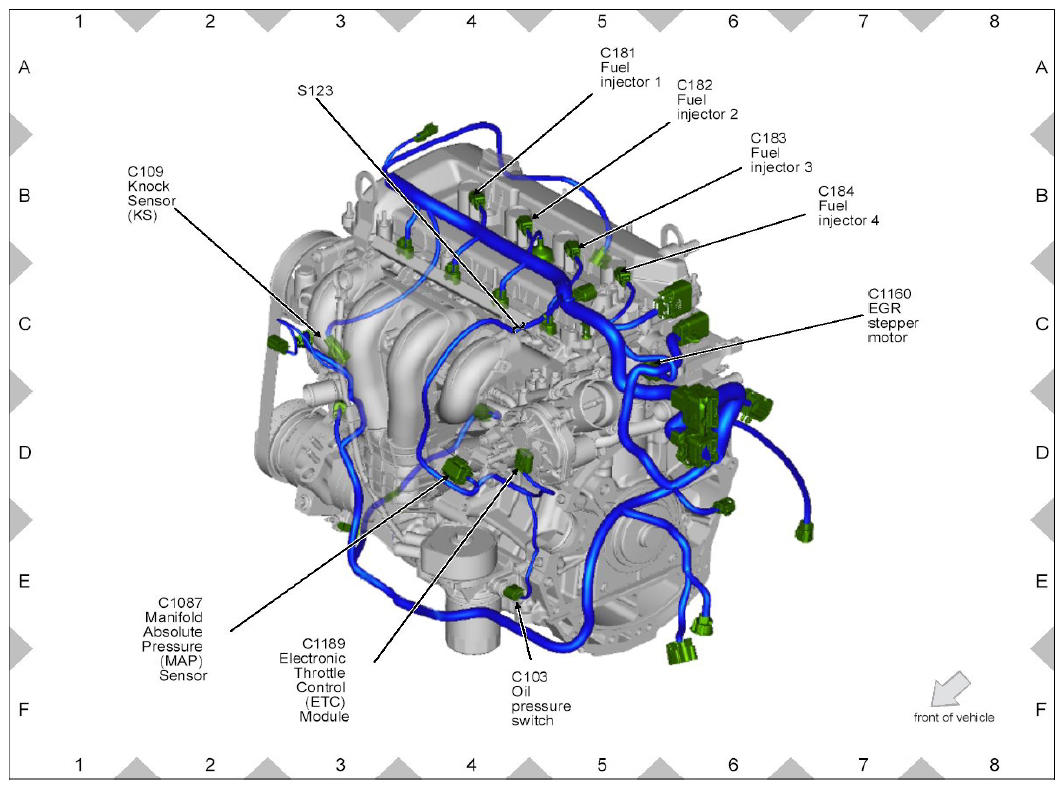

Fig 4: Engine Wiring Harness Connectors Location (2 Of 2)
G09084176Courtesy of FORD MOTOR CO.

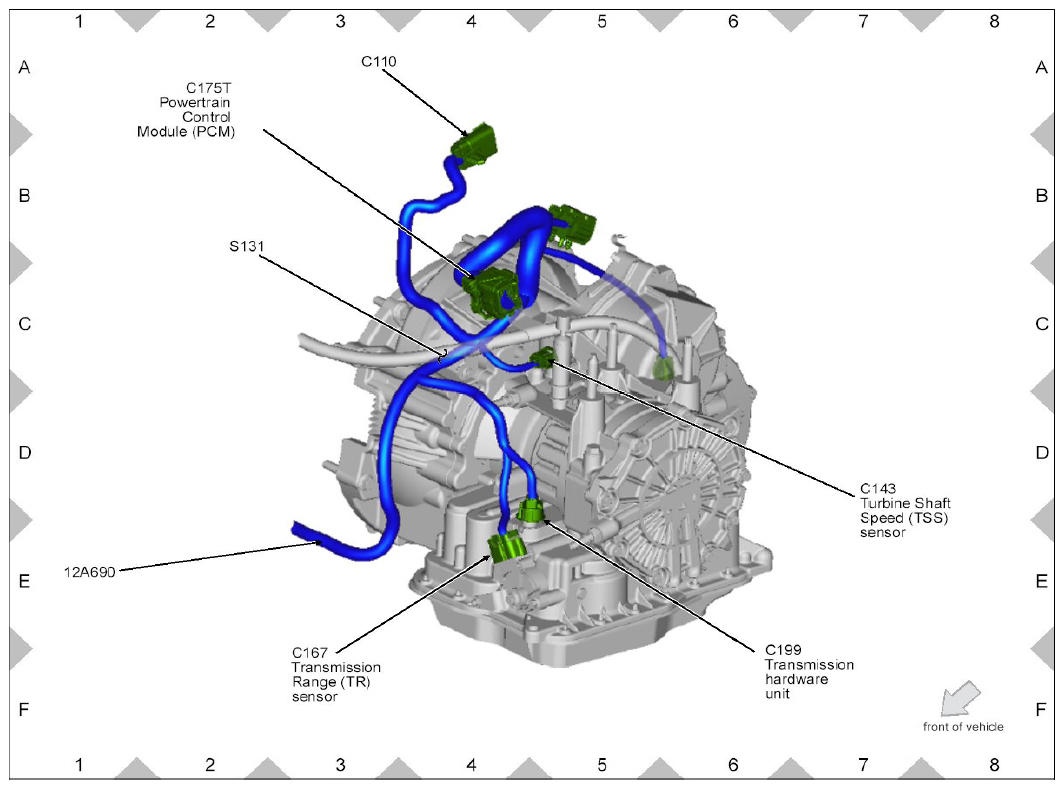

Fig 5: Transmission Wiring Harness Connectors Location (1 Of 2)
G09084177Courtesy of FORD MOTOR CO.

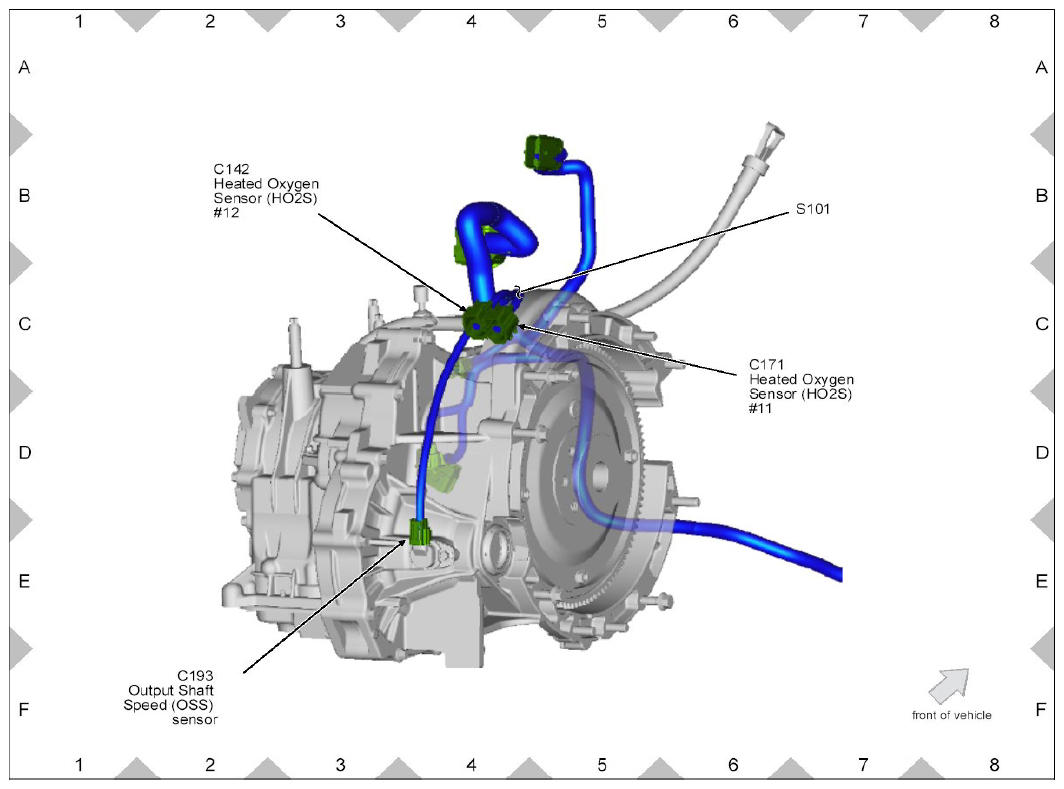

Fig 6: Transmission Wiring Harness Connectors Location (2 Of 2)
G09084178Courtesy of FORD MOTOR CO.

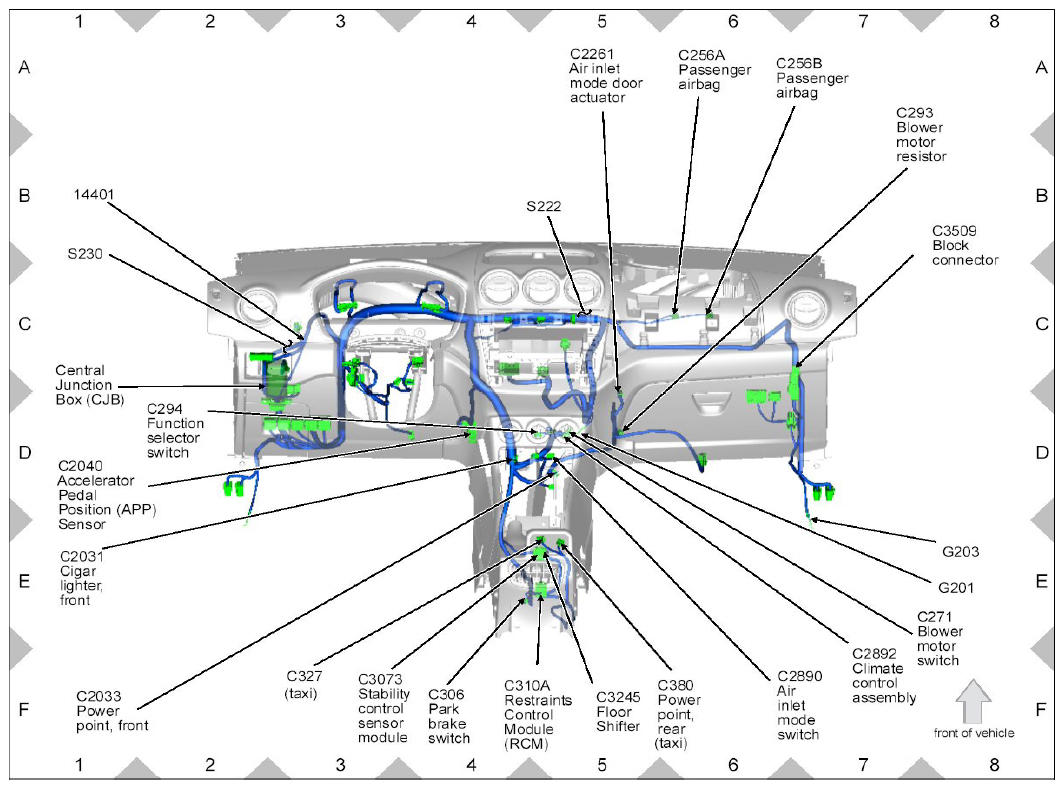

Fig 7: Dashboard Wiring Harness Connectors Location - Front Side (1 Of 2)
G09084179Courtesy of FORD MOTOR CO.

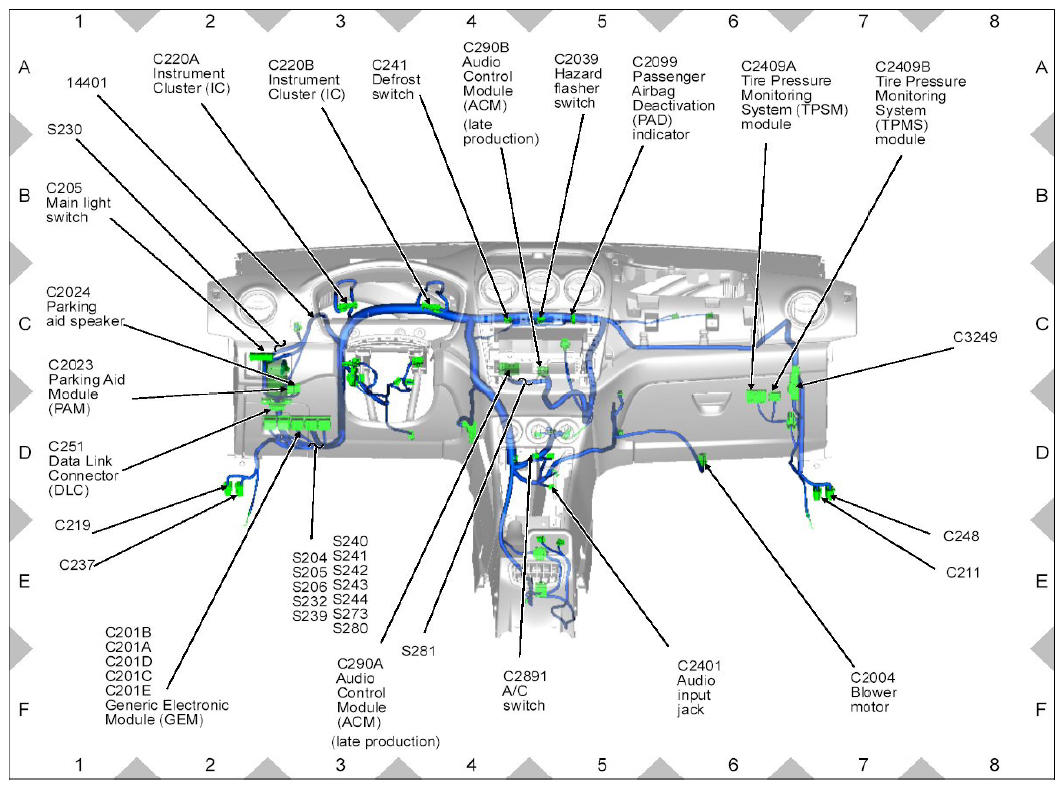

Fig 8: Dashboard Wiring Harness Connectors Location - Front Side (2 Of 2)
G09084180Courtesy of FORD MOTOR CO.

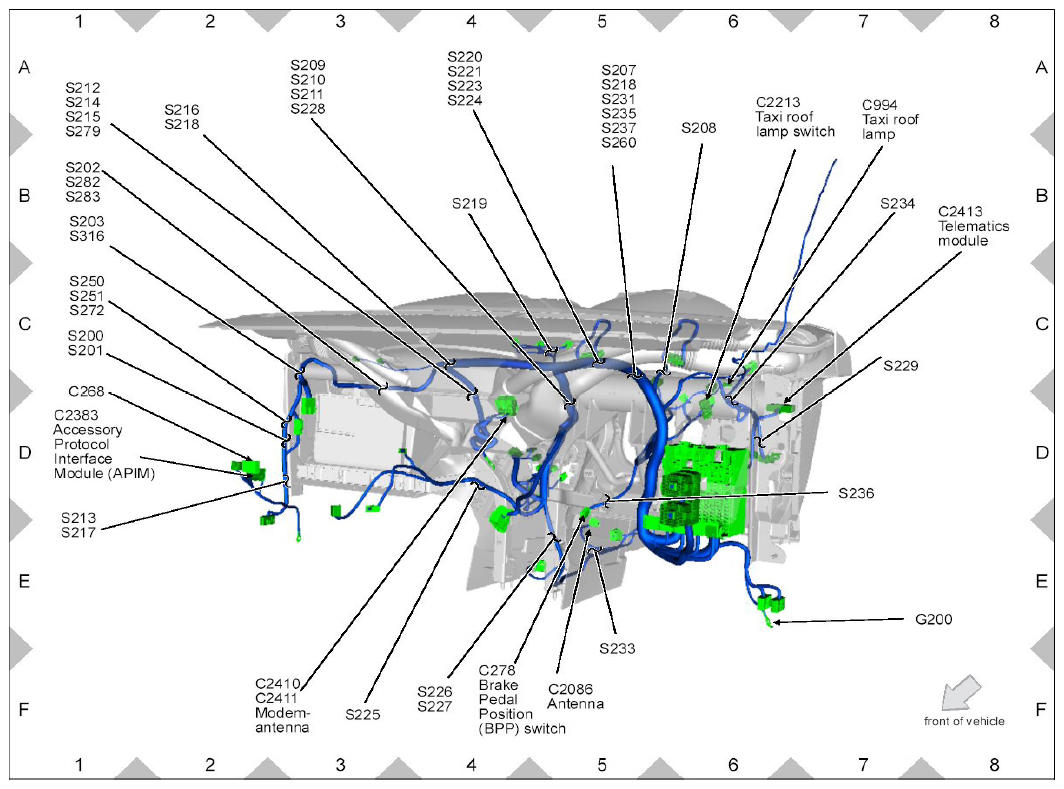

Fig 9: Dashboard Wiring Harness Connectors Location - Back Side
G09084181Courtesy of FORD MOTOR CO.

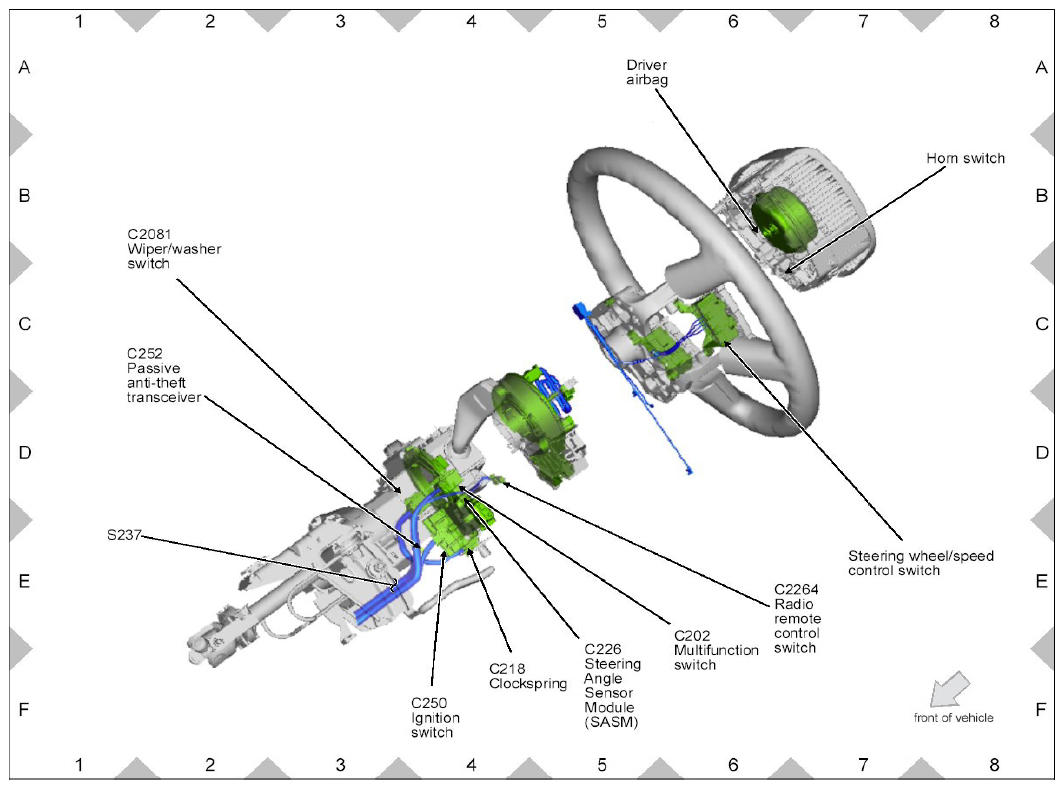

Fig 10: Steering Column Assembly Wiring Harness Connectors Location
G09084182Courtesy of FORD MOTOR CO.

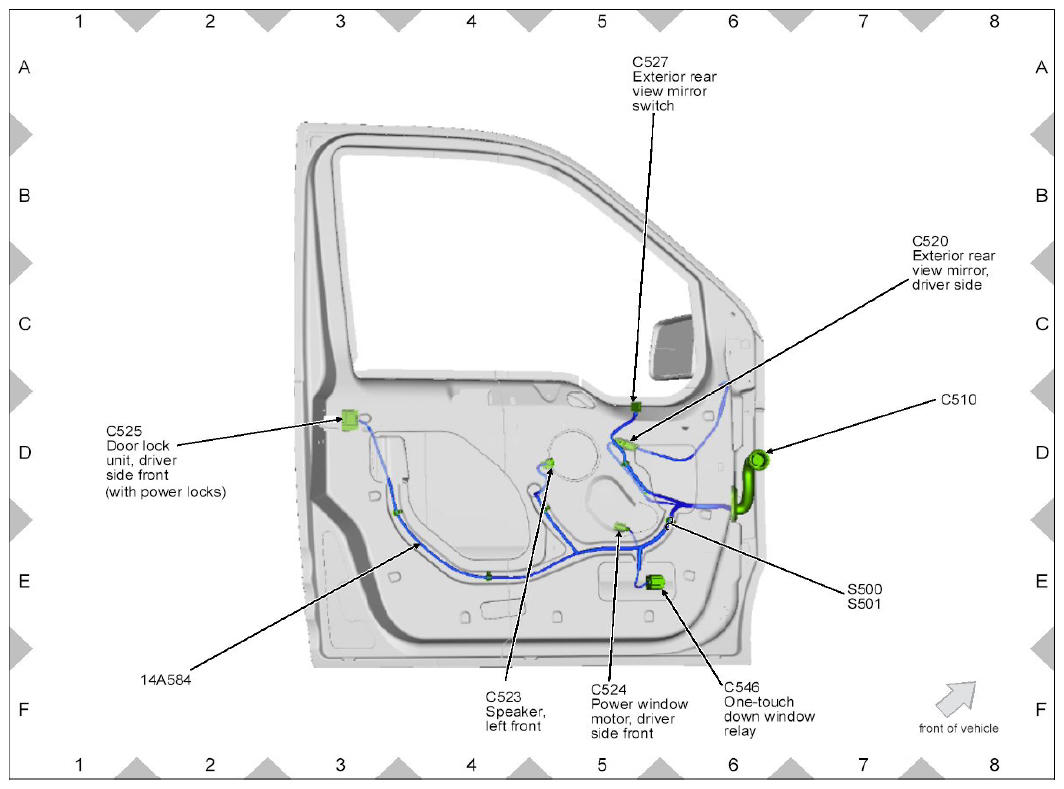

Fig 11: LH Front Door Wiring Harness Connectors Location
G09084183Courtesy of FORD MOTOR CO.

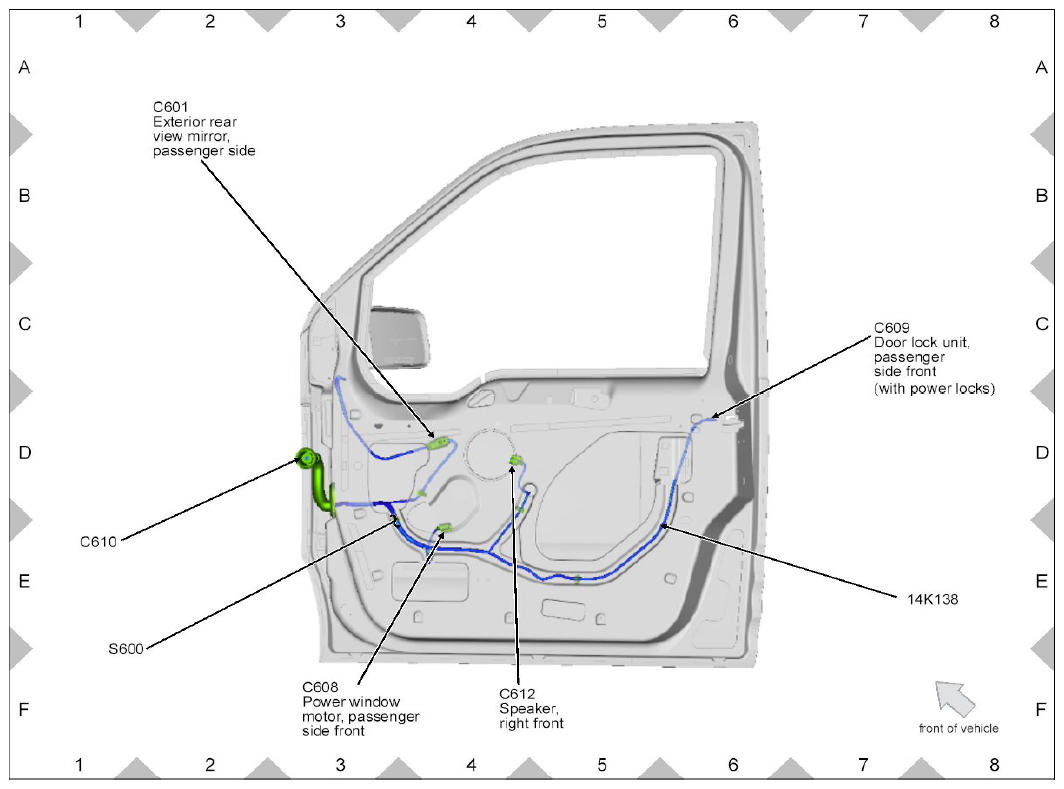

Fig 12: RH Front Door Wiring Harness Connectors Location
G09084184Courtesy of FORD MOTOR CO.

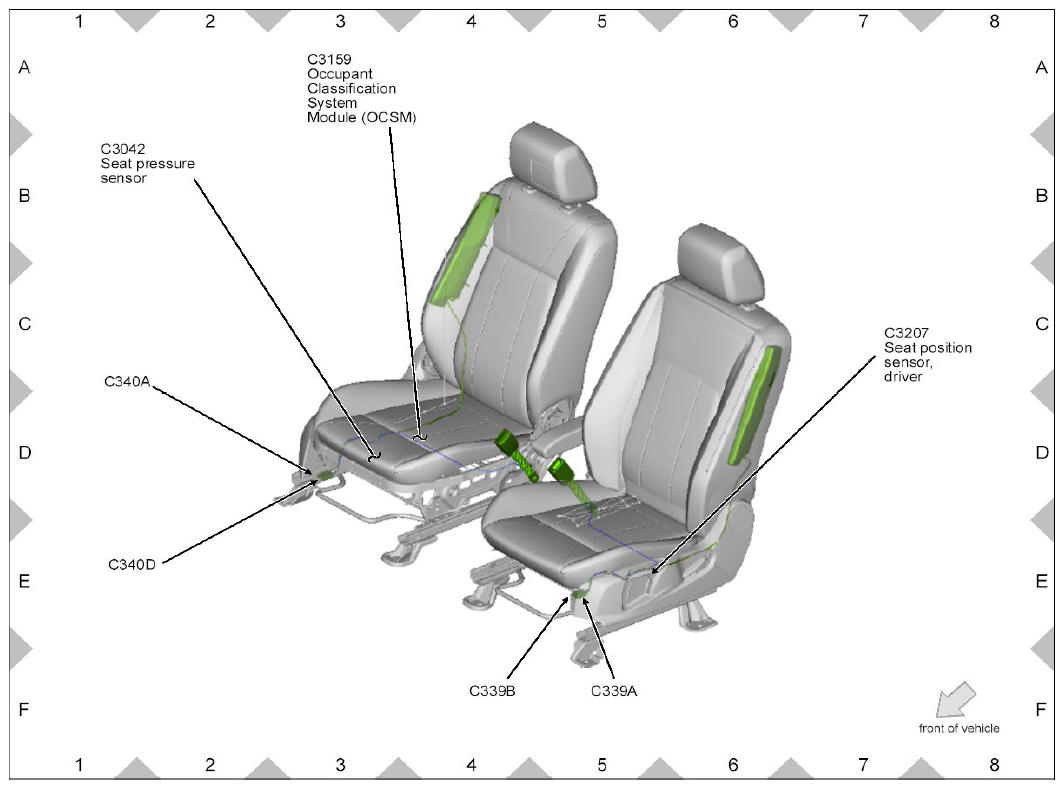

Fig 13: Seat Wiring Harness Connectors Location
G09084185Courtesy of FORD MOTOR CO.

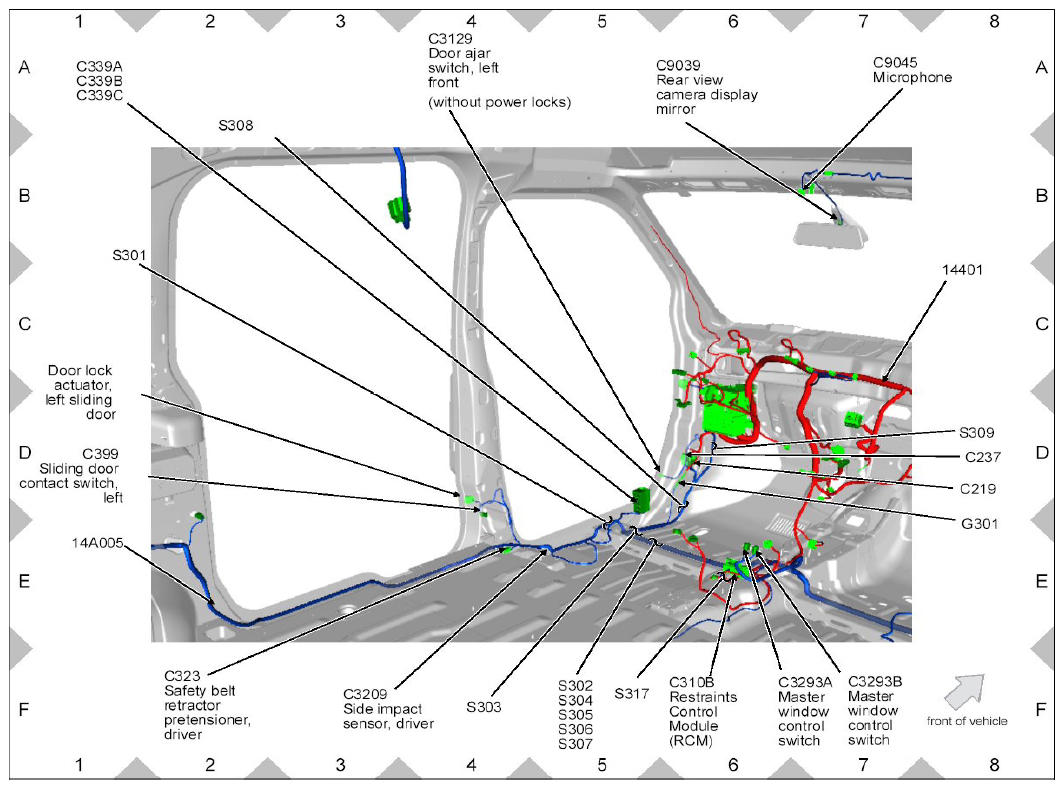

Fig 14: LH Front Compartment Wiring Harness Connectors Location
G09084186Courtesy of FORD MOTOR CO.

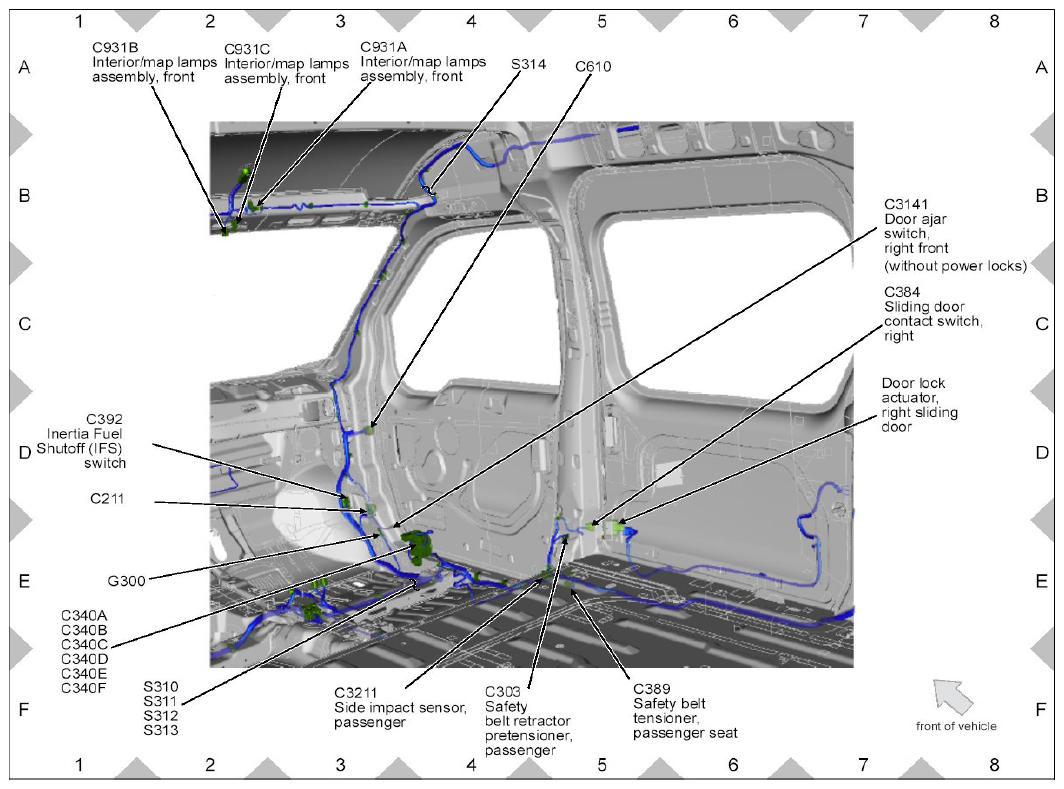

Fig 15: RH Front Compartment Wiring Harness Connectors Location
G09084187Courtesy of FORD MOTOR CO.

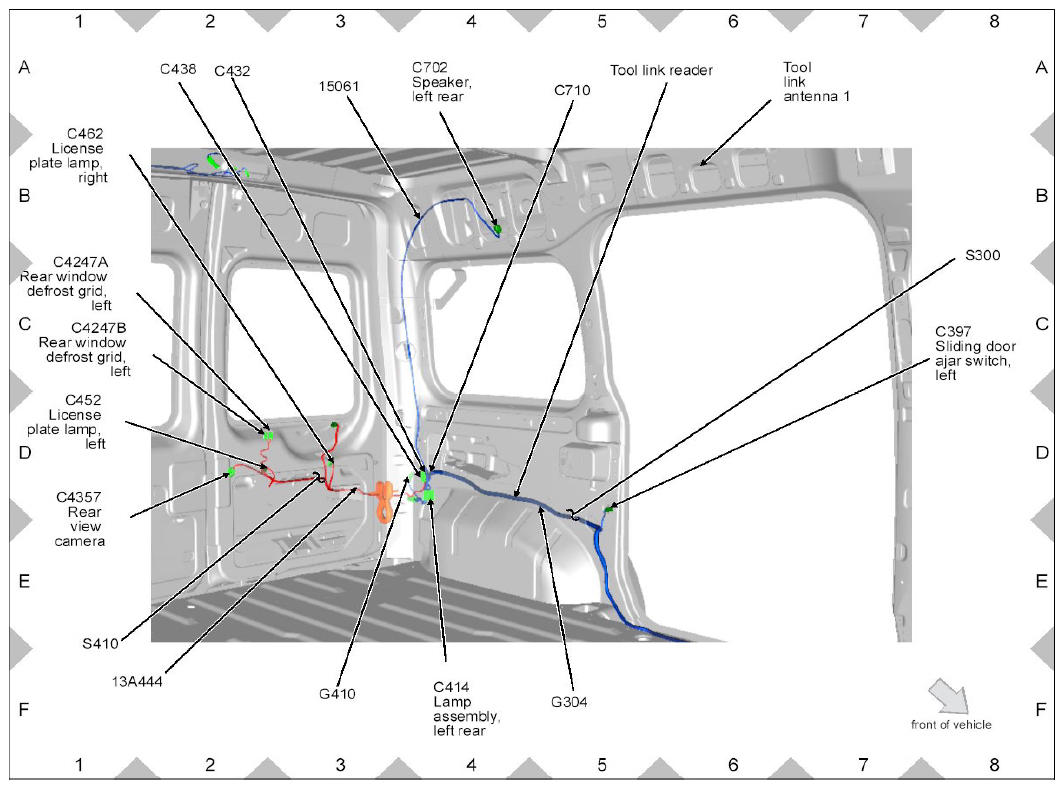

Fig 16: LH Rear Compartment Wiring Harness Connectors Location
G09084188Courtesy of FORD MOTOR CO.

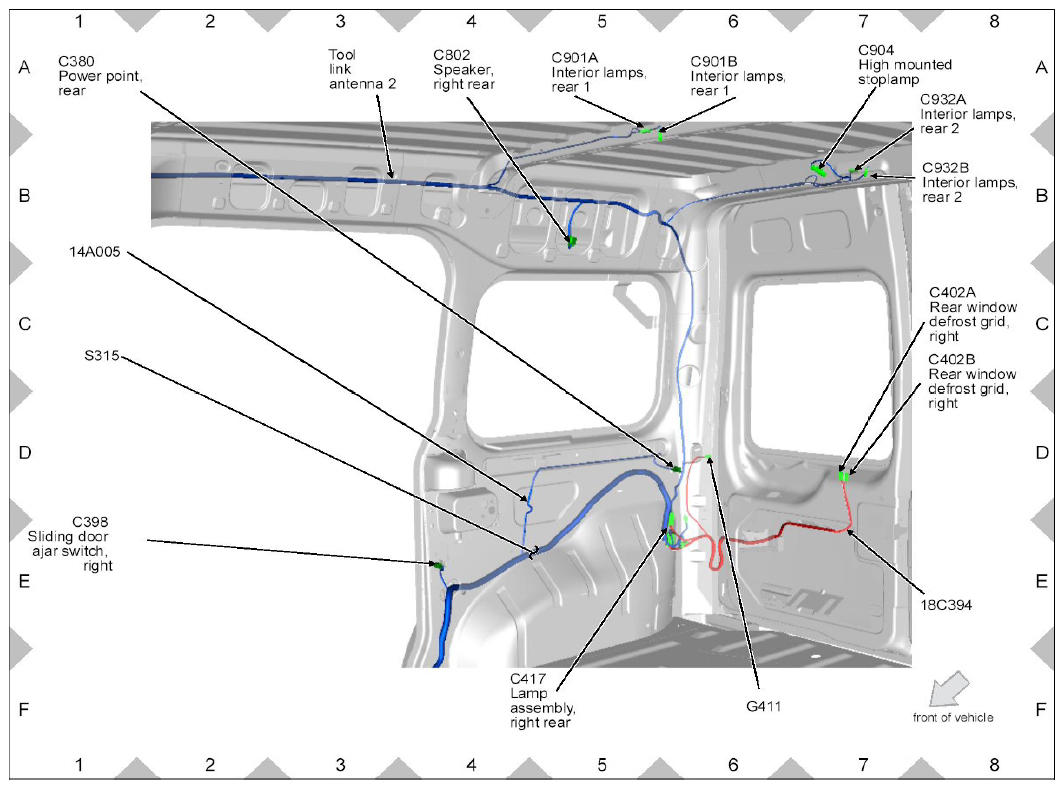

Fig 17: RH Rear Compartment Wiring Harness Connectors Location
G09084189Courtesy of FORD MOTOR CO.

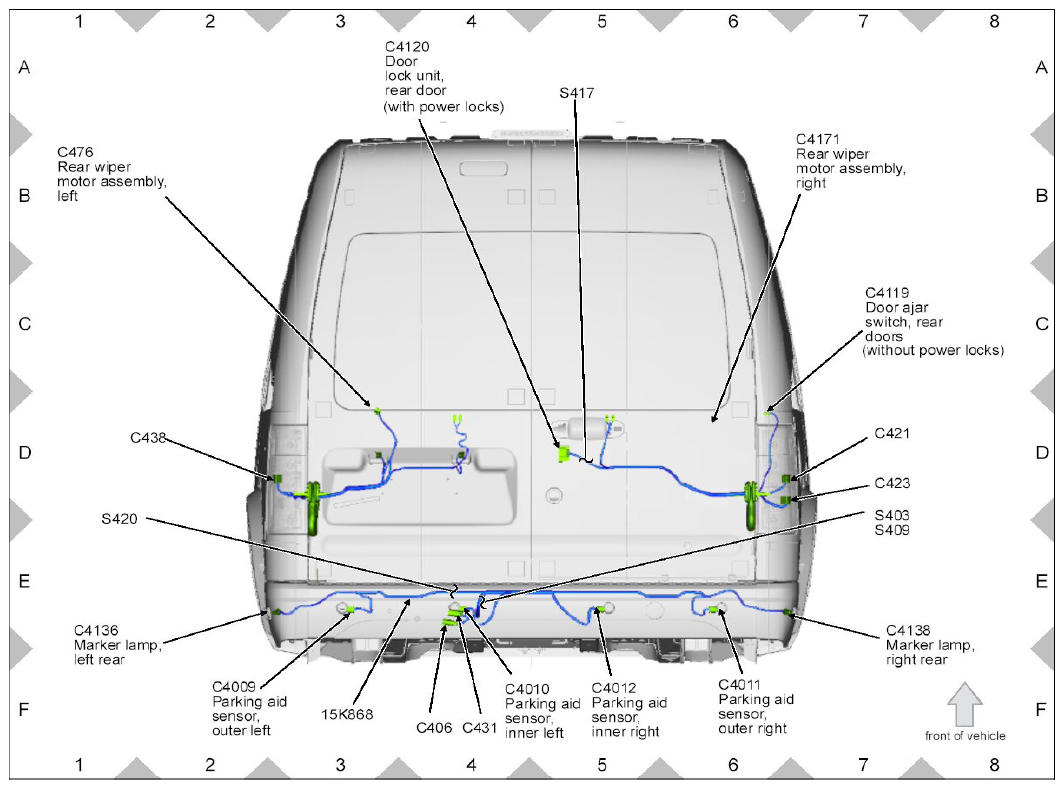

Fig 18: Rear Body Wiring Harness Connectors Location
G09084190Courtesy of FORD MOTOR CO.

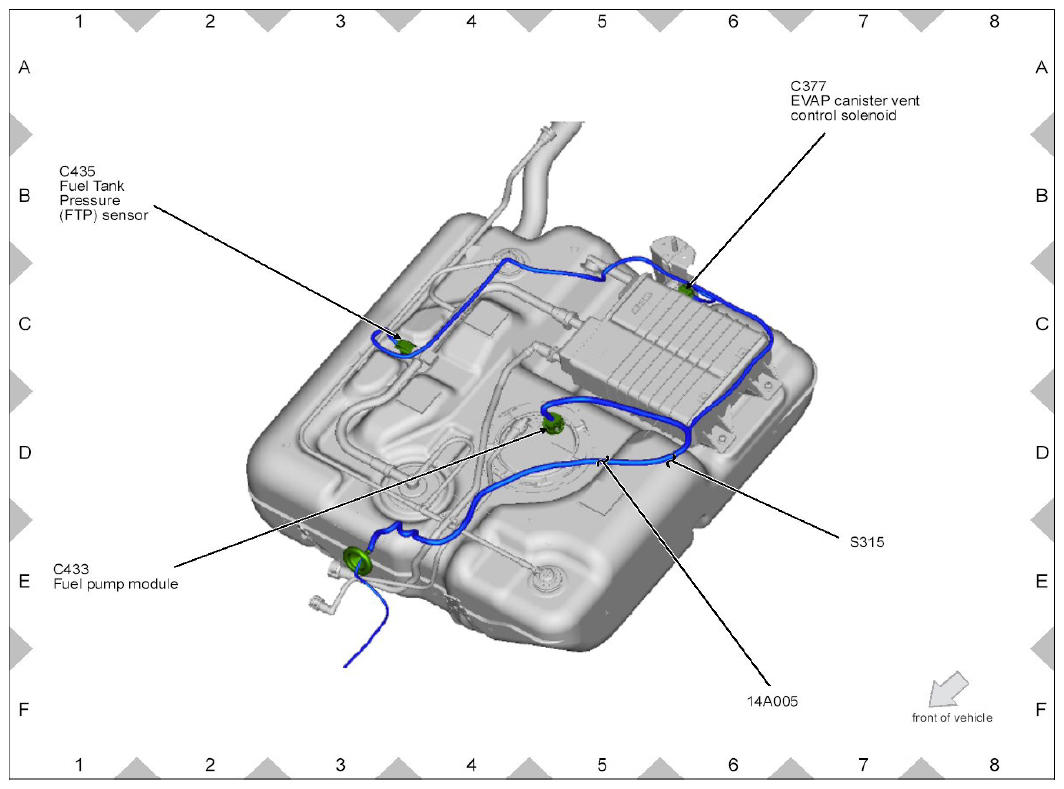

Fig 19: Fuel Tank Wiring Harness Connectors Location
G09084191Courtesy of FORD MOTOR CO.
Fig 20: Wheel Speed Sensor Wiring Harness Connectors Location
G09084192Courtesy of FORD MOTOR CO.

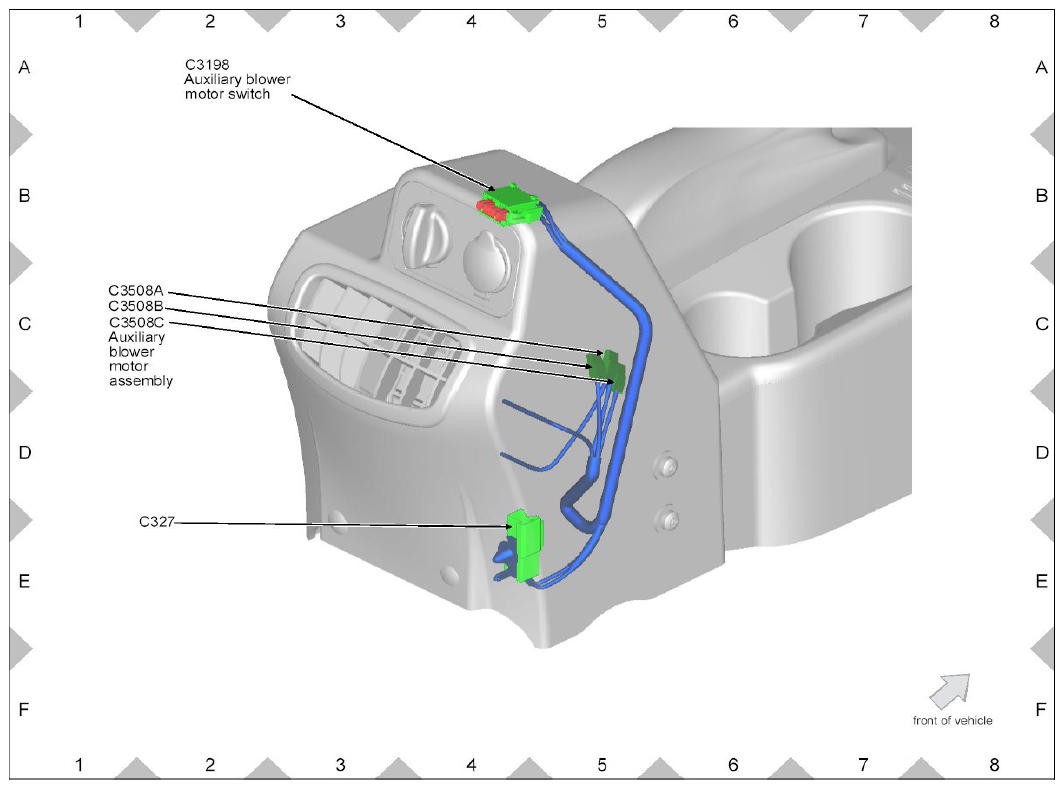

Fig 21: Blower Motor Assembly Wiring Harness Connectors Location
G09084193Courtesy of FORD MOTOR CO.
