Electrical Short Within The Harness

Splice tape removed

1. Intermittent short

   Splice covered

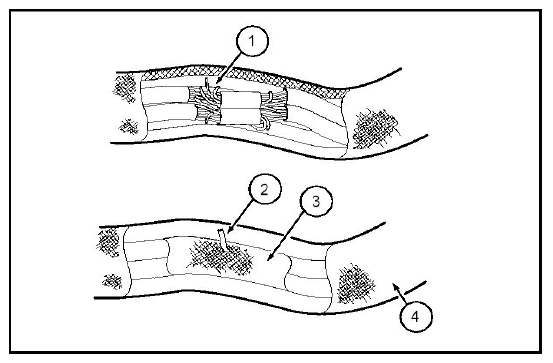

   Fig 1: Identifying Electrical Short Within Harness

   Courtesy of FORD MOTOR CO.
2. Wire strand
3. Splice tape
4. Harness tape
