Ford
›
2013
›
Transit Connect XL
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Ground Distribution
›
Grounds
›
G200
OEM Ground Distribution: Grounds: G200

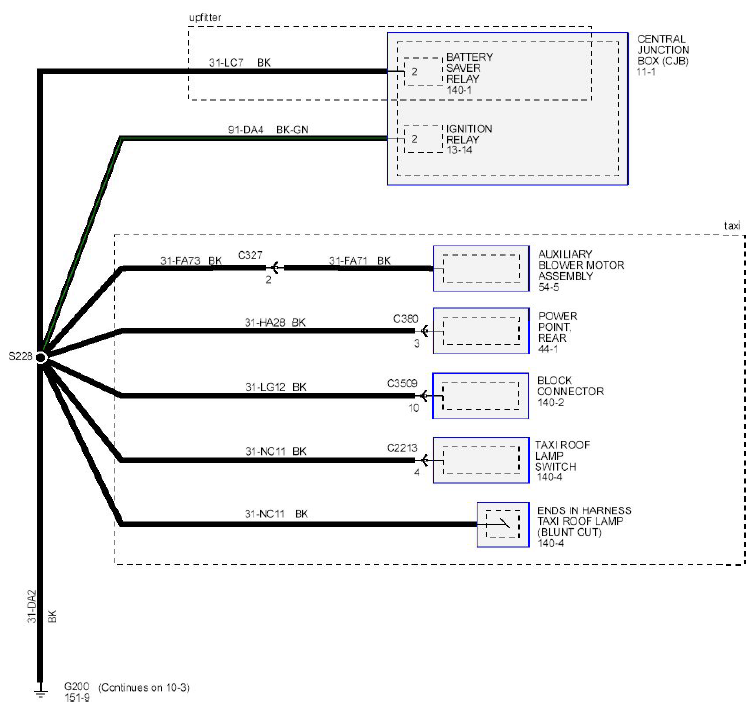

Fig 1: Grounds (G200) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
