Wiper/Washer Switch: Schematic

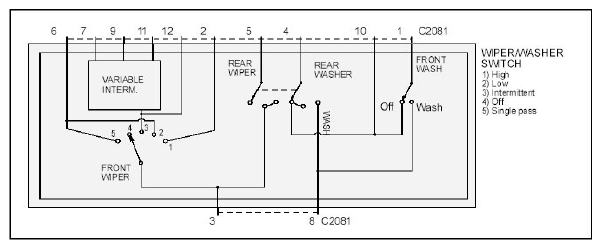

Fig 1: Wiper/Washer Switch Schematic
G09083723Courtesy of FORD MOTOR CO.
