Removal And Installation: Ballast: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

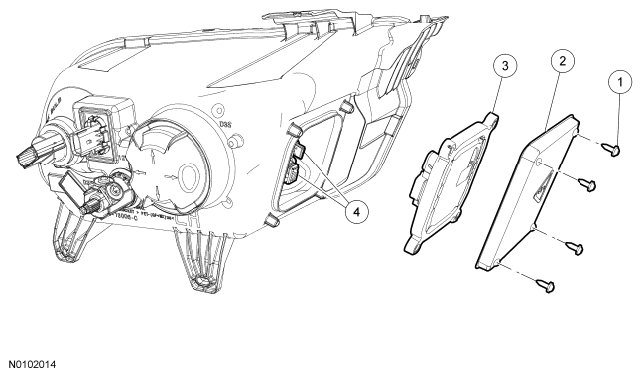

Fig 1: Identifying Ballast Replacement Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Ballast cover screws (4 required)
2	-	Ballast cover (part of 13008)
3	13C170	Ballast
4	-	Ballast electrical connector (part of 13008)
