Power Steering Fluid Cooler: Notes

SPECIAL TOOLS

Disconnect Tool, Spring Lock Coupling 310-041

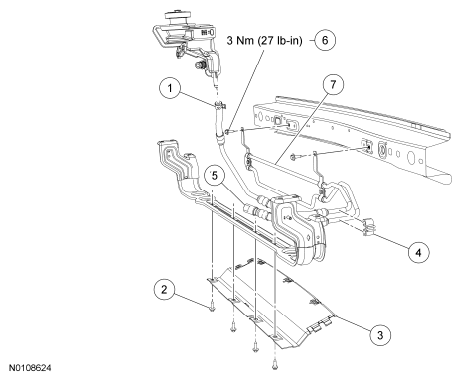

Fig 1: Identifying Power Steering Fluid Cooler Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3A713	Return/cooler hose
2	W702846	Radiator sight shield retainer (4 required)
3	8310	Lower radiator sight shield
4	-	Pressure and return line retainer (part of 3A713)
5	3493	Cooler line
6	W701107	Power steering cooler bolt (2 required)
7	3493	Power steering cooler
