Transmission Range (TR) Sensor: Notes

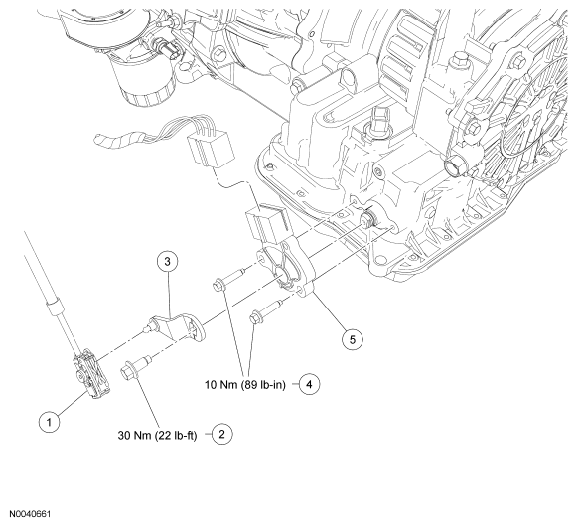

Fig 1: Transmission Range (TR) Sensor Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7E395	Selector lever cable
2	W500221-S437	Manual control lever bolt
3	7A256	Manual control lever
4	W500215-S439	Transmission Range (TR) sensor bolts
5	7A247	TR sensor
