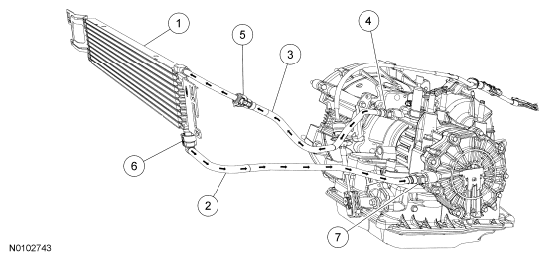

Transaxle Cooling
| Item | Part Number | Description |
|---|---|---|
| 1 | 19E908 | Transmission fluid cooler |
| 2 | 7890A | Transmission fluid cooler outlet tube |
| 3 | 7890B | Transmission fluid cooler inlet tube |
| 4 | - | Transmission fluid out of the transaxle |
| 5 | - | Transmission fluid into the transmission fluid cooler |
| 6 | - | Transmission fluid out of the transmission fluid cooler |
| 7 | - | Transmission fluid into the transaxle |
