Ford
›
2014
›
C-Max Energi SEL
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Ground Distribution
›
Grounds
›
Notes
OEM Ground Distribution: Grounds: Notes

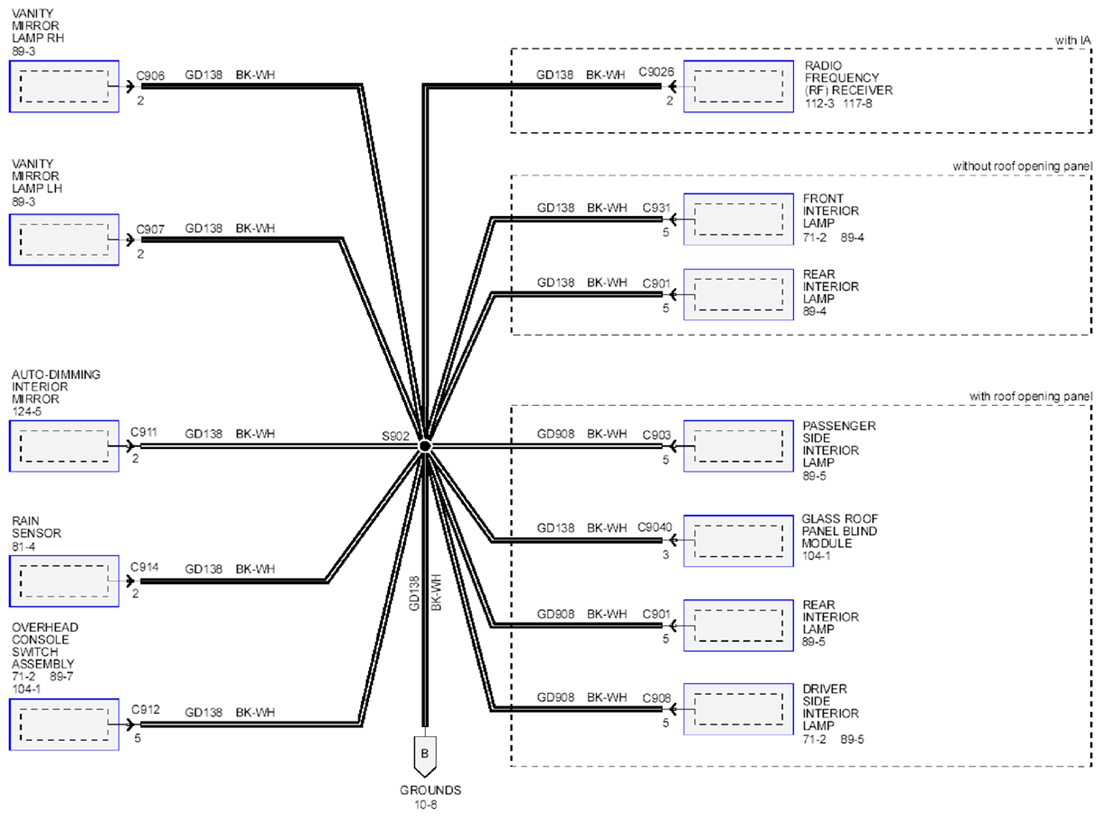

Fig 1: Grounds System - Wiring Diagram - (1 Of 2)
Courtesy of FORD MOTOR CO.

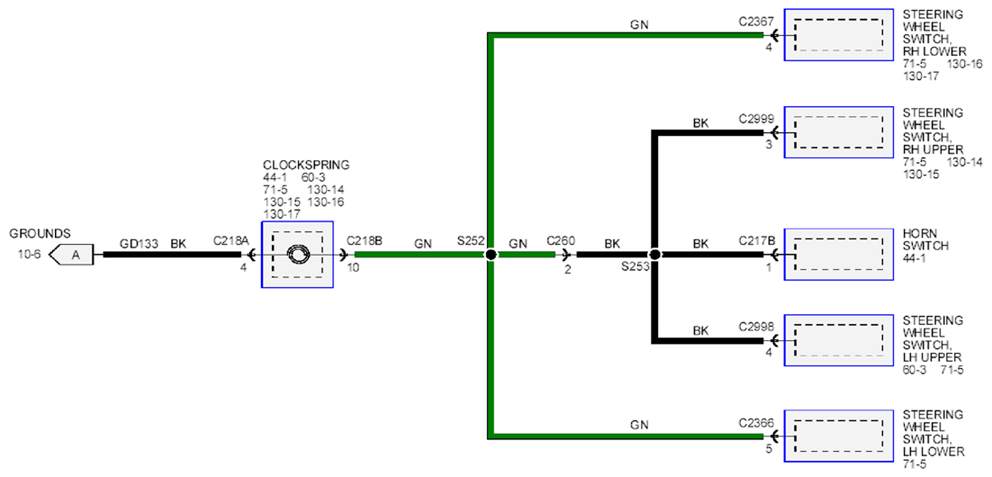

Fig 2: Grounds System - Wiring Diagram - (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
