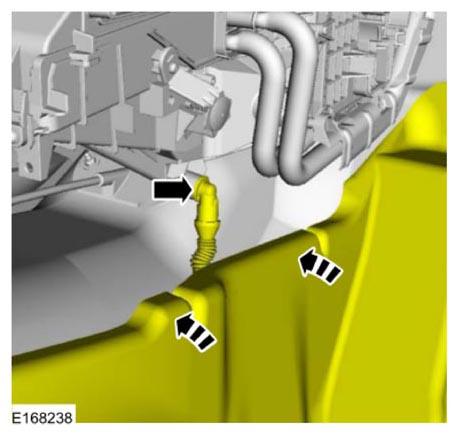

Selector Lever Cable: Installation
-
- Torque: 80 lb.in (9 Nm)
-
-
- Torque: 89 lb.in (10 Nm)
- Torque: 18 lb.ft (25 Nm)
- Torque: 62 lb.in (7 Nm)
-
- Refer to: FLOOR CONSOLE
.
-
-
-
- Torque: 89 lb.in (10 Nm)
- Torque: 62 lb.in (7 Nm)
- Refer to: AIR CLEANER
.
-
-
- Rotate the selector shaft lever clockwise until it stops.
- Rotate the selector shaft lever counterclockwise 3 detents.
-
- Move the slide to the left.
- While holding the slide, position the adjuster lock upward.
-
-
-
- Verify that the vehicle only starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
