HVAC Module, DATC Connector End View (C228C)

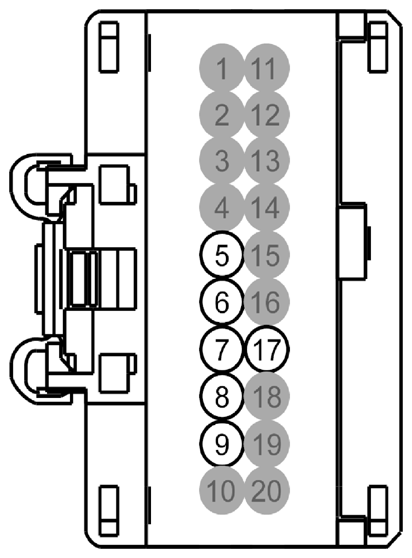

Fig 1: Identifying HVAC Module, DATC Connector (C228C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	CLN50 (YE-BU)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED BLUE
6	CLN49 (YE-GN)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED GREEN
7	CLN48 (YE-OG)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED RED
8	GD908 (BK)	18	GROUND - CTRL MOD. AMBIENT LIGHTING
9	CLN58 (GY-OG)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED WHITE OR SIGNATURE	MKX
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	RLN44 (BN)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
