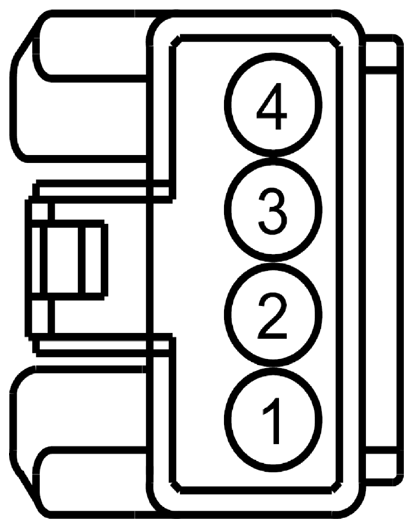

In-Vehicle Temperature/Humidity Sensor Connector End View (C2247)

Fig 1: Identifying In-Vehicle Temperature/Humidity Sensor Connector (C2247)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH414 (GN-BU)	22	SENSOR - INCAR TEMP.	2.0L GTDI
2	RH111 (GY-BU)	22	CTRL MOD. - GENERIC VREF RETURN	2.0L GTDI
3	VH413 (WH-BU)	22	SENSOR - HUMIDITY	2.0L GTDI
4	LH111 (BN-WH)	22	CTRL MOD. - GENERIC VREF	2.0L GTDI
