Steering Column Shaft Dash Seal: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected, or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

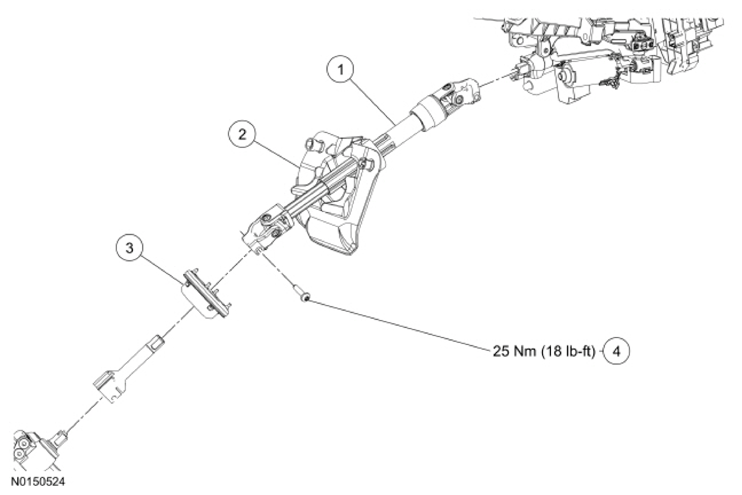

Fig 1: Steering Column Shaft, Dash Seal, Joint Cover, Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3B676	Steering column shaft
2	3C611	Steering column shaft joint cover
3	3D677	Steering column shaft dash seal
4	W714878	Steering column shaft bolt
