Transaxle Case: Assembly

  1. Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
    G09296101

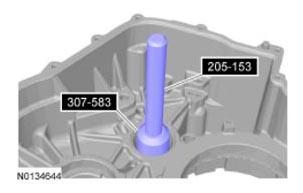

  2. Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583
    G09296102

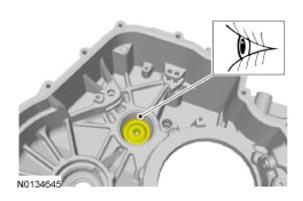

  3. Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case. Visual check.
    G09296103

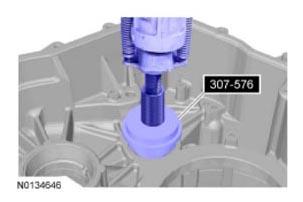

  4. Special Tool(s): Bearing Cup Installer 307-576

    General Equipment: Shop Press

    G09296104
  5. Special Tools(s): Bearing Cup Installer 307-689
    G09296105

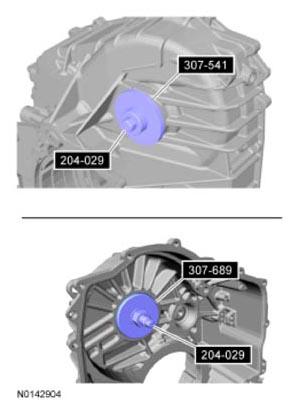

  6. Special Tool(s): Bearing Cup Installer 307-689, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029
    G09296106

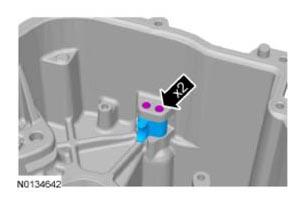

  7. G09296107

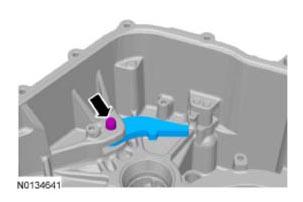

  8. G09296108

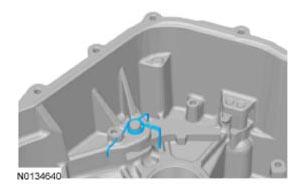

  9. G09296109

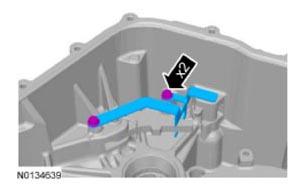

    • Tighten to 12 Nm (106 lb-in).
      G09296110
  11. Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to TORQUE CONVERTER HOUSING .
