Transaxle Case: Disassembly

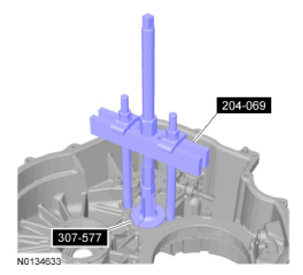

- Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Transfer Gear Bearing Race Remover 307-577

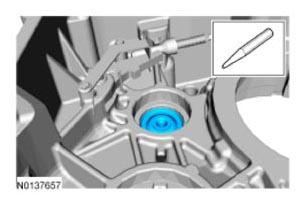

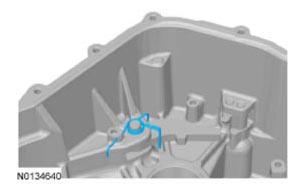

- Punch a hole in the fluid dam. Center punch.

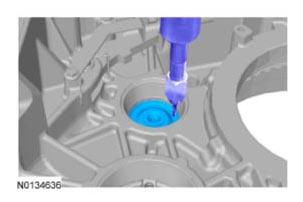

- General Equipment: Dent Puller
- Special Tool(s): Differential Bearing Cup Remover 307-586

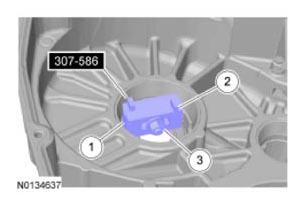

- Position the Differential Bearing Cup Remover 307-586 in the transmission case with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the transmission case.
- Expand the Differential Bearing Cup Remover 307-586 by hand.

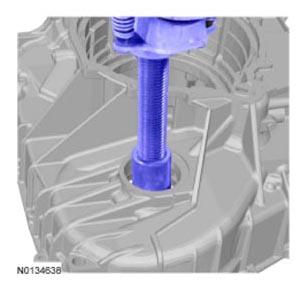

- While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the transmission case, tighten the nut.
- General Equipment: Shop Press
