Ignition Coil-On-Plug: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |

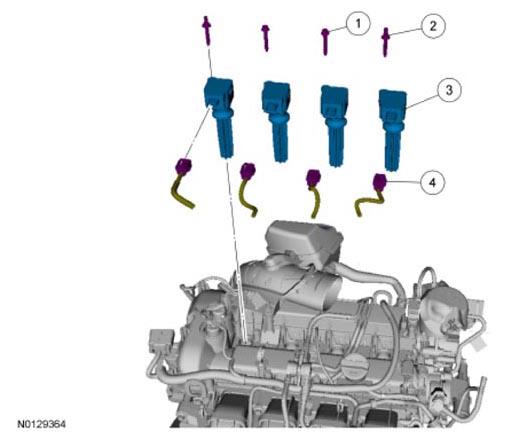

| Item | Part Number | Description |
|---|---|---|
| 1 | W500301 | Bolt (2 required) - 8 Nm (71 lb-in) |
| 2 | W715638 | Stud bolt (2 required) - 8 Nm (71 lb-in) |
| 3 | 12029 | Ignition coil-on-plug (4 required) |
| 4 | - | Ignition coil-on-plug electrical connector (part of 12A581) (4 required) |
