Component Location Views

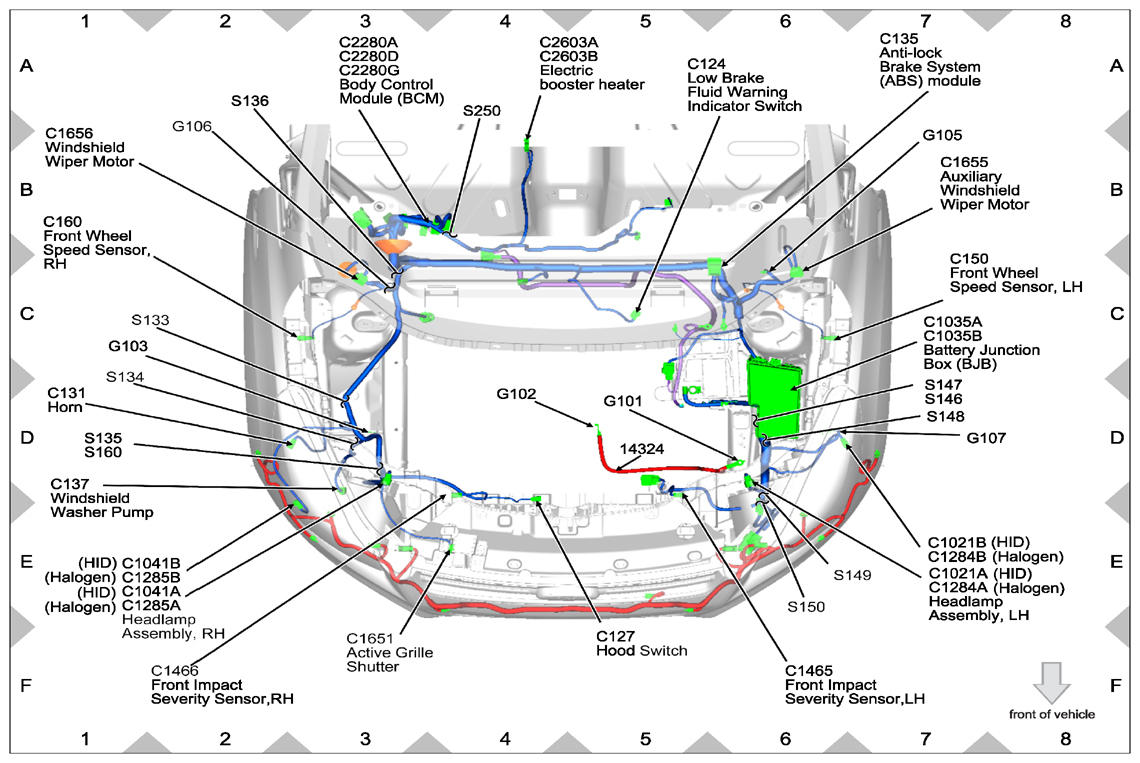

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 3)
G09222867Courtesy of FORD MOTOR CO.

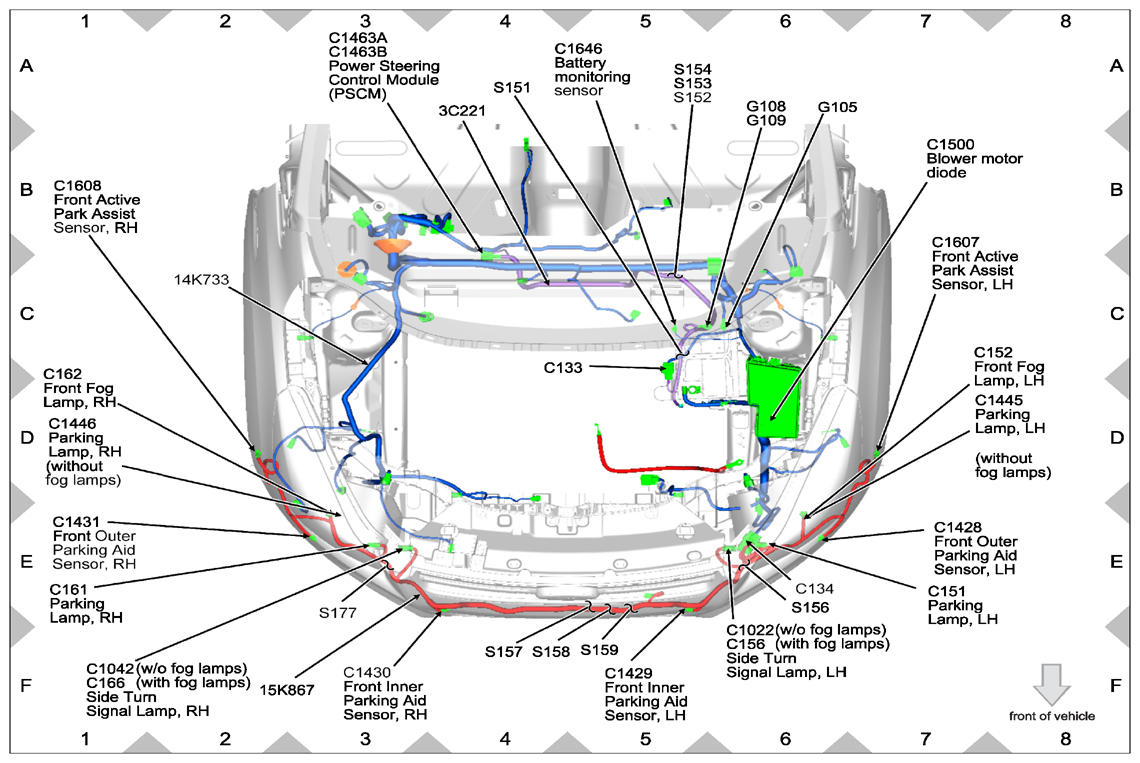

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 3)
G09222868Courtesy of FORD MOTOR CO.

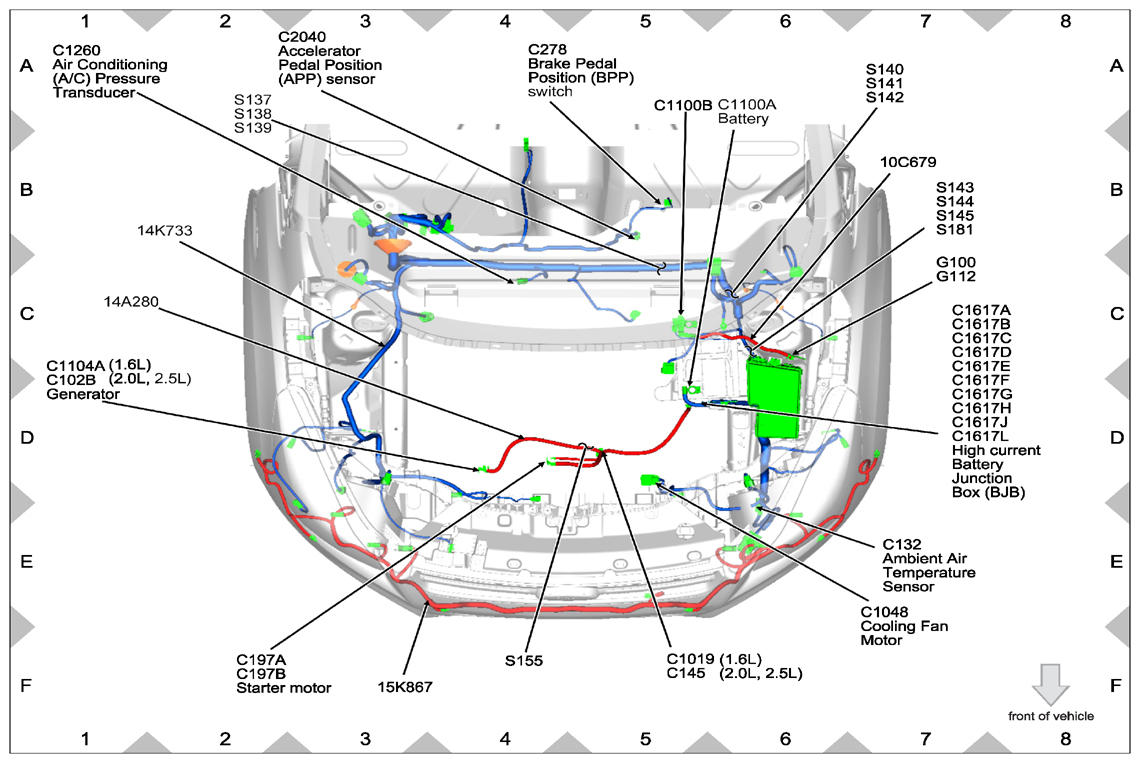

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 3)
G09222869Courtesy of FORD MOTOR CO.

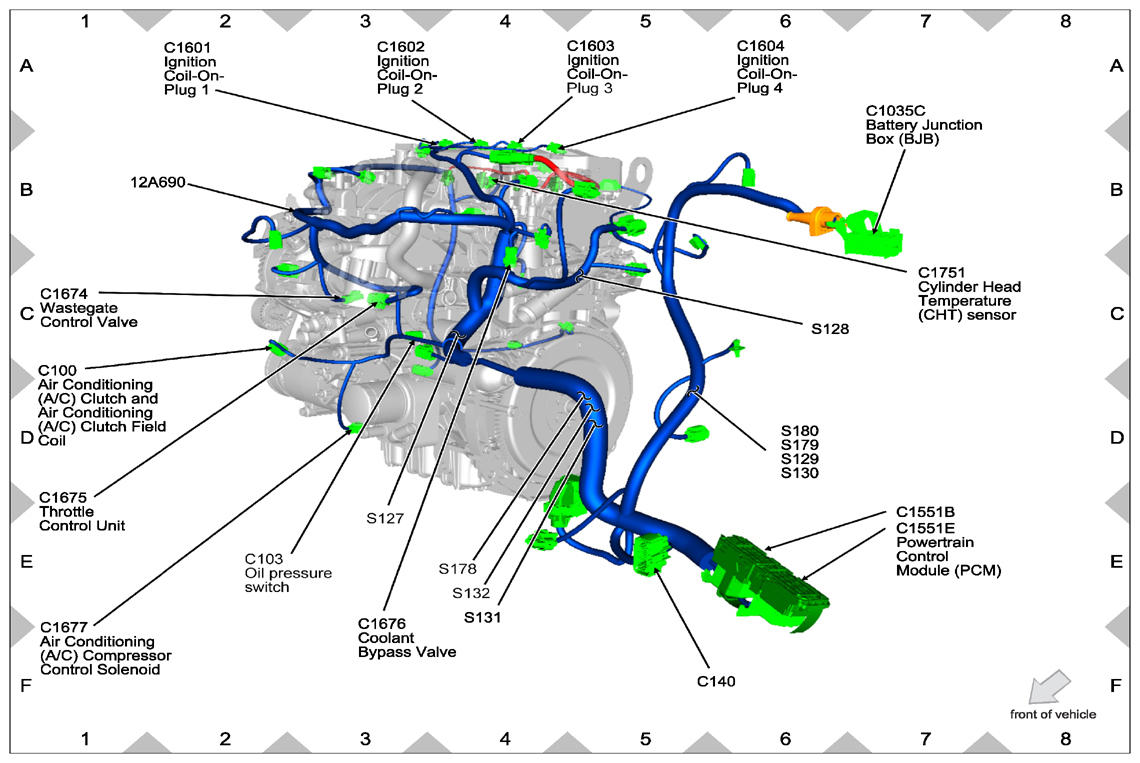

Fig 4: Engine Wiring Harness Connectors Location (1 Of 9)
G09222870Courtesy of FORD MOTOR CO.

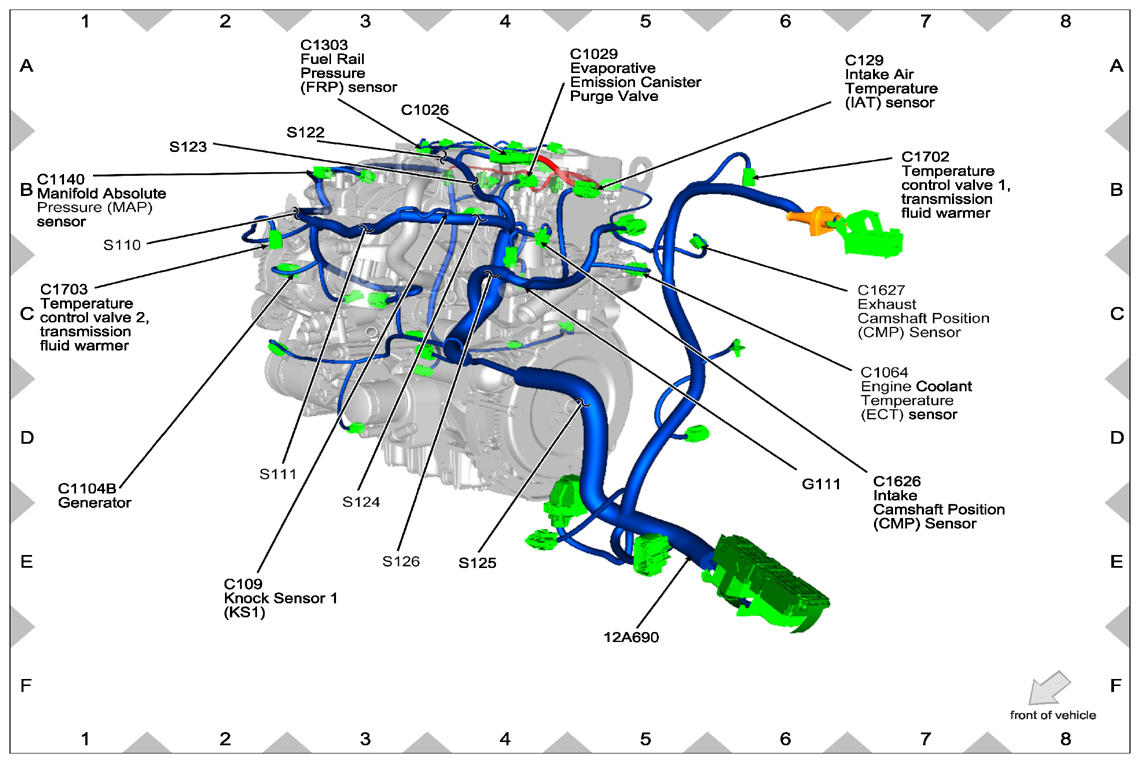

Fig 5: Engine Wiring Harness Connectors Location (2 Of 9)
G09222871Courtesy of FORD MOTOR CO.

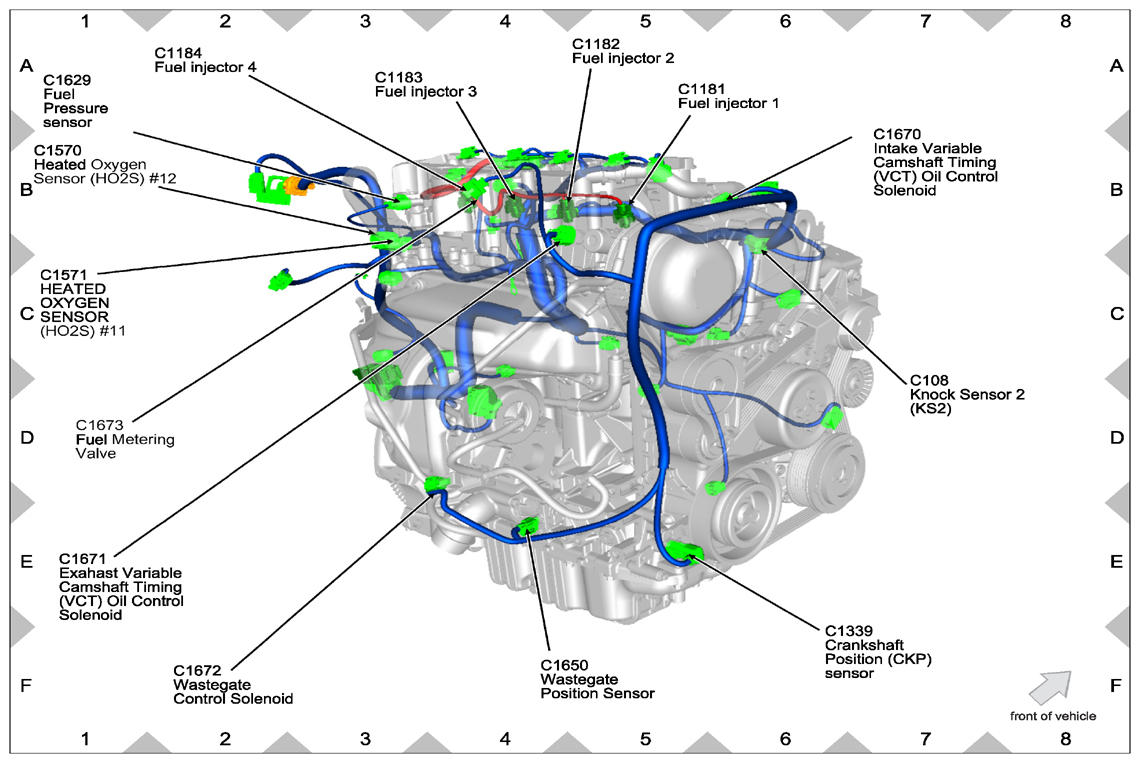

Fig 6: Engine Wiring Harness Connectors Location (3 Of 9)
G09222872Courtesy of FORD MOTOR CO.

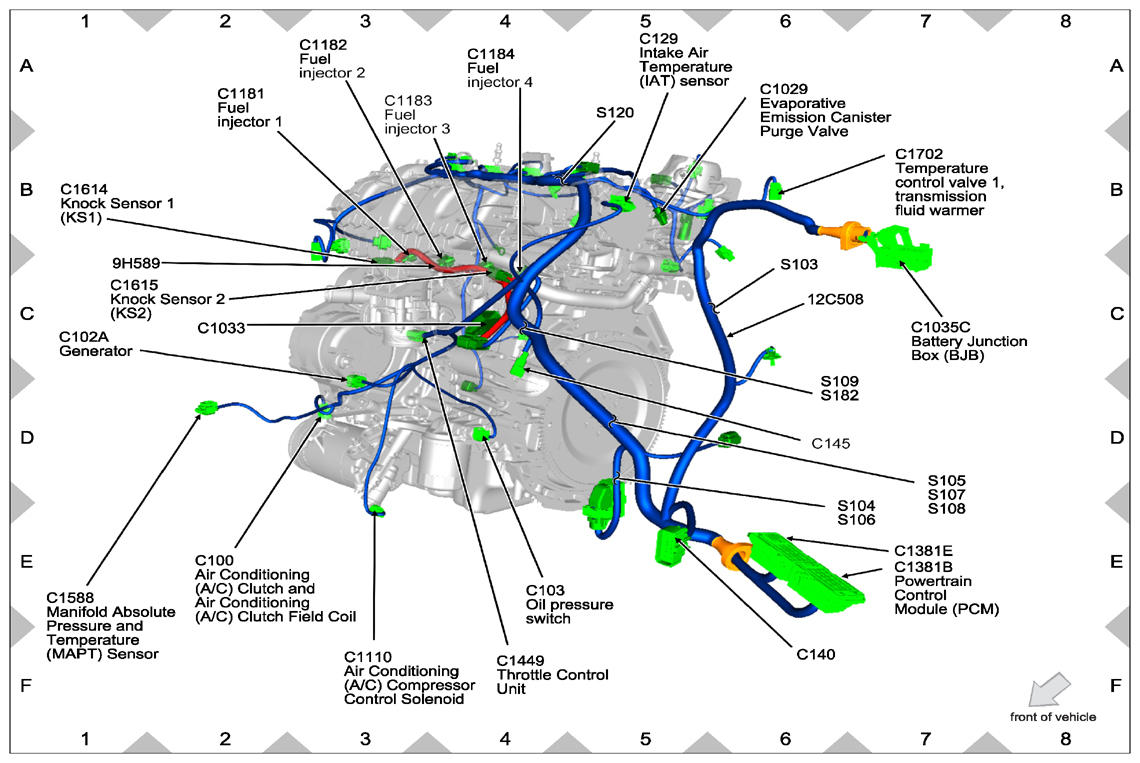

Fig 7: Engine Wiring Harness Connectors Location (4 Of 9)
G09222873Courtesy of FORD MOTOR CO.

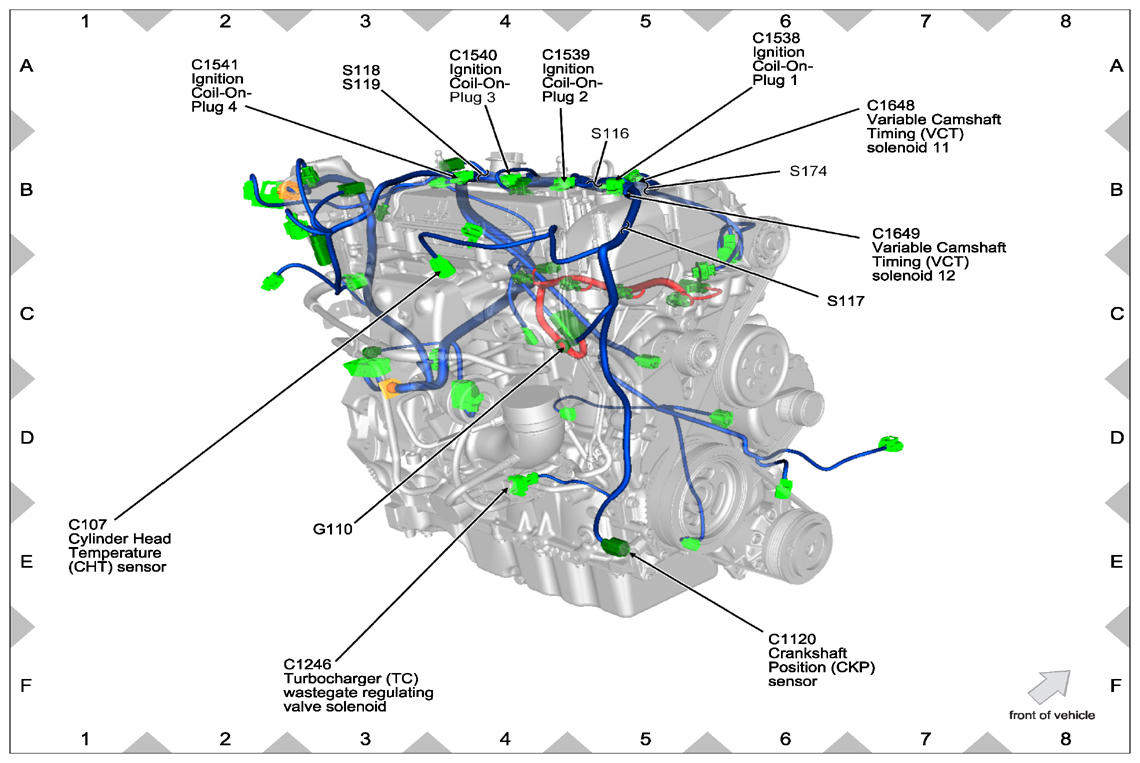

Fig 8: Engine Wiring Harness Connectors Location (5 Of 9)
G09222874Courtesy of FORD MOTOR CO.

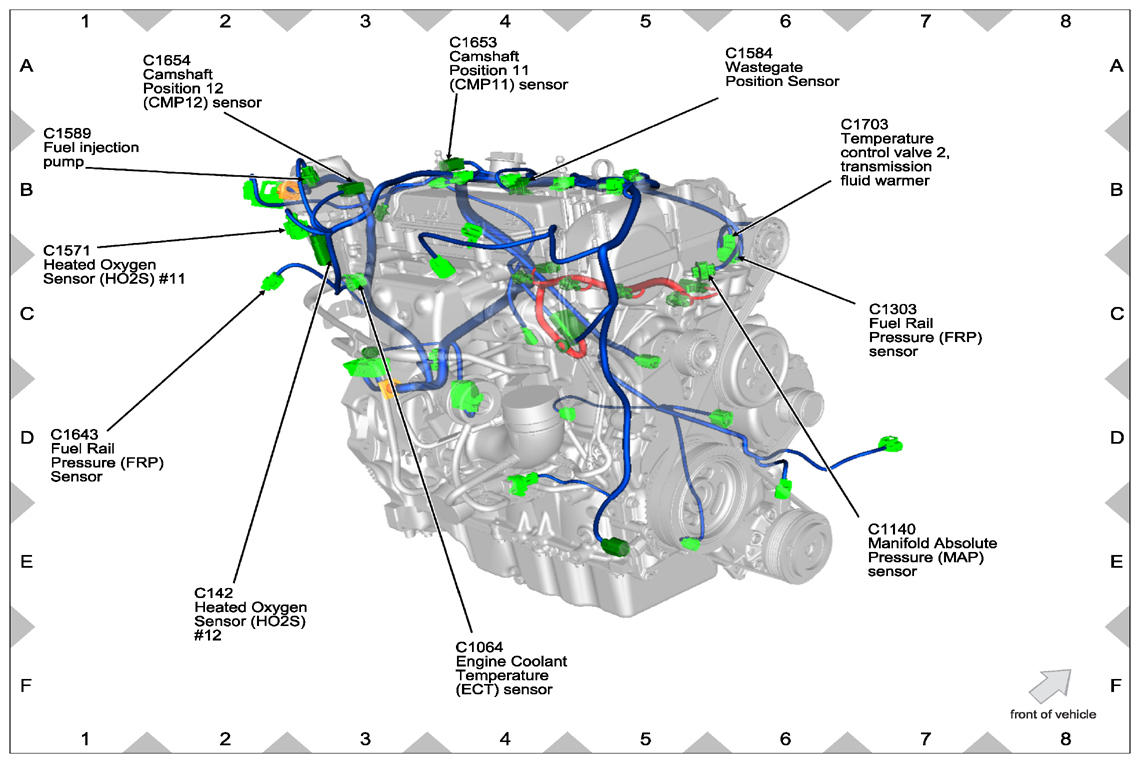

Fig 9: Engine Wiring Harness Connectors Location (6 Of 9)
G09222875Courtesy of FORD MOTOR CO.

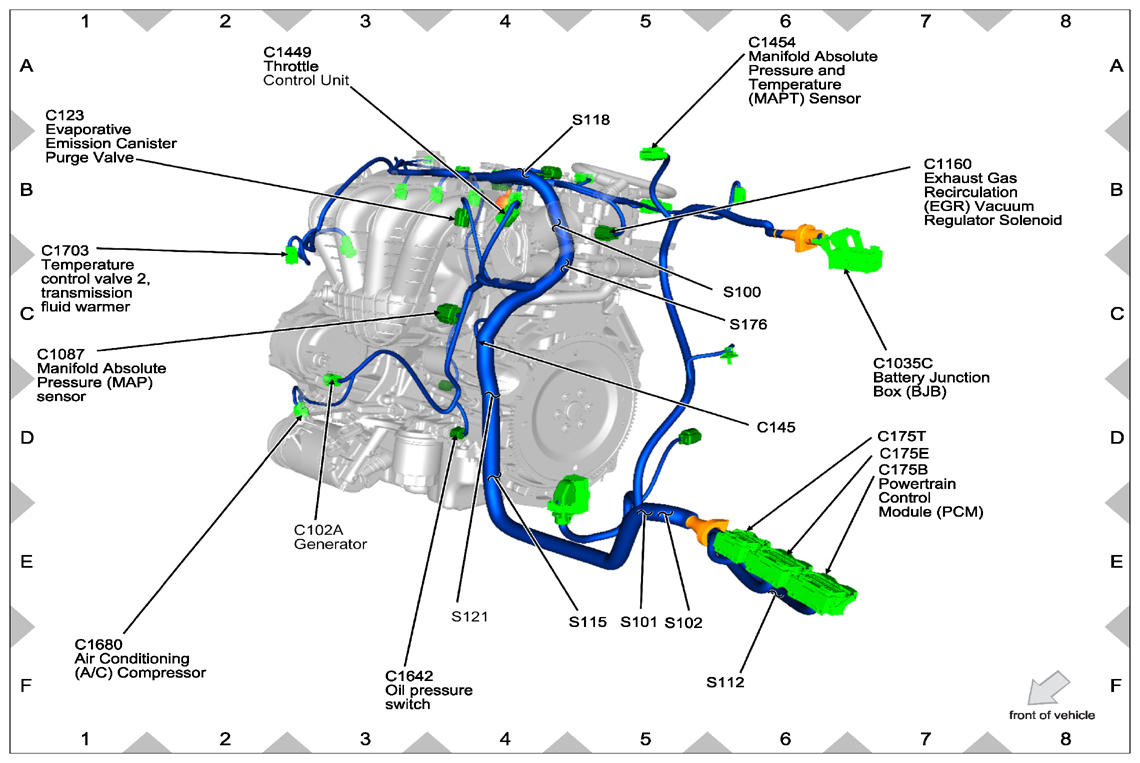

Fig 10: Engine Wiring Harness Connectors Location (7 Of 9)
G09222876Courtesy of FORD MOTOR CO.

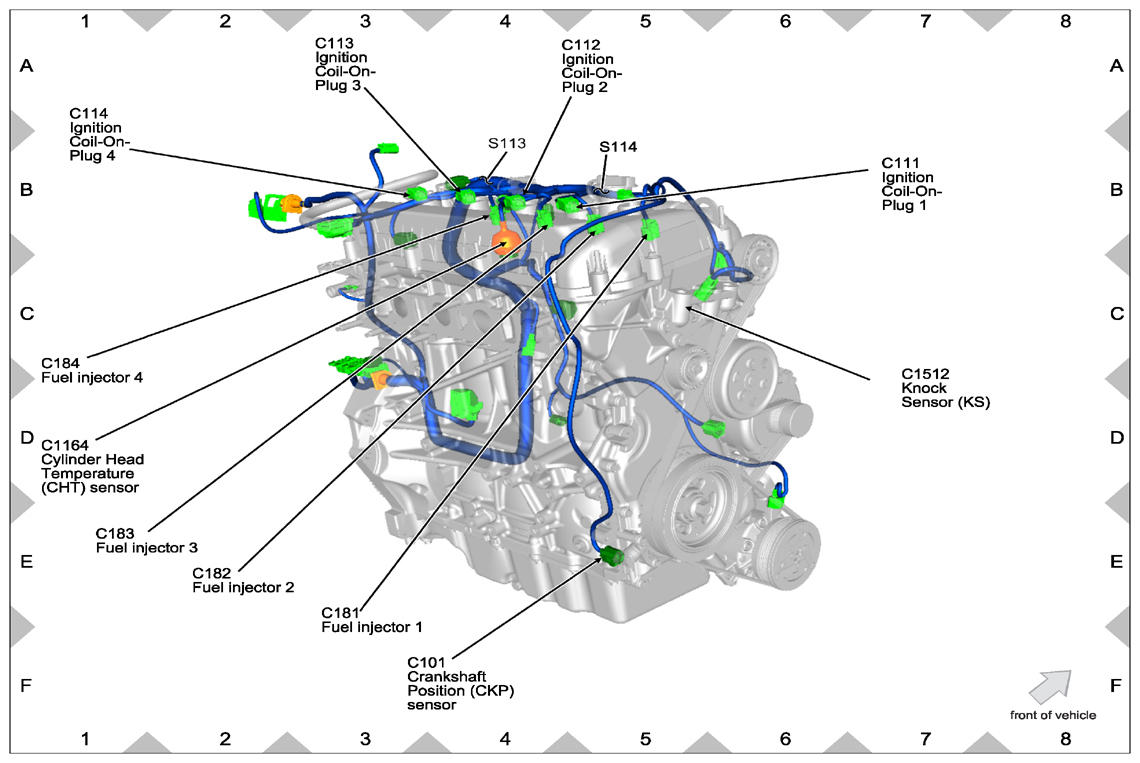

Fig 11: Engine Wiring Harness Connectors Location (8 Of 9)
G09222877Courtesy of FORD MOTOR CO.

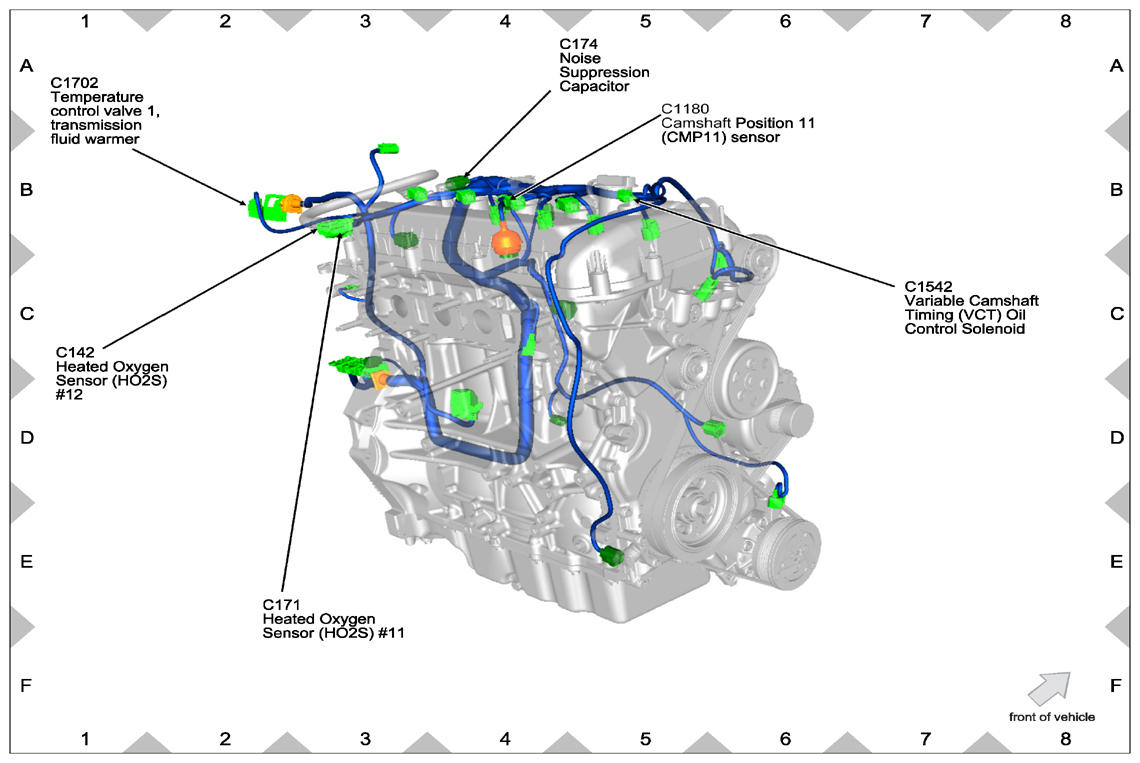

Fig 12: Engine Wiring Harness Connectors Location (9 Of 9)
G09222878Courtesy of FORD MOTOR CO.

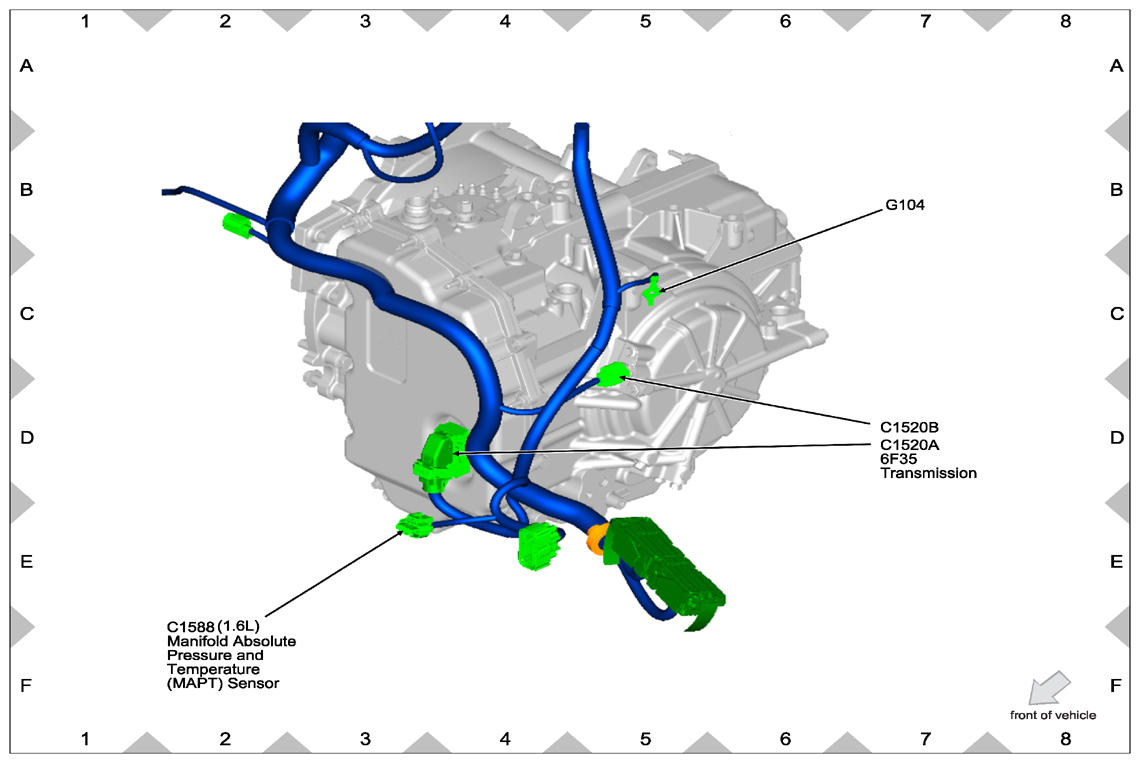

Fig 13: G104 Connector Component Location
G09222879Courtesy of FORD MOTOR CO.

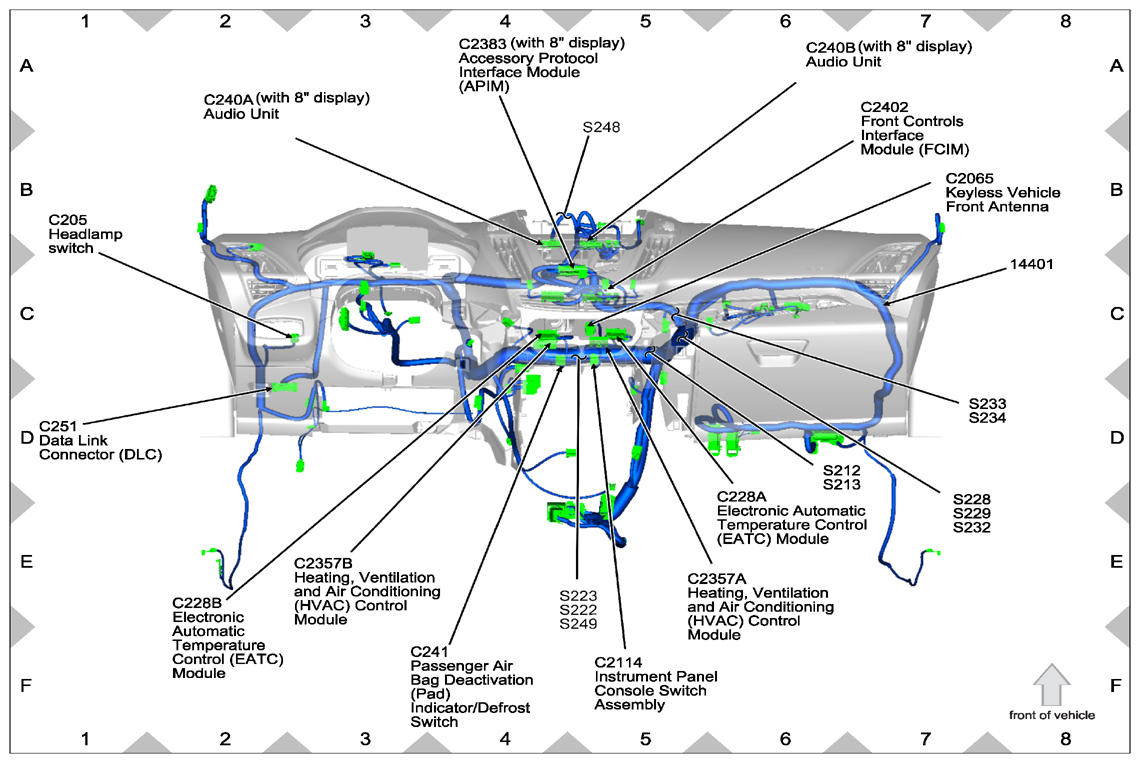

Fig 14: Front Dashboard Wiring Harness Connectors Location (1 Of 3)
G09222880Courtesy of FORD MOTOR CO.

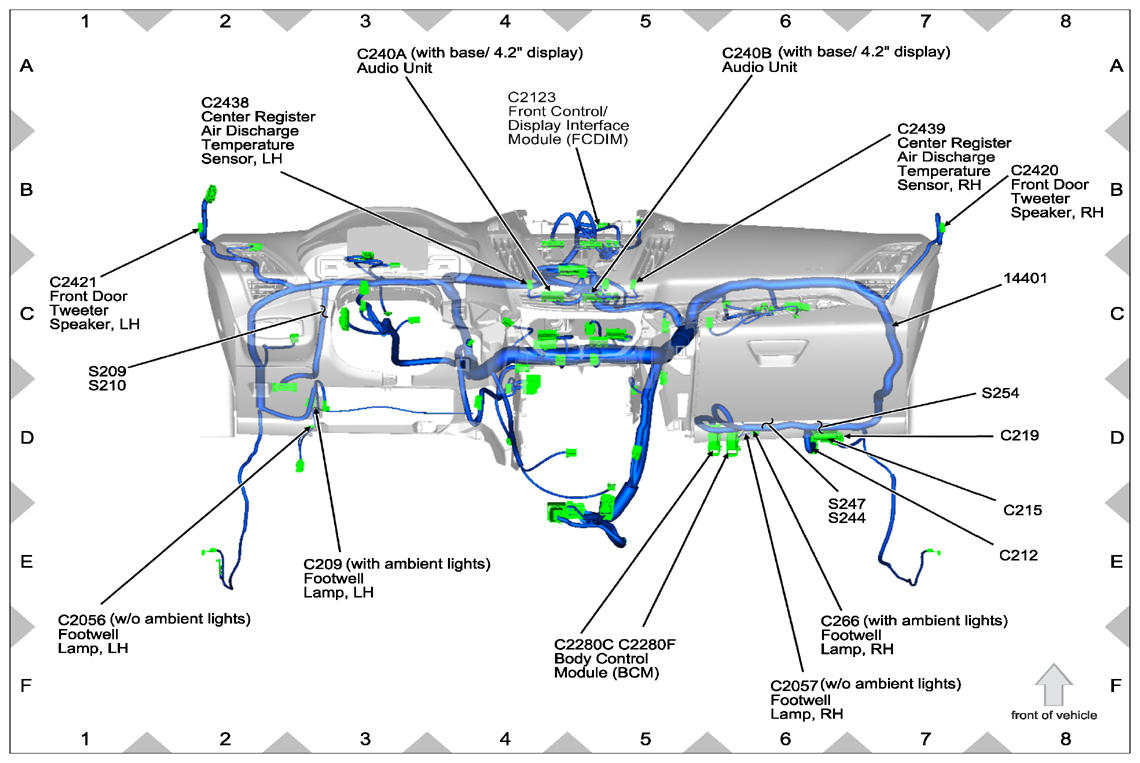

Fig 15: Front Dashboard Wiring Harness Connectors Location (2 Of 3)
G09222881Courtesy of FORD MOTOR CO.

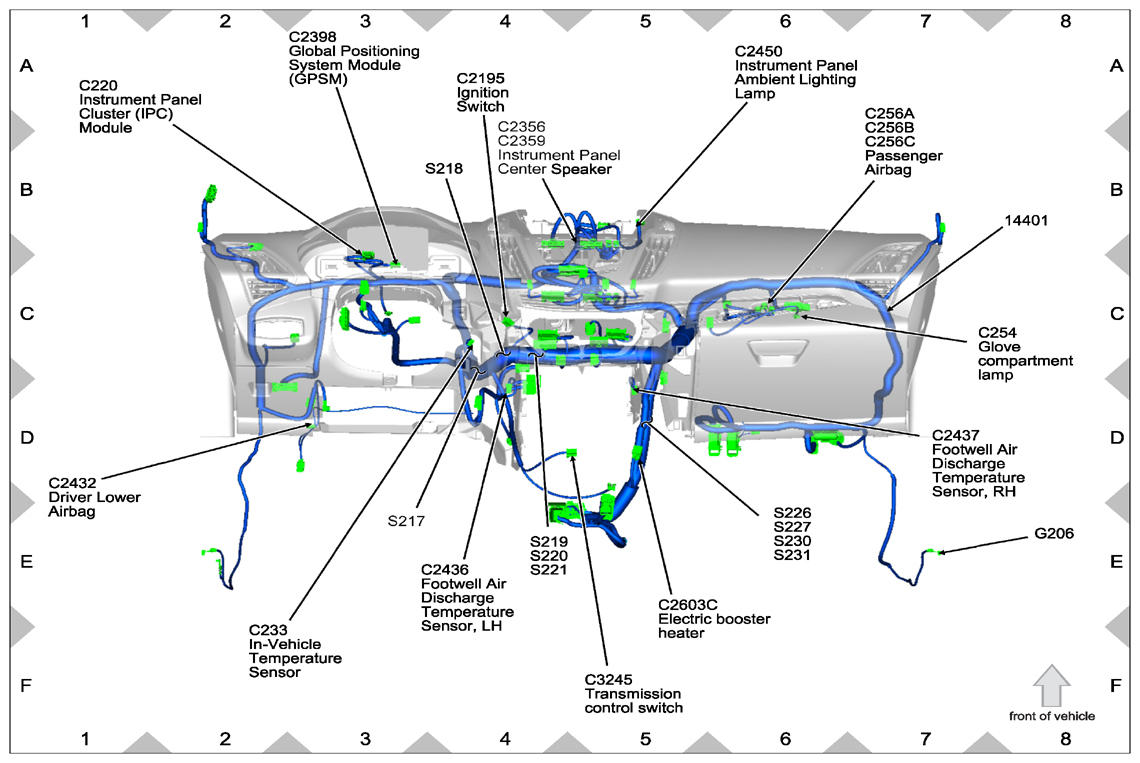

Fig 16: Front Dashboard Wiring Harness Connectors Location (3 Of 3)
G09222882Courtesy of FORD MOTOR CO.

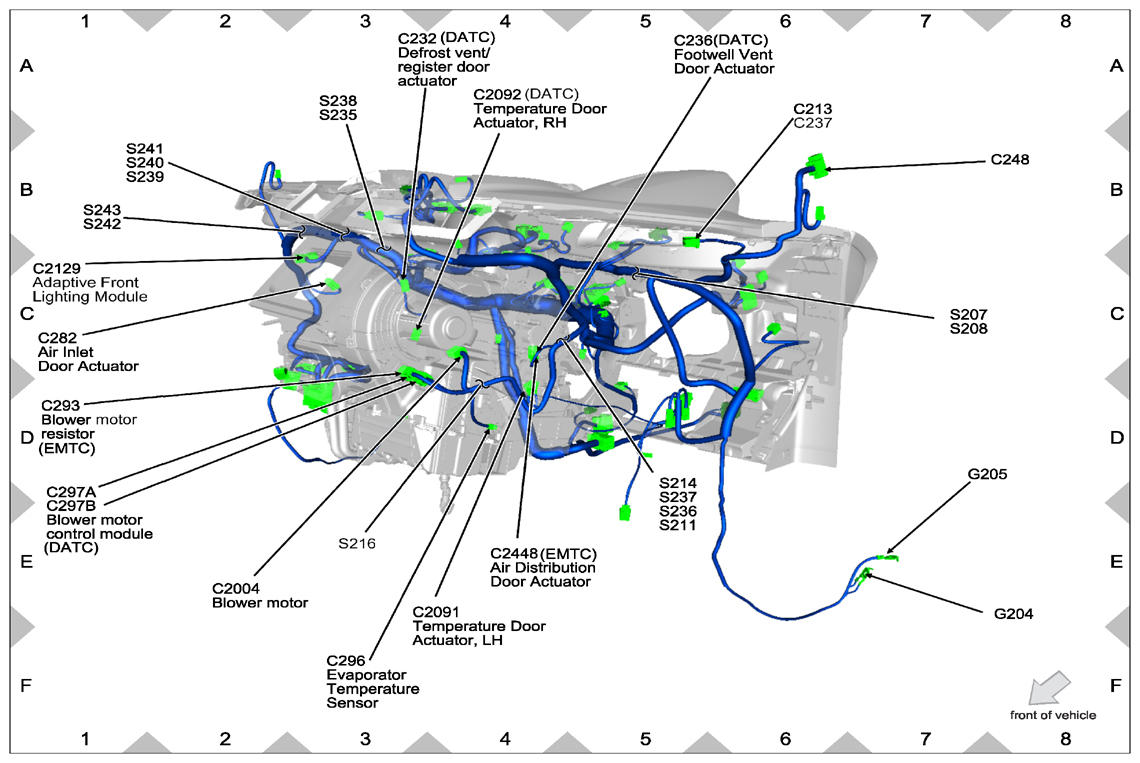

Fig 17: Door Actuator Wiring Harness Connectors Location
G09222883Courtesy of FORD MOTOR CO.

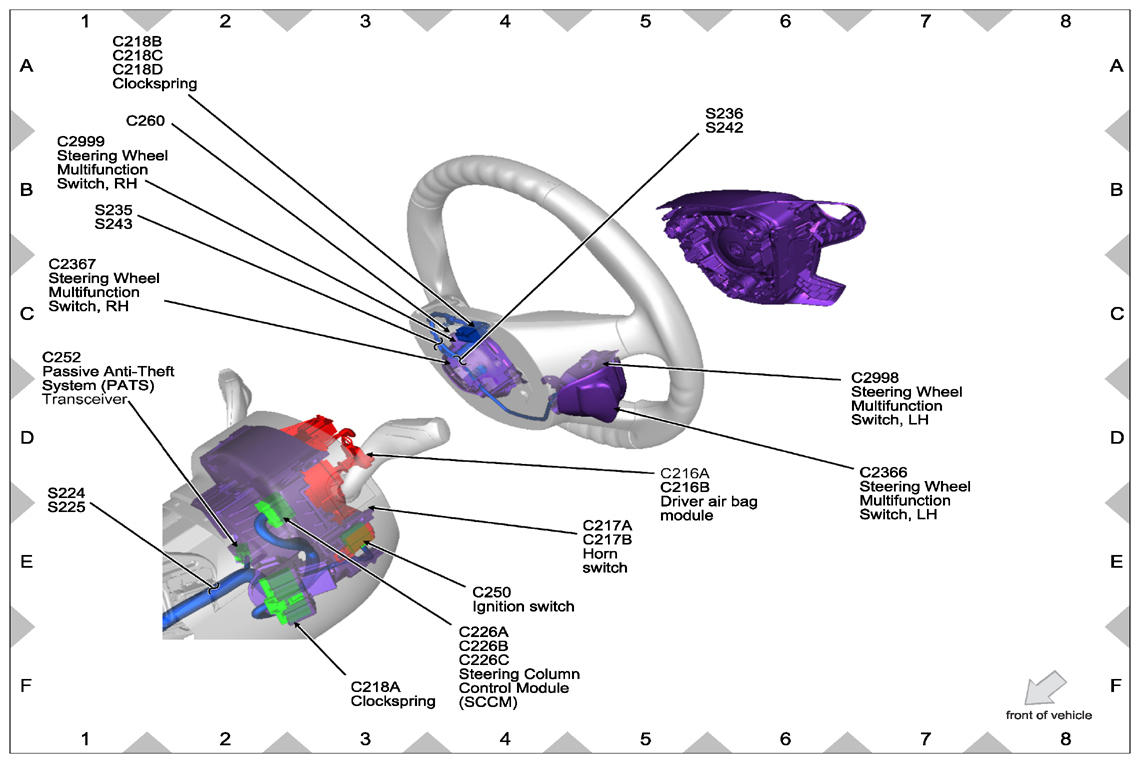

Fig 18: Steering Wheel Wiring Harness Connectors Location
G09222884Courtesy of FORD MOTOR CO.

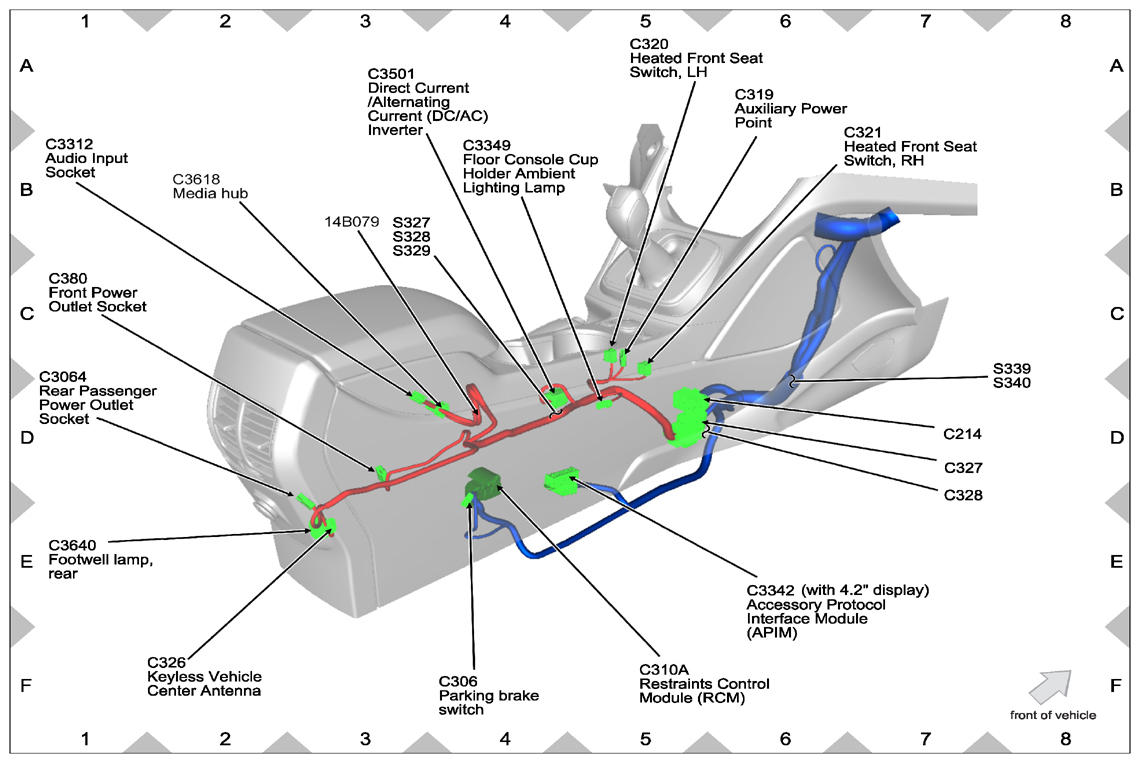

Fig 19: Center Console Wiring Harness Connectors Location
G09222885Courtesy of FORD MOTOR CO.

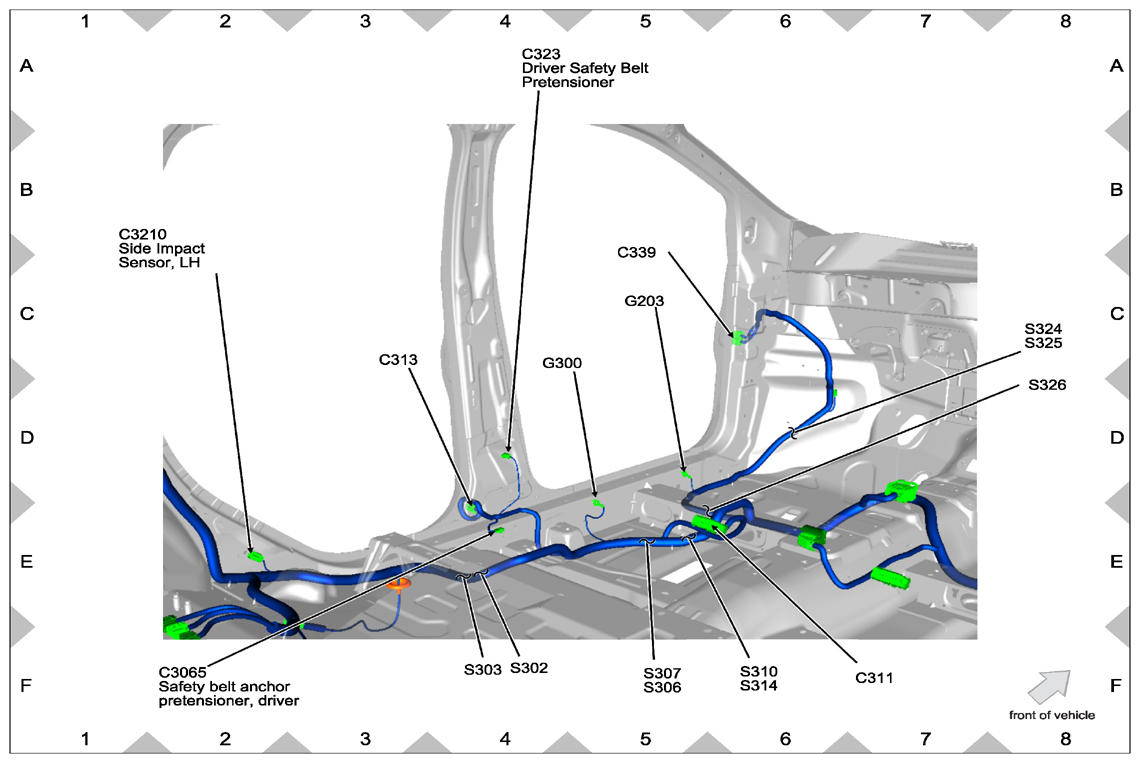

Fig 20: Front Compartment LH Wiring Harness Connectors Location
G09222886Courtesy of FORD MOTOR CO.

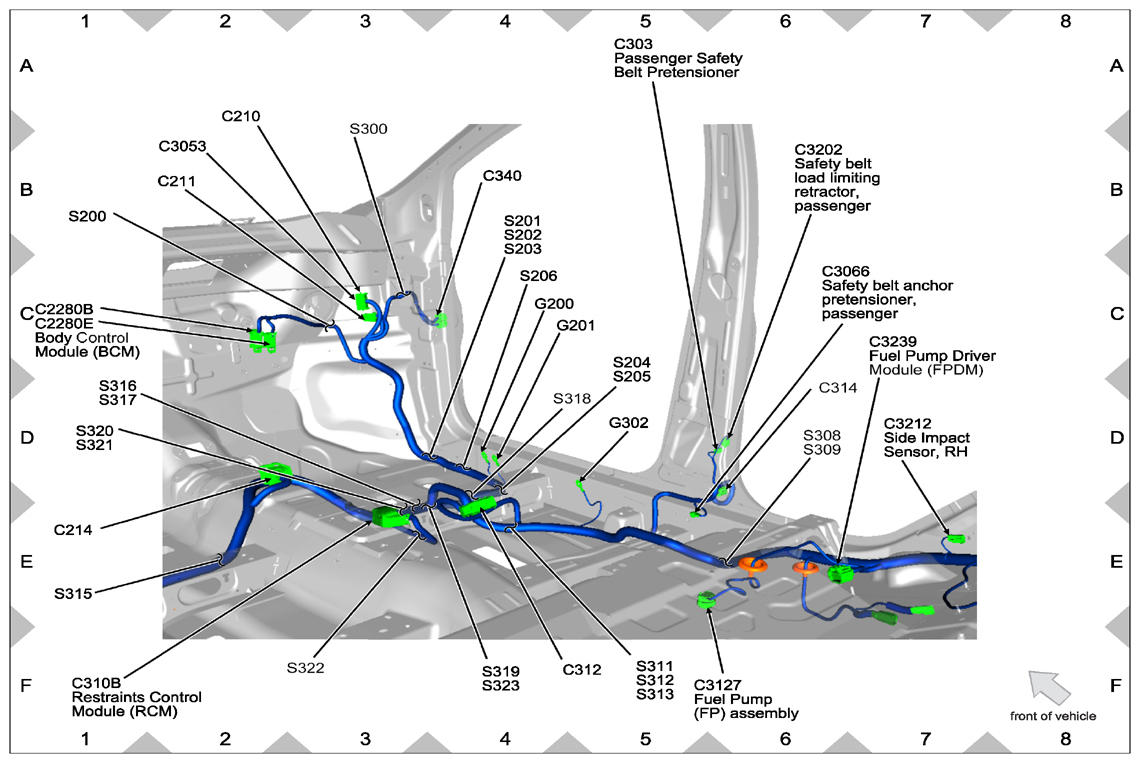

Fig 21: Front Compartment RH Wiring Harness Connectors Location
G09222887Courtesy of FORD MOTOR CO.

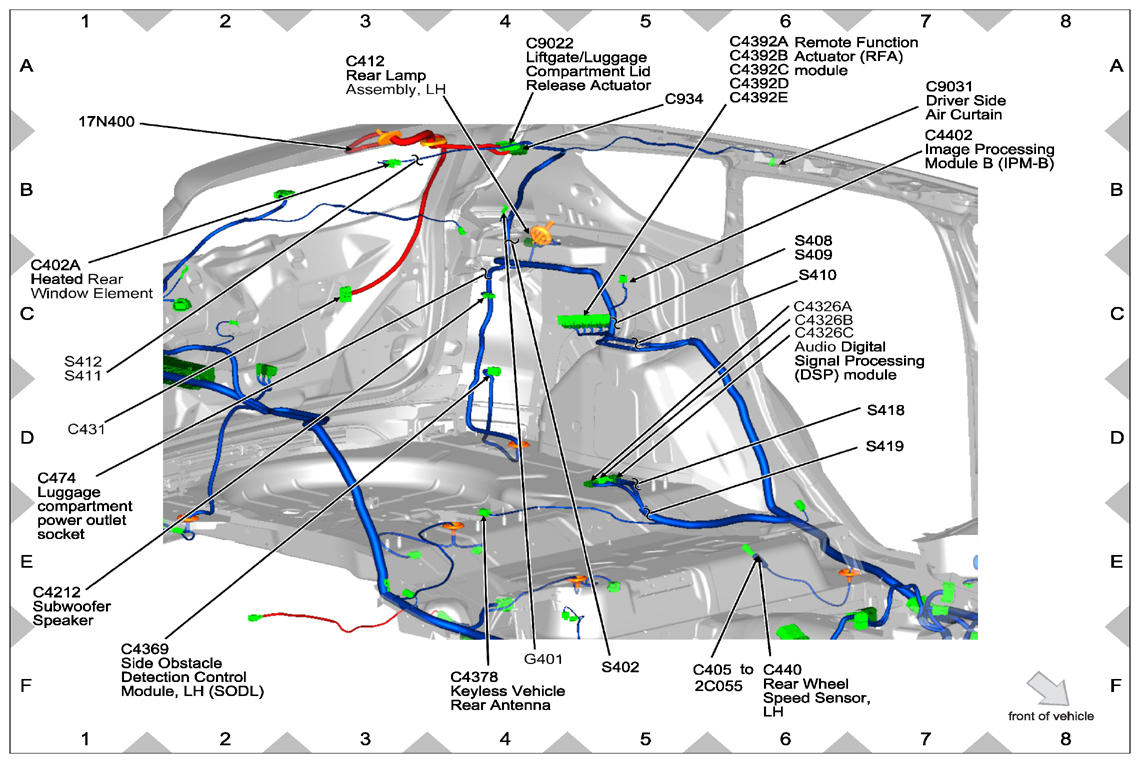

Fig 22: Rear Compartment LH Wiring Harness Connectors Location
G09222888Courtesy of FORD MOTOR CO.

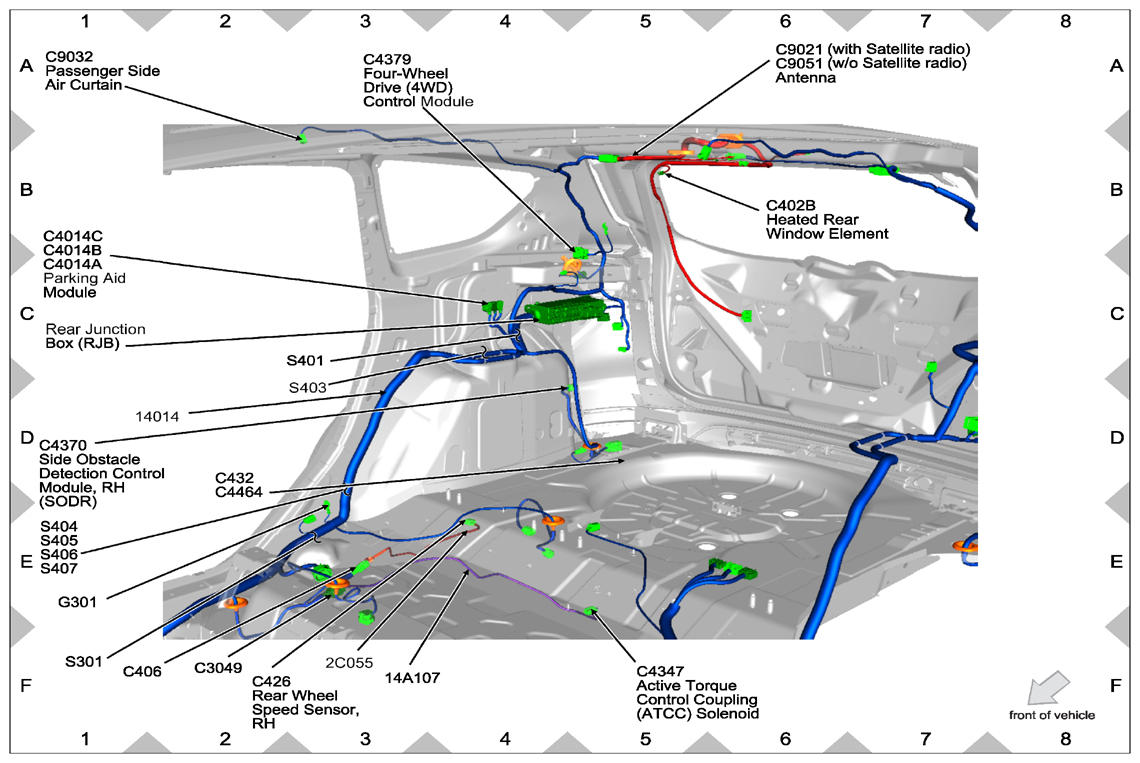

Fig 23: Rear Compartment RH Wiring Harness Connectors Location (1 Of 2)
G09222889Courtesy of FORD MOTOR CO.

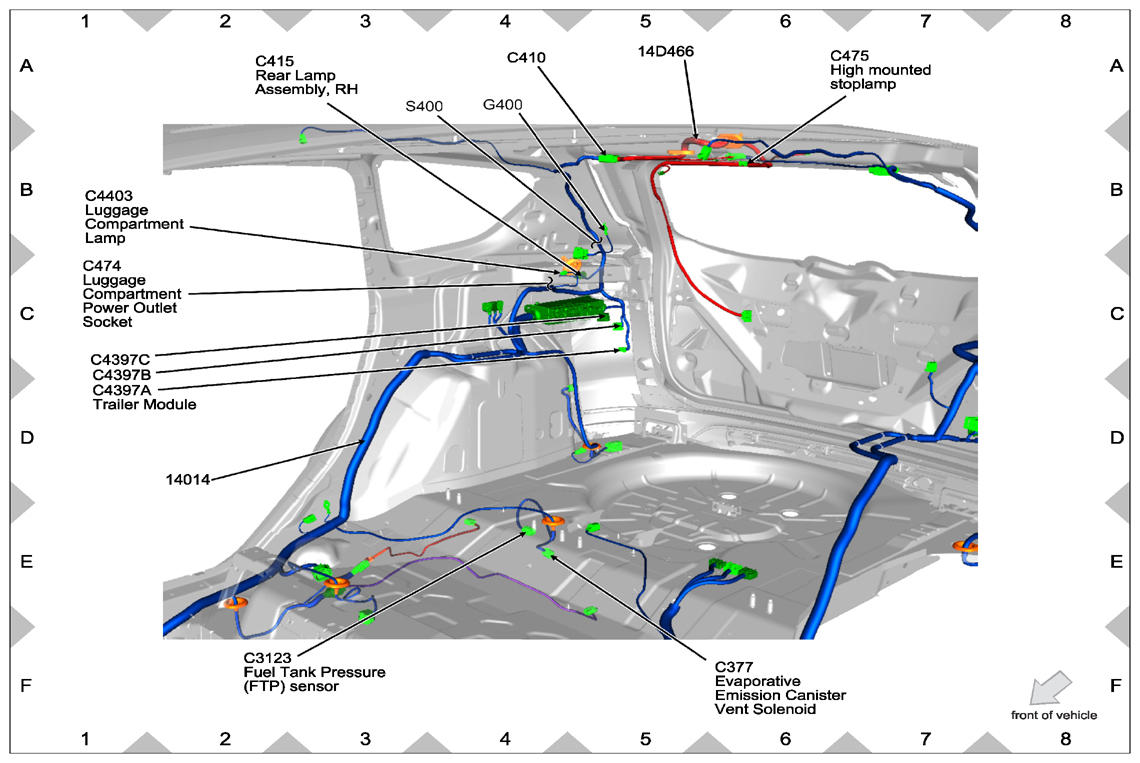

Fig 24: Rear Compartment RH Wiring Harness Connectors Location (2 Of 2)
G09222890Courtesy of FORD MOTOR CO.

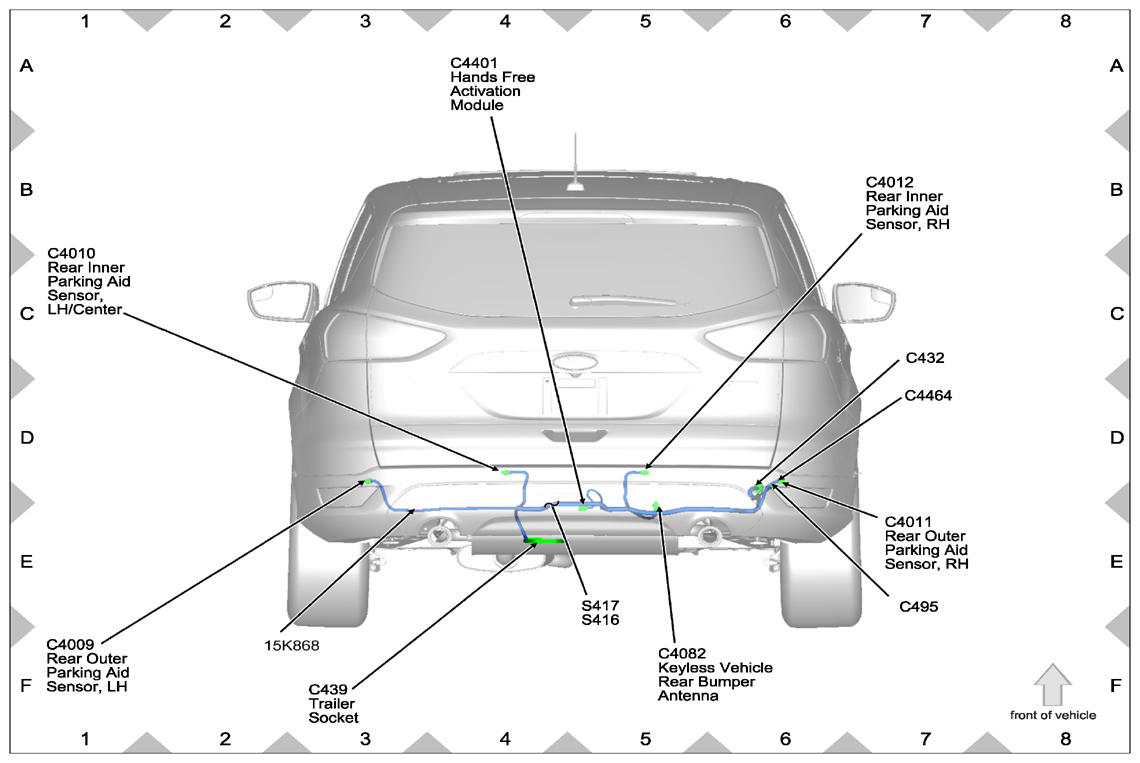

Fig 25: Rear Bumper Wiring Harness Connectors Location
G09222891Courtesy of FORD MOTOR CO.

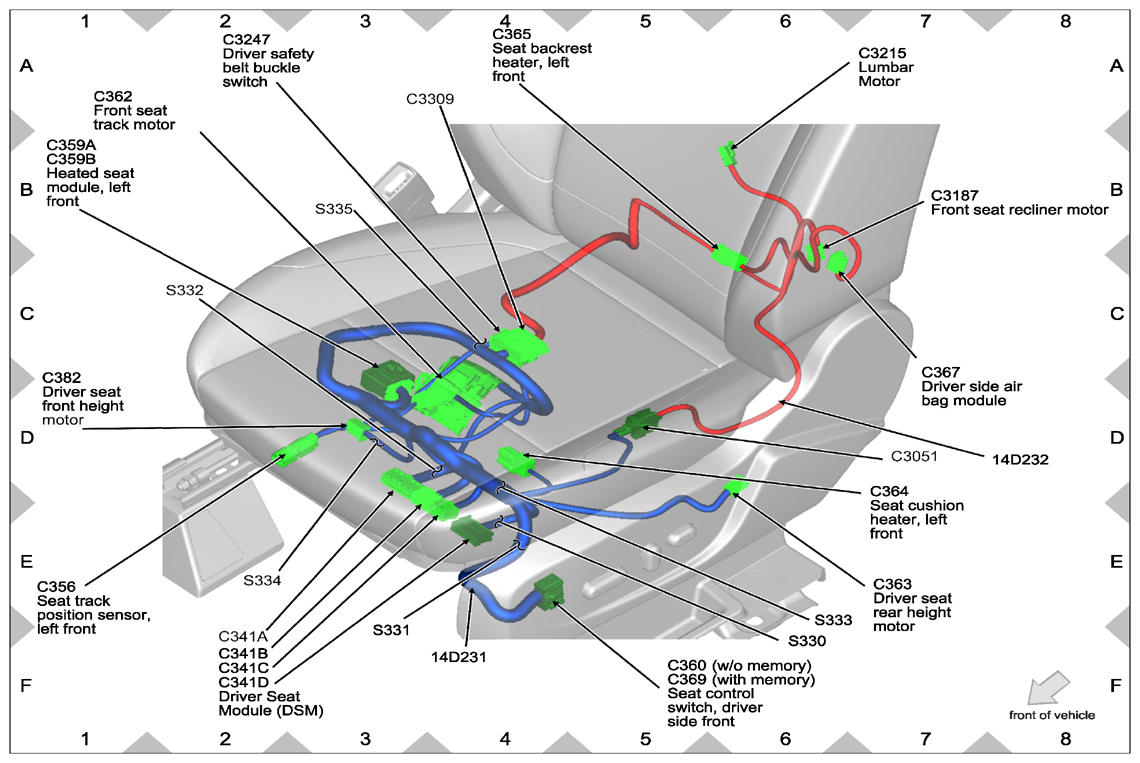

Fig 26: Driver Seat Wiring Harness Connectors Location
G09222892Courtesy of FORD MOTOR CO.

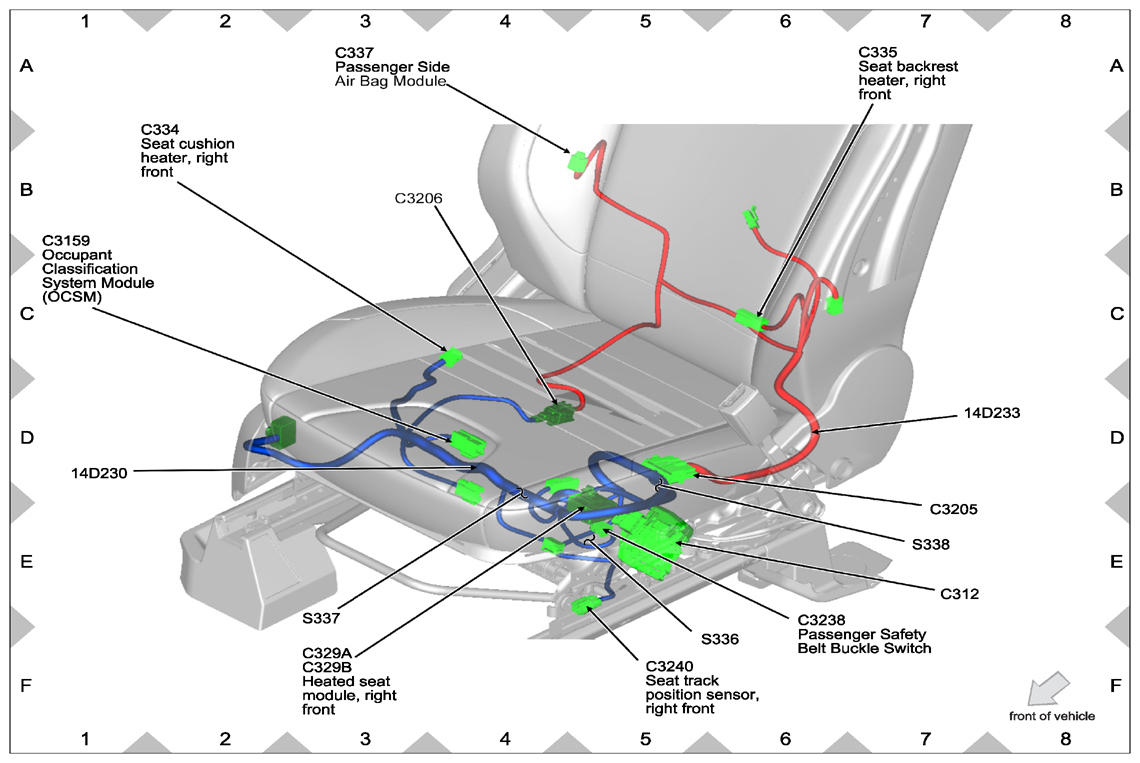

Fig 27: Passenger Seat Wiring Harness Connectors Location
G09222893Courtesy of FORD MOTOR CO.

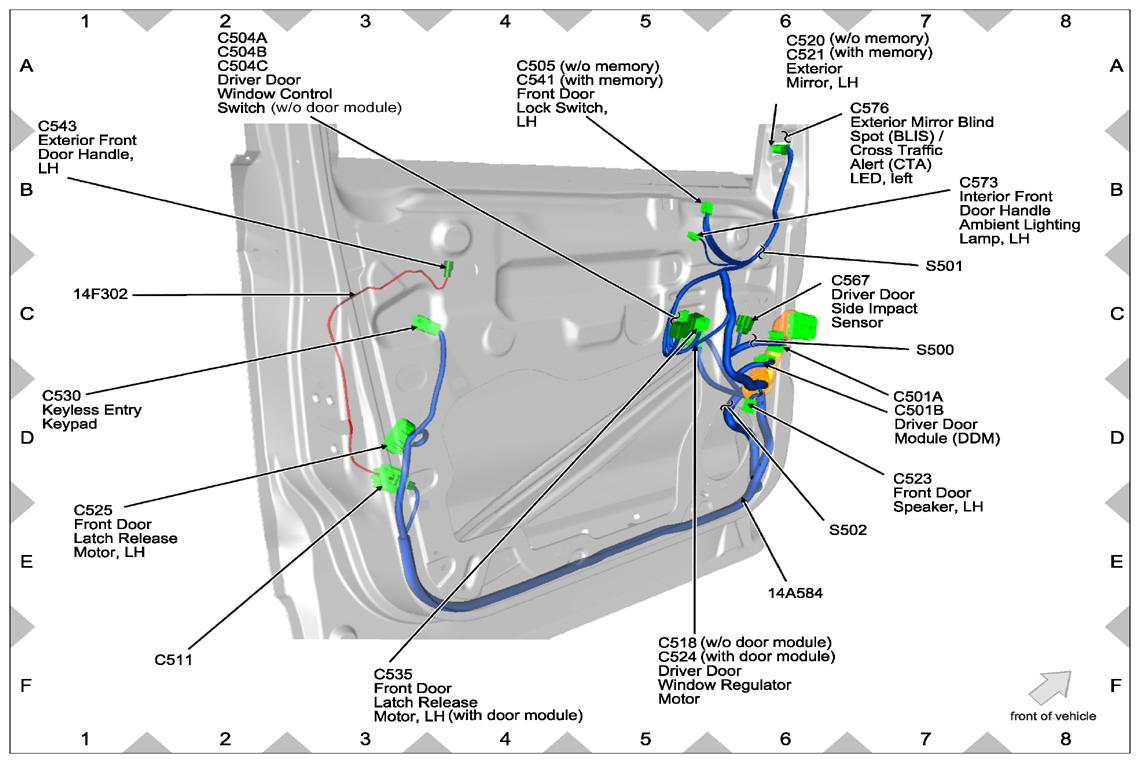

Fig 28: LH Front Door Wiring Harness Connectors Location
G09222894Courtesy of FORD MOTOR CO.

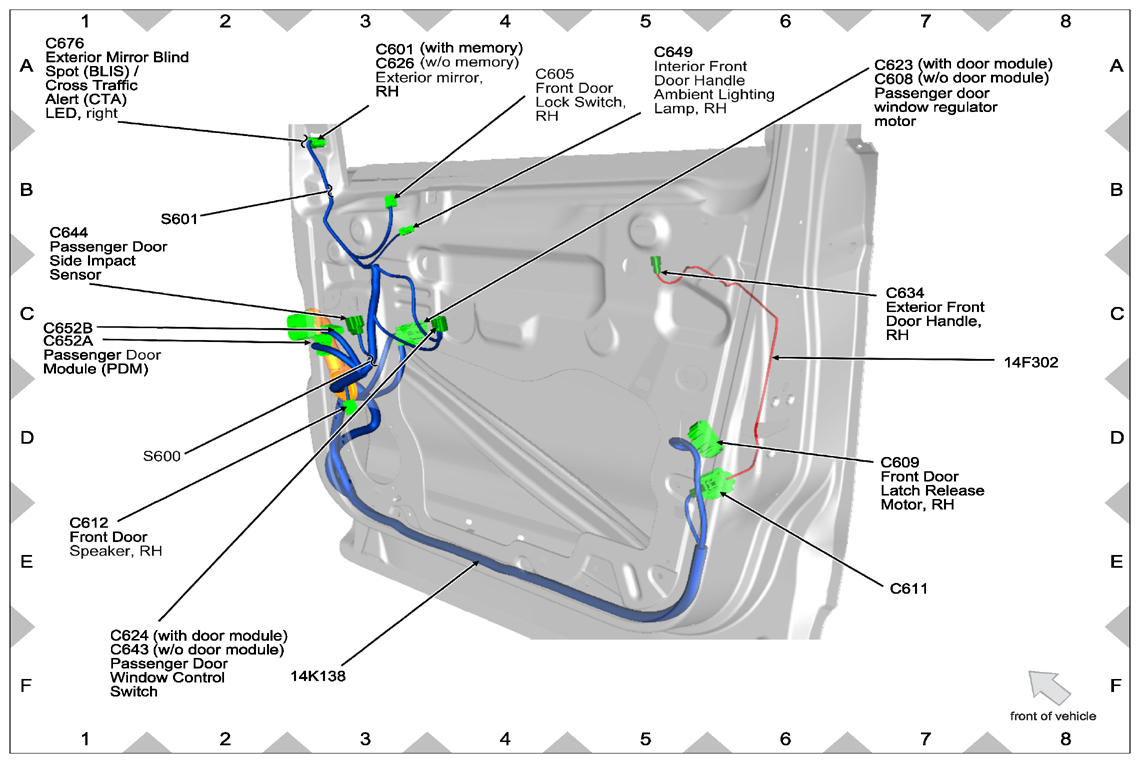

Fig 29: RH Front Door Wiring Harness Connectors Location
G09222895Courtesy of FORD MOTOR CO.

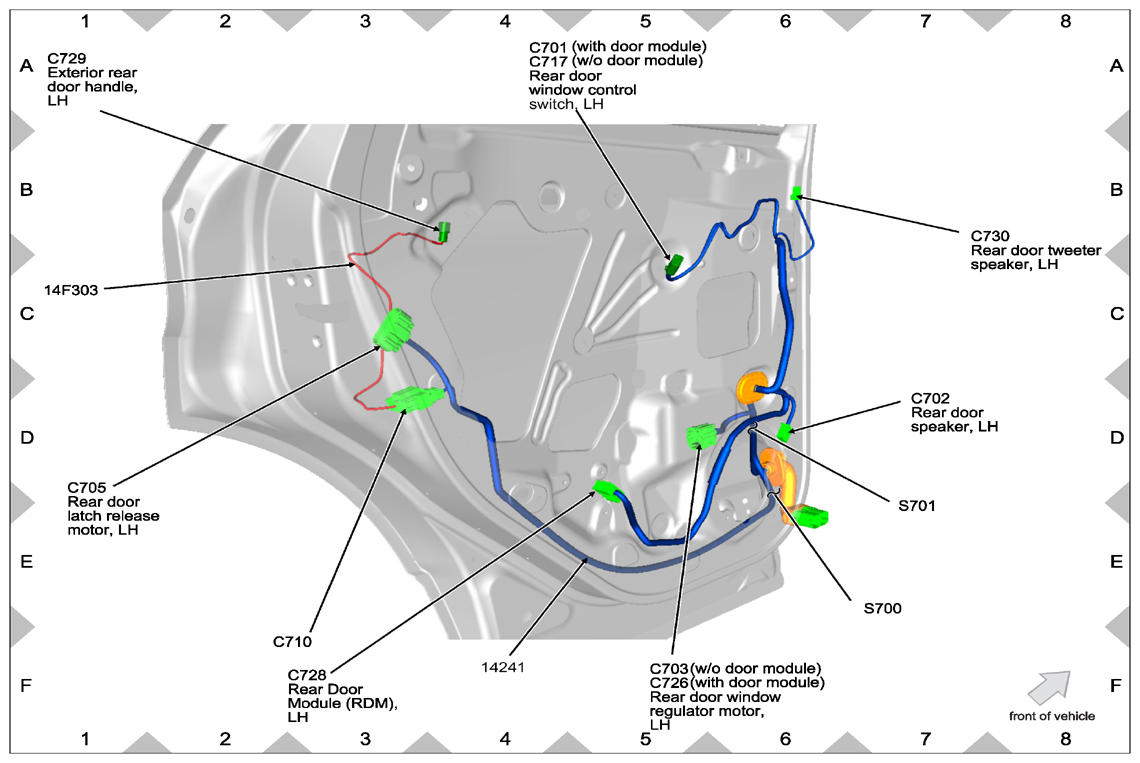

Fig 30: LH Rear Door Wiring Harness Connectors Location
G09222896Courtesy of FORD MOTOR CO.

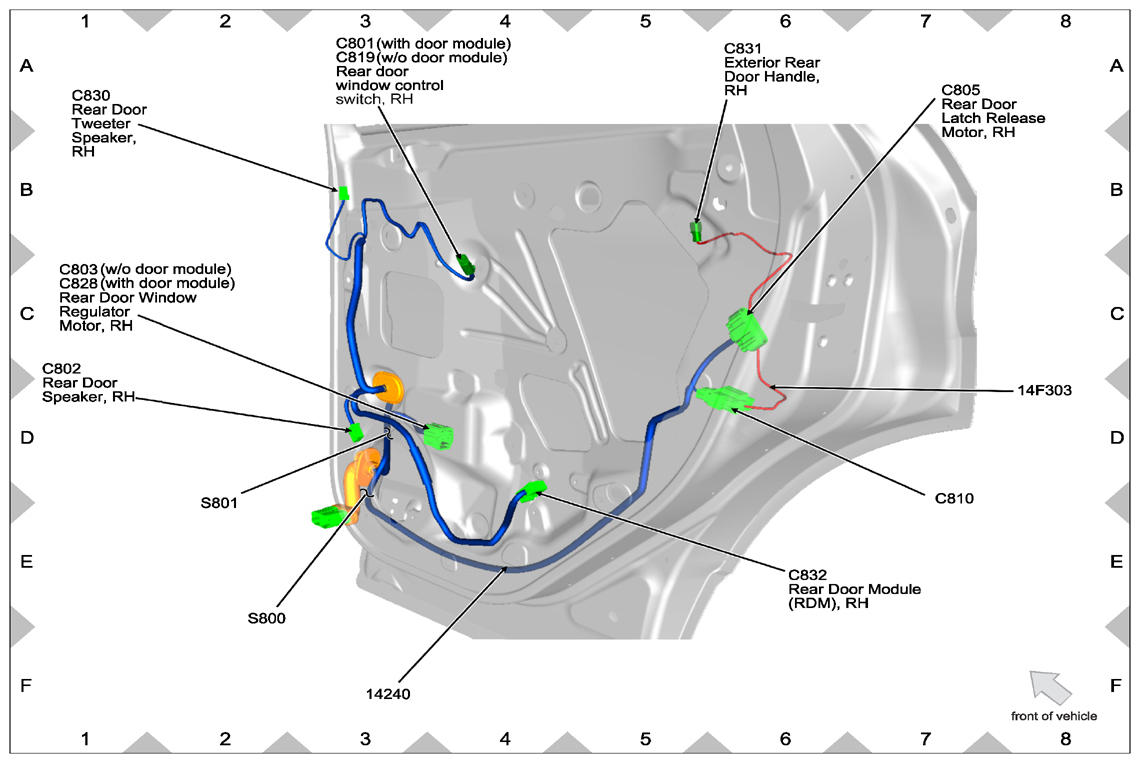

Fig 31: RH Rear Door Wiring Harness Connectors Location
G09222897Courtesy of FORD MOTOR CO.

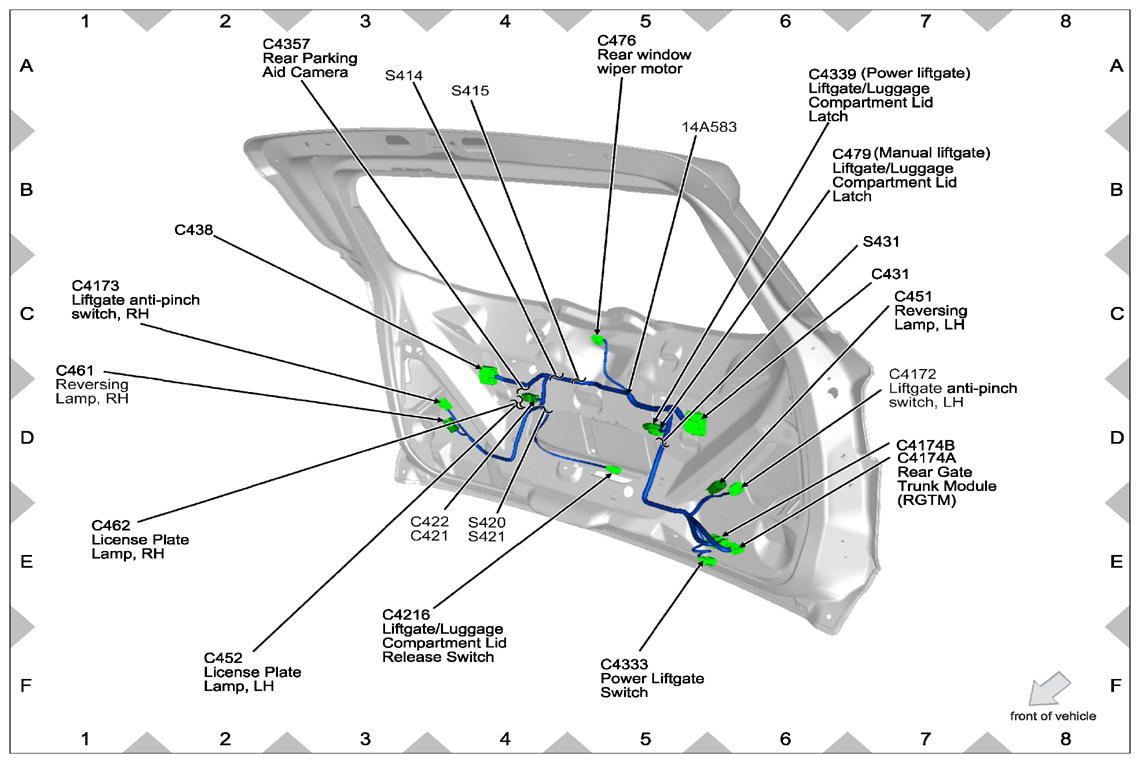

Fig 32: Liftgate Wiring Harness Connectors Location
G09222898Courtesy of FORD MOTOR CO.

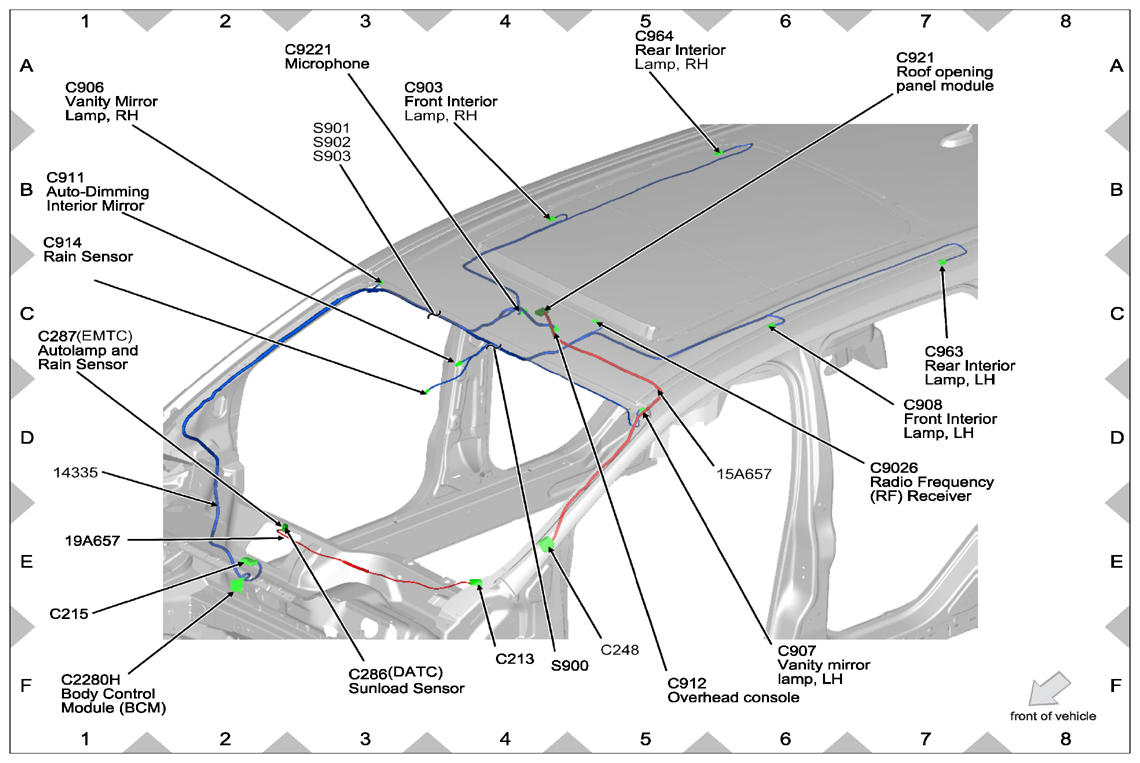

Fig 33: Roof Wiring Harness Connectors Location (1 Of 2)
G09222899Courtesy of FORD MOTOR CO.

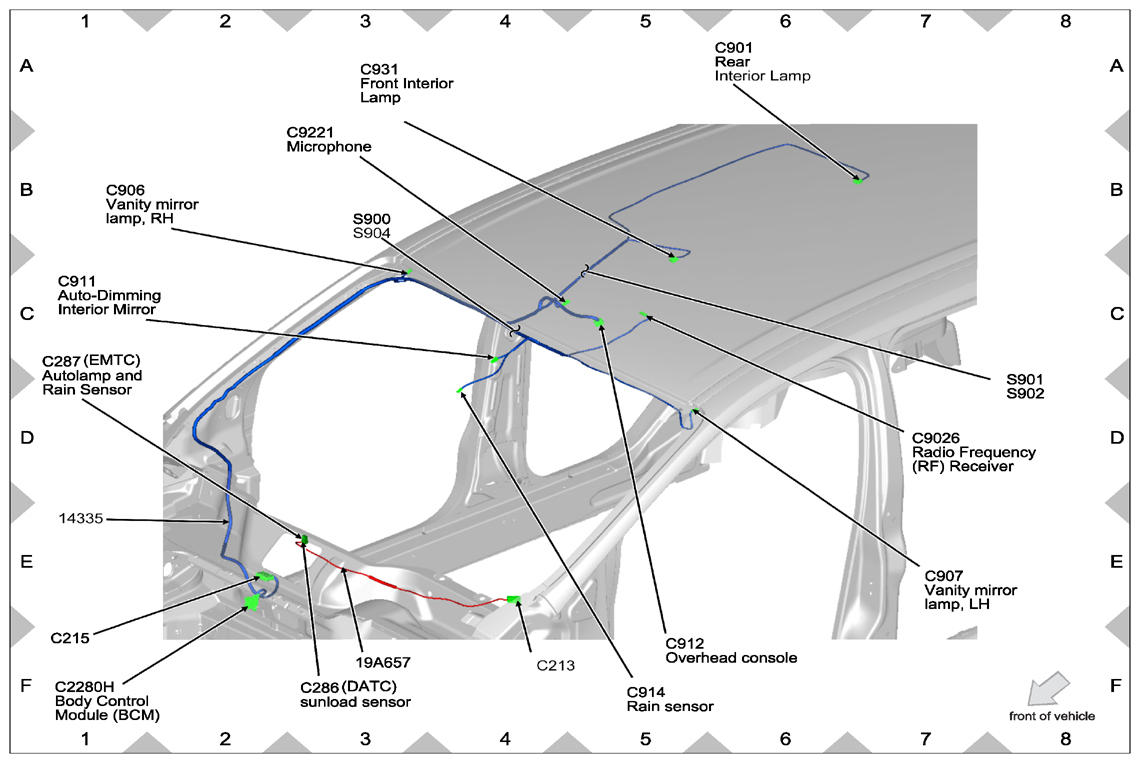

Fig 34: Roof Wiring Harness Connectors Location (2 Of 2)
G09222900Courtesy of FORD MOTOR CO.
