Body Control Module (BCM)

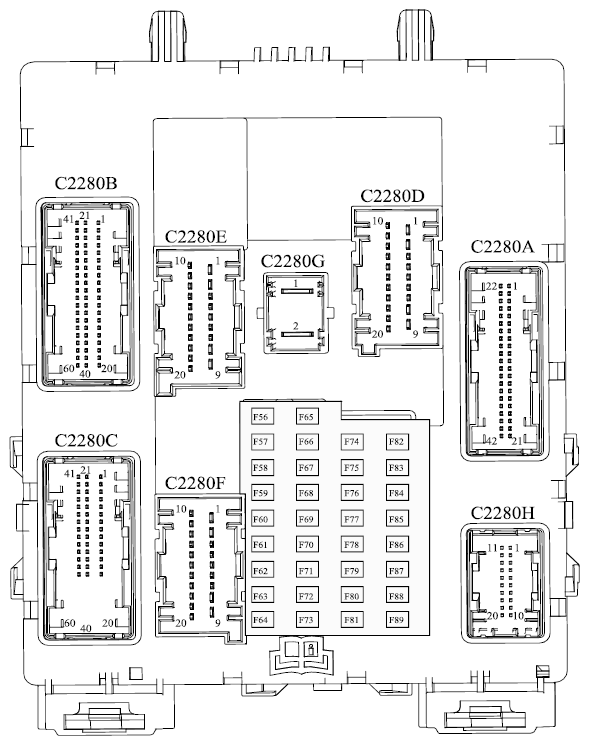

BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F56 | 20 | Fuel pump relay, Fuel Pump Control Module (FPCM), Battery Junction Box (BJB) - F28 |
| F57 | - | Not used |
| F58 | - | Not used |
| F59 | 5 | Passive Anti-Theft System (PATS) transceiver |
| F60 | 10 | Luggage compartment lamp, Courtesy lamps, right and left footwells Driver door window control switch Vanity mirror lamp, right and left, Interior/map lamps assemblies, Overhead console, Rear interior lamp, Glove compartment lamp |
| F61 | 20 | Not used |
| F62 | 5 | Auto-dimming interior mirror, Rain sensor |
| F63 | - | Not used |
| F64 | - | Not used |
| F65 | 10 | Liftgate/luggage compartment lid latch, Liftgate/decklid release relay |
| F66 | 20 | Driver door unlock relay, Door latch, left front |
| F67 | 7.5 | Front Control/Display Interface Module (FCDIM), Global Positioning System Module (GPSM), Accessory Protocol Interface Module (APIM) |
| F68 | 15 | Spare relay |
| F69 | 5 | Instrument Panel Cluster (IPC) module |
| F70 | 20 | Front door latch release motor, RH, Front door latch release motor, LH Rear door latch release motor, LH, Rear door latch release motor, RH |
| F71 | 10 | Electronic Automatic Temperature Control (EATC) module, Heating, Ventilation and Air Conditioning (HVAC) control module |
| F72 | 7.5 | Steering Column Control Module (SCCM) |
| F73 | 5 | Data Link Connector (DLC) |
| F74 | 15 | High beam relay, Headlamp assembly, right and left |
| F75 | 15 | Fog lamp relay, Fog lamp, right front, Fog lamp, left front |
| F76 | 10 | Reversing lamp relay, Auto-dimming interior mirror, Reversing lamp, right and left |
| F77 | 20 | Front washer relay, Rear washer relay, Windshield washer pump motor |
| F78 | 5 | Ignition switch - without IA, Start/stop switch - with LA |
| F79 | 15 | Audio unit, Front Controls Interface Module (FCIM) |
| F80 | 20 | Roof Opening Panel Module |
| F81 | 5 | Radio Frequency (RF) receiver |
| F82 | 20 | Front washer relay, Rear washer relay |
| F83 | 20 | Passenger door unlock relay, All lock relay |
| F84 | 20 | Driver door unlock relay, Spare relay |
| F85 | 7.5 | Seat heater switches, passenger and driver seats In-vehicle temperature sensor, Electric booster heater, Heated seat modules |
| F86 | 10 | Restraints Control Module (RCM) |
| F87 | - | Not used |
| F88 | 25 | Supply for F67, F69, F71 and F79 |
| F89 | - | Not used |
