OEM Ground Distribution: Grounds: G204

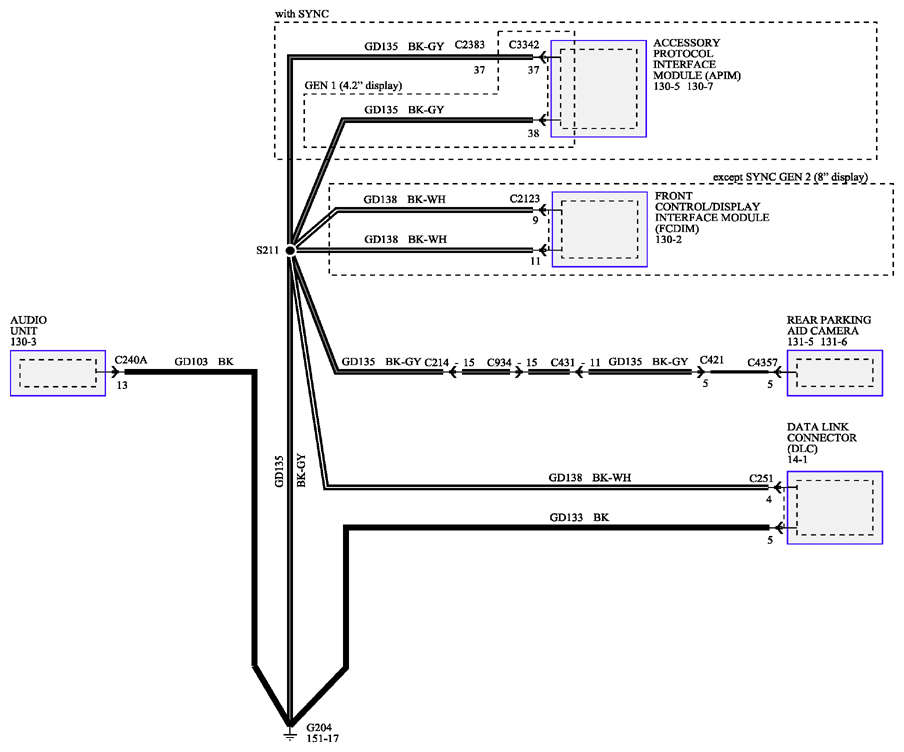

Fig 1: Grounds - Wiring Diagram - G204

G09222563

Courtesy of FORD MOTOR CO.
