OEM Ground Distribution: Grounds: G205

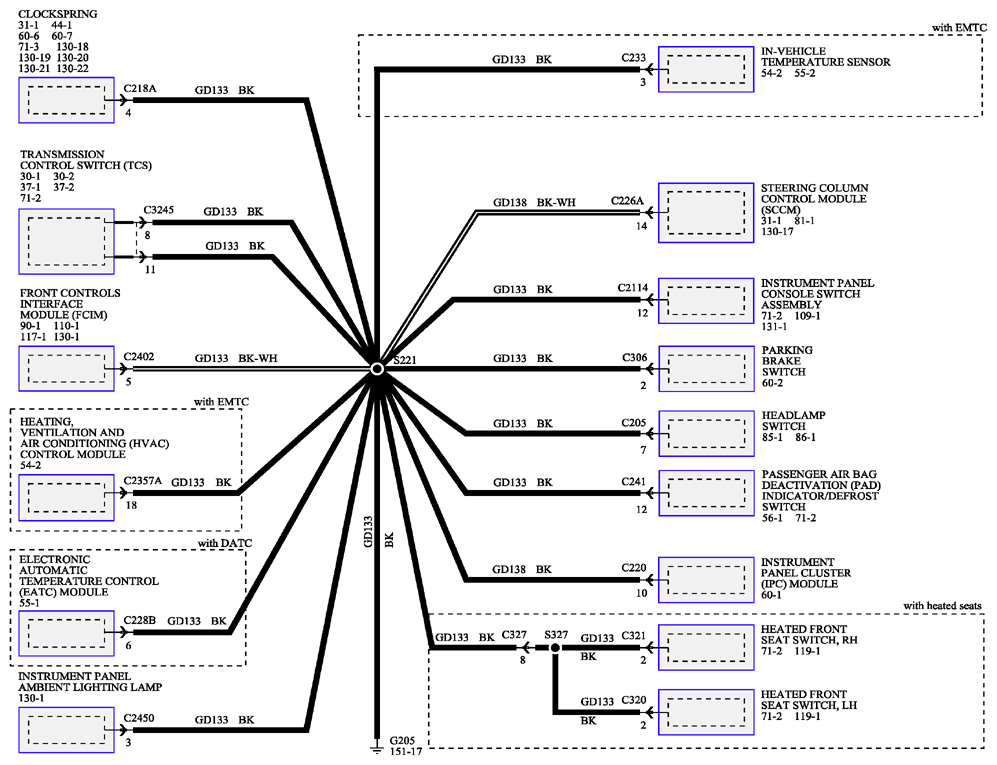

Fig 1: Grounds - Wiring Diagram - G205
G09222564Courtesy of FORD MOTOR CO.
