OEM Ground Distribution: Grounds: G401

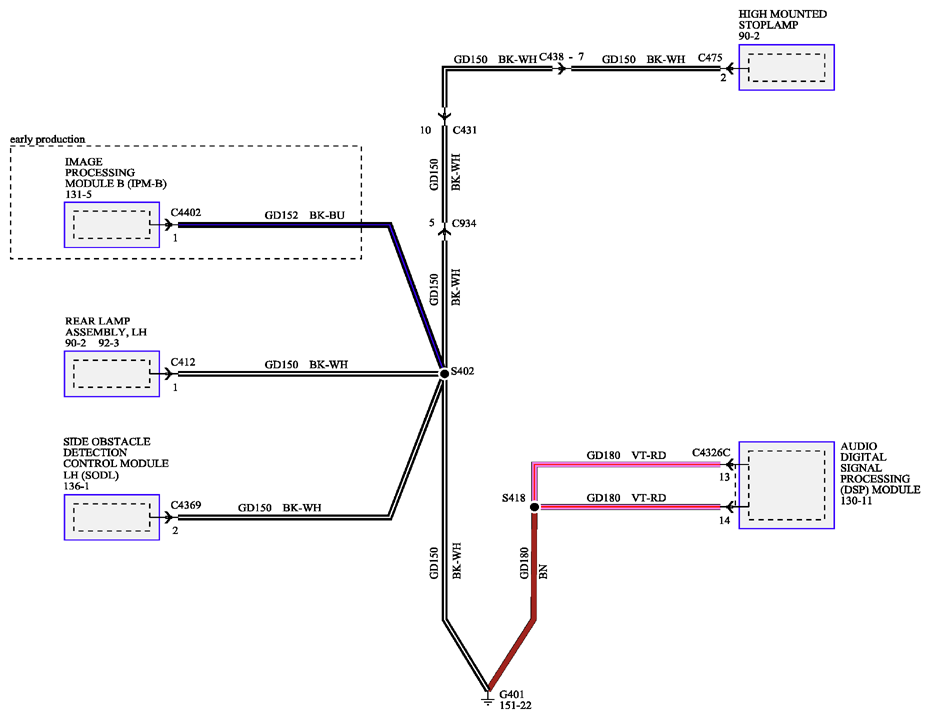

Fig 1: Grounds - Wiring Diagram - G401

G09222570

Courtesy of FORD MOTOR CO.
