Master Window Control Switch - Without Door Modules: Schematic

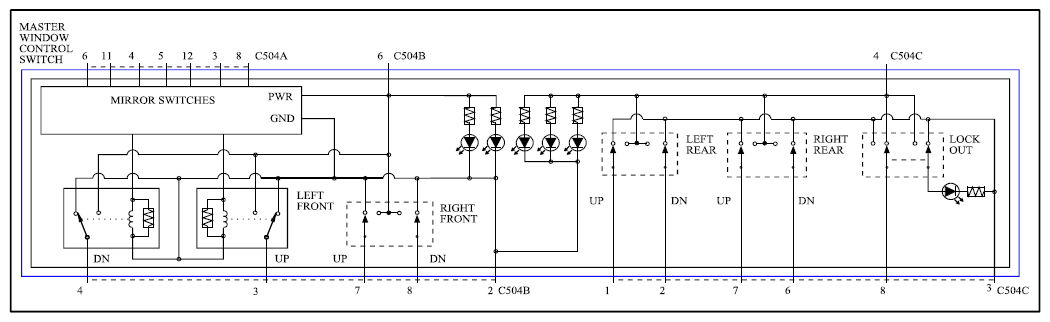

Fig 1: Master Window Control Switch - Without Door Modules Schematic
G09222849Courtesy of FORD MOTOR CO.
