2.0L GTDI
WARNING: This page is about a different car, the 2013 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

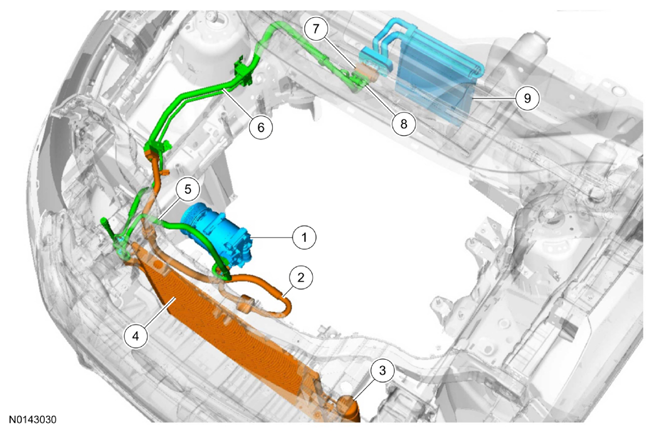

| Item |
Description |
| 1 |
A/C compressor |
| 2 |
Evaporator-to-compressor suction line |
| 3 |
Receiver/drier |
| 4 |
Condenser core |
| 5 |
Compressor-to-condenser discharge line |
| 6 |
TXV manifold and tube assembly |
| 7 |
TXV |
| 8 |
A/C pressure transducer |
| 9 |
Evaporator core |
